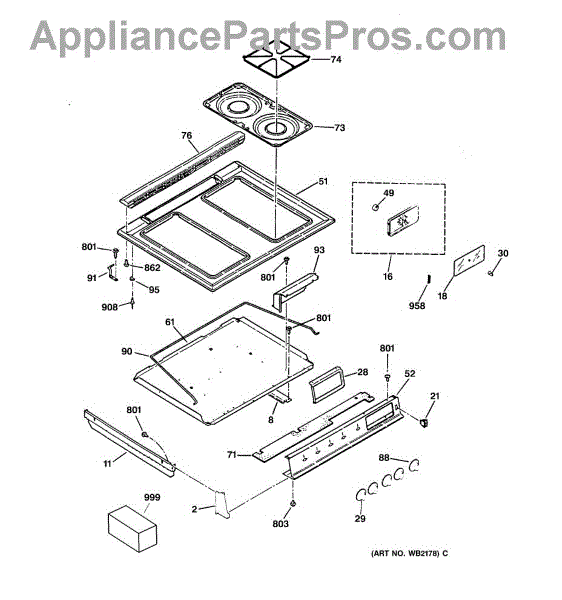

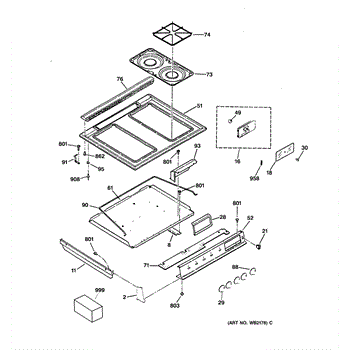

Parts for Ge JGSC12GET1BG: 01 - Control Panel & Cooktop Parts

Color: Black

Color: Chrome. 3 pack. These range clock knobs are all you need to cover one timer control. For black order WB3X5699.

This replacement burner box bottom is the lower metal pan that supports and protects the range's burner assembly, helping contain spills and direct heat away from internal components for safer, more reliable operation. What it does:

• Provides a protective base for the burner assembly and internal wiring/components
• Helps channel heat and spills away from sensitive parts to reduce corrosion and damage
• Keeps burners aligned and seated properly for consistent ignition and flame pattern
• Worn, rusted, or warped pans can lead to uneven flames, burner misalignment, or visible damage under the cooktop

• Disconnect the appliance from power and shut off the gas supply before servicing
• Allow the range to cool completely and remove surface components (grates, burners, cooktop) per the owner's manual
• Handle metal edges carefully; rusted parts may have sharp areas
• Follow OEM instructions and torque guidelines when reinstalling; replace any damaged fasteners or gaskets as needed

Color: chrome. Measures about 9 inches wide by 19 inches deep.

This is a replacement trim screw used to secure exterior trim pieces and panels on compatible appliances. It restores proper fit and prevents loose or rattling trim for a finished appearance. What it does:

• Secures appliance trim, bezels, and small panels to the cabinet or frame
• Stops trim from shifting, vibrating, or falling loose during operation
• Matches the original size and finish for a discreet, finished look
• Used where a 10-16 thread size and 3/4" length are specified

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until trim is secure to prevent thread damage
• For appliances with electrical or gas connections, disconnect power or gas supply before servicing
• If screws are corroded or stripped, replace matching mating hardware as needed

ST10-16 X 7/16"

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Nickel
