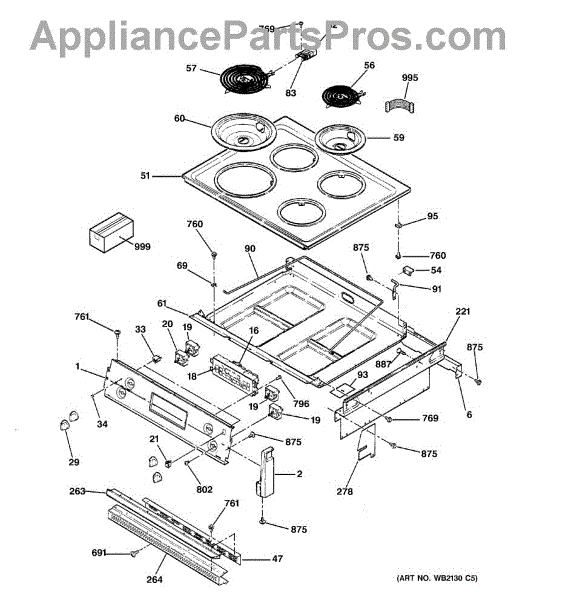

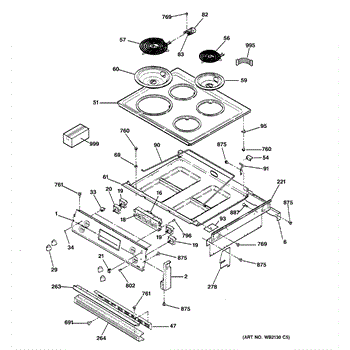

Parts for Ge JMP31BL2BB: 01 - Control Panel & Cooktop Parts

This is the white front control panel for the console/user-interface area. It restores a clean appearance and a secure mounting surface for the controls so the console fits and feels solid after damage or wear.

• Provides the outer control-console panel that supports/aligns the user interface components
• Protects and positions the keypad/display area for proper fit and feel
• Common replacement reasons: cracked or broken panel, missing/broken tabs, warping, discoloration, or loose/ill-fitting console
• Helps ensure controls sit correctly and are easy to access

• Disconnect power before servicing; be aware the high-voltage capacitor can retain a dangerous charge
• Remove mounting screws/clips and release locking tabs carefully to avoid damage
• Transfer any switches, control board, bracket, or overlay from the original panel as required by your model
• Route wires/ribbons carefully and avoid over-tightening fasteners; test all controls before final reassembly

This right-side end cap replaces a worn or broken trim cap to restore a finished look and protect the exposed edge. It fits at the end of the trim piece to help prevent snagging and covers hardware for a clean appearance. What it does:

• Covers and protects the outer end of the trim/rail on the right side
• Helps prevent cuts, snags, and dirt buildup on exposed edges
• Restores a finished appearance when the original cap is cracked, chipped, or missing
• Works with the matching left-side cap to maintain trim alignment and fit

• High-level: usually snaps or slides into place; may require removal of adjacent trim for access
• Use gentle pressure and avoid forcing to prevent damage to trim or cap
• Disconnect power or follow appliance safety guidelines if working near electrical components

This cap end light protects and secures the oven/refrigerator lamp connection so the interior light stays covered and aligned. It's a small replacement part that restores a proper lamp seal and electrical contact. What it does

• Covers the exposed end of the interior lamp to protect the bulb and wiring
• Holds the lamp in correct position for reliable illumination
• Prevents light assembly rattles or misalignment
• Can resolve interior light flicker or failure when the cap is cracked or damaged

• One cap end light

• Disconnect power before servicing any appliance light or electrical component
• Remove the old cap by hand or with basic tools; press the new cap into place until secure
• Inspect the bulb and socket for corrosion or damage when replacing the cap

The Oven Control Board is an OEM part for GE ranges. As the central processor, it controls all cooking operations and digital interface functions.

Causes of needing replacement include moisture exposure deteriorating circuitry over time, power abnormalities damaging sensitive chips, or continuous daily cooking cycles promoting natural wear.

Symptoms requiring attention are:

• Fault codes appearing and knobs/buttons unresponsive
• Inaccurate temperature calibration or modes stuck on/off
• Clean and Convection options permanently disabled
• Bake element or broiler functioning erratically

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This black clock plate is the trim and mounting plate for the range or wall oven clock/timer in the control panel/backguard. It restores a clean, finished look and helps position and support the clock assembly securely.

• Provides the mounting surface and finished opening for the clock/timer module
• Helps align the display and protect surrounding panel edges
• Replace if cracked, warped, missing, or heavily discolored
• Typical symptoms include a loose or misaligned clock, rattling, or visible damage around the display

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Remove the control panel/backguard to access the clock and plate
• Transfer the clock/timer to the new plate and reuse existing hardware
• Align carefully and avoid overtightening to prevent damage; verify display alignment before reassembly

Color: White

The Clock Plate is an OEM part for GE ranges. This part covers and protects the clock and timer mechanisms, providing a clean and organized appearance to the appliance's control panel.

Causes of a bad clock plate can include physical damage such as cracks or breaks, discoloration from heat exposure, or wear and tear from regular use.

Symptoms of a bad clock plate include:

• Cracks or visible damage
• Discoloration or yellowing
• Difficulty reading the clock or timer

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Switch (8") is an OEM replacement part for GE stovetops. It is responsible for controlling the heat output of the burner. The switch allows you to adjust the heat level by turning the knob, regulating the amount of power supplied to the burner. A bad infinite switch can be caused by regular wear and tear, electrical issues, or overheating. It can also become damaged if exposed to moisture.

Symptoms of a bad infinite switch include:

• The burner not heating up
• The burner staying on at the highest heat setting
• The burner not turning off or not responding
• Visible signs of damage

Causes of a bad infinite switch can include normal wear and tear over time, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This is a black rocker switch used to control a function on compatible ranges/cooktops. Replacing a worn or inoperative switch restores positive on/off control and reliable operation of the connected feature.

• Controls an appliance function (such as a light or igniter circuit) with a single on/off action
• Common failure signs: switch won't stay on, no response when toggled, intermittent operation, or physical damage/discoloration
• Direct-fit replacement designed for the original switch location
• Helps restore safe, predictable control to the appliance

• Disconnect power and, if applicable, shut off gas before servicing
• Access is typically from the control panel; retain orientation of wires and note terminal positions
• Transfer wires one at a time to the new switch to avoid miswiring
• Inspect connectors for heat damage; replace damaged terminals before reassembly

This replacement control knob fits the surface element infinite switch, letting you turn the burner on and choose the heat level. Replace a cracked, stripped, or missing knob to restore smooth, reliable control and a clean, matched finish.

• Attaches to the infinite switch stem to select burner settings from Off to High
• Restores proper feel and engagement when the original knob is worn or broken
• Common symptoms: knob splits, wobbles, falls off, is hard to turn, or won't engage the switch
• Color-matched white to blend with compatible control panels

• Disconnect power to the range/cooktop before servicing
• Pull the old knob straight off the switch stem; avoid prying on the control panel
• Align the new knob with the stem and press firmly until fully seated
• The pointer aligns to Off before restoring power

This control knob replaces a worn or missing knob on your range or cooktop. It pushes onto the control shaft so you can adjust heat settings with a solid grip and reliable operation.

• Attaches to the control shaft to turn the valve or thermostat
• Restores smooth, accurate adjustment of burner or element settings
• Common symptoms: knob cracked, stripped, loose, falls off, or missing

• Ensure all surfaces are cool; disconnect power. For gas units, shut off gas if working near burner valves
• Pull the old knob straight off; avoid prying. Retain any clip/adapter if present
• Align the new knob with the shaft flat/key and press fully onto the stem
• Do not force; if the knob doesn't seat, inspect the shaft for damage

A light indicator is installed on ranges and wall ovens as a safety feature. The purpose of the light indicator is to tell the user when the appliance is in operation. When the unit is heating up or running, the light indicator will illuminate. A replacement part is necessary if the component is no longer functioning.A visual inspection will determine if the light indicator is working. Turn the oven on, and if the light doesn't glow, it's broken. Replacing the light indicator is a quick and easy process. Unplug the range from its power source before starting. An adjustable wrench or nut driver is required to make the replacement. The light indicator is located inside the cover plate of the appliance.This light indicator is an authentic OEM replacement part. It is sold as an individual unit. It comes sourced directly from the manufacturer. The light indicator is made of durable, high-quality materials. The component is compatible with several models of ranges. It fits into products produced by General Electric, RCA, and Hotpoint.

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

This membrane touchpad replaces a worn or unresponsive control keypad so you can operate your appliance's electronic controls reliably. It restores button input and the tactile surface used to select settings. What it does:

• Replaces the front control touchpad used to enter settings and commands
• Restores responsiveness for unregistered or stuck buttons
• Helps resolve issues where button presses don't register or the control feels worn
• Works with the appliance's existing control electronics and mounting

• Disconnect power to the appliance before starting any repairs
• Handle the membrane gently; avoid folding or creasing the flexible circuit
• Re-seat the connector carefully; ensure contacts are clean and aligned
• If the control still behaves oddly after replacement, try a power reset and verify connector seating.

The Surface Heating Element is an OEM part for GE ranges. It is located on the cooktop and is activated when you turn on the corresponding burner knob. It generates heat to cook or heat food placed on the cookware.

Causes of a faulty surface heating element can include regular wear and tear, electrical malfunctions, or physical damage. These factors can result in issues such as uneven heating, the element not reaching the desired temperature, or complete failure of the heating function.

Symptoms of a bad surface heating element may include:

• Uneven heating or hotspots on the cooktop
• The element not reaching the desired temperature
• Visible damage or signs of burning on the element

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Surface Heating Element is an OEM part for GE ranges.  The element is a large 8" plug-in style burner. This element is designed to provide consistent and even heat for cooking on the stovetop. It is typically used for tasks such as boiling, simmering, and frying, ensuring that your cookware heats up efficiently.

You should replace the surface heating element if it becomes faulty. Causes of a bad surface heating element can include wear and tear from regular use, electrical faults, or physical damage. Over time, the element may degrade, affecting its ability to heat properly.

Symptoms of a bad surface heating element include:

• Element not heating up
• Inconsistent or uneven heating
• Sparks or electrical shorts
• Visible damage or burning on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6 Inch Small Burner Bowl is an OEM part for GE stoves and ranges. It is a durable and heat-resistant bowl that sits beneath the heating element of the small burner, providing a stable and level surface for your cookware. The small burner bowl helps distribute heat evenly and protects the cooktop from spills, stains, and other messes. For the matching 8-inch large burner bowl order WB31T10011.

A bad small burner bowl can be caused by regular use, accidental damage, or it may become discolored, warped, or rusted over time.

Symptoms of a bad small burner bowl include:

• Difficulty in cleaning or removing stubborn stains.
• A loose or wobbly heating element.
• Visible damage such as cracks or chips on the bowl.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The 8 Inch Large Burner Bowl is an OEM replacement part for GE ranges and cooktops. This component is designed to accommodate the larger burners on the cooking surface, providing a stable and safe platform for pots and pans during cooking.

Symptoms of needing to replace the 8 inch large burner bowl include:

• Cracks, chips, or damage to the bowl's surface
• Warping or deformation due to excessive heat
• Difficulty in properly positioning pots and pans on the burner

Causes of a faulty burner bowl can include normal wear and tear over time, exposure to extreme temperatures or thermal shocks, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

Bottom burn box replaces the lower gas burner housing in compatible gas ovens, securing the burner assembly and helping direct heat for steady cooking while protecting internal oven components from flame and debris. What it does

• Houses and positions the lower burner assembly to ensure proper flame direction and ignition.
• Channels heat across the oven floor for more even cooking.
• Shields internal components from direct flame, food spills and debris.
• Common symptoms it can address: burner won't stay lit, irregular or uneven heating, visible corrosion or physical damage to the burner area.

• Always shut off gas supply and electrical power before inspecting or replacing gas-oven components.
• Inspect surrounding gaskets, mounting hardware and the burner assembly; replace any damaged parts.
• Follow OEM service instructions and safety guidelines specific to your oven model.

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.

This vent trim (black) is a replacement decorative cover that finishes the vent opening and restores the appliance's factory appearance. It protects internal components and helps direct exhaust airflow while providing a clean, finished look. What it does

• Covers and seals the vent opening to reduce visible gaps and protect internal parts
• Restores the appliance's exterior finish when the original trim is cracked, chipped, scratched, or missing
• Helps maintain proper airflow path and reduces light leaks around the vent area
• Prevents rattling or movement caused by damaged or loose trim pieces

• One vent trim (black) as pictured

• Turn off and unplug the appliance or disconnect power before beginning work
• Typically secures with screws or mounting clips; have a screwdriver set ready
• Handle gently to avoid scratching the new trim; align clips before fastening
• Follow OEM service instructions for fitment and torque; replace damaged clips or fasteners

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This white trim screw secures panels and plastic trim on the appliance, restoring proper fit and stopping rattles or loose pieces. It's a direct-replacement fastener used where the factory-installed screw has stripped, corroded, or gone missing. What it does

• Fastens trim, panels, or components to maintain proper alignment and fit
• Prevents vibration noise and rattling caused by loose parts
• Replaces stripped, rusted, or lost screws for a clean, finished appearance
• Matches factory finish to remain discreet in visible areas

• Disconnect power to the appliance before starting any repair
• Use the correct-size screwdriver/drill bit to avoid stripping the head
• Tighten securely but do not overtighten; excessive force can crack plastic or strip threads
• Replace only with the same part number to ensure proper fit and finish

This silicon controlled rectifier (SCR) is an electronic switching component that controls current flow in appliance control circuits, helping regulate power to heaters, motors, or other loads for stable operation. What it does:

• Switches and regulates current in control boards and power circuits
• Can prevent power from reaching a heater, motor, or element when failed
• Helps protect downstream components by controlling surge/current flow

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the SCR carefully to avoid electrostatic discharge (ESD) damage.
• May require board-level replacement or soldering skills.

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This is a small replacement screw used to secure appliance panels and components, restoring proper fit and preventing loose parts. It's a direct-fit fastener commonly used in various GE appliance assemblies. What it does

• Secures trim, panels, brackets or control components to prevent movement and rattling.
• Replaces missing, stripped, or corroded screws that can allow gaps or vibration.
• Helps restore proper alignment of parts that can cause noise or loose-feeling doors/panels.

• Use the matching screw hole and thread; do not force or cross-thread the screw.
• Hand-start the screw, then tighten with the correct screwdriver to a snug fit—avoid over-tightening.
• Disconnect power before working near electrical components; follow appliance safety procedures.

This replacement screw secures panels and small components on your appliance to restore proper fit and help prevent rattling or loose parts. Use it wherever the original fastener has been lost or damaged. What it does:

• Secures trim, panels, or mounting brackets to keep components aligned
• Prevents vibration and rattling caused by loose fasteners
• Replaces missing or stripped screws that compromise panel fit
• Restores reliable fastening so doors and controls sit correctly

• Disconnect power before accessing internal panels or components
• Use the correct driver to avoid stripping the screw head
• Thread carefully and do not overtighten to prevent damage
• Keep small parts away from children and pets

Black. 8-18 AB HXW 3/8
