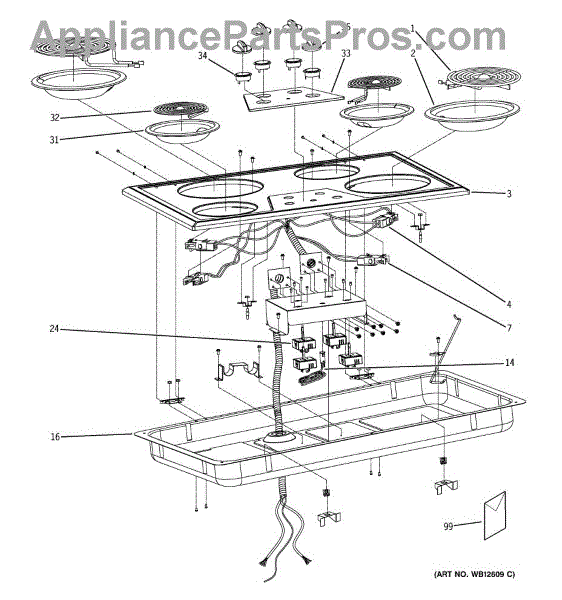

Parts for Ge JP626BJ1BB: 01 - Control Panel & Cooktop Parts

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8 Inch Large Burner Bowl is an OEM replacement part for GE ranges and cooktops. This component is designed to accommodate the larger burners on the cooking surface, providing a stable and safe platform for pots and pans during cooking.

Symptoms of needing to replace the 8 inch large burner bowl include:

• Cracks, chips, or damage to the bowl's surface
• Warping or deformation due to excessive heat
• Difficulty in properly positioning pots and pans on the burner

Causes of a faulty burner bowl can include normal wear and tear over time, exposure to extreme temperatures or thermal shocks, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

Control-panel indicator light that signals power or heating status on select ranges and ovens. Replaces a failed or cracked panel lamp to restore visible status feedback from the appliance. What it does:

• Illuminates to show power, element or status indications on the appliance control panel.
• Replaces a burnt-out or dim indicator so you can see when functions are active.
• Common symptoms this part fixes: no indicator light, flickering/dim illumination, or a cracked/ cloudy lens.
• Matches the original panel lamp form and mounting for a direct replacement.

• Disconnect power to the appliance (unplug or shut off the breaker) before beginning any service.
• Allow surfaces to cool completely before removing the control panel or handling the lamp.
• Follow the appliance disassembly steps in the service manual; avoid forcing connectors or wiring.

The Infinite Control Switch is an OEM part for GE ranges and cooktops. This switch regulates the heat levels of the burners, allowing users to adjust the cooking temperature to their desired setting. It ensures that each burner provides consistent and controllable heat for precise cooking.

Causes of a bad infinite control switch can include regular wear and tear, electrical surges, or damage from spills and splashes. Over time, these factors can lead to the switch malfunctioning, which may result in poor temperature control or complete failure of the burner.

Symptoms of a bad infinite control switch include:

• The burner not heating up or heating inconsistently
• The burner staying on high heat regardless of the setting
• Difficulty adjusting the burner temperature
• The switch feeling loose or unresponsive

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6 Inch Small Burner Bowl is an OEM part for GE stoves and ranges. It is a durable and heat-resistant bowl that sits beneath the heating element of the small burner, providing a stable and level surface for your cookware. The small burner bowl helps distribute heat evenly and protects the cooktop from spills, stains, and other messes. For the matching 8-inch large burner bowl order WB31T10011.

A bad small burner bowl can be caused by regular use, accidental damage, or it may become discolored, warped, or rusted over time.

Symptoms of a bad small burner bowl include:

• Difficulty in cleaning or removing stubborn stains.
• A loose or wobbly heating element.
• Visible damage such as cracks or chips on the bowl.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

Gray. Used on the white model

Color: black. Measures about 2 inches in diameter.
