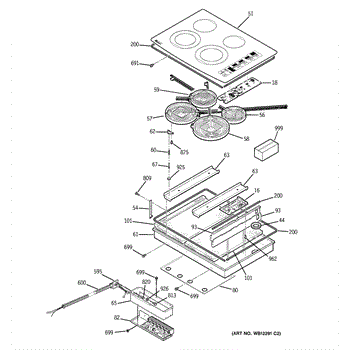

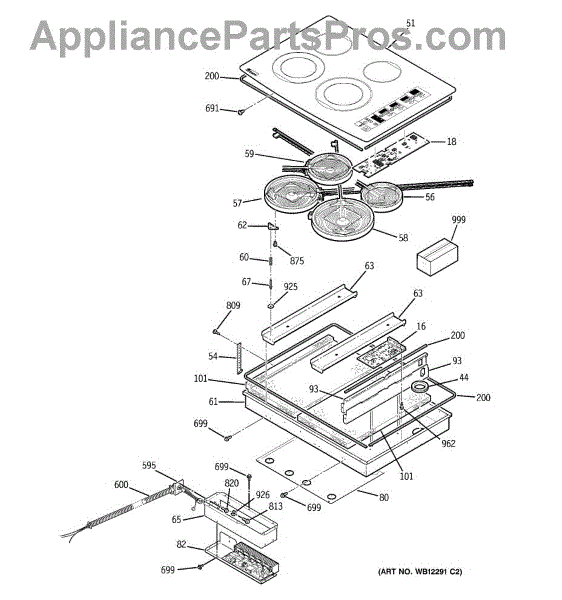

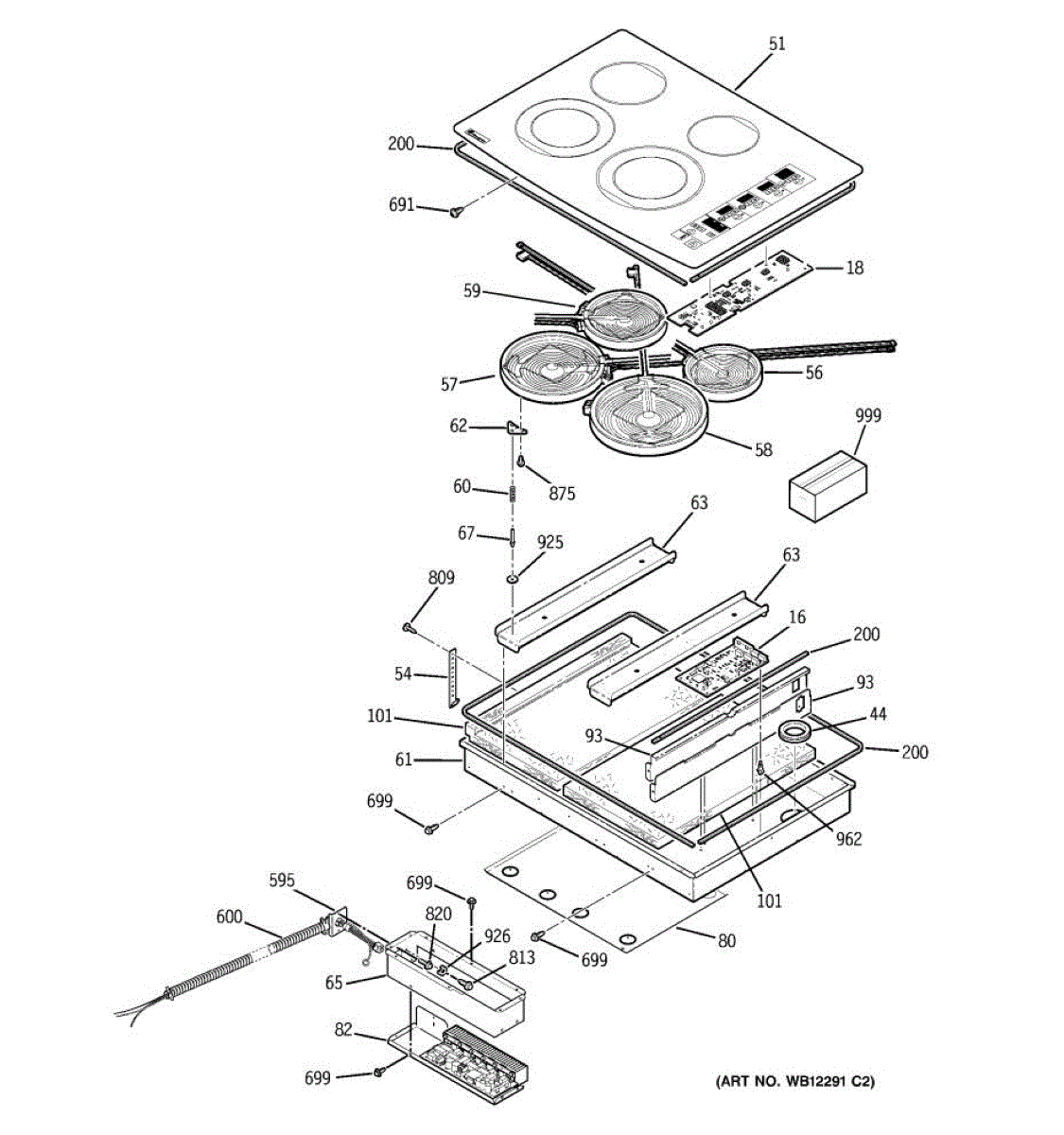

Parts for Ge ZEU30RSF2SS: 01 - Control Panel & Cooktop Parts

This is a GE main board logic kit. The main board is the control board on below-counter models of GE ovens. When the main board malfunctions on these ovens, there are several indicators that manifest. The display area on the front of the oven door may stop working. This is also where the controls are housed. It's possible that these controls will also become unresponsive as time goes on. Use a voltage tester to make sure this is the part that is causing the problems. Unplug the oven from its power source before starting the repair. Slide the oven out from beneath the counter. Remove the back panel of the door, which will allow access to the main board. There are small screws that anchor the main board and assembly in place. Remove these screws and unplug all wires from their harnesses. Repeat these steps in reverse to install the new board kit.This board is a genuine OEM replacement part sourced directly from GE and sold individually. This part is only compatible with GE appliances.

This electronic control board assembly includes the 30" display used to operate and display oven/range settings. It restores responsive front-panel controls and readable display for timed cooking, temperature, and function selection. What it does:

• Manages user interface inputs and displays time, temperature, and cooking modes
• Sends control signals to oven components based on selected settings
• Helps resolve unresponsive touchpads, blank or garbled displays, and incorrect on-screen information
• Supports normal cooking functions, timers, and clock display when functioning properly

• Always disconnect power to the appliance before attempting any repairs
• Handle the board by the edges and avoid static discharge; use an anti-static wrist strap if available
• Some models require disassembly of the control panel and removal of wire harness connectors; keep track of fasteners and wire locations

Replacement glass top for smooth-surface electric cooktops. Restores the flat cooking surface when original is cracked, chipped, or scratched.

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

This is a genuine radiant assembly compatible with cooktops. This radiant element supplies the heat to the cooktop. Without this part in working order, the user will not be able to properly use the burner, as it will not heat up effectively, if at all. These particular elements are subject to wear and tear from frequent appliance use, often requiring them to be replaced within the expected life of the appliance. Ensure that the cooktop has been completely disconnected from all power sources and work gloves are worn before attempting any replacements or repairs.This part is manufactured by General Electric and has been sourced directly from the manufacturer. It is sold individually. This radiant element is manufactured from high-quality, durable, non-corrosive materials. It is an authentic replacement part and thus is compatible with cooktops that have been manufactured by certain brands, including General Electric, Hotpoint, and RCA.

This genuine replacement part is a radiant element for electric stoves. The radiant element is the component of the stove that heats up to allow the stove to perform its essential function of cooking. If the stove is no longer heating properly or not at all, it could mean that the radiant element needs to be replaced. Luckily this is a relatively simple process.To replace the radiant element, make sure to turn the power supply off to the stove by either unplugging it or shutting off the circuit breaker. Once powered off, proceed to locate the screws that attach the radiant element to the stove. Once identified, remove them using a screwdriver and pull up on the radiant element to release it from the stove. Once released, remove the wire harness that is connected to the radiant element and place it into the new part. Place the new radiant element on top of the stove and secure the screws that hold it in place.This OEM replacement part is sold individually and is compatible with General Electric, Hotpoint, and RCA brand electric stoves.

This is a halogen element, which supplies heat to cooktops on ranges. The element uses a bulb to heat food rather than a gas flame or an electric coil. The quick cleaning and ease of use make it a common choice for kitchen stoves. If the element is damaged, there may be signs of wear, food may not fully cook, or electrical use may increase.Before starting, be sure that the stove is unplugged. The surface of the appliance should also be cool to the touch. Work gloves and a set of tools may be needed for the process. Lift the old element up at an angle to detach it from the terminals before aligning the new part with the drip pan. After completing the replacement, return power to the stove.This halogen element is made to be compatible with General Electric cooktops. It's sourced directly from the manufacturer as an authentic OEM replacement part. The part is sold individually.

Secures radiant heating element in place on your cooktop. Replace if spring is broken, worn, or missing to restore proper element alignment and stability.

Mounting bracket that secures the radiant element to your cooktop. Replace if bracket is bent, broken, or missing to properly support the heating element.

Replacement mounting stud for cooktops and ranges. Secures the cooktop assembly to the cabinet or countertop. Replace if broken, stripped, or missing.

Insulation foam tape seals the gap between your cooktop and countertop, preventing debris from falling into the burner box. Replace if worn or damaged.

Clear protective tape secures glass panels and components on your cooktop. Replace when tape loses adhesion or during glass panel repairs. Confirm fit.

Foam seal tape creates an airtight barrier between your cooktop and countertop, preventing spills from dripping into cabinets. Replace when worn or gaps appear.

Mounting plate that secures and supports the wiring harness in your cooktop. Replace if cracked, broken, or missing to properly secure electrical connections.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Package of 12

Black. 8-18 AB HXW 3/8

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

• Provides a stable bearing surface for screws, bolts or studs to reduce wear on parts
• Helps distribute clamping force to prevent pull-through or deformation of softer materials
• Reduces vibration and movement at the joint when installed correctly
• Missing or damaged washers can lead to loose fasteners, increased vibration or component misalignment

• Disconnect power and water before servicing the appliance
• Replace like-for-like: inner/outer diameters and thickness match the original washer
• Inspect mating hardware and surfaces for damage; replace corroded or deformed fasteners as needed
• Tighten fasteners evenly and avoid over-torquing to prevent washer or component damage

Secures and isolates the power control module from the range chassis. Replace if cracked, broken, or missing to maintain proper spacing and stability.

Control harness wire assembly for cooktop. Connects control panel to heating elements. Replace if wires are frayed, damaged, or connections are loose.

Logic display circuit board for cooktops. Controls touchpad interface and display functions. Replace if display is blank, unresponsive, or damaged.

Wire harness for cooktop control systems. Connects electrical components to power supply. Replace if wires are frayed, damaged, or connections are loose.

Specially formulated cleaner for ceramic glass and smooth cooktops. Removes cooked-on food, grease, and spills without scratching. Verify fit by model.
