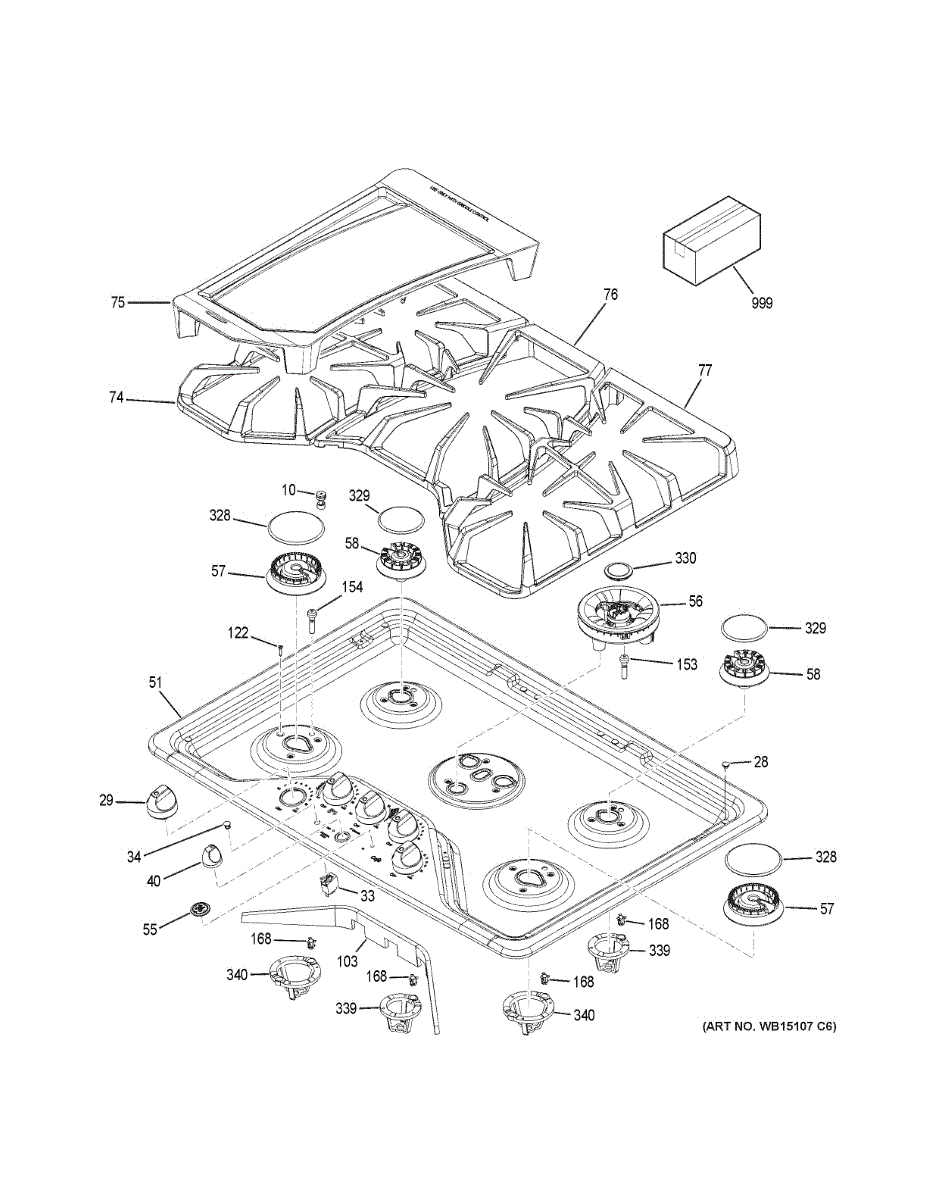

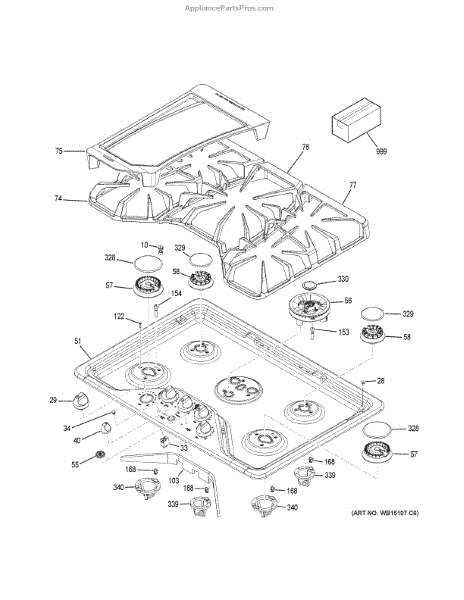

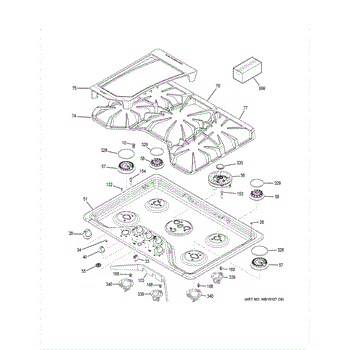

Parts for Ge CGP350SET3SS: Control Panel & Cooktop Parts

The Bumper is an OEM part for GE ranges. These small bumpers are designed to fit onto the underside of the burner grates, providing cushioning and stability. They help prevent the grates from scratching the cooktop surface and reduce noise and vibration during cooking.

Causes of bad burner grate bumpers can include continuous exposure to high temperatures, wear and tear from regular use, and physical damage from moving or cleaning the grates.

Symptoms of a bad burner grate bumper include:

• Burner grates wobbling or not sitting level
• Increased noise or vibration during cooking
• Scratches or marks on the cooktop surface
• Missing or visibly damaged bumpers

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Control Knob Kit is an OEM part for GE Gas Cooktops, crafted to replace and refresh the control knobs on your gas cooktop. This kit includes multiple knobs that are essential for precise control over the flame and heat levels on your cooktop, ensuring you can cook your meals to perfection every time.

Causes of a bad control knob can range from continuous wear and tear, which can degrade the material or mechanisms, to accidental damage such as melting, cracking, or breaking. Environmental factors like heat, grease, and moisture can also contribute to the deterioration of knob functionality over time.

Symptoms of a bad control knob include:

• Difficulty in turning the knob or engaging the burner
• The knob not staying in place or slipping
• Visible damage or signs of melting and cracking
• Fading of labels, making it hard to read settings

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Pilot Indicator Light is an OEM part for GE ranges. It indicates whether an element on the range is active and hot, providing a safety feature that alerts users to potentially dangerous heat levels.

Common causes of a bad pilot indicator light include electrical failures, wear and tear from frequent use, or physical damage to the light or its housing. A malfunctioning indicator light can lead to difficulty in determining whether the appliance is on, which could pose safety risks.

Symptoms of a bad pilot indicator light include:

• The light fails to illuminate when an element is turned on.
• The light remains on, indicating an element is hot when it is not.
• Flickering or erratic behavior of the indicator light.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

The Control Knob Kit is an OEM part for GE Gas Cooktops, crafted to replace and refresh the control knobs on your gas cooktop. This kit includes multiple knobs that are essential for precise control over the flame and heat levels on your cooktop, ensuring you can cook your meals to perfection every time.

Causes of a bad control knob can range from continuous wear and tear, which can degrade the material or mechanisms, to accidental damage such as melting, cracking, or breaking. Environmental factors like heat, grease, and moisture can also contribute to the deterioration of knob functionality over time.

Symptoms of a bad control knob include:

• Difficulty in turning the knob or engaging the burner
• The knob not staying in place or slipping
• Visible damage or signs of melting and cracking
• Fading of labels, making it hard to read settings

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Gas cooktop tri-ring surface burner assembly is an OEM part for GE ranges and cooktops. It is comprised of three gas burners designed to provide flexible cooking options by allowing pots or pans to be placed over single or multiple rings.

The gas burner assembly is responsible for heating food safely and efficiently when using gas cooking. Each ring burner produces a defined flame pattern to heat pots or pans evenly.

Causes of a bad gas burner assembly can include cracks, corrosion or damage to burner rings, misalignment of flame ports, or malfunctioning gas valves.

Symptoms of a bad gas burner assembly include:

• Uneven or inconsistent flame patterns
• Inability to light or stay lit
• Yellow or sooty flames
• Gas leaks around burner rings

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Clip Electrode that secures a spark/flame electrode to the burner assembly, keeping the igniter properly positioned for reliable ignition. Replaces a worn or broken retainer to help restore consistent spark alignment and lighting. What it does:

• Secures the spark/flame electrode to the burner/orifice holder so the electrode stays correctly positioned.
• Maintains electrode gap and alignment to support a strong, consistent spark for ignition.
• Helps address ignition symptoms such as weak or intermittent spark, clicking without ignition, or a burner that won't light.
• Replaces a bent, broken, or missing retainer without replacing the full electrode assembly.

• Always turn off power to the appliance and shut off the gas supply before servicing ignition components.
• Handle the electrode and its ceramic insulator carefully—they can be brittle; use needle-nose pliers to seat the clip if needed.
• After installing, verify electrode alignment and gap; improper alignment can prevent ignition.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This central burner cap covers the center of a gas burner to shape the flame and protect the burner head. Replacing a worn or missing cap restores proper ignition, even flame, and clean cooktop performance.

• Directs the center flame for more even heat distribution
• Shields the burner head/igniter area from spills and drafts
• Helps ensure consistent ignition when properly seated
• Common symptoms: uneven or yellow flames, delayed ignition, sooting, or a chipped/warped cap

• Turn all burner controls off and let the surface cool completely
• Lift off the old cap; clean and dry the burner head surface
• Center the new cap on the burner head so it sits flat with no rocking or gaps
• Test the burner; if the flame is uneven or lifting, re-seat the cap until level

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed
