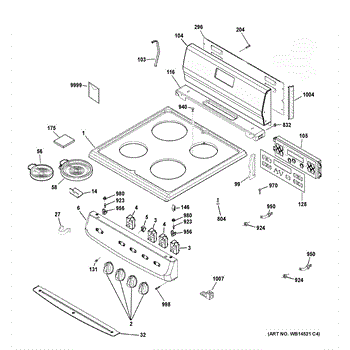

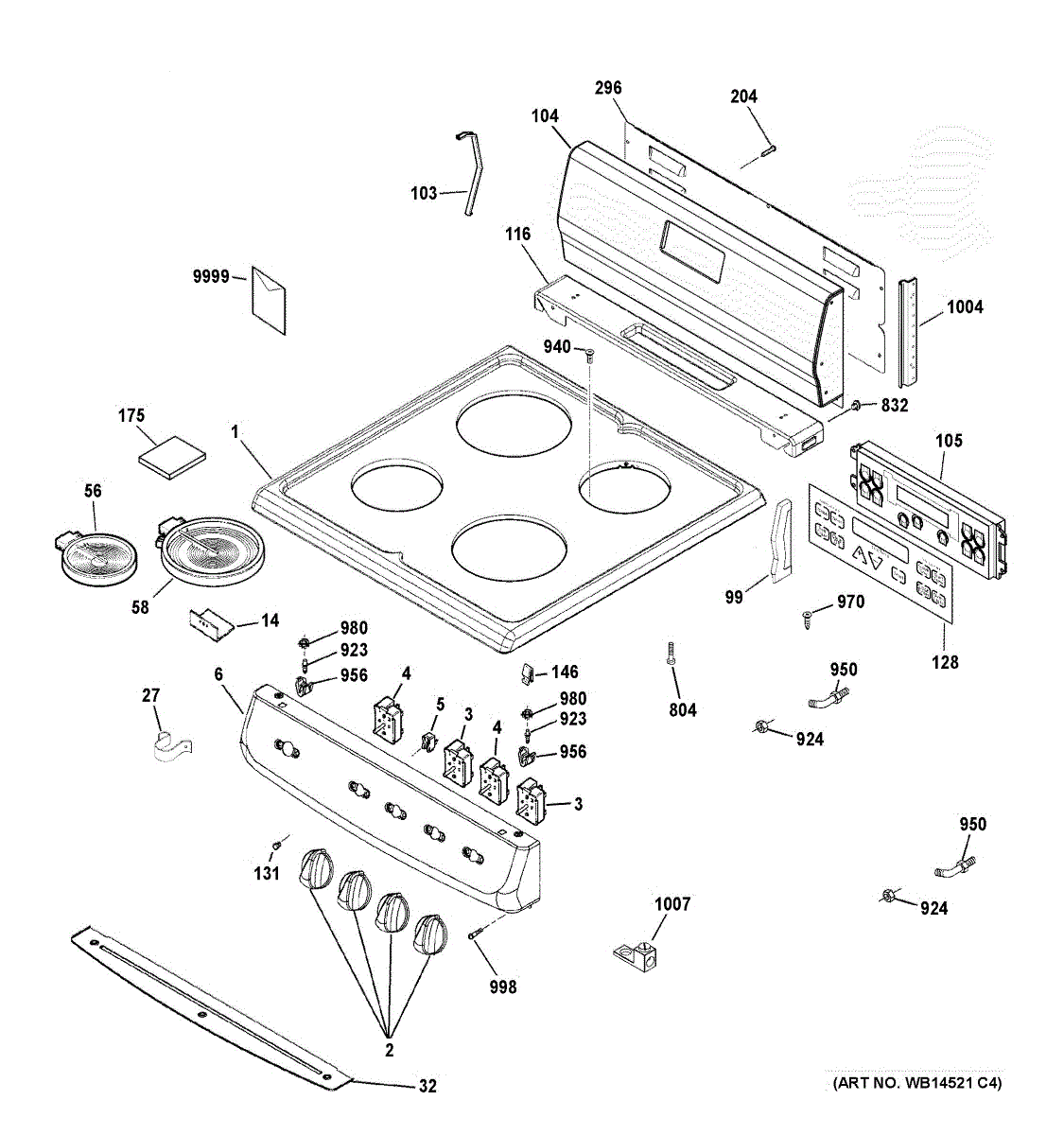

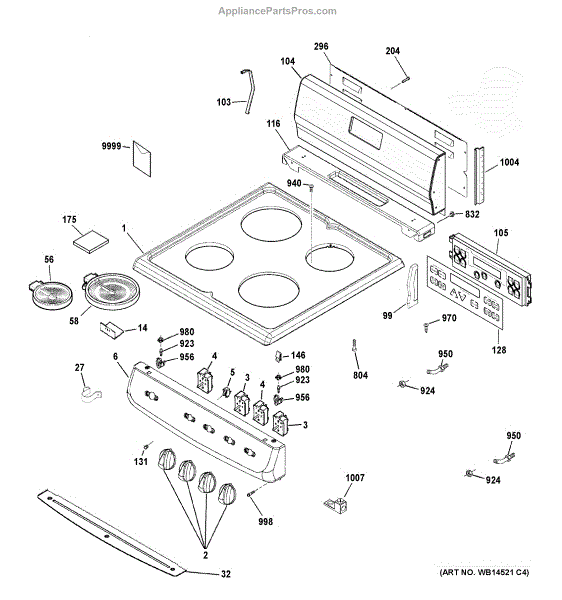

Parts for Ge JA624RN2SS: Control Panel & Cooktop Parts

The Infinite Control Switch is an OEM replacement part for GE electric ranges. It controls the heat output of the surface burners.

Causes of a faulty switch can include failures in the circuitry from extended and repetitive use over time. Exposure to liquid splatters or spills can also impact component wiring.

Symptoms of a bad infinite control switch include:

• Unresponsive or incorrectly functioning control buttons/dials
• Inability to turn on desired cooking elements
• Erratic temperature regulation and heating performance
• Repeated resetting or power intermittence issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

This 6" surface radiant element replaces a damaged or non-heating cooktop burner so your range heats evenly and cooks reliably. It fits into the cooktop opening and connects to the existing terminal block for standard operation. What it does

• Heats cookware by radiating heat from the glass-ceramic cooktop surface
• Restores a single 6" cooking zone that won't heat, cycles, or shows visible damage
• Works with standard cooktop terminal block connections and mounting clips
• Helps eliminate uneven cooking, no-heat, or intermittent heat symptoms

• One 6" surface radiant element

• Disconnect power at the breaker before servicing to avoid shock
• Remove the glass cooktop and access the element terminals per OEM instructions
• Verify terminal connections and element size/fit before final assembly

This 8-inch Haliant radiant surface element mounts beneath the glass of a smooth-top range to heat a single cooking zone. Replacing a failed element restores proper heating response and consistent performance on that burner. What it does:

• Heats the 8-inch cooking zone by converting electrical energy to radiant heat beneath the glass
• Helps provide even heating and smooth simmer-to-boil control
• Works with the surface control to cycle and maintain the set temperature
• Typical failure symptoms: no heat, very slow heating, or inconsistent/uneven heating on that burner

• 1 Haliant 8-inch radiant surface element

• Disconnect power at the breaker; allow the cooktop to cool fully
• Lift/remove the glass top per your model's procedure to access the element
• Note wire locations and transfer any mounting clips/brackets from the old element if needed
• After reassembly, test the burner; if it still won't heat, the surface element switch/control may be at fault

This electronic oven control board replaces a failed range/oven control to restore timed baking, broiling and display functions. It mounts behind the console and provides the user interface and temperature control logic for the oven. What it does:

• Replaces the main electronic control that runs bake, broil, timer and clock functions
• Restores display readout and touch/keypad responsiveness when the control fails
• Helps resolve symptoms like no oven heat, unresponsive control panel, or erratic temperature control
• Manages oven sequencing and safety interlocks as part of the appliance control system

• One oven control board

• Disconnect power at the breaker or unplug the appliance before starting any work
• Handle the control board by its edges and avoid touching circuit traces or components
• Reassemble the console and test oven functions before finalizing the repair

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

This replacement screw fastens appliance components to restore secure fit and reduce vibration or panel movement. Simple, direct replacement for a missing or stripped fastener to help maintain proper assembly and operation. What it does:

• Secures panels, brackets or trim to keep parts aligned and prevent rattling
• Restores mounting where a lost or damaged screw causes loose or sagging components
• Helps maintain electrical and mechanical connections by keeping parts properly seated
• Small hardware solution for cosmetic and functional stability

• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Inspect mating threads and replace if damaged; do not force a stripped screw
• Tighten until snug — avoid over-tightening which can crack plastic or strip threads
• If accessing areas near power or controls, disconnect appliance power first and follow all safety precautions

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

This replacement screw secures trim and appliance panels with a compact 3/8" length and #8-18 thread, providing a simple fastener solution for loose or missing hardware. Fits a variety of appliance assemblies where short machine screws are used. What it does

• Fastens panels, trims, brackets, and small components that use #8-18 threaded holes
• Restores secure attachment for loose or rattling parts
• Replaces stripped or missing short screws to prevent gaps or movement
• Small size is suited for shallow mounting areas and sheet-metal attachments

• One screw

• Use the correct driver or bit to avoid stripping the head; a magnetic screwdriver helps with small fasteners
• Tighten until snug—do not overtighten to prevent thread damage or panel deformation
• Disconnect power to the appliance before working on internal components or near electrical connections
• Match those details for best fit and performance

Replacement cooktop guide that positions and supports the cooktop glass so the top sits level and secure. Restores proper alignment to reduce movement and uneven gaps around the cooktop edge for safer, more stable use. What it does:

• Aligns and stabilizes the cooktop glass to keep it seated correctly in the range cutout
• Helps prevent the cooktop from shifting, rubbing against trim, or vibrating during use
• Commonly replaced when the glass feels loose, sits unevenly, or the edge shows wear
• Supports a flush fit to help avoid chipping or damage where the glass meets the cabinet

• Disconnect electrical power (and gas supply if applicable) before servicing and wear cut-resistant gloves when handling the glass top
• Lift or remove the cooktop per the appliance service instructions to access and replace the guide
• Install the new guide, re-seat the cooktop, and verify the top sits flush and does not move; do not overtighten fasteners
• If the glass top is cracked or damaged, replace the glass top before reinstalling guides

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas

This 28 oz bottle of Cerama Bryte Cooktop Cleaner is an OEM replacement part formulated to safely clean electric and ceramic glass cooktops. The biodegradable, non-toxic cleaner removes baked-on spills and splatters without scratching the cooktop surface. Its fresh lemon scent provides a clean aroma while dissolving greasy residue. Cerama Bryte's proprietary formula is designed specifically for cooktops, unlike abrasive all-purpose cleaners that can damage the smooth glass surface over time. Regular use helps maintain the cooktop's shine and appearance. This OEM Cerama Bryte Cooktop Cleaner bottle offers a scratch-free cleaning solution to keep glass electric and ceramic cooktops looking their best. Use it to dissolve spills without damaging the cooktop's delicate surface.
