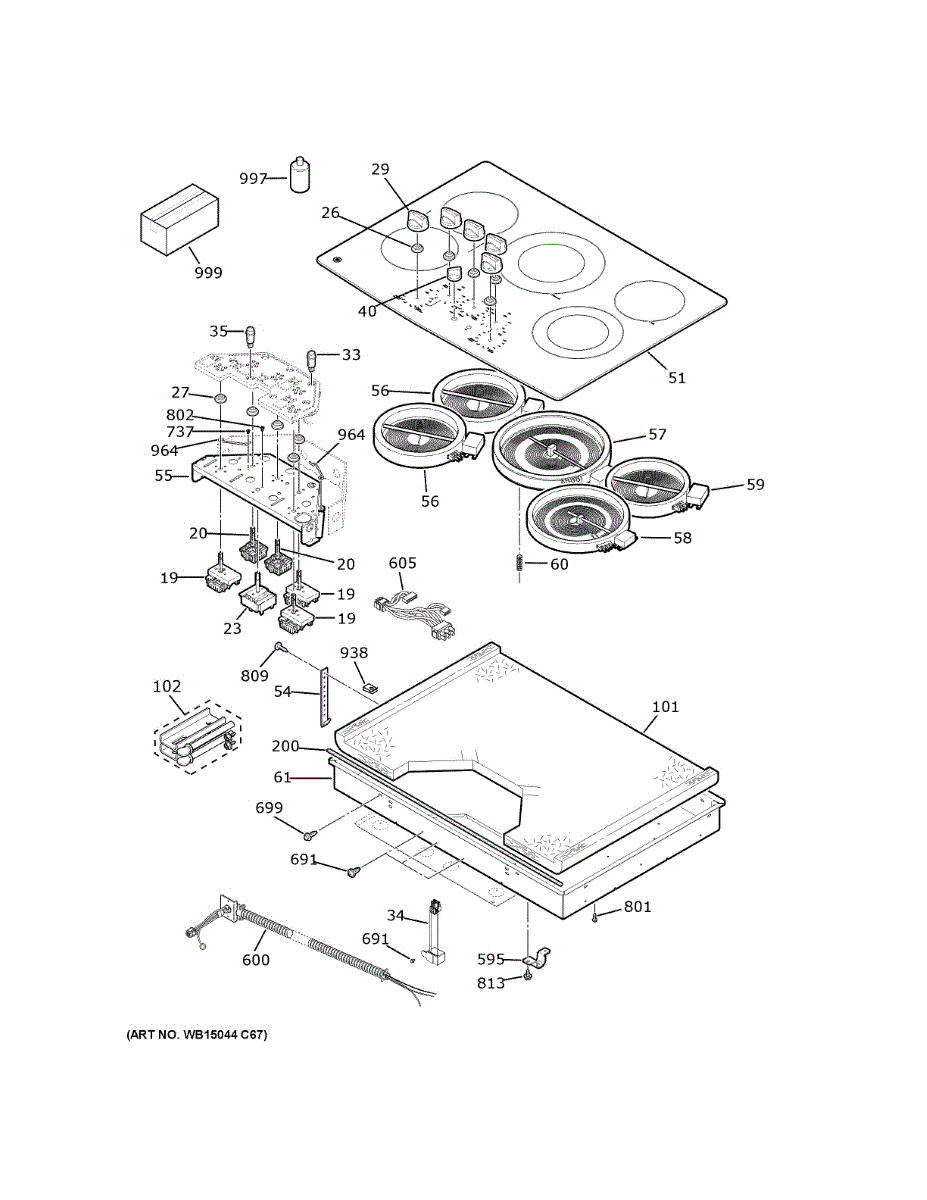

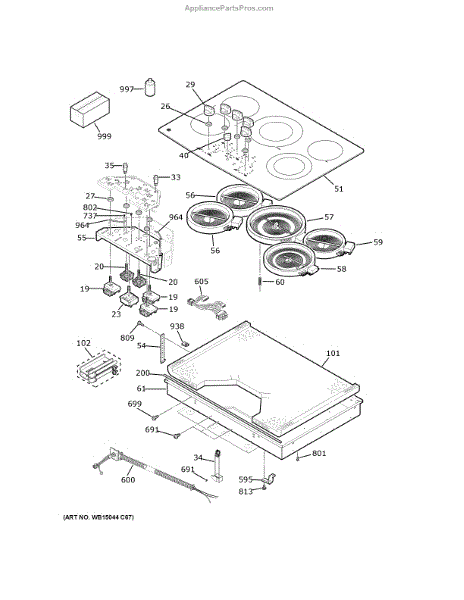

Parts for Ge JEP5030ST1SS: Control Panel & Cooktop Parts

Restore smooth heat control to a surface burner and help protect the control from spills. This kit combines a replacement infinite switch with a protective shaft seal to regulate element power and guard the switch against moisture intrusion.

• Regulates power to the surface element for adjustable heat levels
• Replaces a faulty control that causes no heat, only high heat, won't turn off, or erratic temperatures
• Shaft seal helps block liquids and debris from entering the control shaft area
• Labeled terminals aid in transferring wires from the old switch to the new one

• Disconnect power at the breaker before servicing
• Access the control panel; remove the knob and panel as needed to reach the switch
• Note/photograph wiring; transfer wires to matching terminals on the new switch and install the shaft seal
• Reassemble, restore power, and test burner operation

This replacement seal fits around an electric cooktop infinite switch to help keep moisture, grease and debris out of the switch assembly for more reliable burner control. Simple part to restore proper sealing at the control. What it does:

• Seals the gap between the infinite switch and the cooktop/control panel to help prevent liquid and crumbs from entering the switch cavity.
• Helps reduce intermittent contact, arcing, or corrosion that can cause burners to act erratically.
• Useful when an existing seal is cracked, flattened, missing or soaked with grease.
• Helps maintain cleaner switch operation and can prevent premature switch failure linked to contamination.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Remove the control knob and access the switch per your model's service instructions; replace the old seal with the new seal seated fully around the switch body.
• Inspect the switch and surrounding area for damage or excessive corrosion; replace the switch if damaged.

A push-button lockout switch that engages the appliance's control-lock feature to prevent accidental or child operation of the controls. Restores the control lock function so settings can be secured or released when needed. What it does:

• Acts as the user-accessible control-lock (child lock) switch for the control panel.
• Signals the main control board to enable or disable button and touch-pad input.
• Common symptom fix: control lock won't engage or disengage when pressed.
• Common symptom fix: control buttons appear unresponsive or the lock indicator doesn't change.

• Disconnect power to the appliance before attempting service to avoid shock or injury.
• Access typically requires removing the control console or panel.
• Handle electrical connectors carefully; replace only with the exact OEM-numbered part.

This stainless-steel selector knob replaces a worn, cracked, loose or missing control knob to restore reliable function selection and improve the range/oven's front-panel appearance. Fits standard shaft-style control stems for selector use. What it does

• Provides a solid grip for turning the control shaft to select oven or range functions
• Replaces damaged or faded knobs that are hard to turn or no longer stay engaged
• Restores normal tactile feel and visual finish on the control panel
• Useful when the original knob is stripped, cracked, loose, or missing

• Disconnect power to the appliance or turn off the gas supply before working on controls
• Knob typically pulls straight off the control shaft and the replacement pushes on until fully seated
• Confirm proper alignment of any indicator marker before use

This maintop glass and frame is the finished glass surface and surrounding frame that sits on top of the range, restoring a smooth, stable cooktop appearance and support. Replaces cracked, chipped, or warped maintop glass to help keep burners and controls properly seated. What it does:

• Provides the glass surface and perimeter frame that supports burner components and cookware
• Restores a flat, secure cooktop after cracking, chipping, or cosmetic damage
• Helps maintain proper spacing and alignment for removable burner parts
• Improves appearance by replacing scratched or discolored maintop glass

• Disconnect power to the appliance before beginning any work
• Use gloves and eye protection; glass edges may be sharp
• Remove burner grates, control knobs, and mounting fasteners to lift out the old maintop
• Handle the assembly carefully and align clips/fasteners during reinstallation; verify all burner components are seated correctly before restoring power

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

The Element Radiant 9" Dual is an OEM part for GE ranges and cooktops. This dual-element radiant burner provides versatile cooking options, offering both a small and large heating area within a single burner. It ensures efficient and even heat distribution for a variety of cooking needs, accommodating different pot and pan sizes.

Causes of a bad radiant element can include normal wear and tear, electrical issues, or damage from heavy cookware or impact. Over time, these factors can lead to the element failing to heat properly or not functioning at all.

Symptoms of a bad radiant element include:

• The burner not heating up or heating inconsistently
• Only one of the dual elements functioning
• Visible damage or discoloration on the element
• The burner cycling on and off more frequently than usual

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dual Haliant oven heating element restores the oven's primary heat source for baking and broiling so food cooks evenly. It replaces a worn or failed element to help return normal oven heating performance. What it does:

• Heats the oven cavity for bake and broil cycles as the primary heating element.
• Conducts electricity and converts it to heat when the oven calls for temperature rise.
• Common signs of failure: oven won't reach set temperature, long preheat times, uneven cooking, or no heat on bake/broil.
• Works with the oven's control/relay to deliver consistent heating when functioning properly.

• Disconnect power at the circuit breaker before starting any repair and ensure the oven is cold.
• Handle the element carefully to avoid bending or damaging connections; wear gloves and eye protection.
• Inspect terminal connections and mounting points for corrosion or damage; tighten terminals to manufacturer torque if applicable.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This insulation sheet provides thermal barrier protection for the appliance, helping stabilize internal temperatures and reduce heat transfer to surrounding panels. It restores original insulating performance to improve efficiency and temperature control. What it does:

• Replaces worn or damaged insulation that allows excess heat transfer
• Helps maintain consistent internal temperature for proper operation
• Reduces heat felt on exterior cabinet surfaces
• Can help prevent heat-related damage to nearby components

• One insulation sheet

• Disconnect power (and water if applicable) before beginning service
• Access may require removing outer panels or liners; keep fasteners organized
• Wear gloves and eye protection—edges may be sharp and insulation fibers can irritate skin
• Follow the appliance service manual for model-specific removal and reinstallation steps

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This SCR (silicon controlled rectifier) is a replacement power-regulation semiconductor used in select GE appliances to control voltage to heating elements or motors, restoring reliable variable power control and stable operation. What it does

• Regulates and switches power to heating elements or drive motors as part of the appliance's control circuitry.
• Helps maintain consistent heat or motor speed when the control board calls for variable output.
• Can resolve symptoms such as intermittent heating, fluctuating motor speed, or appliances that run only on certain settings.
• Functions as a direct electrical switching component—not a user-serviceable interface.

• One SCR (silicon controlled rectifier) matching OEM part WB01X24096.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the part carefully; observe anti-static precautions and avoid touching leads or terminals.
• Verify the part number on the old component matches WB01X24096 before installation.

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

A small machine screw used to fasten appliance panels and components. This 10-32 x 7/16 screw secures assemblies and replacement parts so panels and brackets stay properly mounted during normal operation. What it does:

• Fastens small panels, brackets, and assemblies that use a 10-32 thread
• Replaces missing or stripped mounting screws to stop rattling and loose parts
• Helps maintain proper alignment of fitted components
• Used where a short 7/16" length is required for a flush fit

• Unplug the appliance before starting any repair
• Use the correct sized screwdriver or nut driver for 10-32 threads
• Hand-start the screw to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, replace with correct fastener; avoid forcing the screw
