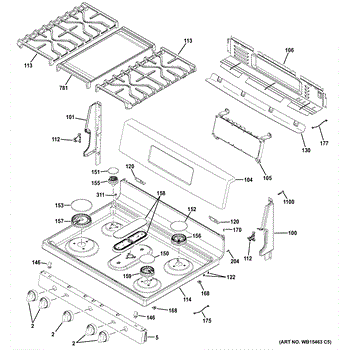

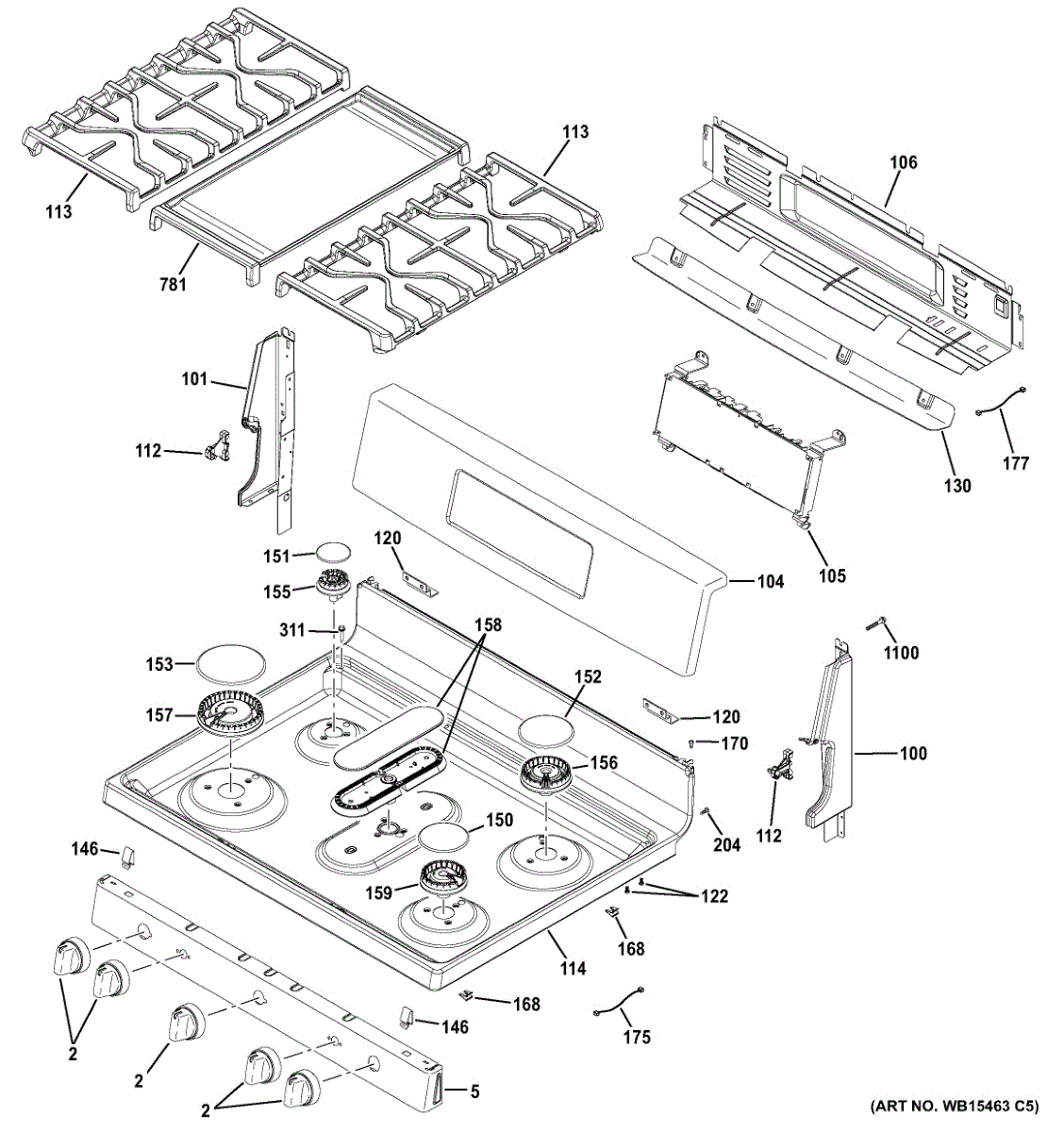

Parts for Ge JGB860DEJ4BB: Control Panel & Cooktop Parts

Replace your gas range control knob if cracked, broken, or worn from frequent use. Installs on the control panel to operate burners and adjust flames.

Replacement end support for gas ranges. Provides structural support at the side of the range. Replace if cracked, bent, broken, or missing.

If burners won't ignite automatically but light with a match, the spark module likely failed. Accessed from the back of the range, moderate difficulty.

Left front end support bracket for gas ranges. Secures the front corner of the cooktop frame. Replace if cracked, bent, or missing to restore stability.

Black control panel overlay with white LED display for gas ranges. Replaces cracked, faded, or worn overlays. Restores legibility and appearance.

Wobbling pots or damaged cooktop grate? This cast-iron side grate restores stable support for cookware and proper burner clearance on your gas range.

Fixes unstable or uneven cooktop and misaligned burners. This rangetop and bracket assembly secures the cooktop to the frame for safe cooking.

Medium burner cap for gas cooktops and ranges. Sits atop the burner head to distribute flame evenly. Replace if cracked, chipped, or worn from use.

Burner cap covers the burner head and distributes flame evenly on gas ranges and cooktops. Replace if cracked, warped, or missing for proper cooking.

Replacement burner cap for gas cooktops and ranges. Sits atop the burner head to distribute flame evenly. Replace if cracked, chipped, or worn.

Burner cap assembly covers the burner head on gas cooktops and ranges. Replace cracked, stained, corroded, or missing caps to restore appearance.

Replacement small surface burner for gas ranges and cooktops. Restores proper flame control when original burner is damaged, cracked, or corroded.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement burner head for gas ranges and cooktops. Installs on stovetop to distribute flame evenly. Replace if warped, cracked, or causing uneven flames.

Oval burner assembly for gas range cooktops. Replace if your burner head or cap is cracked, clogged, damaged, or missing. Includes both burner and cap.

Medium-sized surface burner for gas cooktops and ranges. Installs on the cooktop surface. Replace if cracked, worn, or providing uneven heat distribution.

If your gas range burner won't light or clicks continuously, this igniter clip secures the ignition system. Simple DIY fix in under 15 minutes.

A replacement ground harness that restores the appliance's chassis grounding connection to help ensure safe electrical operation. Installs quickly to replace a damaged or corroded ground lead and reduce risk of arcing. What it does

• Provides the dedicated chassis ground connection between appliance wiring and the cabinet
• Restores proper grounding when original harness is broken, frayed, corroded, or detached
• Helps prevent intermittent power issues, arcing, or nuisance tripping caused by poor ground continuity
• Used wherever a short ground lead or bonded connector is required for safety

• One ground harness as shown

• Disconnect power (unplug or shut off circuit breaker) before starting any repair
• Verify correct grounding point on the cabinet and secure the harness with the original screw or fastener
• Match connectors and routing to the original harness; avoid touching energized terminals during installation

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

This is the flat griddle plate that sits over the center burners on compatible cooktops/ranges. It provides an even cooking surface for pancakes, sandwiches, and more, and replaces a worn or missing griddle so heat is distributed properly.

• Creates a level, flat surface over the center burners for even heating
• Helps improve cooking results when the original griddle is warped, worn, or damaged
• Can reduce sticking and uneven browning compared to a deteriorated plate
• Restores intended fit and stability on the cooktop when the original no longer seats correctly

• Let the appliance cool completely and shut off gas/electric supply before handling
• Lift off existing center grate/griddle once cool; position the new griddle so it seats securely on the designated supports
• Ensure the griddle is stable and clear of burner flames before use
• Season/condition and clean per your range's Use & Care to maintain performance

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.
