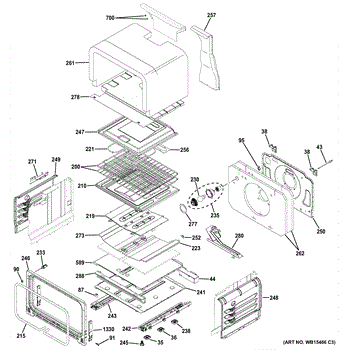

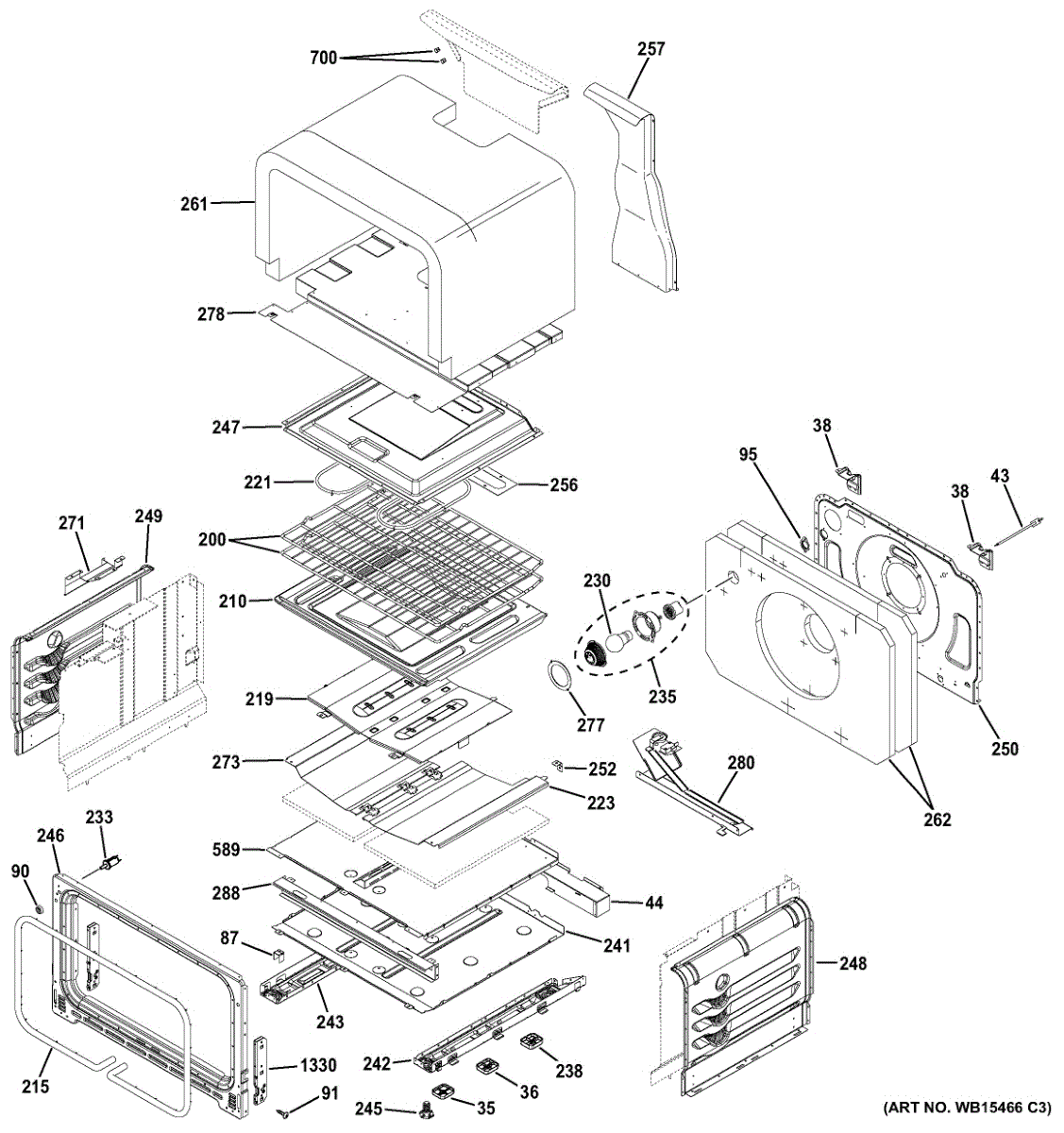

Parts for Ge JGB860DEJ4BB: Lower Oven Parts

A small mounting spacer that positions and supports internal components for proper alignment and clearance. Replaces a worn or damaged spacer to help maintain stable assembly fit and reduce interference between parts. What it does:

• Provides spacing between appliances' internal assemblies to ensure correct alignment
• Helps prevent metal-to-metal contact that can cause noise, wear, or improper sealing
• Restores correct fit when an original spacer is cracked, missing, or deformed
• Commonly used during repair of panels, assemblies, or mounting brackets

• Disconnect power (and gas if applicable) before starting any repair
• Handle surrounding panels and components carefully to avoid damage
• Installation may require removal of adjacent trim or brackets and a few fasteners

The Temperature Sensor Assembly is an OEM replacement part for GE ovens and ranges. It monitors and regulates the temperature inside the oven cavity to determine accurate and consistent baking and roasting.

Causes of a bad temperature sensor can include damage to sensor wires, failure of electronic modules, or sensors reaching the end of their lifespan after years of high temperature exposure.

Symptoms of a faulty temperature sensor include:

• Inability to achieve or maintain the set oven temperature
• Wide fluctuations outside an acceptable temperature range
• Premature or delayed cycling of heating elements
• Error codes related to temperature sensing issues

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This barrier bottom floor is the inner bottom panel that helps form the refrigerator's lower compartment, keeping components supported and directing moisture away from sensitive areas. Replaces a damaged, cracked, or missing bottom barrier to restore proper fit and protection. What it does:

• Replaces a cracked, broken, or warped bottom floor panel that can let debris or moisture reach components
• Restores the intended lower-compartment barrier that helps direct condensation and defrost water
• Provides a stable mounting surface for lower shelving/crisper assemblies and nearby components
• Helps reduce the chance of visible gaps or misalignment in the refrigerator base

• Disconnect power and empty the lower compartment before beginning work
• May require removal of lower drawers, trim pieces, or screws/clips for access
• Use basic hand tools; keep track of fasteners and any seals or gaskets removed

This small replacement bumper cushions and protects the appliance frame/trim where panels meet, helping reduce vibration, chipping and rattles for a cleaner, quieter fit. Ideal when the original bumper is worn, cracked or missing. What it does:

• Cushions contact between the frame/trim and adjacent panels to reduce noise and prevent damage
• Helps maintain proper panel alignment and sealing where the trim meets the cabinet
• Reduces rattling or vibration caused by loose or degraded trim pads
• Restores protective spacing that prevents chips or scratches to finished surfaces

• One frame front bumper

• Disconnect power to the appliance before starting work and follow all safety precautions
• Usually installs by pressing into a slot or onto a mounting surface after removing the trim piece; some trim removal may be required
• Inspect mating surfaces for damage or debris and clean before installing the new bumper
• Replace with the exact part number only; do not force or modify the bumper to fit

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Oven deflector redirects oven heat away from the rear panel and components to protect surfaces and help restore more even cooking. Fits in the rear of the oven cavity and replaces a warped or damaged deflector. What it does:

• Directs and deflects heat away from the oven back wall to reduce hot spots and help improve cooking consistency.
• Protects interior liners and nearby components from excessive heat that can cause warping or discoloration.
• Common replacement signs: visible dents, warping, heat discoloration, or uneven baking/broiling.

• Disconnect electrical power (and gas supply for gas ovens) before starting any repair.
• Remove oven racks and mounting hardware; handle part carefully—edges may be sharp.
• Install in the original orientation and secure with the original fasteners; replace missing fasteners with appropriate OEM parts.

This broil element is the oven's upper heating element that produces the direct, high heat used for broiling and browning. Replacing a faulty element restores proper broil performance and even browning on foods. What it does:

• Heats from the top of the oven to brown and broil food
• Supplies concentrated, high-temperature heat for searing and finishing dishes
• Common symptom: oven broil does not heat or produces little to no heat
• Common symptom: food browns unevenly or element shows visible damage or breaks

• Disconnect power to the appliance at the breaker or unplug before servicing
• Access typically requires removing the oven inner panel or broil cover; retain mounting screws
• Handle the element carefully to avoid bending or damaging terminals

This oven deflector is a metal shield that directs heat away from sensitive areas inside the oven cavity to help ensure even cooking and protect surrounding components. It restores proper airflow and helps prevent hot spots. What it does:

• Directs and deflects oven heat to promote more even temperature distribution
• Protects internal components and wiring from direct heat exposure
• Helps reduce localized overheating that can cause oven damage or uneven baking
• Replaces a worn, bent, or missing deflector to restore original airflow path

• One oven deflector

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Typical install requires basic hand tools; follow the manufacturer service instructions
• Handle the part carefully to avoid sharp edges; wear gloves if needed

The Oven Lamp Holder is an OEM part for GE ovens. This component securely holds the oven light bulb in place, ensuring proper illumination inside the oven cavity for better visibility during cooking and baking.

Causes of a bad lamp holder can include repeated exposure to high temperatures, physical damage, or electrical issues. A malfunctioning lamp holder can lead to the oven light not functioning correctly or at all.

Symptoms of a bad oven lamp holder include:

• The oven light not turning on
• Flickering or intermittent operation of the light
• Visible damage or corrosion to the lamp holder
• The light bulb not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spacer base positions and supports components inside the appliance to maintain correct alignment and clearance, helping reduce vibration and wear. It's a simple replacement part when the original is cracked, broken, or missing. What it does:

• Provides a stable mounting surface and correct spacing for internal panels or components
• Restores proper alignment to reduce vibration, noise, and uneven operation
• Commonly replaced when the original spacer is cracked, deformed, or missing
• Helps maintain secure fastener engagement and proper component clearance

• Spacer base (single piece)

• Disconnect power to the appliance before starting any repair
• Follow manufacturer service instructions or parts diagram for correct location and orientation
• Basic hand tools typically required; inspect surrounding fasteners and mounting surfaces during installation

This support base secures and stabilizes the appliance cabinet/frame so doors and components align properly and operate smoothly. Replaces worn or broken right-side lower support to restore correct support and fit. What it does:

• Provides structural support for the appliance cabinet/frame on the right side
• Helps maintain proper door alignment and prevent sagging or uneven gaps
• Reduces vibration and rattling related to a compromised support
• Restores correct mounting for adjacent components or trim

• Disconnect power and empty doors/drawers before starting any repair
• Remove relevant trim or access panels to reach the support; keep fasteners for reuse
• Replace using the original mounting locations; do not force or bend surrounding panels

This support base replaces the left lower support used to stabilize and align the appliance's lower assembly, restoring proper fit and reducing vibration. It helps keep moving parts supported during normal operation. What it does

• Provides structural support for the appliance's lower assembly and related components.
• Restores proper alignment to reduce rubbing, vibration, or uneven movement.
• Helps prevent excessive wear on brackets, panels, and adjacent parts.
• Safe, commonly used when the left support is cracked, broken, or warped.

• Disconnect power (and gas, if applicable) before beginning any repairs.
• Handle sharp sheet-metal edges and wear gloves and eye protection.
• Require basic hand tools to remove panels and fasteners; keep hardware for re-use if undamaged.
• If other mounting hardware or adjacent parts are damaged, inspect and replace as needed for secure installation.

This frame weld assembly is the welded structural frame that supports and aligns the appliance's front components, helping restore proper fit and stability for panels and doors. Replaces a damaged or bent frame to improve alignment and reduce rattling. What it does:

• Provides structural support for the appliance front, keeping panels and doors aligned
• Restores correct fit when the frame is bent, warped, or damaged
• Reduces vibration, rattling, and visible gaps caused by a compromised frame
• Helps ensure panels and doors operate smoothly and seat properly

• Disconnect power and fuel before starting any repairs
• Removal and replacement may require basic hand tools and panel/trim removal
• Handle with care to avoid damage to painted surfaces and adjacent components

This oven back panel replaces the rear cabinet panel that protects internal components and helps maintain proper oven enclosure. Restores a clean, secure rear surface for safe operation and service access. What it does

• Covers and protects the oven's internal wiring, insulation and components at the back of the range/cooktop
• Restores a sealed rear enclosure to help prevent heat and debris escape
• Replaces warped, rusted or damaged rear panels that make the oven unstable or unsafe to service
• Provides mounting surface for rear-mounted components and service access points

• One oven back panel

• Disconnect power before starting any repair
• Remove oven from cabinet or pull forward as required for safe rear access
• Handle edges carefully—panel metal may be sharp; wear gloves and eye protection
• Mount with original fasteners; secure all screws before restoring power

This angle support is a small metal mounting bracket that stabilizes and secures components inside the appliance, helping keep shelves, panels, or assemblies aligned for reliable operation and safe use. What it does:

• Provides structural support for interior panels, shelves, or trim to prevent sagging or misalignment
• Holds assemblies in the correct position to reduce rattling and vibration during use
• Restores proper fit and clearance when a bent or broken bracket causes shifting
• Works with fasteners to anchor components where a right-angle connection is needed

• Inspect surrounding parts and fasteners; replace any damaged screws or clips as needed
• Use the correct size fastener and torque to avoid stripping or cracking adjacent parts
• Disconnect power and follow manufacturer safety guidelines before working near electrical components

This oven deflector directs heat away from the oven's back wall to promote more even cooking and protect internal components from direct heat. It replaces a bent, missing, or damaged deflector to restore proper heat flow in the oven. What it does:

• Redirects burner/element heat away from the back wall to reduce hot spots and uneven baking
• Protects the oven back panel and internal components from direct flame or intense radiant heat
• Helps maintain more consistent oven temperatures during baking and roasting
• Visible or damaged deflectors can cause scorch marks, warped panels, or uneven cooking

• Disconnect power to the appliance (or turn off gas and power for gas ranges) before starting any work
• Remove oven racks for access; installation typically requires basic hand tools (screwdriver)
• Handle the part carefully—edges may be sharp; align tabs or screw holes per the oven's mounting points

This oven light gasket fits between the glass lens and the oven liner. It restores a proper seal around the light opening to help keep grease and moisture out of the light cavity and hold the lens securely in place. What it does:

• Seals the joint between the oven light lens and the cavity wall
• Helps prevent grease and moisture from entering the light assembly
• Keeps the lens snug to reduce looseness or rattling
• Replace if the gasket is cracked, flattened, brittle, missing, or if moisture/grease is visible around the lens

• One oven light lens gasket

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the light lens/retainer as your model requires (unscrew lens or release clips)
• Note gasket orientation and clean the mating surfaces
• Seat the new gasket evenly and reinstall the lens; do not overtighten the glass

This bottom duct directs airflow beneath the oven cavity to protect components and help maintain even cooking temperatures. It replaces a damaged or rusted lower oven duct to restore proper heat flow and clearance. What it does

• Channels hot air away from the oven base and toward vent paths to help heat distribution.
• Prevents direct heat exposure to the oven's lower insulation and wiring.
• Common replacement when the duct is bent, corroded, or has holes that allow leaks.
• Alleviates uneven baking or excessive heat in adjacent cabinetry when damaged.

• One bottom duct (lower oven air duct).

• Disconnect power to the appliance and allow the oven to cool completely before starting.
• Removal typically requires opening the oven door, removing racks and the oven floor or access panels; basic hand tools are usually sufficient.
• Handle edges carefully—wear gloves to protect from sharp metal.

Size: 10-32 GXTT FLP.595 S

This receiver hinge is the replacement hinge component that supports and guides the appliance door so it opens and closes smoothly and stays aligned. Replacing a worn receiver hinge restores secure door movement and proper sealing. What it does:

• Secures the door to the cabinet and provides the pivot point for normal opening and closing
• Keeps the door aligned to maintain an effective seal and prevent gaps
• Replaces a bent, worn, or broken hinge that causes door sag or uneven closing
• Stops rubbing, scraping, or unusual noise caused by a damaged hinge

• Unplug the appliance or disconnect power before beginning work to reduce electrical and injury risk
• Support the door during removal and installation — door may be heavy or awkward
• Use the correct screws and torque; inspect adjacent hinge hardware for wear and replace if needed
