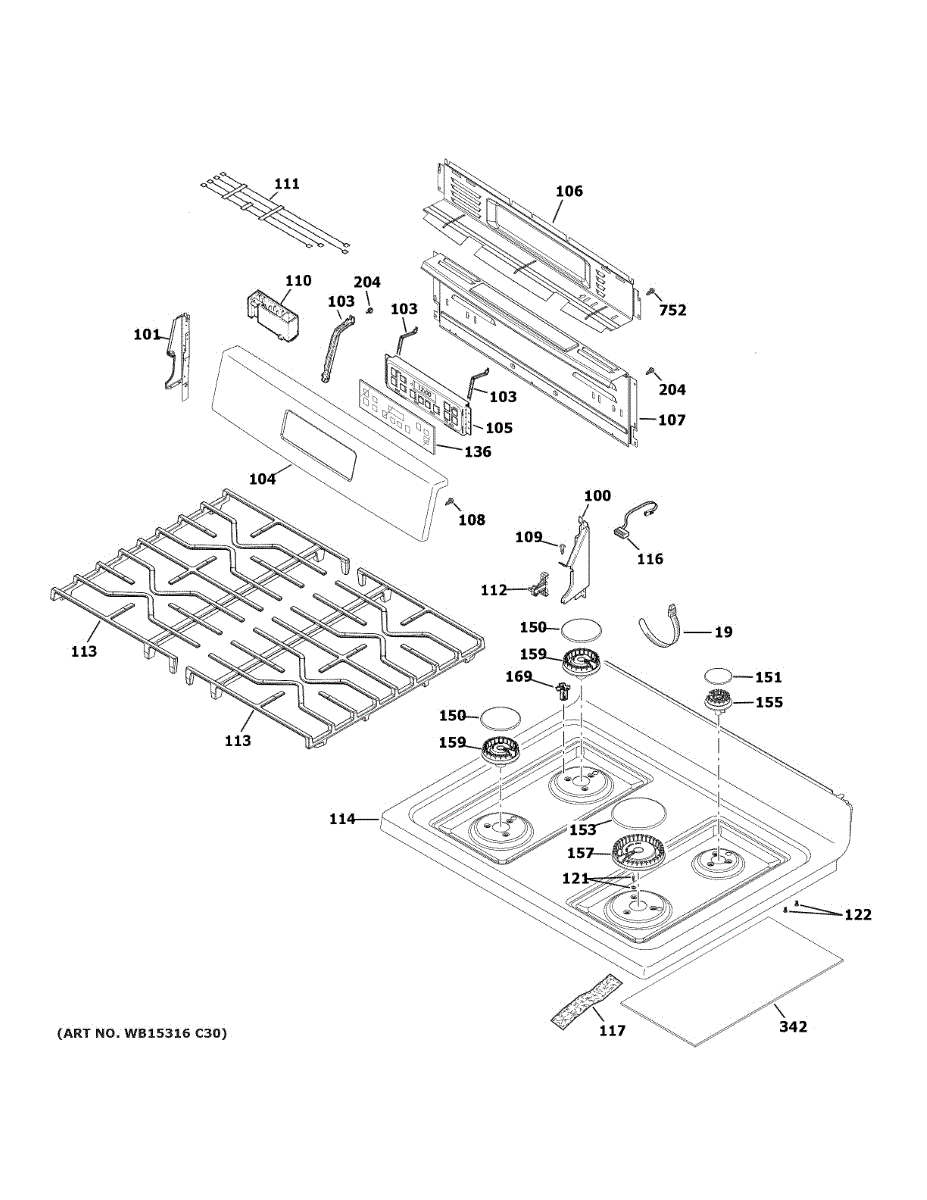

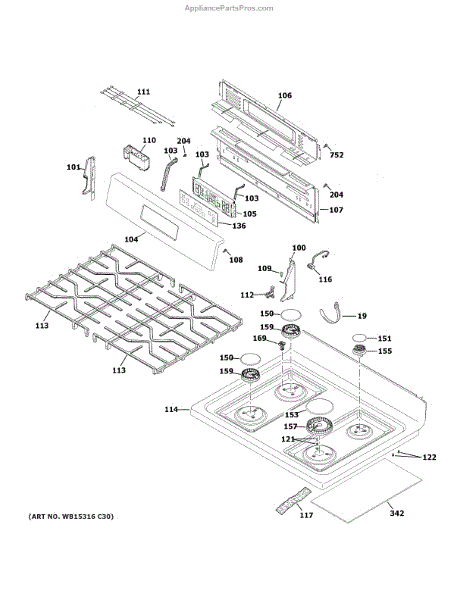

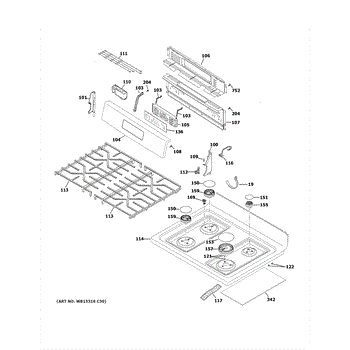

Parts for Ge JGBS61DP3BB: Control Panel & Cooktop Parts

This wire tie secures and organizes wiring inside the appliance to help prevent chafing and loose connections. Its 7-7/8 inch length is suited for bundling harnesses and routing cables away from heat and moving parts. What it does:

• Fastens and groups wires or small hoses to keep them neatly routed
• Helps prevent wire chafing, abrasion, and contact with sharp edges
• Reduces the chance of intermittent connections from loose wiring
• Keeps wiring away from moving components to reduce noise and wear

• Disconnect power before servicing the appliance
• Position wiring as needed, insert tie and tighten; avoid over-tightening
• Trim excess tie length flush and secure cut end away from wires
• Replace any damaged wiring insulation and verify routing before restoring power

This control bracket secures the appliance control assembly or console in place, keeping the control board and user interface stable for reliable operation and proper button/knob alignment. What it does:

• Mounts and supports the control board or console to the cabinet or frame
• Prevents the control assembly from shifting, vibrating, or rubbing against other components
• Helps maintain proper button/knob alignment and electrical connection stability
• Can cause a loose or misaligned control panel or intermittent button response when damaged or missing

• One control mounting bracket

• Disconnect power to the appliance before starting any repair
• Handle control board and wiring with care to avoid ESD or connector damage
• Use the original fasteners or recommended replacements and torque evenly

This electronic oven control board regulates and coordinates oven functions on gas ranges—driving the display, processing keypad inputs, and switching relays—so you can set temperatures and cycles reliably. Replacing a failing board restores responsive controls and consistent heating. What it does:

• Controls bake and broil ignition and temperature regulation in gas ovens
• Interprets keypad inputs and updates the display
• Switches power through onboard relays to igniters/valves as directed by sensors
• Common failure symptoms: blank or erratic display, unresponsive controls, oven won't start or heat, or recurring control error codes

• 1 electronic control board assembly

• Disconnect power at the breaker and shut off gas before servicing
• Use ESD precautions; handle the board by its edges
• Access the board behind the control panel; photograph wiring and move connectors one at a time
• Reuse existing mounting hardware; restore power and test oven functions after reassembly

• A faulty oven temperature sensor or keypad/touch interface can mimic control-board issues; test related components before replacement.

This is a #8-18 machine screw used to secure panels and components on compatible appliances. It replaces missing, stripped, or damaged screws so parts stay fastened and appliances run quietly and safely. What it does

• Fastens panels, trim, brackets, and small components to the appliance chassis
• Restores secure mounting when a screw is missing or damaged
• Helps eliminate rattling or movement caused by loose fasteners
• Used where a #8-18 machine-thread screw is specified by the manufacturer

• One #8-18 machine screw

• Use the correct driver and size to avoid stripping the head or threads
• Hand-start the screw to ensure proper thread engagement before using a power tool
• Do not overtighten; stop when parts are snug to avoid cracking plastic or deforming metal
• Disconnect power to the appliance before accessing internal components for repair

The Ignition Module is an OEM part for GE gas ovens and ranges. As the “brains” regulating ignition functions, it works to precisely control gas valve operation and safely spark each burner using the glowbar.

Symptoms of an ignition module that needs replacing can include:

• Intermittent or complete failure of one or more burners to ignite
• Error codes shown regarding ignition issues
• Inability to adjust/maintain proper flame height or temperature
• Burners that rapidly cycle on and off inconsistently

Causes are often due to internal electronic component wear or failures over time. Replacing with this GE OEM module ensures your appliance’s ignition system functions reliably and dependably to allow safe, full-featured cooking. As with all GE parts, it is also compatible with ranges from Hotpoint, RCA, and select Kenmore models.


The HV Electrodes and Harness Assembly is an OEM part for GE gas ranges. It transmits high-voltage electricity to strategically placed components.

Symptoms of a bad HV electrode and harness include:

• Unpredictable or incomplete heating within oven cavity sections
• Error codes related to HV delivery issues preventing bake/broil
• Frayed, loose, or water-damaged wiring presenting shock hazards

Causes involve normal wear to materials transmitting continuous high voltage. Exposure to condensation or food spillages can damage insulation prematurely as well.

This part is also compatible with Hotpoint, RCA, and select Kenmore models.

The Top Burner Grate is an OEM part for GE gas ranges. As the flat metal grate covering each gas surface burner cavity, it plays a critical safety and functional role.

Causes of a bad burner grate include normal wear from years of direct exposure to open flame and cooking temperatures. Slides or droppings from heavy pots can also cause surface damage over time.

Symptoms of a bad top burner grate are:

• Warping or distortion allowing cookware to contact the gas flame
• Cracks or splits resulting in direct flame exposure through openings
• Rough surfaces where food debris or corrosion have built up

This genuine GE replacement burner grate is ompatible with Hotpoint, RCA and Kenmore models.

This control harness connects the appliance control board to switches, sensors and power, restoring reliable signal and power routing for proper operation. Replace a damaged harness to fix intermittent controls or loss of display and functions. What it does

• Routes power and control signals between the main control board and components.
• Replaces frayed or broken wiring that can cause intermittent or no response from controls.
• Helps eliminate faults like blank displays, unresponsive buttons, or modules that won't start.
• Prevents electrical arcing and poor connections from damaged wires or terminals.

• Disconnect power before starting any repair to avoid shock or injury.
• Compare the replacement harness to the original for connector type and wire routing before installing.
• Route wires away from heat sources and moving parts; secure with existing clips or ties.
• If connectors are corroded or pins are damaged, replace the connector or harness rather than forcing connections.

This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

This replacement screw fastens appliance components to restore secure fit and reduce vibration or panel movement. Simple, direct replacement for a missing or stripped fastener to help maintain proper assembly and operation. What it does:

• Secures panels, brackets or trim to keep parts aligned and prevent rattling
• Restores mounting where a lost or damaged screw causes loose or sagging components
• Helps maintain electrical and mechanical connections by keeping parts properly seated
• Small hardware solution for cosmetic and functional stability

• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Inspect mating threads and replace if damaged; do not force a stripped screw
• Tighten until snug — avoid over-tightening which can crack plastic or strip threads
• If accessing areas near power or controls, disconnect appliance power first and follow all safety precautions

This control panel overlay (T09) replaces a worn or damaged front graphic on the appliance control console, restoring legible labels and a finished appearance. It's a direct-fit cosmetic part for the console area. What it does

• Covers the control console area and provides button graphics and label locations.
• Restores faded, scratched, or cracked overlay surfaces for improved readability.
• Helps prevent dirt and moisture from reaching the underlying control components (cosmetic protection).
• Useful when original overlay markings are worn or peeling and need replacement.

• One control panel overlay (T09) as shown.

• Disconnect power (unplug or switch off circuit breaker) before starting any repair.
• Access typically requires removing the console or control housing; keep track of screws and clips.
• Handle gently to avoid creasing or scratching the new overlay during installation.
• If buttons or electronics remain unresponsive after replacing the overlay, further diagnosis of the keypad or control board may be required.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap is an OEM part for GE ranges. It covers the burner head, helping to distribute the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Common causes of a bad burner cap include exposure to high heat, which can cause warping or discoloration, physical damage from dropping or mishandling, and buildup of food residue that can degrade the material over time.

Symptoms of a bad burner cap include:

• Uneven or weak flame
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• Burner not performing efficiently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Clip Igniter is an OEM replacement part for GE ranges.

This GE OEM replacement is also compatible with some Hotpoint, Sears Kenmore, and RCA models.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This panel side foil is a decorative side trim that restores the appliance's finished appearance and helps protect the cabinet edge from everyday wear. It's a direct-replacement exterior trim piece. What it does

• Covers and protects the outer edge of the appliance panel or door to maintain a clean, finished look
• Hides scratches, nicks, or peeled paint along the panel edge
• Restores consistent appearance after panel or door repair or replacement
• Keeps the cabinet edge sealed from light contact and minor abrasion

• One panel side foil

• High-level replacement: remove the outer panel or door to access the existing foil before installing the new piece
• Use care to avoid scratching the new foil during installation; soft cloths and non-marring tools recommended
• If adhesive or fasteners are present on the original, remove old adhesive residue and follow OEM attachment method
