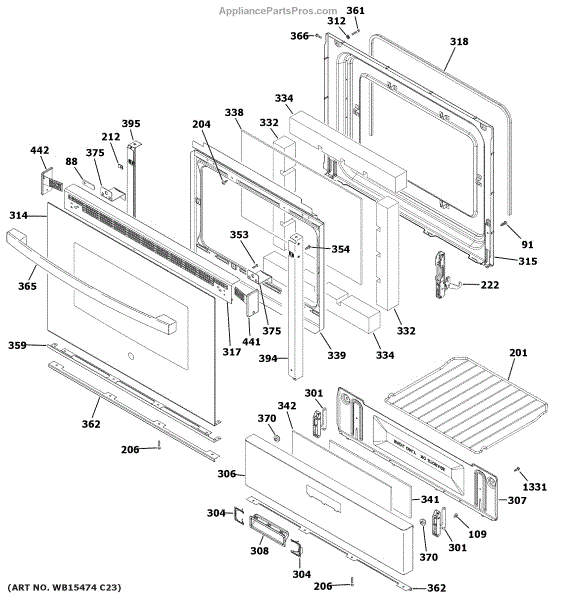

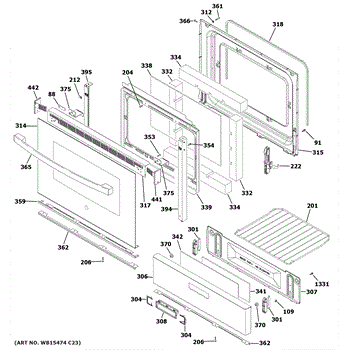

Parts for Ge JGBS61DP3BB: Door & Drawer Parts

This is a #8-18 machine screw used to secure panels and components on compatible appliances. It replaces missing, stripped, or damaged screws so parts stay fastened and appliances run quietly and safely. What it does

• Fastens panels, trim, brackets, and small components to the appliance chassis
• Restores secure mounting when a screw is missing or damaged
• Helps eliminate rattling or movement caused by loose fasteners
• Used where a #8-18 machine-thread screw is specified by the manufacturer

• One #8-18 machine screw

• Use the correct driver and size to avoid stripping the head or threads
• Hand-start the screw to ensure proper thread engagement before using a power tool
• Do not overtighten; stop when parts are snug to avoid cracking plastic or deforming metal
• Disconnect power to the appliance before accessing internal components for repair

The Oven Rack is an OEM replacement part for GE ranges. It provides an elevated surface for baking, roasting or broiling food inside the oven cavity.

Causes of a bad rack can include warping or discoloration from exposure to high heat over time. Cracks or breakage may also occur due to mishandling or loading the rack with excess weight.

Symptoms of a bad oven rack include:

• Food not baking or cooking evenly while on the rack
• Difficulty sliding the rack in and out of the oven
• Cracks, bends or broken welds in the rack frame

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

The Door Hinge is an OEM replacement part for GE ranges. It allows for smooth and controlled opening and closing of the oven door. It features a sturdy metal construction and is designed to withstand the repeated use and high temperatures of the oven.

Symptoms of a faulty door hinge include:

• Oven door not closing or sealing properly
• Difficulty in opening or closing the oven door
• Uneven or loose door seal

A bad door hinge can occur due to wear and tear over time, excessive weight or force applied to the door, or damage from accidental impact. If you notice issues such as the oven door not closing properly, difficulty in opening or closing the door, or an uneven seal, it may be time to replace the old or damaged door hinge with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


A replacement door hinge that restores proper door alignment and smooth pivoting so doors open and close correctly. Fits many standard appliance doors and helps reduce sagging, binding, and uneven gaps that let cold air escape. What it does

• Supports the door and maintains correct alignment for a proper seal and consistent closing.
• Provides the pivot point for smooth opening and closing motion.
• Common symptom fixes: corrects door sagging, binding, misalignment, and uneven gaps.
• Helps prevent premature wear on seals and reduces energy loss from poorly closing doors.

• 1 door hinge

• Unplug the appliance (and turn off water supply if applicable) before beginning any repair.
• Use appropriate hand tools; keep hardware and mounting screws organized for reassembly.
• Tighten hinge fasteners securely but avoid over-torquing; verify hinge alignment before final tightening.

This broil handle clip secures the broiler door handle to the oven door, restoring a safe, solid grip and preventing the handle from slipping or detaching. It's a small replacement part that fixes loose or wobbly broiler handles. What it does:

• Holds the broil/door handle firmly in place so the handle doesn't move or fall off
• Addresses symptoms like a loose, wobbly, or partially detached broiler handle
• Matches OEM function and fit to maintain proper door operation
• Works with the existing handle and mounting hardware when undamaged

• One broil handle retaining clip (single clip as shown)

• Disconnect power to the appliance before beginning any repair
• Remove the oven door or access panel per the manufacturer instructions to reach the handle clip
• Reuse existing screws and handle hardware unless they are damaged; replace as needed

This contoured washer is a shaped fastening washer used on compatible GE top-load washers to secure and cushion mating parts. It helps maintain proper alignment and reduces wear where parts bear against each other. What it does

• Provides a contoured bearing surface to help distribute load and reduce point wear
• Cushions and isolates components to help limit vibration and noise
• Secures fasteners or assemblies in tight, shaped recesses
• Helps maintain correct part alignment for reliable operation

• One contoured washer

• Disconnect power to the washer before servicing to avoid shock or injury
• Use proper tools and observe orientation; tighten fasteners to manufacturer guidance

The outer door glass is an OEM part for GE ovens. It serves as the protective barrier for the oven door, providing insulation and a visually appealing finish. It is designed to maintain the desired temperature inside the oven while keeping the exterior cool to the touch.

A bad outer door glass can result in issues such as cracks, shattered glass, or loose trim. Causes of a bad assembly can include accidental impacts, exposure to extreme temperatures, or wear and tear over time.

Symptoms of a bad outer door glass include:

• Visible cracks or shattered glass on the oven door
• Loose or damaged trim around the glass panel
• Heat escaping from the oven door
• Difficulty in cleaning or removing stains from the glass

Replace your worn-out or damaged outer door glass with this genuine OEM GE part to restore your oven.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


A welded door liner assembly that replaces a damaged or dented inner door shell to restore proper sealing and appearance. Designed as a direct-replacement inner surface for affected appliance doors. What it does

• Replaces a cracked, dented, or otherwise damaged inner door liner that can allow drafts or interfere with proper door closure.
• Restores the door's interior surface so gaskets and inner components mount correctly.
• Helps eliminate cold or heat leaks caused by a compromised liner.
• Improves door appearance and prevents further damage to internal door parts.

• Disconnect power and follow OEM service manual instructions before starting work.
• Use safe handling practices — edges may be sharp and assembly can be heavy; use gloves and eye protection.
• May require removing door panels, trim, and hardware; retain mounting screws and check gasket seating during reassembly.

The Gasket Door Assembly is an OEM replacement part for GE ovens. This gasket provides a seal around the oven door, ensuring that heat is retained inside the oven for efficient cooking and baking. It helps to maintain the correct temperature and prevents heat from escaping, which can affect cooking performance and energy efficiency.

Causes of a bad gasket door assembly can include regular wear and tear, exposure to high temperatures, and physical damage such as cuts or tears. Over time, the gasket can lose its elasticity and sealing capability.

Symptoms of a bad Gasket Door Assembly include:

• Heat escaping from the oven door
• The oven taking longer to preheat or maintain temperature
• Uneven cooking or baking results
• Visible damage or gaps in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This side door insulation panel installs inside a refrigerator door to help maintain internal temperature and reduce heat transfer. It replaces damaged or missing insulation to help the door seal and cooling performance. What it does:

• Fills the cavity inside a refrigerator door to limit air and heat transfer
• Helps the gasket maintain a consistent interior temperature by supporting proper door structure
• Commonly replaced when the original insulation is cracked, waterlogged, or missing
• Works as a direct-fit replacement for the specified OEM part number

• One side door insulation panel

• For safety, unplug the appliance or shut off power before starting repairs
• Remove the interior door panel or liner to access the insulation; handle foam carefully to avoid tearing
• Use manufacturer-recommended fasteners/adhesives if reattaching insulation; do not compress or overfill the cavity

The Crystal Window is an OEM part for GE ranges. This part is the inner glass window located on the oven door, allowing users to visually monitor the cooking process without opening the door. The window is designed to withstand high temperatures and provide clear visibility into the oven.

Causes of a bad crystal window can include regular wear and tear, thermal stress from repeated heating and cooling cycles, and accidental impacts that can cause cracks or scratches.

Symptoms of a bad crystal window include:

• Visible cracks or scratches on the window
• Cloudiness or discoloration obstructing the view
• Difficulty seeing inside the oven during cooking
• Potential safety concerns if the window's structural integrity is compromised

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This panel side foil is a decorative side trim that restores the appliance's finished appearance and helps protect the cabinet edge from everyday wear. It's a direct-replacement exterior trim piece. What it does

• Covers and protects the outer edge of the appliance panel or door to maintain a clean, finished look
• Hides scratches, nicks, or peeled paint along the panel edge
• Restores consistent appearance after panel or door repair or replacement
• Keeps the cabinet edge sealed from light contact and minor abrasion

• One panel side foil

• High-level replacement: remove the outer panel or door to access the existing foil before installing the new piece
• Use care to avoid scratching the new foil during installation; soft cloths and non-marring tools recommended
• If adhesive or fasteners are present on the original, remove old adhesive residue and follow OEM attachment method

This painted screw head is a cosmetic and protective cap that restores the finished look where a visible screw is used. It covers the screw head and helps match surrounding black trim for a clean appearance. What it does:

• Covers and conceals a screw head to improve appearance of panels, trim, or bezels
• Helps protect the screw head from direct exposure and reduces visible wear
• Used when trim or panels show exposed or mismatched screw heads
• Common fix when screw heads are scratched, discolored, or visually distracting

• Use the matching screw and press or snap the cap into place over the screw head
• Disconnect power and remove any panels only as recommended by your appliance manual before working near electrical components
• Avoid forcing or prying the cap; if tight, gently ease it on to prevent breakage
• Replace any damaged caps with the exact part to maintain fit and finish

The Bottom Door Trim (BLK) is an OEM part for GE ranges. This black trim piece is located at the bottom of the oven door, providing a finished look while also protecting the door's edge from damage and wear.

Causes of a bad bottom door trim can include repeated exposure to high temperatures, accidental impacts, or regular wear and tear from frequent use.

Symptoms of a bad bottom door trim include:

• Visible cracks or breaks in the trim
• The trim becoming loose or detaching from the door
• Sharp edges or warping
• Difficulty in opening or closing the oven door properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-24 machine screw secures panels and components on compatible appliances, restoring proper fit and preventing rattles or loose parts. Small, service-grade fastener for repeatable repairs and safe operation. What it does:

• Fastens control panels, trim pieces, brackets, or assemblies that use a 10-24 threaded screw
• Restores secure mounting when a screw is missing, stripped, or damaged
• Helps stop panel rattling, misalignment, or intermittent contact caused by loose parts
• Compatible with repair or replacement tasks requiring the standard 10-24 thread size

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct driver or socket to avoid stripping the head; do not overtighten
• Replace only like-for-like 10-24 fasteners to maintain proper fit and thread engagement
• If threads in the receiving part are damaged, repair or replace the mating component rather than relying on a longer or different screw

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

The Black Handle and Endcap is an OEM part for GE ranges. It includes both the oven door handle as well as the decorative endcaps on either side. Providing a sophisticated look, these parts play an important aesthetic role.

The handle and endcaps are responsible for a sleek modern style. Made from durable black materials, they can resist everyday wear without showing fingerprints or other marks as easily as lighter tones.

Symptoms of a bad handle and endcaps include:

• Cracked, chipped or broken surfaces
• Loose fit that enables dirt/grime behind the endcaps
• Dull, faded or stained appearance

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This small replacement bumper cushions and protects the appliance frame/trim where panels meet, helping reduce vibration, chipping and rattles for a cleaner, quieter fit. Ideal when the original bumper is worn, cracked or missing. What it does:

• Cushions contact between the frame/trim and adjacent panels to reduce noise and prevent damage
• Helps maintain proper panel alignment and sealing where the trim meets the cabinet
• Reduces rattling or vibration caused by loose or degraded trim pads
• Restores protective spacing that prevents chips or scratches to finished surfaces

• One frame front bumper

• Disconnect power to the appliance before starting work and follow all safety precautions
• Usually installs by pressing into a slot or onto a mounting surface after removing the trim piece; some trim removal may be required
• Inspect mating surfaces for damage or debris and clean before installing the new bumper
• Replace with the exact part number only; do not force or modify the bumper to fit

This drum end cap supports the dryer drum and helps keep it aligned for smooth rotation. Replacing a worn or damaged end cap restores drum positioning to reduce rubbing, noise and uneven wear. What it does:

• Supports and locates the drum at the cabinet end to maintain proper alignment
• Helps the drum rotate smoothly and reduces rubbing or scraping sounds
• Prevents excess wear on the drum edge and adjacent supports
• Common symptom: noisy or wobbling drum that may rub against the cabinet

• One drum end cap

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the dryer front or cabinet panels; keep track of fasteners
• Inspect adjacent parts (glides, rollers, bearings or seals) and replace if worn
• Test the dryer on a short cycle after reassembly to ensure smooth drum rotation
