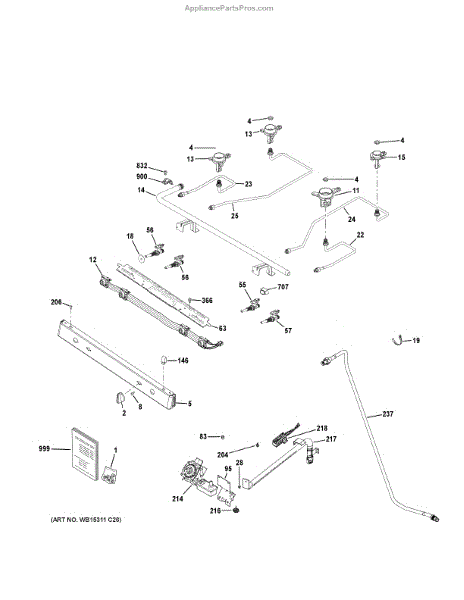

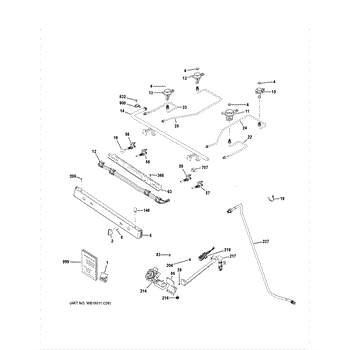

Parts for Ge JGBS61DP3BB: Gas & Burner Parts

The LP Conversion Kit is an OEM replacement part for GE ranges. It allows the range to be converted from natural gas to LP gas. This kit provides all the necessary burner orifices needed to change the range for use with LP gas.

Symptoms of requiring an LP conversion kit include:

• Flames that are too high or too low
• Inefficient heating or cooking performance
• Difficulty in adjusting the flame intensity

Causes of needing an LP conversion kit can include moving to a new location with a different gas source, or switching from natural gas to LP gas for personal preference or availability reasons.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Valve Knob is an OEM part for GE ranges. It is used to control the gas flow to the burners, allowing for precise adjustment of the flame and ensuring proper cooking temperatures.

You should replace the valve knob if it becomes damaged or worn out. Common issues include the knob becoming loose, cracking, or breaking, which can make it difficult to control the gas flow accurately.

Symptoms of a bad valve knob include:

• Difficulty in turning the knob
• The knob not staying in place
• Visible cracks or damage
• Inconsistent flame control

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

Size: 8 - 32 inch.

This burner box harness is the wiring assembly that connects the range's cooktop igniters and gas valves inside the burner box, restoring reliable spark and control signals so burners ignite properly. What it does:

• Routes electrical power and ignition signals to cooktop igniters and gas valves inside the burner box
• Replaces damaged or frayed wiring that can cause intermittent ignition or no-spark conditions
• Helps stop arcing or shorting caused by chafed insulation or loose connections
• Restores proper electrical continuity between control board outputs and burner components

• One burner box wiring harness assembly as shown

• Disconnect electrical power (and gas supply where applicable) before servicing
• Access typically requires removing the range back panel or cooktop; keep fasteners organized
• Inspect connectors and mounting clips; replace any damaged clips or fasteners
• After installation, restore power and verify each burner ignites and shuts off properly; do not use if wiring shows damage

The Medium surface burner base is an OEM part for GE ranges. It serves as the base for the surface burners, covering and protecting the burner cavities.

Causes of a bad surface burner base include warping or deformation from high heat over time, cracks or breaks from impact damage, or corrosion from liquid spills or grease accumulation.

Symptoms of a bad surface burner base include:

• Burners no longer sitting flush or securely on the cooktop surface
• Excessive air gaps around the burners allowing gas/flames to escape
• Difficulty cleaning due to liquid leaks into the burner cavities
• Visible cracks, breaks, or deformities in the material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This small V2 inlet jet directs water flow to the dispenser/ice-making area so the appliance fills and forms properly. It restores correct water routing for consistent filling and helps reduce weak or misshapen ice or slow dispensing. What it does:

• Channels water to the ice maker/dispenser so the correct amount reaches the fill area.
• Helps ensure uniform ice formation and consistent dispenser flow.
• Can resolve symptoms like weak/slow dispensing, underfilled ice trays, or uneven ice cubes.
• Works as the small replacement nozzle where the original inlet jet is worn or blocked.

• One small V2 inlet jet

• Disconnect power and shut off the water supply before beginning work.
• Access may require removing inner panels or the ice maker/dispenser housing; follow your model's service instructions.
• Inspect the seat and surrounding fittings for debris or damage before installing; replace other damaged components as needed.

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This wire tie secures and organizes wiring inside the appliance to help prevent chafing and loose connections. Its 7-7/8 inch length is suited for bundling harnesses and routing cables away from heat and moving parts. What it does:

• Fastens and groups wires or small hoses to keep them neatly routed
• Helps prevent wire chafing, abrasion, and contact with sharp edges
• Reduces the chance of intermittent connections from loose wiring
• Keeps wiring away from moving components to reduce noise and wear

• Disconnect power before servicing the appliance
• Position wiring as needed, insert tie and tighten; avoid over-tightening
• Trim excess tie length flush and secure cut end away from wires
• Replace any damaged wiring insulation and verify routing before restoring power

The Front Orifice Holder is an OEM component specifically designed for GE range burners. Located under the cooktop, it serves as the mounting bracket that secures the front orifice at the base of each burner head.

Symptoms of a bad front orifice holder include:

• Flames that appear crooked or uneven from the burner
• Gas flames that sway or blow around excessively
• Difficulty adjusting the burner flame height or pattern

Over time and repeated heating cycles, the metal holder can warp or distort from heat exposure. Motion from burner head adjustment may also cause bracket weakness. This genuine GE replacement part installs with ease and ensures precise positioning of flame origination points. Proper orifice placement afforded by the front holder optimizes burner combustion and safety. Compatible GE, Kenmore, and select electric range brands include Monogram, GE Café, and Profile models.


The GE Front Orifice Holder-Left is an OEM part for GE gas ranges. It secures the front left burner's gas orifice nozzle to properly regulate fuel delivery.

Symptoms of a bad front orifice holder include:

• Burning or fire hazards if gas leaks around the holder's joint
• Inability to adjust the flame height or heat level on that burner
• Uneven heating performance between the front left burner and others

Causes may include cracks, corrosion or material fatigue developing in the holder over many heating and cooling cycles. Mineral deposits could also potentially cause issues.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas ranges.

Rear orifice holder secures the gas orifice in the rear-right burner assembly so the orifice stays correctly positioned for reliable ignition and consistent flame performance during cooking. What it does:

• Holds and aligns the gas orifice within the rear-right burner head for proper gas flow.
• Keeps the orifice stable during use to help maintain consistent flame size and heat.
• Common symptoms indicating this part may be faulty: burner fails to light, intermittent ignition, or uneven/low flame on the rear-right burner.
• Works as part of the burner assembly that interfaces with the burner head, cap, and orifice.

• Always shut off the gas supply and disconnect electrical power before beginning service.
• Remove burner cap, grate and burner head as needed to access the orifice holder; keep small parts organized.
• Reassemble carefully, verify correct seating of the orifice and holder, and perform a soap-leak check after reconnecting gas.

Rear orifice holder (left) secures and positions the burner orifice for the back-left gas burner, restoring proper alignment for reliable ignition and more consistent flame control when the original holder is damaged or missing. What it does:

• Holds the rear-left burner orifice in the correct position for proper gas flow and ignition.
• Helps support stable, even flame and consistent heat at the back-left burner.
• Use when the burner head sits unevenly, ignition is inconsistent, or the orifice holder is cracked, bent, or loose.
• Simple replacement can stop gas leakage paths caused by a misaligned or damaged holder.

• Turn off the appliance power and shut off the gas supply before servicing.
• Allow the cooktop and burner components to cool fully; remove grates and burner caps to access the holder.
• Replace only with the correct left rear holder and seat the orifice securely; avoid forcing parts.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Round Valve Burner is an OEM component specifically designed for GE gas ranges. Each burner delivers flame through a round metal valve that is mounted below the cooktop surface.

Symptoms of a bad burner include:

• Inability to ignite or an intermittent flame
• Irregular or unpredictable flame size regardless of control knob position
• Yellow flame or flame that encompasses the burner entirely instead of staying centered
• Gas smell emitting from the burner area when in use

Causes of burner failure can be a buildup of residue or debris in the valve mechanism over many years, wear and tear of internal parts like the thermocouple or orifice, or physical damage.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore gas ranges.

This round gas valve controls flow to a surface burner, providing smooth flame adjustment and reliable shutoff. Replace a worn valve to restore precise burner control and safe operation on your gas range or cooktop.

• Regulates gas to the burner as the control knob turns, from low simmer to full flame
• Common symptoms: burner won't light though the igniter sparks, flame won't adjust or shut off, gas odor near the knob, or a stiff/stripped valve stem
• Services one burner position; multiple valves are used on many gas ranges/cooktops
• Installs in the burner manifold/orifice holder location specified by the manufacturer

• Disconnect power and shut off the gas supply before servicing
• Note stem orientation; transfer fittings/brackets from the original valve as needed and use approved thread sealant where specified
• After installation, leak-test all joints with an approved solution before restoring gas
• Verify proper ignition and flame adjustment on the burner after replacement

The Round Valve Burner 140 is an OEM part for GE gas ranges. It regulates gas flow to a tubular burner ring, enabling tempered cooking performance.

Causes of failure include mineral buildups obstructing valve ports, worn sealing edges letting gas escape, or broken internal components.

Symptoms of a bad round valve burner are:

• Inaccurate or indistinct burner flame patterns
• Inability to maintain consistent flame heights
• Responsiveness issues adjusting burner temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

The Oven Orifice Spud LP is an OEM part for GE gas ovens and ranges. This part controls the flow of liquid propane (LP) gas into the oven burner box.

The oven orifice spud plays a role in gas combustion, adjusting flow to match the needs of a liquid propane system. It connects directly to the gas supply, so an improperly sized or damaged spud can lead to gas leaks or incomplete burning.

Causes of a bad oven orifice spud include normal wear over time from constant heating cycles, exposure to cleaning chemicals, or damage during part replacement.

Symptoms of needing a replacement include:

• Uneven or inconsistent oven heating
• Extended cooking times or inability to reach desired temperatures
• Gas smell coming from the oven area
• Visible damage or cracks on the spud itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

The Valve Control Assembly is an OEM component specially designed for GE gas wall ovens and ranges. Located at the rear of the unit, it houses the gas valve, piezo igniter, and control logic that regulates the flow of fuel to each active burner.

Symptoms of a bad valve control assembly include:

• Unstable or irregular burner flame heights and patterns
• Burners failing to ignite or stay lit as intended
• Gas leak smells detected around rear connection fittings
• Error codes or dysfunction of baked-on cleaning modes

As a critical safety device, the valve assembly must operate precisely cycle after cycle. Causes like thermal stress or electrical faults can induce failures over the years. This genuine GE replacement facilitates dependable and code-approved gas control. Compatible GE gas wall oven and range brands including Monogram ensure trusted and safe daily cooking performance.


The Burner/Oven Assembly is an OEM part for GE gas ranges. It holds ignition and valve components over lower cooking surfaces.

Causes of failure include deterioration of high-temperature seals from repeated heating cycles, stripped mounting points from frequent removal/cleaning access, and impact damage to housing structures.

Symptoms of a faulty burner/oven assembly are:

• Gas leaks around burner bases or control knobs
• Unstable or irregular flame sizes lacking responsiveness
• Potential safety hazards from exposed connections or cracks

This OEM part is compatible with Hotpoint and RCA gas range models as well.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This manifold supply tube assembly is the pre-formed gas line that feeds the burner manifold in your gas range or cooktop. Replacing a damaged or leaking tube restores safe, consistent gas flow so burners can ignite and operate properly.

• Routes gas from the appliance inlet/regulator to the burner manifold
• Restores proper gas delivery if the original tube is cracked, kinked, or corroded
• Helps with symptoms such as multiple burners not lighting, weak/uneven flames, or a gas odor near the manifold area
• Pre-bent OEM geometry ensures correct routing and fit

• Shut off gas supply and disconnect power before servicing
• Work in a well-ventilated area; keep open flames and sparks away
• Do not bend or modify the pre-formed tube; ensure flare fittings seat squarely
• After installation, leak-test all connections with an approved leak-detection solution.
