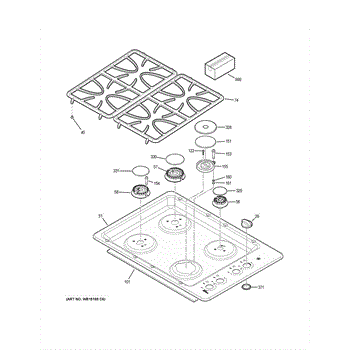

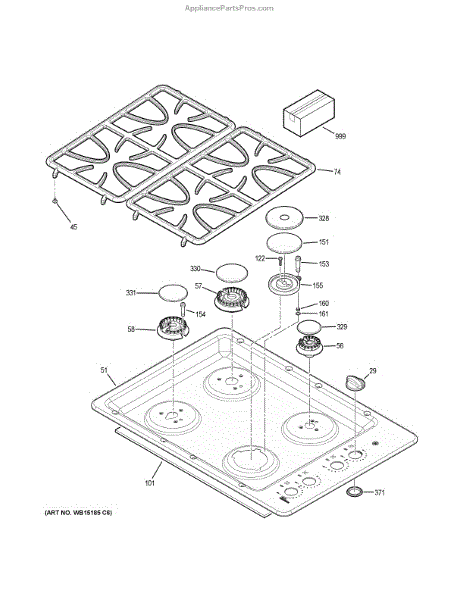

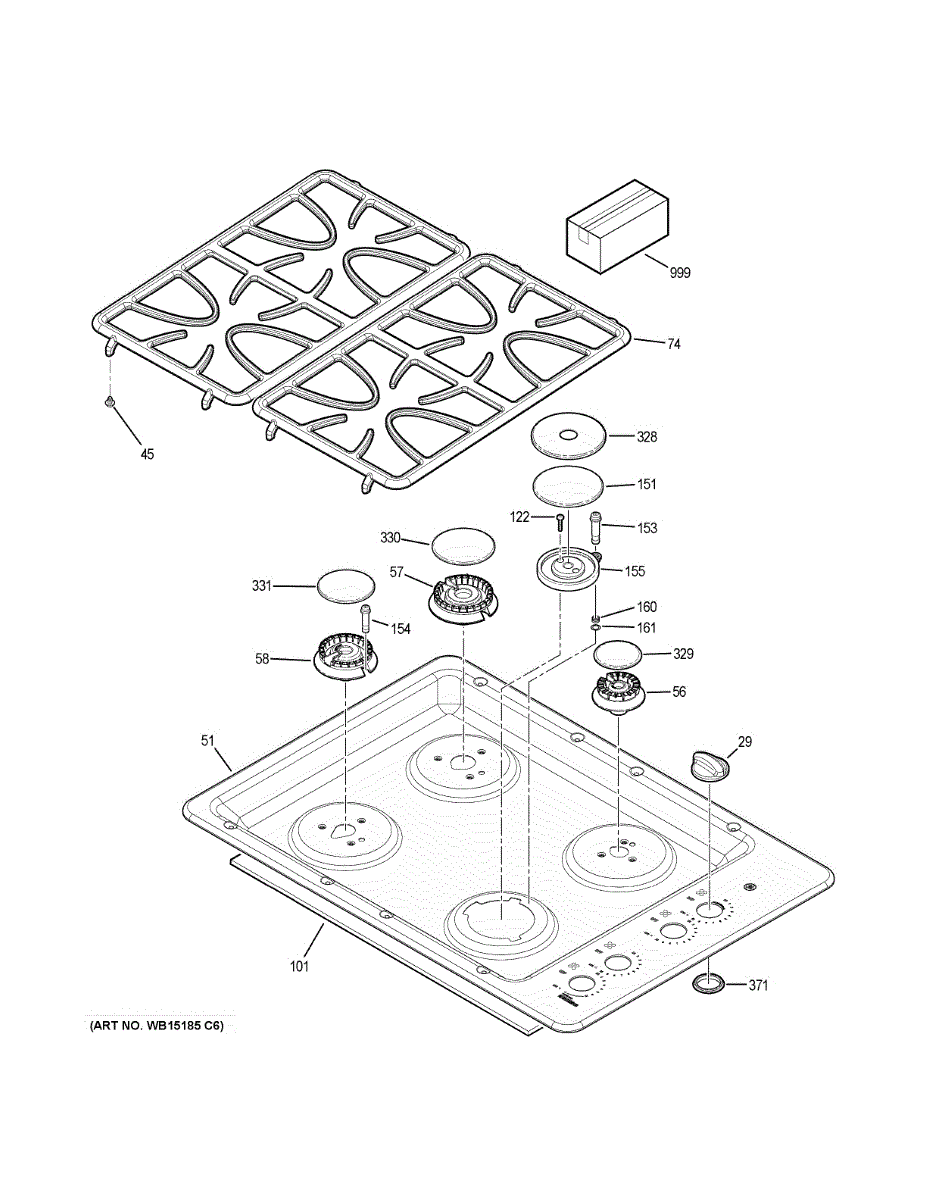

Parts for Ge JGP333SET3SS: Control Panel & Cooktop Parts

The Knob is an OEM part for GE ranges and cooktops that allows for precise control over the appliance's heating elements, ensuring accurate temperature settings for cooking. Over time, knobs can become worn, cracked, or even break, making it difficult to adjust the settings on your range or cooktop.

Symptoms of a bad Knob include:

• Difficulty in turning the knob or adjusting the temperature setting.
• Physical damage, such as cracks or breaks.
• Faded or worn markings.

Causes of a bad knob can occur from accidental damage, such as dropping a heavy object on the knob, to natural wear and tear.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Grate Foot is an OEM part for GE cooking ranges and stovetops. This small but essential component provides stability to the burner grates, preventing them from sliding or wobbling during use. Includes 1 rubber foot that goes on the bottom of stove top grates to protect the stovetop if feet become damaged or lost. Sold individually. Order as needed. If you also need an adhesive, order W10841140.

Symptoms of a bad grate foot include:

• Grates that move or wobble when touched
• Scratches or damage to the stovetop surface beneath the grates
• Unstable cookware positioning, potentially leading to spills or uneven cooking

Causes of damage to the grate foot often include regular wear and tear, heat degradation, or impact from heavy pots and pans being dropped or dragged across the grate.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cooktop grate assembly replaces a damaged or worn support for cookware on a gas range, restoring stable heating and proper pan placement. Durable design keeps pots and pans level for safer, more even cooking. What it does:

• Supports cookware above the burner for stable cooking and even heat distribution
• Replaces cracked, warped, or chipped grates that cause pans to wobble or sit unevenly
• Stops rattling or movement caused by a damaged grate
• Helps restore proper clearance between flame and cookware for consistent performance

• Allow burners and cooktop to cool completely before handling or installing
• Lift out the old grate and set the new grate into the cooktop openings; no special tools typically required
• Verify the grate sits flat and seats fully on the support points before use

This machine screw fastens appliance components such as brackets, panels, and trim. Replacing a missing or stripped screw restores a tight, secure fit and helps prevent vibration, rattling, and loosening during normal use.

• Secures panels, brackets, or trim to the appliance chassis
• Helps maintain alignment and stability under vibration and heat
• Restores holding power when the original screw is stripped, lost, or corroded
• Common symptoms include loose or rattling panels, misaligned trim, or wobbling handles/brackets

• Disconnect power; shut off gas supply before servicing.
• Use the correct driver for the screw head to avoid stripping.
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening.
• Replace one fastener at a time to maintain alignment.

This head burner main is the primary gas burner head used on compatible gas ranges to direct and distribute the flame for proper cooking. It replaces a damaged or corroded burner head to restore even heating performance. What it does:

• Directs gas to the cooktop for ignition and controlled flame distribution
• Helps maintain even heat across the cooking surface for consistent results
• Can resolve symptoms like uneven flame, visible damage, or poor ignition at the burner
• Works with the burner cap and valve assembly as part of the burner system

• Turn off gas supply and power to the appliance before starting any work
• Remove grates and burner caps to access the burner; follow OEM disassembly guidance
• Replace only with the exact part number to ensure proper fit and function

The Electrode Top is an OEM part for GE gas ranges. It is designed to produce the spark necessary to ignite the gas burner, ensuring the burner lights up quickly and efficiently.

You should replace the electrode top if it becomes worn out, damaged, or fails to produce a spark. Common causes of a bad electrode top include buildup of food debris, exposure to moisture, or physical damage to the electrode or its connections.

Symptoms of a bad Electrode Top include:

• The burner not igniting or taking a long time to ignite
• A weak or absent spark
• Clicking sounds without ignition

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

18K Simmer

This igniter spring secures the appliance's igniter in its bracket, keeping the component properly positioned for reliable ignition. Replacing a tired spring restores stable alignment and helps resolve intermittent light-off issues.

• Holds the igniter securely in its mounting bracket or burner base
• Maintains proper gap and positioning for consistent ignition performance
• Helps address symptoms such as a loose or misaligned igniter and delayed or inconsistent lighting
• Replaces springs that are stretched, corroded, or broken

• Disconnect power and shut off gas supply before servicing; allow the appliance to cool fully.
• Access the igniter by removing burner components or the access panel as required by your model.
• Support the fragile ceramic igniter while removing/installing the spring; avoid bending the electrode or over-stretching the spring.
• Test operation after installation.

This igniter washer is a small retaining piece for gas ranges/cooktops that holds the surface burner spark igniter securely in place. Replacing a worn washer keeps the electrode aligned for a consistent spark and reliable burner ignition.

• Secures the surface burner igniter to the burner base
• Maintains correct igniter alignment and gap for consistent sparking
• Helps prevent arcing or misfires caused by a loose/missing retainer
• Common signs include a wobbly/misaligned igniter, intermittent spark, or that burner not lighting

• Disconnect power and shut off gas; allow the cooktop to cool
• Remove the burner cap and head to access the igniter
• Handle the ceramic electrode carefully; install the washer to secure the igniter in its original orientation
• Reassemble, restore power/gas, and test burner ignition

This burner cap fits the 18K high-output burner on your gas cooktop or range. It sits on the burner head to shape the flame and protect it from spills, helping restore an even flame pattern and clean, finished look.

• Sits atop the burner head to distribute the flame evenly across the 18K burner
• Helps maintain stable simmer and full, consistent heat
• Shields the burner head from spills and debris that can affect ignition
• Typical signs it's needed: uneven or yellow flames, delayed ignition, rattling/warped cap, visible chips or cracks

• Turn off gas and power; allow the surface to cool completely
• Lift off the old cap; clean and dry the burner head seating area
• Center the new cap on the burner head; ensure it sits flat and fully seated
• Test ignition and flame; reseat the cap if the flame is uneven

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control knob seal fits around the control shaft opening on your range or cooktop to close the gap under the knob. It helps block spills and debris from entering the control area and keeps the console looking clean and finished.

• Forms a barrier between the knob/valve shaft and the control surface
• Helps prevent liquids, crumbs, and grease from seeping into the control cavity
• Restores a tidy appearance; replaces cracked, shrunken, or missing seals
• Typical signs of wear: visible damage, gaps around the knob, or residue appearing beneath the panel after spills

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool
• Pull the knob straight off the shaft and remove the old seal
• Clean the area; seat the new seal flat around the shaft—avoid side pressure on the valve stem
• Reinstall the knob and verify smooth operation and proper seal seating
