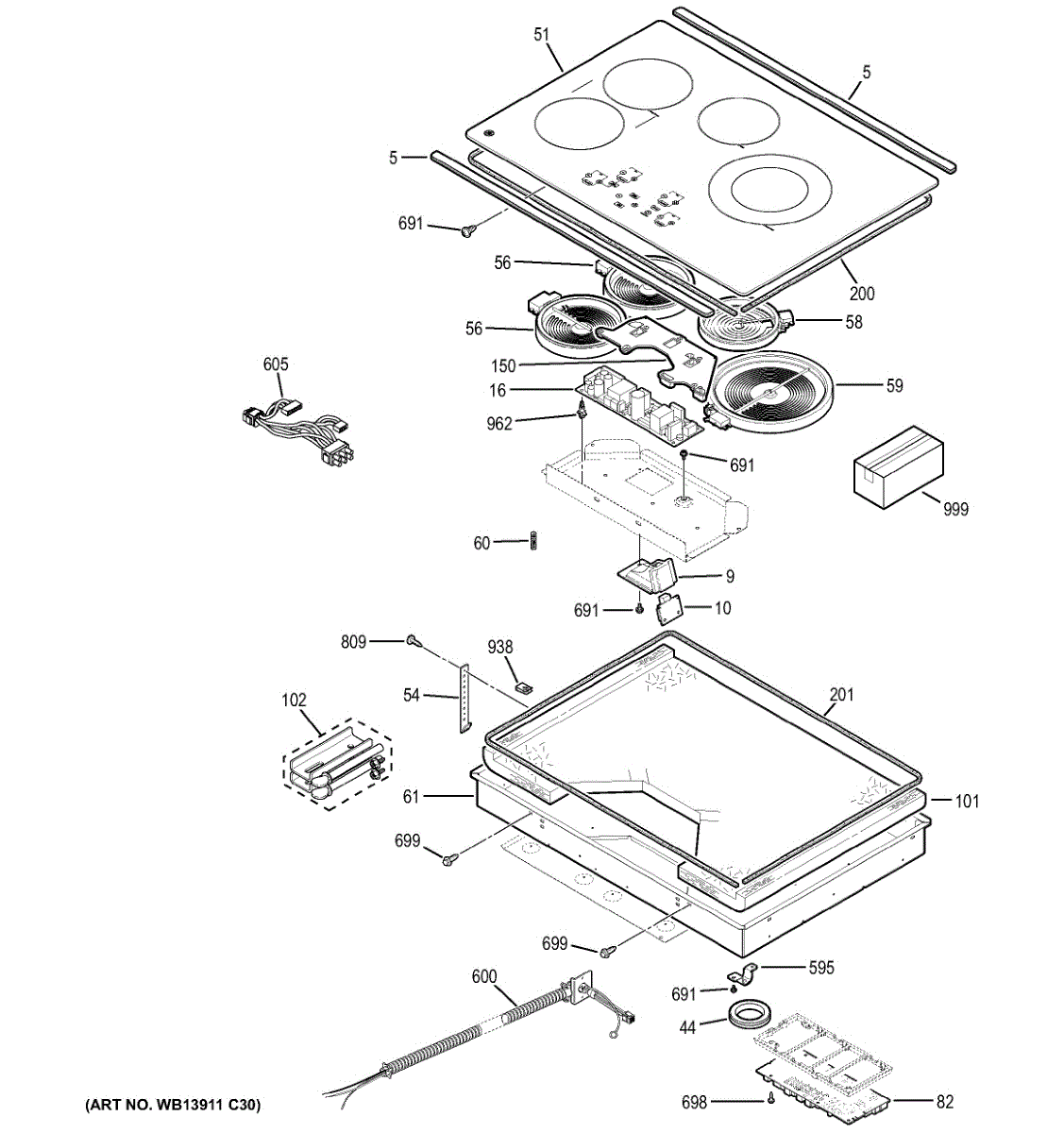

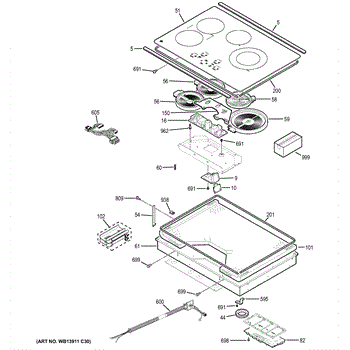

Parts for Ge JP5030SJ2SS: Control Panel & Cooktop Parts

This trim assembly replaces a damaged or worn door trim to restore the appliance's finished appearance and proper edge coverage. It provides a clean, factory look and helps protect the door edge from dings and wear. What it does:

• Replaces cracke

Replace a cooktop power supply board if your unit won't turn on, burners don't heat, or controls are unresponsive. Restores electrical regulation.

Complete control panel assembly for your cooktop. Includes user interface and main control board. Replace if cracked, damaged, or buttons are unresponsive.

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it d

Burner won't heat or heats unevenly? This 6 inch radiant element restores consistent cooking performance. Typical DIY repair takes 30-45 minutes.

Burner not heating? This 5.5" radiant element fits beneath glass cooktops. Common fix for non-working burners. Moderate DIY, 20-30 minutes to replace.

Burner stopped working or won't heat properly? This dual radiant surface element restores full cooking function. DIY-friendly repair, typically 30 minutes.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include

This bottom burn box is the oven cavity component that directs and contains the gas burner flame, protecting the oven floor and helping maintain consistent heat for proper cooking performance. What it does

• Channels burner flame and heat across the oven floor for more even heating
• Shields the oven bottom from drips, spills and debris that can cause smoking or flare-ups
• Helps prevent direct flame contact with oven floor and components, reducing hot spots
• Replaces damaged, rusted or warped burn boxes that can cause burner instability or odors

• One bottom burn box (single)

• Turn off gas supply and power to the range before servicing; follow all local codes
• Inspect mounting tabs and nearby gaskets; replace any damaged parts for a proper fit
• Handle sharp or corroded edges carefully and verify correct alignment before restoring gas/power

Replace a faulty control relay board when your cooktop won't respond to commands or cycles fail to start. Direct-fit repair part for models listed.

Replace your cooktop's insulation sheet if heat escapes or surrounding surfaces get too hot. This thermal barrier restores efficiency and temperature control.

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the c

Fixes unresponsive controls and blank displays on your cooktop. This display board assembly restores keypad function and screen readouts when buttons stop working.

Seals and cushions panel joints in your cooktop. Replace when original tape becomes brittle, flattened, or missing to contain heat and reduce vibration.

Foam seal tape creates an airtight barrier between your cooktop and countertop, preventing spills from dripping into cabinets. Replace when worn or gaps appear.

This main power wire harness routes electrical power between the appliance power input and internal components to restore reliable power delivery. It replaces damaged or worn wiring that can cause intermittent power or loss of function. What it does:

• Transfers incoming mains power to the appliance's control and internal components
• Replaces frayed, broken, or melted wiring that can cause intermittent power or no power
• Restores secure plug-and-socket connections to eliminate loose or arcing contacts
• Helps eliminate symptoms such as appliance not powering on, flickering controls, or blown fuses

• One replacement main power wire harness as shown

• Disconnect power at the mains before starting any service
• Replace the harness only if the correct part matches your appliance's harness connector and routing
• Route harness away from moving parts and sharp edges; secure with original clips or ties
• If you see burning, melting, or damaged connectors, inspect associated components and replace as needed

Replace a faulty cooktop wire harness when control panel buttons don't respond or burners won't turn on. Connects control board to sensors and switches.

Fix a cooktop that won't heat or has intermittent power issues with this power harness wire assembly. Restores electrical connections between controls.

This SCR (silicon controlled rectifier) is a replacement power-regulation semiconductor used in select GE appliances to control voltage to heating elements or motors, restoring reliable variable power control and stable operation. What it does

• Regulates and switches power to heating elements or drive motors as part of the appliance's control circuitry.
• Helps maintain consistent heat or motor speed when the control board calls for variable output.
• Can resolve symptoms such as intermittent heating, fluctuating motor speed, or appliances that run only on certain settings.
• Functions as a direct electrical switching component—not a user-serviceable interface.

• One SCR (silicon controlled rectifier) matching OEM part WB01X24096.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the part carefully; observe anti-static precautions and avoid touching leads or terminals.
• Verify the part number on the old component matches WB01X24096 before installation.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Range burner clip secures burner components in place. Replace if bent, broken, or burners wobble. Verify fit with your model number before ordering.
