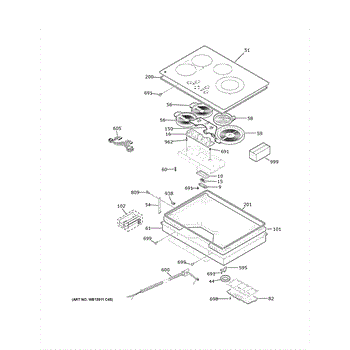

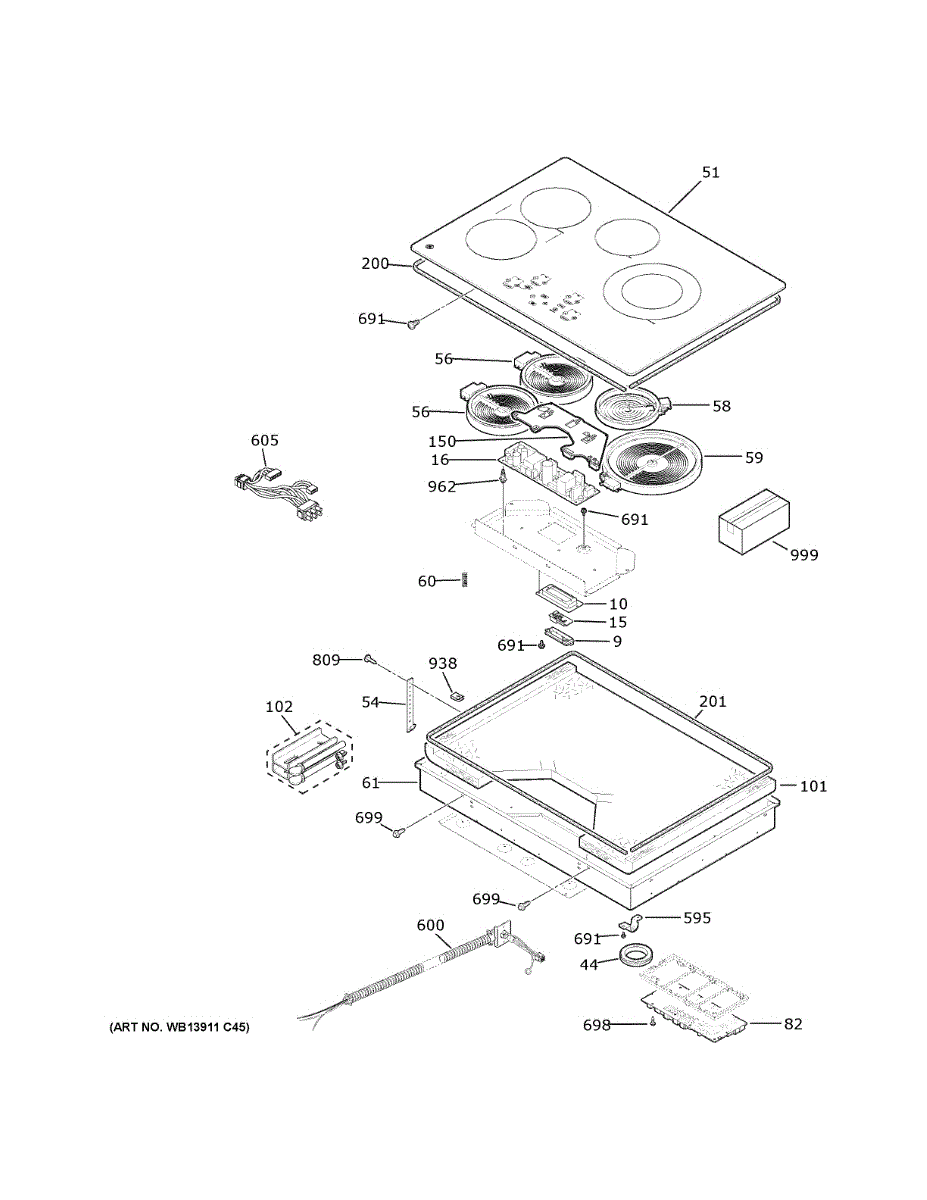

Parts for Ge PEP7030DT1BB: Control Panel & Cooktop Parts

Replace a cooktop power supply board if your unit won't turn on, burners don't heat, or controls are unresponsive. Restores electrical regulation.

Burner won't heat or heats unevenly? This 6 inch radiant element restores consistent cooking performance. Typical DIY repair takes 30-45 minutes.

Burner not heating? This 5.5" radiant element fits beneath glass cooktops. Common fix for non-working burners. Moderate DIY, 20-30 minutes to replace.

Burner stopped working or won't heat properly? This dual radiant surface element restores full cooking function. DIY-friendly repair, typically 30 minutes.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bottom burn box is the oven cavity component that directs and contains the gas burner flame, protecting the oven floor and helping maintain consistent heat for proper cooking performance. What it does

• Channels burner flame and heat across the oven floor for more even heating
• Shields the oven bottom from drips, spills and debris that can cause smoking or flare-ups
• Helps prevent direct flame contact with oven floor and components, reducing hot spots
• Replaces damaged, rusted or warped burn boxes that can cause burner instability or odors

• One bottom burn box (single)

• Turn off gas supply and power to the range before servicing; follow all local codes
• Inspect mounting tabs and nearby gaskets; replace any damaged parts for a proper fit
• Handle sharp or corroded edges carefully and verify correct alignment before restoring gas/power

Replace your cooktop's insulation sheet if heat escapes or surrounding surfaces get too hot. This thermal barrier restores efficiency and temperature control.

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

Seals and cushions panel joints in your cooktop. Replace when original tape becomes brittle, flattened, or missing to contain heat and reduce vibration.

Foam seal tape creates an airtight barrier between your cooktop and countertop, preventing spills from dripping into cabinets. Replace when worn or gaps appear.

This main power wire harness routes electrical power between the appliance power input and internal components to restore reliable power delivery. It replaces damaged or worn wiring that can cause intermittent power or loss of function. What it does:

• Transfers incoming mains power to the appliance's control and internal components
• Replaces frayed, broken, or melted wiring that can cause intermittent power or no power
• Restores secure plug-and-socket connections to eliminate loose or arcing contacts
• Helps eliminate symptoms such as appliance not powering on, flickering controls, or blown fuses

• One replacement main power wire harness as shown

• Disconnect power at the mains before starting any service
• Replace the harness only if the correct part matches your appliance's harness connector and routing
• Route harness away from moving parts and sharp edges; secure with original clips or ties
• If you see burning, melting, or damaged connectors, inspect associated components and replace as needed

Replacement mounting screw for securing panels, trim, and internal brackets. Needed when original fasteners are missing, stripped, or damaged.

This SCR (silicon controlled rectifier) is a replacement power-regulation semiconductor used in select GE appliances to control voltage to heating elements or motors, restoring reliable variable power control and stable operation. What it does

• Regulates and switches power to heating elements or drive motors as part of the appliance's control circuitry.
• Helps maintain consistent heat or motor speed when the control board calls for variable output.
• Can resolve symptoms such as intermittent heating, fluctuating motor speed, or appliances that run only on certain settings.
• Functions as a direct electrical switching component—not a user-serviceable interface.

• One SCR (silicon controlled rectifier) matching OEM part WB01X24096.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the part carefully; observe anti-static precautions and avoid touching leads or terminals.
• Verify the part number on the old component matches WB01X24096 before installation.

Plastic standoff that secures and spaces the control board from the chassis. Replace if broken, missing, or worn to restore proper board mounting and insulation.
