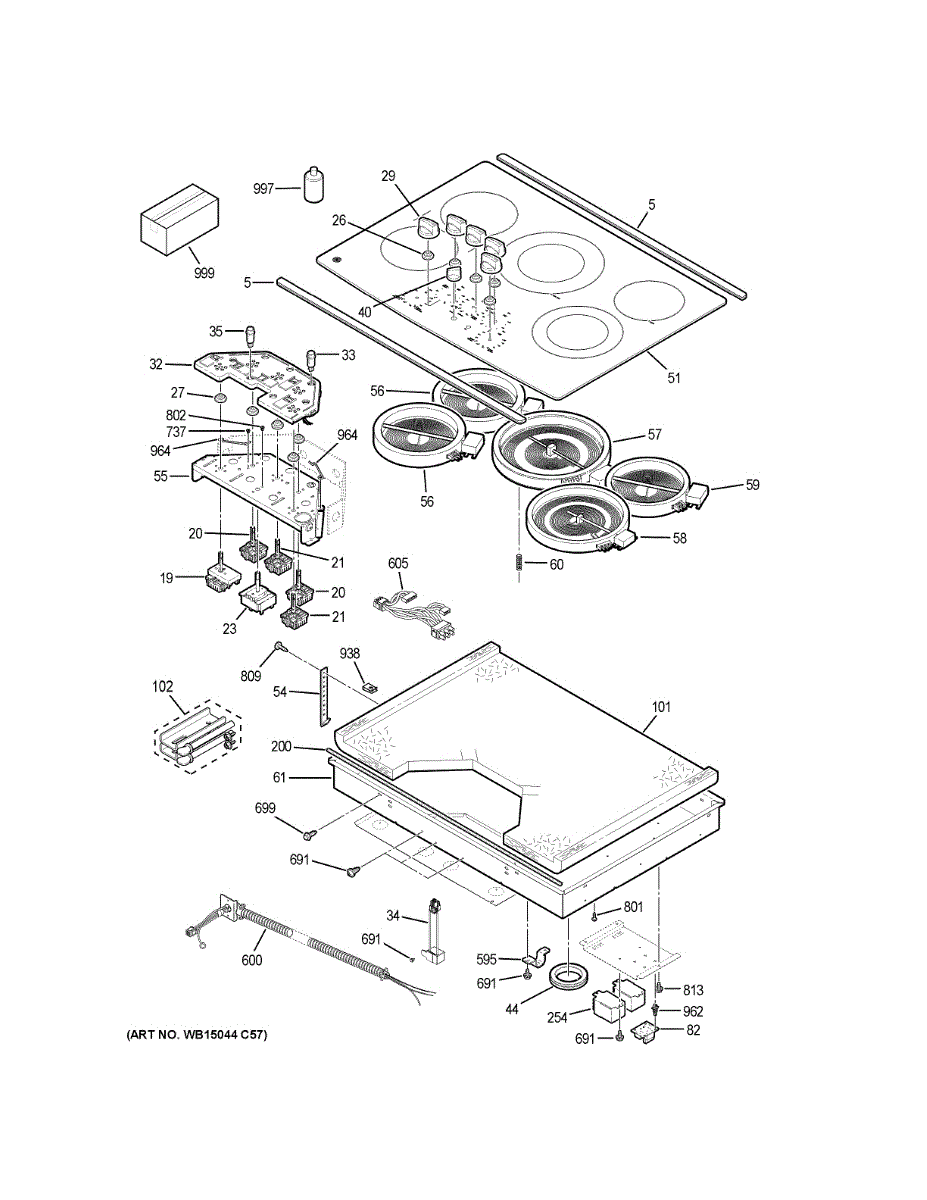

Parts for Ge PP7030BM1TS: Control Panel & Cooktop Parts

This trim assembly replaces a damaged or worn door trim to restore the appliance's finished appearance and proper edge coverage. It provides a clean, factory look and helps protect the door edge from dings and wear. What it does:

• Replaces cracked, dented or chipped door trim to improve appearance
• Covers and protects the door edge from everyday wear and impacts
• Helps maintain a consistent exterior finish and hides mounting hardware
• Fits where the original trim attaches with clips or screws

• One door trim assembly

• Disconnect power or unplug the appliance before starting any repair
• Remove any adjacent panels or handles to access trim fasteners
• Trim may install with clips, screws, or adhesive—retain original fasteners when possible

This infinite control switch regulates heat for a range's surface burner, restoring adjustable burner power for consistent cooking. It replaces a worn or faulty control to help burners respond correctly to knob settings. What it does:

• Controls variable power to a surface burner element so you can set low-to-high heat
• Commonly replaces switches that cause burners to stay off, not heat, or only work at one setting
• Restores click-free, smooth adjustment between temperature levels
• Works with mechanical knob assemblies to translate user input into element output

• Disconnect power to the range before beginning any service to avoid electrical shock
• Verify correct switch orientation and terminal connections match the original before installing
• Use basic hand tools; handle terminals carefully to prevent bending or damage

The Switch Infinite Control is an OEM part for GE electric cooktops. It regulates temperature settings for the various cooktop surface heating elements.

Causes of a bad infinite control switch can include worn or damaged internal contacts, broken wires, or faulty temperature controls over time.

Symptoms of a bad infinite control switch include:

• Inaccurate or unstable surface heating
• Failure to reach or maintain desired temperature settings
• Non-responsive or erratic dial/knob operations

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore electric cooktop models.

A replacement control knob that restores reliable control of the appliance's selector or temperature dial. Easy-to-grasp design helps you select settings confidently and keeps worn or broken knobs from interfering with operation. What it does

• Replaces a worn, cracked or missing selector/control knob so you can change settings safely and accurately.
• Provides a secure fit on the control shaft to prevent slipping or unintended changes.
• Common symptom fix: knob spins, pops off, or cannot turn the control.
• Works for the corresponding range/oven/stove control assemblies that use this OEM knob design.

• Turn power or gas to the appliance off before removing or installing the knob; follow your appliance manual for safety steps.
• Most installations simply pull the old knob straight off the shaft and push the new knob on until it seats.
• If the knob does not seat securely, inspect the control shaft and replacement for damage before use.

A replacement selector knob that restores user control for range and oven functions while matching a black stainless finish. Easy to swap when the original knob is worn, cracked, or no longer turns smoothly. What it does:

• Replaces a worn or damaged control selector to restore reliable temperature and function selection
• Snaps onto control shaft to provide a tactile grip and clear position indexing
• Addresses symptoms like loose turning, stripped splines, or missing/melted knob
• Fits front panel control applications where a black stainless finish is required

• One black stainless selector knob

• Turn power off at the appliance or breaker before starting work
• Pull the old knob straight off the control shaft; align splines and push the new knob fully on
• Use only as a like-for-like replacement; do not force incorrect fitment

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

The Element Radiant 9" Dual is an OEM part for GE ranges and cooktops. This dual-element radiant burner provides versatile cooking options, offering both a small and large heating area within a single burner. It ensures efficient and even heat distribution for a variety of cooking needs, accommodating different pot and pan sizes.

Causes of a bad radiant element can include normal wear and tear, electrical issues, or damage from heavy cookware or impact. Over time, these factors can lead to the element failing to heat properly or not functioning at all.

Symptoms of a bad radiant element include:

• The burner not heating up or heating inconsistently
• Only one of the dual elements functioning
• Visible damage or discoloration on the element
• The burner cycling on and off more frequently than usual

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dual Haliant oven heating element restores the oven's primary heat source for baking and broiling so food cooks evenly. It replaces a worn or failed element to help return normal oven heating performance. What it does:

• Heats the oven cavity for bake and broil cycles as the primary heating element.
• Conducts electricity and converts it to heat when the oven calls for temperature rise.
• Common signs of failure: oven won't reach set temperature, long preheat times, uneven cooking, or no heat on bake/broil.
• Works with the oven's control/relay to deliver consistent heating when functioning properly.

• Disconnect power at the circuit breaker before starting any repair and ensure the oven is cold.
• Handle the element carefully to avoid bending or damaging connections; wear gloves and eye protection.
• Inspect terminal connections and mounting points for corrosion or damage; tighten terminals to manufacturer torque if applicable.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bottom burn box is the oven cavity component that directs and contains the gas burner flame, protecting the oven floor and helping maintain consistent heat for proper cooking performance. What it does

• Channels burner flame and heat across the oven floor for more even heating
• Shields the oven bottom from drips, spills and debris that can cause smoking or flare-ups
• Helps prevent direct flame contact with oven floor and components, reducing hot spots
• Replaces damaged, rusted or warped burn boxes that can cause burner instability or odors

• One bottom burn box (single)

• Turn off gas supply and power to the range before servicing; follow all local codes
• Inspect mounting tabs and nearby gaskets; replace any damaged parts for a proper fit
• Handle sharp or corroded edges carefully and verify correct alignment before restoring gas/power

This insulation sheet provides thermal barrier protection for the appliance, helping stabilize internal temperatures and reduce heat transfer to surrounding panels. It restores original insulating performance to improve efficiency and temperature control. What it does:

• Replaces worn or damaged insulation that allows excess heat transfer
• Helps maintain consistent internal temperature for proper operation
• Reduces heat felt on exterior cabinet surfaces
• Can help prevent heat-related damage to nearby components

• One insulation sheet

• Disconnect power (and water if applicable) before beginning service
• Access may require removing outer panels or liners; keep fasteners organized
• Wear gloves and eye protection—edges may be sharp and insulation fibers can irritate skin
• Follow the appliance service manual for model-specific removal and reinstallation steps

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This SCR (silicon controlled rectifier) is a replacement power-regulation semiconductor used in select GE appliances to control voltage to heating elements or motors, restoring reliable variable power control and stable operation. What it does

• Regulates and switches power to heating elements or drive motors as part of the appliance's control circuitry.
• Helps maintain consistent heat or motor speed when the control board calls for variable output.
• Can resolve symptoms such as intermittent heating, fluctuating motor speed, or appliances that run only on certain settings.
• Functions as a direct electrical switching component—not a user-serviceable interface.

• One SCR (silicon controlled rectifier) matching OEM part WB01X24096.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the part carefully; observe anti-static precautions and avoid touching leads or terminals.
• Verify the part number on the old component matches WB01X24096 before installation.

This 8-32 x 3/4 Phillips screw secures panels and components in many household appliances. It replaces stripped or missing machine screws to restore proper fit and appliance stability. What it does:

• Fastens metal or plastic appliance panels and brackets using an 8-32 thread
• Replaces worn, rusted, or missing screws that cause loose panels or rattling
• Provides a reliable threaded connection for internal components
• Standard 3/4" length suits common cabinet and mounting applications

• Use the correct screwdriver (Phillips) and avoid over-torquing to prevent stripping
• Disconnect power to the appliance and remove plugs or batteries as needed before working
• If screw is rusted or seized, apply penetrating lubricant and proceed carefully

A small machine screw used to fasten appliance panels and components. This 10-32 x 7/16 screw secures assemblies and replacement parts so panels and brackets stay properly mounted during normal operation. What it does:

• Fastens small panels, brackets, and assemblies that use a 10-32 thread
• Replaces missing or stripped mounting screws to stop rattling and loose parts
• Helps maintain proper alignment of fitted components
• Used where a short 7/16" length is required for a flush fit

• Unplug the appliance before starting any repair
• Use the correct sized screwdriver or nut driver for 10-32 threads
• Hand-start the screw to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, replace with correct fastener; avoid forcing the screw

A replacement plastic PCB standoff that secures and insulates the appliance control board from the chassis to prevent shorts and maintain stable mounting. Restores correct spacing and support for a loose or rattling control board. What it does:

• Holds the printed circuit board off the metal frame to prevent electrical contact and shorting
• Keeps the control board aligned and stable to reduce vibration-related faults or intermittent connections
• Provides an insulated mounting point where an original standoff is cracked, missing, or worn
• Helps ensure reliable screw placement and consistent board spacing during reassembly

• One plastic PCB standoff

• Disconnect power to the appliance before servicing to avoid shock or damage
• Use the original screw size and do not overtighten to prevent cracking the standoff or PCB
• Replace any damaged mounting hardware; verify the board sits flat and is properly insulated from metal parts
