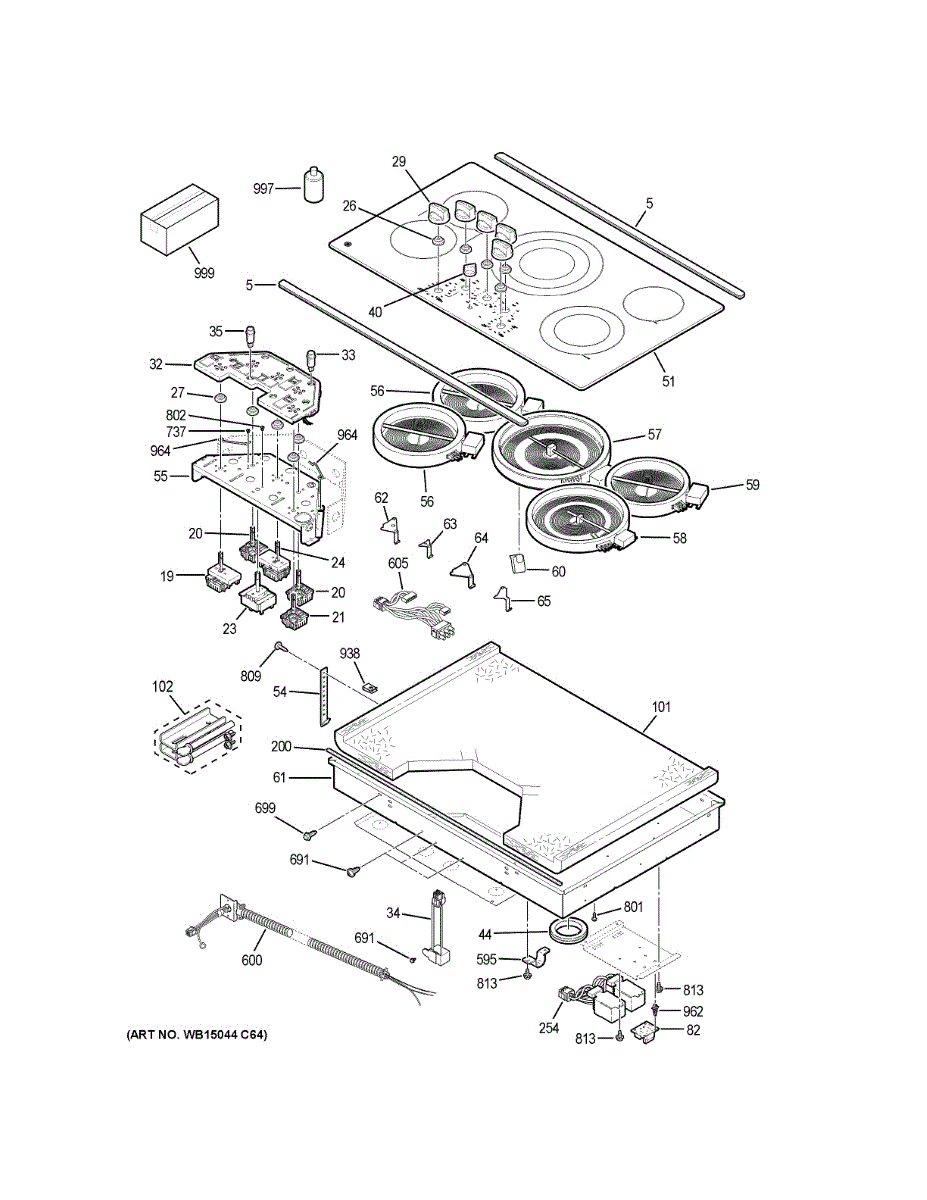

Parts for Ge PP7036SJ2SS: Control Panel & Cooktop Parts

This infinite control switch regulates heat for a range's surface burner, restoring adjustable burner power for consistent cooking. It replaces a worn or faulty control to help burners respond correctly to knob settings. What it does:

• Controls variable power to a surface burner element so you can set low-to-high heat
• Commonly replaces switches that cause burners to stay off, not heat, or only work at one setting
• Restores click-free, smooth adjustment between temperature levels
• Works with mechanical knob assemblies to translate user input into element output

• Disconnect power to the range before beginning any service to avoid electrical shock
• Verify correct switch orientation and terminal connections match the original before installing
• Use basic hand tools; handle terminals carefully to prevent bending or damage

The Switch Infinite Control is an OEM part for GE electric cooktops. It regulates temperature settings for the various cooktop surface heating elements.

Causes of a bad infinite control switch can include worn or damaged internal contacts, broken wires, or faulty temperature controls over time.

Symptoms of a bad infinite control switch include:

• Inaccurate or unstable surface heating
• Failure to reach or maintain desired temperature settings
• Non-responsive or erratic dial/knob operations

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore electric cooktop models.

This infinite control switch regulates heat levels for a surface burner on an electric range, restoring variable temperature control for routine cooking. Replaces a worn or faulty rotary control to recover smooth element adjustment. What it does:

• Controls variable power to a surface cooking element so burners can be set between low and high
• Operates with a rotary knob
• Used when burner heat is erratic, stuck at one setting, or will not turn off/on properly

• One infinite control switch (single unit)

• Disconnect power at the breaker or unplug the range before beginning service
• Access typically requires removing the back panel or cooktop; follow your model's service instructions
• Match terminal locations and wiring exactly; replace only with the correct OEM-approved switch

This indicator light replaces a failed pilot light on a range or cooktop. Mounted in the control area, it illuminates to show when a burner or function is on, restoring clear visual status and everyday safety.

• Lights when the associated heating element or oven function is active
• Provides a visible "on" cue to help prevent accidental contact
• Common symptoms: won't light, flickers/intermittent, or stays on when controls are off
• Restores proper visual feedback when the original light has failed

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the rear of the control panel; remove back cover/trim as needed
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely and reuse existing mounting hardware; ensure wires are not pinched

This stainless-steel selector knob replaces a worn, cracked, loose or missing control knob to restore reliable function selection and improve the range/oven's front-panel appearance. Fits standard shaft-style control stems for selector use. What it does

• Provides a solid grip for turning the control shaft to select oven or range functions
• Replaces damaged or faded knobs that are hard to turn or no longer stay engaged
• Restores normal tactile feel and visual finish on the control panel
• Useful when the original knob is stripped, cracked, loose, or missing

• Disconnect power to the appliance or turn off the gas supply before working on controls
• Knob typically pulls straight off the control shaft and the replacement pushes on until fully seated
• Confirm proper alignment of any indicator marker before use

This maintop glass and frame is the complete glass cooking surface and supporting trim for the range. It restores a smooth, sealed top and keeps burners and internal components protected for safe cooking. What it does:

• Provides the glass cooking surface and surrounding frame that supports burners and grates
• Protects internal components from spills and debris and helps direct heat away from controls
• Replaces cracked, chipped, or warped top glass that can cause uneven cookware support or visible damage
• Restores a finished appearance to the cooktop and helps maintain safe operation

• Disconnect power to the appliance before starting and allow all surfaces to cool completely
• Handle glass carefully to avoid chipping or cuts; use proper gloves and eye protection
• May require removal of grates, burners, and fasteners; keep track of hardware and orientation
• Remove loose pieces cautiously and clean area before installing new assembly

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

The Haliant Element is an OEM part for GE ranges. It is a high-performance radiant heating element used in the stovetop, designed to provide consistent and efficient heat for cooking. This element heats up quickly and delivers precise temperature control for various cooking tasks.

Over time, the Haliant element can wear out due to repeated heating and cooling cycles, physical damage, or electrical issues. When the element becomes faulty, it can significantly impact the range's cooking performance.

Symptoms of a bad Haliant element include:

• The burner not heating up
• Uneven heating or hot spots
• Visible damage or breaks in the element
• The element cycling on and off irregularly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

An 8-inch Haliant radiant surface element for smooth-top ranges. It replaces a worn or burned-out burner so your cooktop heats evenly and responds correctly, restoring reliable everyday cooking performance. What it does:

• Supplies controlled radiant heat beneath a glass-ceramic cooktop for the 8-inch burner position
• Common fix for a surface element that will not heat
• Helps resolve slow or uneven heating, or when only part of the ring glows
• Appropriate when the element shows visible breaks, hot spots, or burn marks

• 1 8-inch Haliant radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely before service
• Lift or open the glass top per your service information; handle the element carefully—it is fragile
• Move wires one at a time to matching terminals; transfer any mounting brackets/clips from the old element
• Ensure the element sits flat and centered before reassembly; test operation before cooking

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bracket secures a radiant surface heating element to the cooktop assembly, keeping the element aligned and stable for consistent heating. It's a direct-fit mounting piece used when the element won't sit or stay properly. What it does

• Fastens the radiant surface element to the cooktop for stable positioning.
• Maintains proper alignment so the element makes reliable electrical and physical contact.
• Common symptom: element shifts, wobbles, or won't stay seated.
• Common symptom: visible looseness or misalignment under the glass or around the burner opening.

• One radiant element mounting bracket.

• Disconnect power at the breaker or unplug the range before starting work.
• Handle glass cooktops and ceramic surfaces carefully to avoid chips or cracks.
• Use basic hand tools; follow the oven/range service manual for removal and reassembly steps.

This mounting bracket secures a radiant cooktop element to the range frame so the element stays properly positioned for safe, reliable heating. Replacing a damaged bracket restores stable element support and alignment. What it does:

• Holds the radiant surface element firmly in place to prevent movement during use
• Maintains correct element spacing for even heat and safe operation
• Prevents the element from sagging, vibrating, or shifting when knobs are turned or cookware is moved
• Helps avoid intermittent contact that can cause heating issues

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle the glass/ceramic cooktop and element carefully to prevent cracking or injury
• Reuse existing fasteners if undamaged; replace hardware only with OEM-specified parts

This replacement bracket secures a radiant surface heating element to the cooktop for stable operation and correct alignment. It helps restore proper element positioning so the burner sits flush and heats reliably. What it does:

• Anchors the radiant element to the cooktop frame to prevent shifting during use
• Maintains correct element spacing so heat transfers evenly across cookware
• Prevents movement that can cause arcing, uneven heating, or poor contact
• Used when the original bracket is bent, broken, or worn

• Disconnect power to the range at the breaker before servicing
• Handle ceramic/glass cooktop parts carefully to avoid damage
• Remove the element and existing bracket, then secure the new bracket and reinstall the element
• If you see damaged element terminals or mounting hardware, replace those parts as needed

This oven cavity insulation panel helps retain heat inside the oven for more even cooking and reduces heat transfer to surrounding components. It's a direct-replacement oven insulation piece designed to restore proper thermal performance. What it does:

• Provides thermal barrier around the oven cavity to help maintain cooking temperatures
• Reduces heat transfer to adjacent parts and cabinet surfaces to protect components
• Helps improve oven temperature stability and efficient operation when installed correctly
• Addresses symptoms like excessive exterior heat or uneven cooking when damaged or missing

• Disconnect power (and gas if applicable) before starting any repair and allow the appliance to fully cool
• Handle with care and wear gloves; insulation fibers may irritate skin or lungs
• Ensure panel is positioned and secured as original—do not compress or block vents

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

A replacement plastic PCB standoff that secures and insulates the appliance control board from the chassis to prevent shorts and maintain stable mounting. Restores correct spacing and support for a loose or rattling control board. What it does:

• Holds the printed circuit board off the metal frame to prevent electrical contact and shorting
• Keeps the control board aligned and stable to reduce vibration-related faults or intermittent connections
• Provides an insulated mounting point where an original standoff is cracked, missing, or worn
• Helps ensure reliable screw placement and consistent board spacing during reassembly

• One plastic PCB standoff

• Disconnect power to the appliance before servicing to avoid shock or damage
• Use the original screw size and do not overtighten to prevent cracking the standoff or PCB
• Replace any damaged mounting hardware; verify the board sits flat and is properly insulated from metal parts
