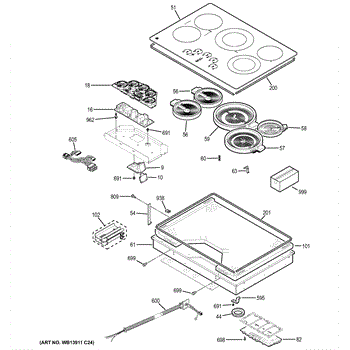

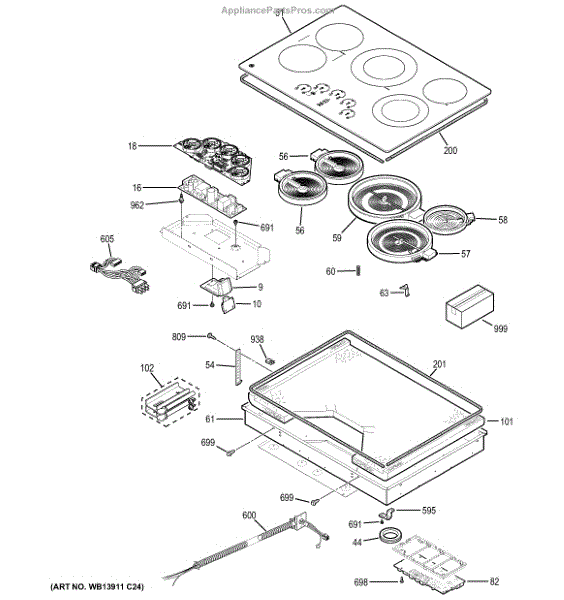

Parts for Ge PP9030DJ2BB: Control Panel & Cooktop Parts

The power supply board is an OEM replacement part for GE cooktops. It serves as the central hub for providing and regulating the electrical power needed to operate various components within the cooktop, such as the control board, ignition systems, and surface burner elements.

Symptoms of a bad Power Supply Board include:

• Cooktop not powering on or receiving electricity
• Burners failing to ignite or heat inconsistently
• Control panel displays or indicators not functioning properly
• Flickering or dimming of lights on the cooktop

Causes of a bad power supply board can include electrical surges or voltage fluctuations, component failure due to age or wear, physical damage from impact or exposure to excessive heat or moisture. Over time, the internal components of the board can degrade, leading to power supply issues.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore cooktop models.

The GE Maintop Glass and Frame Assembly is an OEM component specifically designed for GE electric cooktops. It consists of tempered glass surrounded by an insulating frame. This assembly serves as the complete cooking surface and protective barrier within the oven.

Causes of a bad maintop glass and frame assembly can include wear and tears over time, accidental damage from being dropped or impacted, or flaws in the materials. Repeated heating and cooling cycles put stress on the glass and bonding between glass and frame.

Symptoms of failure include:

• Visible cracks or breaks in the glass
• The glass becoming loose from the retaining frame
• Gaps appearing between the glass and surrounding frame
• Hot or cool spots developing on the cooking surface

This genuine OEM GE replacement is compatible with  Hotpoint, RCA and select Kenmore models.

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

This dual Haliant oven heating element restores the oven's primary heat source for baking and broiling so food cooks evenly. It replaces a worn or failed element to help return normal oven heating performance. What it does:

• Heats the oven cavity for bake and broil cycles as the primary heating element.
• Conducts electricity and converts it to heat when the oven calls for temperature rise.
• Common signs of failure: oven won't reach set temperature, long preheat times, uneven cooking, or no heat on bake/broil.
• Works with the oven's control/relay to deliver consistent heating when functioning properly.

• Disconnect power at the circuit breaker before starting any repair and ensure the oven is cold.
• Handle the element carefully to avoid bending or damaging connections; wear gloves and eye protection.
• Inspect terminal connections and mounting points for corrosion or damage; tighten terminals to manufacturer torque if applicable.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Radiant 9" Dual is an OEM part for GE ranges and cooktops. This dual-element radiant burner provides versatile cooking options, offering both a small and large heating area within a single burner. It ensures efficient and even heat distribution for a variety of cooking needs, accommodating different pot and pan sizes.

Causes of a bad radiant element can include normal wear and tear, electrical issues, or damage from heavy cookware or impact. Over time, these factors can lead to the element failing to heat properly or not functioning at all.

Symptoms of a bad radiant element include:

• The burner not heating up or heating inconsistently
• Only one of the dual elements functioning
• Visible damage or discoloration on the element
• The burner cycling on and off more frequently than usual

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bottom burn box is the oven cavity component that directs and contains the gas burner flame, protecting the oven floor and helping maintain consistent heat for proper cooking performance. What it does

• Channels burner flame and heat across the oven floor for more even heating
• Shields the oven bottom from drips, spills and debris that can cause smoking or flare-ups
• Helps prevent direct flame contact with oven floor and components, reducing hot spots
• Replaces damaged, rusted or warped burn boxes that can cause burner instability or odors

• One bottom burn box (single)

• Turn off gas supply and power to the range before servicing; follow all local codes
• Inspect mounting tabs and nearby gaskets; replace any damaged parts for a proper fit
• Handle sharp or corroded edges carefully and verify correct alignment before restoring gas/power

This control relay board switches power to key washer functions so the machine runs cycles as commanded. It restores relay-controlled operations when the original relay assembly fails or becomes intermittent. What it does

• Switches motor, pump and other high-current circuits under command of the main control
• Restores reliable power routing when relays on the control assembly fail or stick
• Commonly linked to symptoms like no motor/pump operation, intermittent runs, or cycles that won't advance
• Helps stop unexpected stops or loss of specific functions caused by a faulty relay section

• Disconnect power before service to avoid shock or injury
• Handle board by edges and avoid static — use anti-static precautions if available
• Basic hand tools needed; test appliance through one cycle after installation

This insulation sheet provides thermal barrier protection for the appliance, helping stabilize internal temperatures and reduce heat transfer to surrounding panels. It restores original insulating performance to improve efficiency and temperature control. What it does:

• Replaces worn or damaged insulation that allows excess heat transfer
• Helps maintain consistent internal temperature for proper operation
• Reduces heat felt on exterior cabinet surfaces
• Can help prevent heat-related damage to nearby components

• One insulation sheet

• Disconnect power (and water if applicable) before beginning service
• Access may require removing outer panels or liners; keep fasteners organized
• Wear gloves and eye protection—edges may be sharp and insulation fibers can irritate skin
• Follow the appliance service manual for model-specific removal and reinstallation steps

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

This foam insulation tape seals and cushions joints in your appliance. It restores a compressible barrier where panels meet, helping contain heat/airflow and reduce vibration once the original tape becomes brittle, flattened, or missing.

• Creates a soft, insulating barrier between adjoining components to limit heat transfer and air leaks
• Cushions trim and panels to reduce vibration and metal-to-metal contact
• Restores proper fit/seal when the original foam is worn or missing
• Common signs: tape is cracked, flattened, or loose; visible gaps at seams; buzzing or rattling from trim

• Disconnect power and allow the appliance to cool completely; shut off gas if applicable
• Note the tape's original location/path before removal; clean off old residue and dry surfaces
• Install the new tape in the same location without stretching; avoid gaps or overlaps
• Do not block burner openings or ventilation paths; refer to your model's diagram for exact placement

This main power wire harness routes electrical power between the appliance power input and internal components to restore reliable power delivery. It replaces damaged or worn wiring that can cause intermittent power or loss of function. What it does:

• Transfers incoming mains power to the appliance's control and internal components
• Replaces frayed, broken, or melted wiring that can cause intermittent power or no power
• Restores secure plug-and-socket connections to eliminate loose or arcing contacts
• Helps eliminate symptoms such as appliance not powering on, flickering controls, or blown fuses

• One replacement main power wire harness as shown

• Disconnect power at the mains before starting any service
• Replace the harness only if the correct part matches your appliance's harness connector and routing
• Route harness away from moving parts and sharp edges; secure with original clips or ties
• If you see burning, melting, or damaged connectors, inspect associated components and replace as needed

This wire harness connects the range/stove oven control board to the appliance's sensors and switches, restoring reliable signal and power routing for the control/logic assembly. Designed as a direct replacement harness. What it does

• Routes power and control signals between the oven control/logic board and field components
• Restores communication to sensors, switches and heating elements when the original harness is damaged
• Can resolve intermittent control operation, non-responsive control panel, or wiring-related error codes
• Maintains correct connector alignment and color-coded wiring for proper function

• One replacement wire harness

• Disconnect all power at the breaker or unplug the appliance before starting work
• Handle connectors by the housings; match connector shapes and wire colors when swapping harnesses
• Route and secure the harness away from sharp edges, hinges and heating elements

This power harness is a direct-replacement wiring assembly that restores reliable electrical connection between major components. It helps re-establish power flow so controls and heating elements can operate correctly. What it does:

• Carries electrical power between the appliance control and internal components for normal operation
• Replaces damaged or broken wiring that can cause intermittent or no power to controls or heating elements
• Helps resolve symptoms like appliance not powering on, intermittent operation, or component failures tied to a loose/broken harness
• Matches factory connector styles to maintain proper fit and electrical contact

• Disconnect all power to the appliance before starting work to avoid shock or injury
• Verify the harness connectors match the original before installation; route and secure wiring away from heat and moving parts
• Reconnect all terminals firmly and use proper strain reliefs or clips if present on the original

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit
