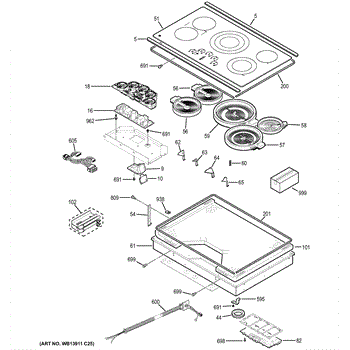

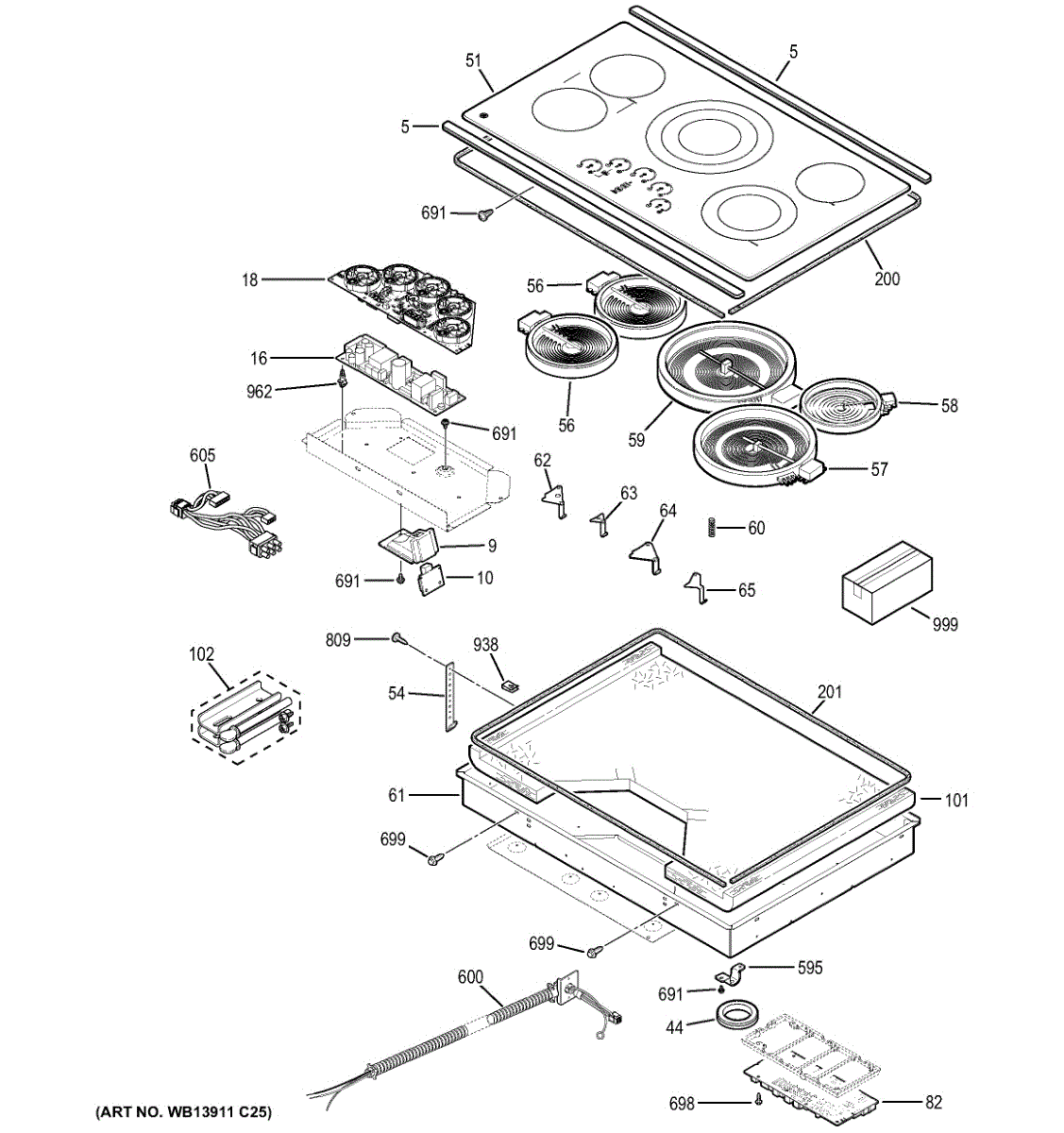

Parts for Ge PP9036SJ2SS: Control Panel & Cooktop Parts

The power supply board is an OEM replacement part for GE cooktops. It serves as the central hub for providing and regulating the electrical power needed to operate various components within the cooktop, such as the control board, ignition systems, and surface burner elements.

Symptoms of a bad Power Supply Board include:

• Cooktop not powering on or receiving electricity
• Burners failing to ignite or heat inconsistently
• Control panel displays or indicators not functioning properly
• Flickering or dimming of lights on the cooktop

Causes of a bad power supply board can include electrical surges or voltage fluctuations, component failure due to age or wear, physical damage from impact or exposure to excessive heat or moisture. Over time, the internal components of the board can degrade, leading to power supply issues.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore cooktop models.

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

An 8-inch Haliant radiant surface element for smooth-top ranges. It replaces a worn or burned-out burner so your cooktop heats evenly and responds correctly, restoring reliable everyday cooking performance. What it does:

• Supplies controlled radiant heat beneath a glass-ceramic cooktop for the 8-inch burner position
• Common fix for a surface element that will not heat
• Helps resolve slow or uneven heating, or when only part of the ring glows
• Appropriate when the element shows visible breaks, hot spots, or burn marks

• 1 8-inch Haliant radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely before service
• Lift or open the glass top per your service information; handle the element carefully—it is fragile
• Move wires one at a time to matching terminals; transfer any mounting brackets/clips from the old element
• Ensure the element sits flat and centered before reassembly; test operation before cooking

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Haliant Element is an OEM part for GE ranges. It is a high-performance radiant heating element used in the stovetop, designed to provide consistent and efficient heat for cooking. This element heats up quickly and delivers precise temperature control for various cooking tasks.

Over time, the Haliant element can wear out due to repeated heating and cooling cycles, physical damage, or electrical issues. When the element becomes faulty, it can significantly impact the range's cooking performance.

Symptoms of a bad Haliant element include:

• The burner not heating up
• Uneven heating or hot spots
• Visible damage or breaks in the element
• The element cycling on and off irregularly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bracket secures a radiant surface heating element to the cooktop assembly, keeping the element aligned and stable for consistent heating. It's a direct-fit mounting piece used when the element won't sit or stay properly. What it does

• Fastens the radiant surface element to the cooktop for stable positioning.
• Maintains proper alignment so the element makes reliable electrical and physical contact.
• Common symptom: element shifts, wobbles, or won't stay seated.
• Common symptom: visible looseness or misalignment under the glass or around the burner opening.

• One radiant element mounting bracket.

• Disconnect power at the breaker or unplug the range before starting work.
• Handle glass cooktops and ceramic surfaces carefully to avoid chips or cracks.
• Use basic hand tools; follow the oven/range service manual for removal and reassembly steps.

This mounting bracket secures a radiant cooktop element to the range frame so the element stays properly positioned for safe, reliable heating. Replacing a damaged bracket restores stable element support and alignment. What it does:

• Holds the radiant surface element firmly in place to prevent movement during use
• Maintains correct element spacing for even heat and safe operation
• Prevents the element from sagging, vibrating, or shifting when knobs are turned or cookware is moved
• Helps avoid intermittent contact that can cause heating issues

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle the glass/ceramic cooktop and element carefully to prevent cracking or injury
• Reuse existing fasteners if undamaged; replace hardware only with OEM-specified parts

This replacement bracket secures a radiant surface heating element to the cooktop for stable operation and correct alignment. It helps restore proper element positioning so the burner sits flush and heats reliably. What it does:

• Anchors the radiant element to the cooktop frame to prevent shifting during use
• Maintains correct element spacing so heat transfers evenly across cookware
• Prevents movement that can cause arcing, uneven heating, or poor contact
• Used when the original bracket is bent, broken, or worn

• Disconnect power to the range at the breaker before servicing
• Handle ceramic/glass cooktop parts carefully to avoid damage
• Remove the element and existing bracket, then secure the new bracket and reinstall the element
• If you see damaged element terminals or mounting hardware, replace those parts as needed

This control relay board switches power to key washer functions so the machine runs cycles as commanded. It restores relay-controlled operations when the original relay assembly fails or becomes intermittent. What it does

• Switches motor, pump and other high-current circuits under command of the main control
• Restores reliable power routing when relays on the control assembly fail or stick
• Commonly linked to symptoms like no motor/pump operation, intermittent runs, or cycles that won't advance
• Helps stop unexpected stops or loss of specific functions caused by a faulty relay section

• Disconnect power before service to avoid shock or injury
• Handle board by edges and avoid static — use anti-static precautions if available
• Basic hand tools needed; test appliance through one cycle after installation

This oven cavity insulation panel helps retain heat inside the oven for more even cooking and reduces heat transfer to surrounding components. It's a direct-replacement oven insulation piece designed to restore proper thermal performance. What it does:

• Provides thermal barrier around the oven cavity to help maintain cooking temperatures
• Reduces heat transfer to adjacent parts and cabinet surfaces to protect components
• Helps improve oven temperature stability and efficient operation when installed correctly
• Addresses symptoms like excessive exterior heat or uneven cooking when damaged or missing

• Disconnect power (and gas if applicable) before starting any repair and allow the appliance to fully cool
• Handle with care and wear gloves; insulation fibers may irritate skin or lungs
• Ensure panel is positioned and secured as original—do not compress or block vents

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

This foam insulation tape seals and cushions joints in your appliance. It restores a compressible barrier where panels meet, helping contain heat/airflow and reduce vibration once the original tape becomes brittle, flattened, or missing.

• Creates a soft, insulating barrier between adjoining components to limit heat transfer and air leaks
• Cushions trim and panels to reduce vibration and metal-to-metal contact
• Restores proper fit/seal when the original foam is worn or missing
• Common signs: tape is cracked, flattened, or loose; visible gaps at seams; buzzing or rattling from trim

• Disconnect power and allow the appliance to cool completely; shut off gas if applicable
• Note the tape's original location/path before removal; clean off old residue and dry surfaces
• Install the new tape in the same location without stretching; avoid gaps or overlaps
• Do not block burner openings or ventilation paths; refer to your model's diagram for exact placement

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This main power wire harness routes electrical power between the appliance power input and internal components to restore reliable power delivery. It replaces damaged or worn wiring that can cause intermittent power or loss of function. What it does:

• Transfers incoming mains power to the appliance's control and internal components
• Replaces frayed, broken, or melted wiring that can cause intermittent power or no power
• Restores secure plug-and-socket connections to eliminate loose or arcing contacts
• Helps eliminate symptoms such as appliance not powering on, flickering controls, or blown fuses

• One replacement main power wire harness as shown

• Disconnect power at the mains before starting any service
• Replace the harness only if the correct part matches your appliance's harness connector and routing
• Route harness away from moving parts and sharp edges; secure with original clips or ties
• If you see burning, melting, or damaged connectors, inspect associated components and replace as needed

This wire harness connects the range/stove oven control board to the appliance's sensors and switches, restoring reliable signal and power routing for the control/logic assembly. Designed as a direct replacement harness. What it does

• Routes power and control signals between the oven control/logic board and field components
• Restores communication to sensors, switches and heating elements when the original harness is damaged
• Can resolve intermittent control operation, non-responsive control panel, or wiring-related error codes
• Maintains correct connector alignment and color-coded wiring for proper function

• One replacement wire harness

• Disconnect all power at the breaker or unplug the appliance before starting work
• Handle connectors by the housings; match connector shapes and wire colors when swapping harnesses
• Route and secure the harness away from sharp edges, hinges and heating elements

This power harness is a direct-replacement wiring assembly that restores reliable electrical connection between major components. It helps re-establish power flow so controls and heating elements can operate correctly. What it does:

• Carries electrical power between the appliance control and internal components for normal operation
• Replaces damaged or broken wiring that can cause intermittent or no power to controls or heating elements
• Helps resolve symptoms like appliance not powering on, intermittent operation, or component failures tied to a loose/broken harness
• Matches factory connector styles to maintain proper fit and electrical contact

• Disconnect all power to the appliance before starting work to avoid shock or injury
• Verify the harness connectors match the original before installation; route and secure wiring away from heat and moving parts
• Reconnect all terminals firmly and use proper strain reliefs or clips if present on the original

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

A replacement plastic PCB standoff that secures and insulates the appliance control board from the chassis to prevent shorts and maintain stable mounting. Restores correct spacing and support for a loose or rattling control board. What it does:

• Holds the printed circuit board off the metal frame to prevent electrical contact and shorting
• Keeps the control board aligned and stable to reduce vibration-related faults or intermittent connections
• Provides an insulated mounting point where an original standoff is cracked, missing, or worn
• Helps ensure reliable screw placement and consistent board spacing during reassembly

• One plastic PCB standoff

• Disconnect power to the appliance before servicing to avoid shock or damage
• Use the original screw size and do not overtighten to prevent cracking the standoff or PCB
• Replace any damaged mounting hardware; verify the board sits flat and is properly insulated from metal parts
