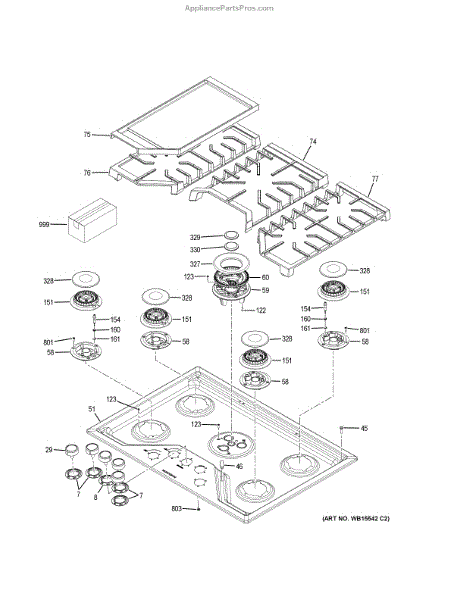

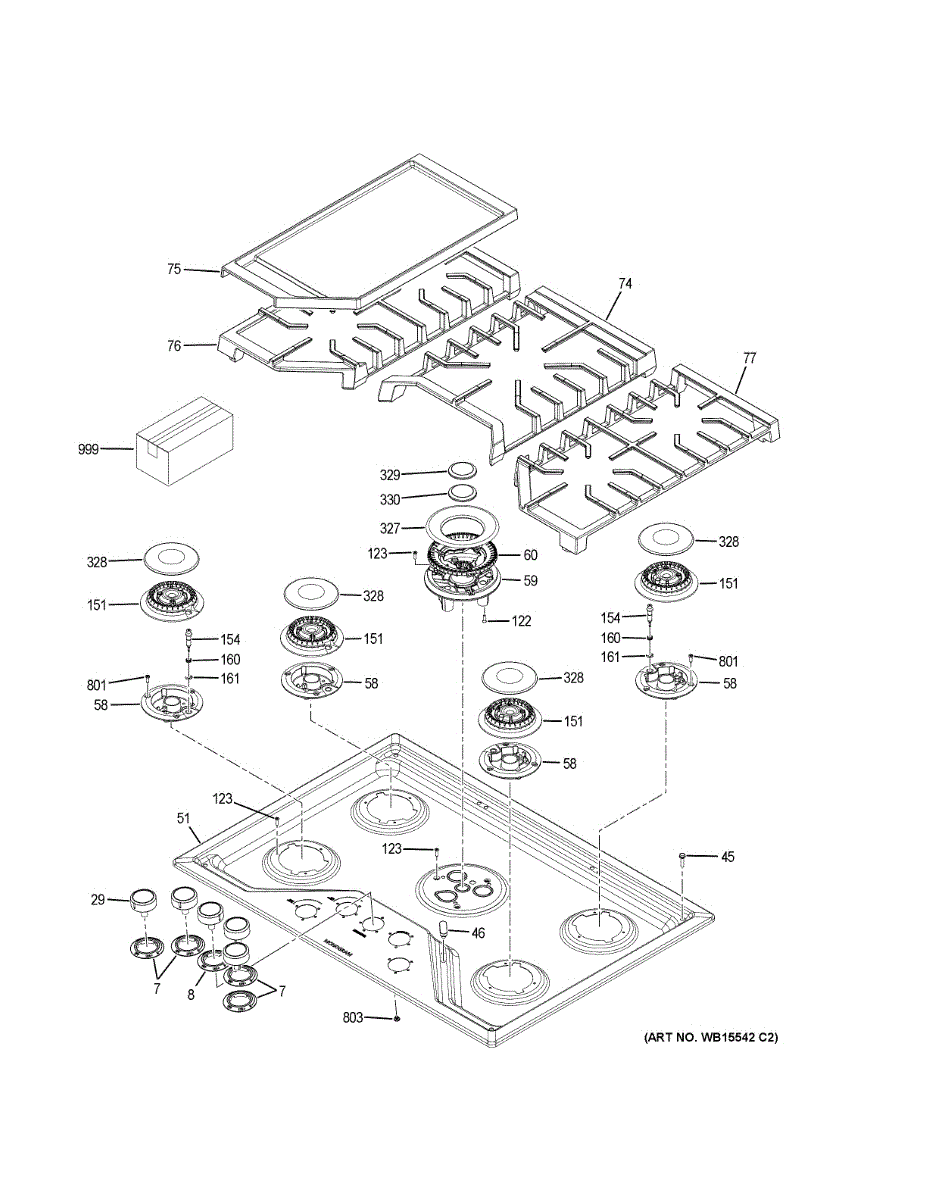

Parts for Ge ZGU30RSL1SS: Control Panel & Cooktop Parts

The Range Surface Burner Grate Bumper is an OEM replacement part for GE ranges. The bumper protects the burner grate from scratching or denting the cooktop surface below when lowered into position.

Symptoms of a damaged or missing bumper include:

• Scuff marks or abrasions on the cooktop under the burner grate area
• Noise or rubbing sensations when operating burners
• Loose or detached fit of the burner grate on the range surface

Causes stem from regular use of the burner grates over many cooking cycles. Natural wear and repeated contact with surfaces can degrade bumpers over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges and cooktops.

The Bridge Bumper is an OEM part for GE electric cooktops. It is a protective bumper located at the bridge that connects the front control panel area to the cooking surface. The bumper acts as a safeguard, cushioning any potential impact to the underside of the control panel.

Causes of a bad bridge bumper include normal wear and tear, exposure to heat or moisture during cooking, or tears from impact.

Symptoms of a bad bridge bumper include:

• Visible damage or deterioration of the bumper material
• Exposure of raw edges that were previously covered
• Increased risk of scratches or damage to the control panel surface

This GE replacement part is also compatible with some Hotpoint, General Electric, and Kenmore electric cooktop models. Protect your appliance with this genuine OEM bridge bumper to safeguard the control panel from accidental impact.


This maintop glass and frame assembly replaces the damaged or cracked cooktop surface to restore a smooth, stable cooking area on compatible 30-inch ranges. Durable glass with integrated frame provides a finished appearance and support for burner components. What it does:

• Replaces a cracked, chipped or broken maintop glass and surrounding frame
• Restores a flat, stable surface for burner grates and cookware
• Prevents heat and debris from entering the cabinet area under the cooktop
• Helps eliminate rattling or looseness caused by a damaged maintop

• One maintop glass and frame assembly (30-inch) as shown

• High-level replacement; basic disassembly of the range top required
• Disconnect power (and gas if applicable) before starting work
• Handle glass carefully to avoid breakage and wear gloves to prevent cuts
• Follow OEM instructions and torque sequences when reassembling

This burner base restores consistent flame and reliable ignition on your gas cooktop or range. It routes gas from the orifice through the burner ports and supports the cap and igniter for even, dependable heat.

• Directs gas from the orifice through burner ports for a stable, even flame
• Provides the seating surface for the burner cap and alignment for the igniter electrode
• Helps ensure quick, reliable lighting when clean and intact
• A worn, cracked, or clogged base can cause weak/uneven flames, delayed ignition, or burners that won't light

• Shut off gas supply and power; allow the surface to cool completely
• Remove grates and burner caps; take out mounting screws and lift off the old base
• Protect the igniter electrode; transfer any reusable screws or gasket as needed; set the new base flat over the orifice holder
• Reassemble, restore gas/power, and test for proper ignition and flame; check connections with a leak-detection solution

The Base Burner is an OEM part for GE gas range and cooktops. It securely holds the burner assembly in place on the cooktop.

Symptoms of a faulty base burner include:

• Loose or wobbly burners that could tip or shift during cooking
• Difficulty cleaning accumulated debris from recessed areas
• Potential gas or electric exposed connection hazards

Causes involve worn or cracked mounting brackets after years of use, missing or stripped retention screws, and impact damage to supports.

This OEM part is compatible with Hotpoint and RCA electric range brands as well.

The Surface Burner is an OEM part for GE gas ranges. As the critical surface heat is delivered through, it is exposed to extreme temperature variations during cooking.

Symptoms of a bad surface burner include:

• Deteriorated or cracked porcelain-enamel exterior
• Warped or misshapen burner base that no longer sits flat
• Cookware that rocks or is unstable when placed on the burner

Causes can be normal wear over many heating and cooling cycles or damage from the continuous use of larger pots that put undue stress on the burner head.

Replacing with this OEM GE part restores a stable, level cooking surface. It is compatible with Hotpoint, RCA, and Kenmore ranges as well as preventing future repairs from minor issues. Install yours today for reliable stove-top performance.


This replacement cooktop grate restores stable support for cookware on gas cooktops and helps maintain even heating for everyday cooking. It's a direct-fit style used on compatible Monogram/GE gas cooktops. What it does:

• Supports pots and pans above the burner for safe, stable cooking
• Helps distribute weight to prevent tipping or wobbling cookware
• Resists high heat and normal wear from regular stovetop use
• Restores proper clearance between flame and cookware to improve burner performance

• One cooktop grate

• Install on a cool cooktop; ensure grate seats securely in the burner recess
• Clean surface and burner area before installing to ensure proper fit
• Handle carefully to avoid scratching the cooktop surface or enamel
• If burners do not ignite or flame is irregular after installation, remove the grate and inspect for misalignment or debris.

The Cooktop Screw is an OEM replacement part for GE cooktops and ranges. This screw secures the cooktop components, ensuring they remain firmly in place during use. Properly installed screws contribute to the safety and stability of the appliance, preventing loose or shifting parts.

Over time, cooktop screws can become loose, corroded, or stripped due to frequent heating and cooling cycles or accidental mishandling. Missing or damaged screws can compromise the cooktop's integrity and safety.

Symptoms of a bad or missing cooktop screw include:

• Loose or wobbly cooktop components
• Rattling noises during operation
• Difficulty aligning or securing parts properly
• Visible rust or wear on the screws

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

12K

This glow-style oven igniter heats until it glows and lights the gas burner, allowing the oven to reach baking and broiling temperatures. Replaces a weak or broken igniter to restore reliable burner ignition and consistent heating. What it does:

• Heats to a high temperature to ignite the oven's gas burner
• Re-establishes normal oven heating when a burner fails to light
• Addresses symptoms like long preheat times, oven not reaching set temperature, or no ignition
• Works as the high-temperature ignition source for the oven burner system

• Disconnect power and shut off gas supply before beginning service
• Handle the ceramic/glass element carefully; it is fragile and can crack if dropped or touched with bare hands
• Verify proper alignment and secure mounting; loose connections can prevent ignition

This igniter spring secures the appliance's igniter in its bracket, keeping the component properly positioned for reliable ignition. Replacing a tired spring restores stable alignment and helps resolve intermittent light-off issues.

• Holds the igniter securely in its mounting bracket or burner base
• Maintains proper gap and positioning for consistent ignition performance
• Helps address symptoms such as a loose or misaligned igniter and delayed or inconsistent lighting
• Replaces springs that are stretched, corroded, or broken

• Disconnect power and shut off gas supply before servicing; allow the appliance to cool fully.
• Access the igniter by removing burner components or the access panel as required by your model.
• Support the fragile ceramic igniter while removing/installing the spring; avoid bending the electrode or over-stretching the spring.
• Test operation after installation.

This igniter washer is a small retaining piece for gas ranges/cooktops that holds the surface burner spark igniter securely in place. Replacing a worn washer keeps the electrode aligned for a consistent spark and reliable burner ignition.

• Secures the surface burner igniter to the burner base
• Maintains correct igniter alignment and gap for consistent sparking
• Helps prevent arcing or misfires caused by a loose/missing retainer
• Common signs include a wobbly/misaligned igniter, intermittent spark, or that burner not lighting

• Disconnect power and shut off gas; allow the cooktop to cool
• Remove the burner cap and head to access the igniter
• Handle the ceramic electrode carefully; install the washer to secure the igniter in its original orientation
• Reassemble, restore power/gas, and test burner ignition

The Burner Cap is an OEM replacement part for GE gas cooktops. This one is the outer part of the burner cap that sits over the inner burner head and flames on a gas cooktop burner. The cap helps protect the inner burner parts while also directing and controlling the burner flame.

Symptoms of a faulty burner cap include:

• Uneven or weak flame
• Gas leakage around the burner heads
• Difficulty in adjusting the flame intensity

A bad outer cap can occur due to wear and tear, accidental damage, or exposure to high temperatures. If you notice signs of damage, such as cracks, discoloration, or a loose fit, it may be time to replace the outer cap. Replacing this part can help improve burner performance and flame if the old cap is damaged or corroded.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This burner cap sits over the gas burner head to focus and evenly distribute the flame on your cooktop or range. Replace a missing, chipped, or warped cap to restore smooth ignition and consistent, efficient heating.

• Shapes and diffuses the burner flame for even heat across cookware
• A properly seated cap promotes fast, reliable ignition
• Shields the burner head from spills and debris for consistent performance
• Replaces damaged or missing caps that can cause uneven/yellow flames, delayed ignition, or clicking without lighting

• Disconnect power and shut off gas; allow the surface to cool completely
• Lift off the old cap and clean the burner head/ports before installing
• Match the cap to the correct burner position for your model; caps are size-specific
• Seat the cap flat and centered, then test ignition and flame pattern

The burner cap is an OEM component specifically designed for GE wall ovens and ranges. The inner burner cap is responsible for evenly distributing heat across the burner surface while protecting the burner element underneath.

Causes of a bad burner cap can include damage from scratches or cracks that occur over time from regular use and cleaning. The burner cap material may also deteriorate due to exposure to high heat.

Symptoms of a bad burner cap include:

• Uneven or inconsistent burner performance
• Hot spots on the burner surface
• Damage or cracking visible on the cap
• Difficulty cleaning residue or spills from the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Inner Cap is an OEM part for GE gas cooktop models. It securely mounts the cooktop's control console and sealing panel.

Causes of failure involve cracking or wear of rubber seals from long-term heat and impact exposures. Physical stresses like repeated removal/installation can also loosen fastener fittings.

Symptoms of a faulty inner cap include:

• Drafts and temperature fluctuations around control interfaces
• Loose or unstable mounting of the control console
• Potential leaks permitting spillage into internal circuits

This OEM part is compatible with Hotpoint and RCA gas cooktop brands as well.
