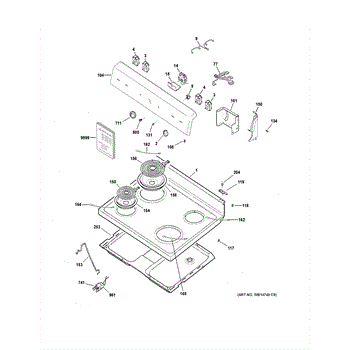

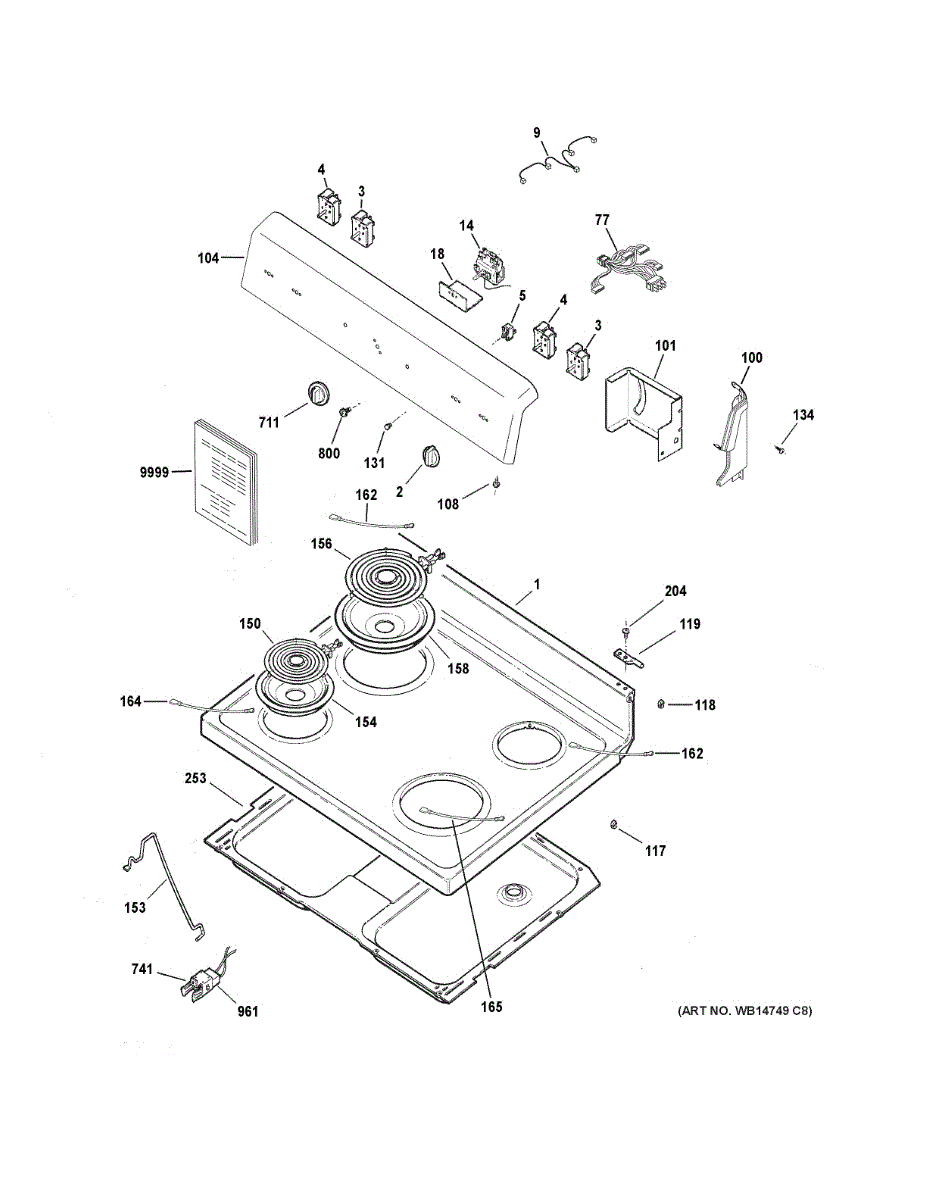

Parts for Hot Point RB525DH2WW: Control Panel & Cooktop Parts

Color: White

Color: White

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

This lamp pilot harness is the factory-style wiring assembly that powers the pilot/light indicator on the control panel. It delivers a direct, plug-ready connection to restore a working pilot lamp and clear visual status. What it does:

• Provides the electrical connection between the control board and the pilot/lamp assembly
• Restores a non-lit or intermittent pilot/lamp indicator caused by a damaged or missing harness
• Maintains proper connector alignment to help prevent loose or shorted wiring
• Matches OEM routing and connector types for a reliable fit

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock
• Route and secure the harness away from heat sources and moving parts

The Oven Control Thermostat is an OEM replacement part for GE ovens. It regulates the oven temperature by turning the heating elements on and off to maintain the desired temperature set by the user. This thermostat ensures accurate and consistent cooking temperatures, which is crucial for optimal baking and roasting results.

Causes of a bad oven control thermostat can include prolonged exposure to high temperatures, wear and tear from frequent use, or electrical issues such as power surges that can damage the thermostat's internal components. Additionally, improper handling or accidental impact during maintenance or cleaning can affect its functionality.

Symptoms of a bad oven control thermostat include:

• The oven not reaching the set temperature
• Inconsistent or fluctuating oven temperatures
• The oven overheating or underheating
• Error codes or malfunctioning temperature settings
• The oven not turning on or off correctly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This carton cover thermostat senses temperature in the refrigerator carton/cover area and signals the appliance control system so temperature-related components operate correctly. It helps maintain proper temperature response for defrost and ice-related functions. What it does

• Detects temperature at the carton/cover location and provides an electrical signal to the control system.
• Helps ensure timely activation/deactivation of temperature-dependent systems (defrost, ice-making components).
• Commonly replaced when temperature-related functions are inconsistent or intermittent.
• Can restore normal cycling when a failed thermostat causes improper temperature readings.

• One carton cover thermostat.

• Disconnect power to the appliance before beginning work to avoid electrical shock.
• Verify exact wiring and terminal locations against the appliance service sheet; confirm continuity before and after replacement.
• Replace only with correct OEM-designated thermostat and secure in the original clip or mounting location.

Color: White. Right Hand side

Color: White. Left Hand side.

Color: White. Mounting screw for end caps.

This pin locator secures a hinge or shaft pin in place to keep linked appliance components aligned and operating smoothly. It's a small replacement part that restores proper positioning where a locating clip or retainer is used. What it does

• Holds a hinge, shaft, or pivot pin in place to prevent lateral movement
• Restores proper alignment of doors, panels, or linked components
• Helps stop rattling, misalignment, or binding caused by a worn or missing locator
• Works as a direct replacement for the same OEM-labeled locating clip/retainer

• One pin locator

• High-level replacement; basic hand tools usually required
• Disconnect power (and water, if applicable) before servicing appliances with electrical components
• Keep track of small parts and orientation for correct reassembly

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

Note: 6" surface element

This support rod props up the lift-up top on your range, providing a secure hold while you clean or service components beneath. Replacing a bent or missing rod restores safe, stable support for the top panel.

• Holds the range top securely in the raised position during cleaning or service
• Helps prevent the top from dropping unexpectedly
• Restores proper alignment if the original rod is bent or worn
• Common symptoms: top won't stay up, rod is missing, bent, or loose

• Disconnect power and shut off the gas supply before servicing
• Support the top while removing/installing the rod to prevent accidental dropping
• Reuse or transfer any retaining hardware/clips from the original part
• Ensure the rod is fully seated in its retainer before lowering the top

The 6" Burner Bowl is an OEM part for GE cooktops and ranges. It is designed to sit beneath the heating element, catching spills and drips that occur during cooking. This helps to keep the cooktop clean and ensures that the heating element functions properly by preventing food debris from interfering with its operation.

Over time, burner bowls can become discolored, warped, or corroded due to exposure to high heat and spills. Additionally, frequent cleaning or scraping can cause scratches and other damage, which may compromise their ability to effectively catch spills and support the heating element.

Symptoms of a bad burner bowl include:

• Discoloration or charring
• Warping or misalignment with the heating element
• Difficulty in fitting the bowl securely in place
• Residue buildup that is difficult to clean

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Notes:

• For the matching 8” drip pan, order WB31K10266.
• Surface elements:
• 6": WB30M1;  8"WB30M2.
• Element terminal block: WB17X5113.

This 8-inch coil surface element restores consistent stovetop heating on electric ranges. Replace a warped or burned-out burner so pots heat evenly and your everyday cooking temperatures are easy to reach and maintain.

• Converts electrical power into heat for the 8-inch cooking zone
• Plugs into the surface-element receptacle for a secure power connection
• Common fix for a burner that won't heat or heats slowly/unevenly
• Replace if the coil is blistered, warped, or the terminals are burnt/pitted

• Disconnect power at the breaker or unplug the range; allow the element to cool completely
• Lift the old element slightly and pull straight from the receptacle; remove from the support
• Inspect the receptacle; replace the block if terminals are burnt or loose
• Align the new element in the drip pan/support and push terminals fully into the receptacle until seated

The 8" Burner Bowl is an OEM replacement part for GE ranges and cooktops. It is responsible for safely collecting and containing grease and cooking liquids below the burner.

Causes can include damage or deformation from repeated high heat exposure over time.

Symptoms of a bad drip pan include:

• Grease or liquids leaking outside of the drip pan area
• Warping or bending that prevents proper placement below the burner
• Inability to fully trap and contain grease and cooking residue
• Accelerated buildup or residue that impacts burner performance

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cooktop box houses and protects the cooktop's wiring connections, restoring a safe, code-ready junction point for electrical supply lines. Use this part when the original box is damaged, corroded, or missing fasteners. What it does

• Provides a secure enclosure for cooktop electrical connections and strain relief
• Prevents exposed wiring and reduces risk of shorts or arcing at the connection point
• Restores proper mounting for incoming supply conduit or cable
• Helps correct symptoms like intermittent power, visible damage to the wiring box, or a loose/unstable connection area

• One cooktop junction wiring box

• Disconnect power at the breaker before inspecting or replacing the box
• Replacement typically requires removing the cooktop and transferring wiring into the new box; keep wire routing and grounding intact
• Use only approved screws/fasteners and maintain proper strain relief and grounding per local code

This thermostat knob fits onto the oven's temperature control shaft so you can select and read the cooking temperature. Replacing a cracked or missing knob restores smooth adjustment and a clean, factory look on the control panel.

• Interfaces with the oven thermostat to set cooking temperature
• Pointer aligns with panel markings for clear, repeatable selection
• Common reasons to replace: cracked hub, stripped insert, missing or loose knob
• Symptoms include wobbling, slipping, not staying on, or unreadable markings

• Disconnect power and allow the oven to cool before servicing
• Pull the old knob straight off the thermostat shaft
• Align the new knob with the shaft and press firmly until fully seated
• Check pointer alignment with the panel markings after installation

This small retainer secures the surface element receptacle in a range or cooktop so the element plugs in straight and stays seated. Replacing a bent or missing clip helps restore a stable, reliable connection.

• Holds the surface element receptacle firmly to the cooktop or bracket
• Keeps the element plug aligned and fully seated
• Helps prevent arcing, heat damage, and intermittent burner performance from a loose receptacle
• Useful when the element feels wobbly or the receptacle shifts during use

• Disconnect power before servicing
• Lift the cooktop or access panel to reach the receptacle area
• Support the receptacle, release the old clip, and snap the new clip into place
• Ensure the receptacle is secure and aligned before reinstalling the element

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.
