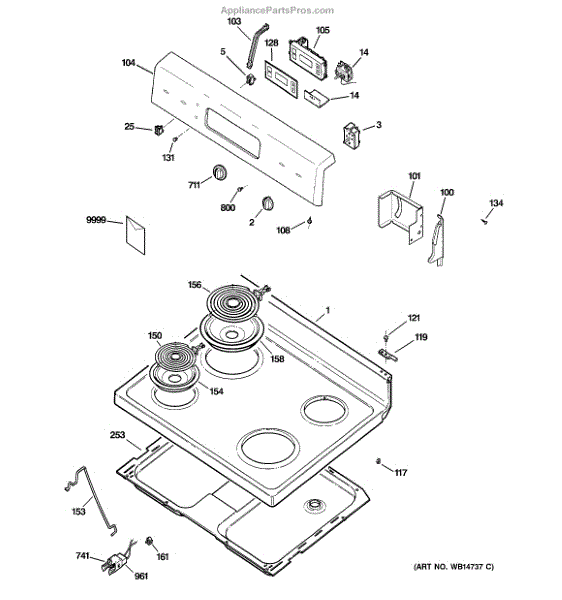

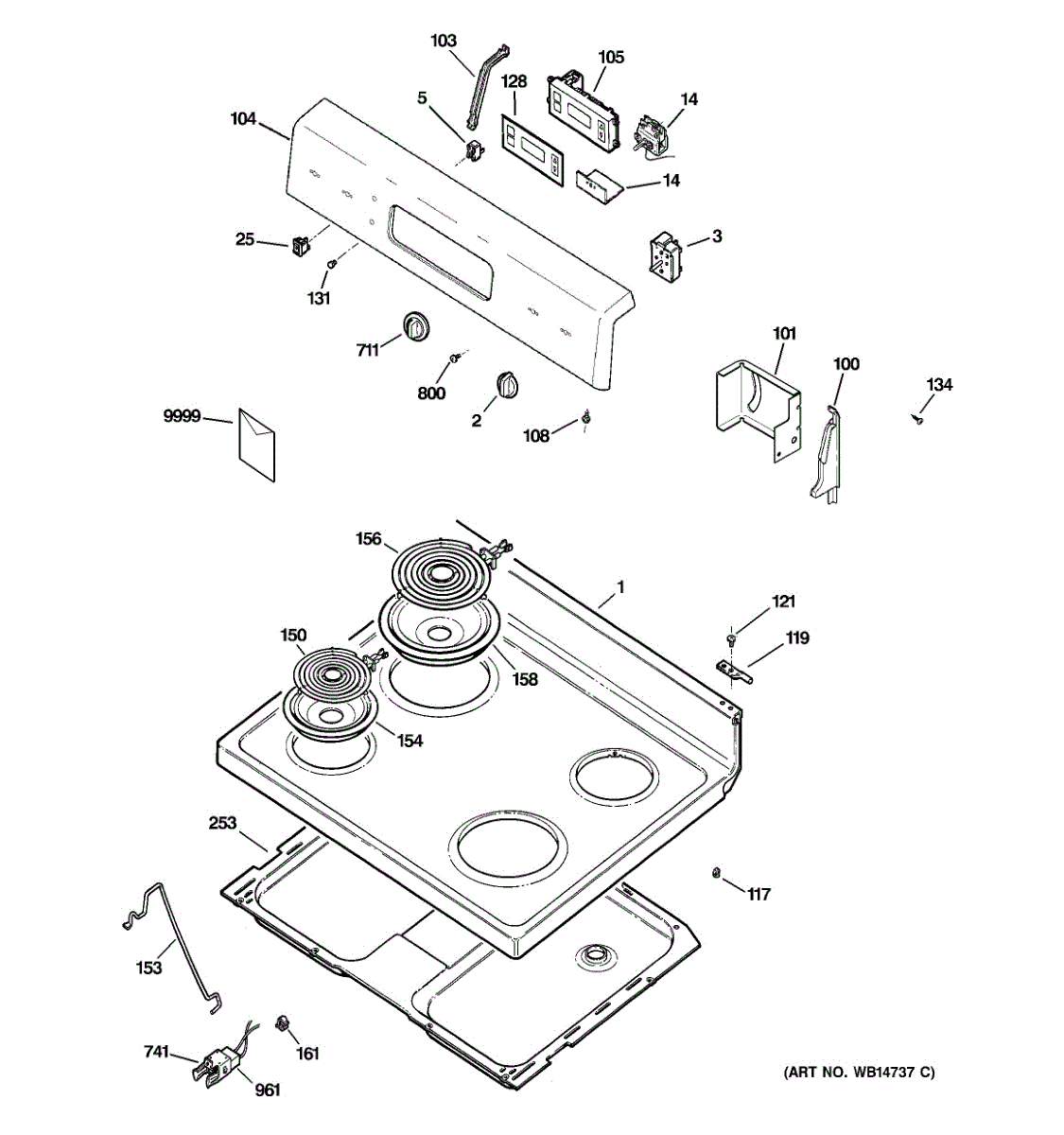

Parts for Hot Point RB526DH1BB: Control Panel & Cooktop Parts

A replacement black cooktop glass surface that restores the smooth, easy-to-clean top on select GE electric cooktops. Replaces damaged or worn glass to help maintain a flat, stable surface for burners and cookware. What it does

• Replaces cracked, chipped, deeply scratched or otherwise damaged cooktop glass
• Restores an even, heat-resistant surface for electric burners and cookware
• Helps prevent debris from falling into the cooktop cavity through damaged areas
• Improves cooktop appearance and makes cleaning easier

• One black cooktop glass surface

• Disconnect power to the appliance before beginning any work
• Handle carefully — glass edges can be sharp and the part is fragile; use two people if needed
• Reuse existing trim, brackets or gaskets unless those components are also damaged

This control knob replaces a worn or broken knob on your range, restoring a solid feel and precise control of settings. It fits onto the control shaft to let you reliably select and adjust cooking settings.

• Attaches to the valve or switch shaft to select and adjust settings
• Restores proper engagement when the original hub is cracked or stripped
• Helps ensure accurate adjustments of flame or element power
• Typical signs you need this part: knob is cracked, loose, slipping, or missing

• Disconnect power and ensure all burners are cool before servicing
• Pull the old knob straight off the stem; avoid prying sideways
• Align the new knob with the stem orientation and press firmly into place; if your model uses a set screw, tighten gently
• Test for smooth operation and correct indexing after installation

The Surface Element Switch is an OEM part for GE ranges and cooktops. It controls the heating of the surface elements by regulating the power level supplied to them. This switch allows you to adjust the heat intensity for precise cooking, ensuring that each dish is cooked to perfection.

Causes of a bad surface element switch can include electrical faults such as short circuits, wear and tear from frequent use, or mechanical failure within the switch mechanism.

Symptoms of a bad Surface Element Switch include:

• Burners not heating up or heating unevenly
• Burners remaining at a fixed temperature regardless of the setting
• The inability to control the heat level of the burner
• Sparking or electrical arcing from the switch area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Control Switch is an OEM replacement part for GE electric ranges. It controls the heat output of the surface burners.

Causes of a faulty switch can include failures in the circuitry from extended and repetitive use over time. Exposure to liquid splatters or spills can also impact component wiring.

Symptoms of a bad infinite control switch include:

• Unresponsive or incorrectly functioning control buttons/dials
• Inability to turn on desired cooking elements
• Erratic temperature regulation and heating performance
• Repeated resetting or power intermittence issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

This carton cover thermostat senses temperature in the refrigerator carton/cover area and signals the appliance control system so temperature-related components operate correctly. It helps maintain proper temperature response for defrost and ice-related functions. What it does

• Detects temperature at the carton/cover location and provides an electrical signal to the control system.
• Helps ensure timely activation/deactivation of temperature-dependent systems (defrost, ice-making components).
• Commonly replaced when temperature-related functions are inconsistent or intermittent.
• Can restore normal cycling when a failed thermostat causes improper temperature readings.

• One carton cover thermostat.

• Disconnect power to the appliance before beginning work to avoid electrical shock.
• Verify exact wiring and terminal locations against the appliance service sheet; confirm continuity before and after replacement.
• Replace only with correct OEM-designated thermostat and secure in the original clip or mounting location.

The Oven Control Thermostat is an OEM replacement part for GE ovens. It regulates the oven temperature by turning the heating elements on and off to maintain the desired temperature set by the user. This thermostat ensures accurate and consistent cooking temperatures, which is crucial for optimal baking and roasting results.

Causes of a bad oven control thermostat can include prolonged exposure to high temperatures, wear and tear from frequent use, or electrical issues such as power surges that can damage the thermostat's internal components. Additionally, improper handling or accidental impact during maintenance or cleaning can affect its functionality.

Symptoms of a bad oven control thermostat include:

• The oven not reaching the set temperature
• Inconsistent or fluctuating oven temperatures
• The oven overheating or underheating
• Error codes or malfunctioning temperature settings
• The oven not turning on or off correctly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A sealed rocker switch that replaces a worn or failed control switch to restore reliable on/off or selector operation. Designed to keep contacts protected from moisture and debris for consistent performance. What it does:

• Provides a user-facing rocker control to open/close electrical circuits for the appliance function.
• Replaces switches that cause intermittent operation, no response, or stuck on/off conditions.
• Sealed design helps protect internal contacts from moisture, spills, and dirt that can cause failures.
• Matches the OEM form and mounting for a direct-fit replacement when the original switch is damaged.

• Disconnect power or unplug the appliance before starting any repair.
• Note or photograph wire locations before removing connectors to ensure correct reinstallation.
• Basic hand tools (screwdriver, pliers) are typically required; avoid forcing wiring or terminals.

Color: Black. Left hand side.

Color: Black. Right hand side.

Right hand side

Left hand side

This control bracket secures the appliance control assembly to the front panel so knobs and electronics stay properly aligned and stable. It replaces damaged or bent mounting brackets to restore a tight, rattle-free control area. What it does:

• Mounts and stabilizes the control console or electronic control module
• Keeps knobs, switches, and display aligned for reliable operation
• Prevents vibration-related noise and movement of the control panel
• Helps maintain proper spacing to avoid contact with internal components

• Disconnect power (unplug or shut off breaker) before starting any work
• Remove the control panel or trim to access the bracket; keep screws and fasteners for reuse unless replacements are supplied
• Handle sharp metal edges carefully and wear gloves and eye protection

The Clock is an OEM part for GE ranges. This control panel displays the time and allows users to set and monitor cooking times and temperatures.

Causes of a bad clock can include electrical malfunctions, power surges, or general wear and tear over time.

Symptoms of a bad clock include:

• The display being blank or unreadable
• Inaccurate time or timer settings
• The oven not starting or shutting off unexpectedly
• Buttons or touchpad not responding properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This pin locator secures a hinge or shaft pin in place to keep linked appliance components aligned and operating smoothly. It's a small replacement part that restores proper positioning where a locating clip or retainer is used. What it does

• Holds a hinge, shaft, or pivot pin in place to prevent lateral movement
• Restores proper alignment of doors, panels, or linked components
• Helps stop rattling, misalignment, or binding caused by a worn or missing locator
• Works as a direct replacement for the same OEM-labeled locating clip/retainer

• One pin locator

• High-level replacement; basic hand tools usually required
• Disconnect power (and water, if applicable) before servicing appliances with electrical components
• Keep track of small parts and orientation for correct reassembly

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This control panel faceplate is the front trim piece that covers and protects the appliance's console controls, restoring a clean appearance and providing a finished surface for buttons and display elements. It's a direct-replacement cosmetic and protective panel. What it does

• Replaces cracked, chipped, or faded console trim to restore appearance
• Protects underlying switches, buttons, and display from spills and debris
• Provides mounting surface and alignment for control buttons and overlays
• Helps prevent dirt and moisture from reaching internal electronics

• One control panel faceplate

• Disconnect power to the appliance before starting any work to avoid shock
• Remove necessary trim screws or clips to access and replace the faceplate; keep fasteners for reuse
• Handle edges and any attached glass or plastic panels carefully to avoid damage
• Support controls or display during removal to avoid stretching wires or damaging connectors

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

Note: 6" surface element

This support rod props up the lift-up top on your range, providing a secure hold while you clean or service components beneath. Replacing a bent or missing rod restores safe, stable support for the top panel.

• Holds the range top securely in the raised position during cleaning or service
• Helps prevent the top from dropping unexpectedly
• Restores proper alignment if the original rod is bent or worn
• Common symptoms: top won't stay up, rod is missing, bent, or loose

• Disconnect power and shut off the gas supply before servicing
• Support the top while removing/installing the rod to prevent accidental dropping
• Reuse or transfer any retaining hardware/clips from the original part
• Ensure the rod is fully seated in its retainer before lowering the top

The 6" Burner Bowl is an OEM part for GE cooktops and ranges. It is designed to sit beneath the heating element, catching spills and drips that occur during cooking. This helps to keep the cooktop clean and ensures that the heating element functions properly by preventing food debris from interfering with its operation.

Over time, burner bowls can become discolored, warped, or corroded due to exposure to high heat and spills. Additionally, frequent cleaning or scraping can cause scratches and other damage, which may compromise their ability to effectively catch spills and support the heating element.

Symptoms of a bad burner bowl include:

• Discoloration or charring
• Warping or misalignment with the heating element
• Difficulty in fitting the bowl securely in place
• Residue buildup that is difficult to clean

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Notes:

• For the matching 8” drip pan, order WB31K10266.
• Surface elements:
• 6": WB30M1;  8"WB30M2.
• Element terminal block: WB17X5113.

This 8-inch coil surface element restores consistent stovetop heating on electric ranges. Replace a warped or burned-out burner so pots heat evenly and your everyday cooking temperatures are easy to reach and maintain.

• Converts electrical power into heat for the 8-inch cooking zone
• Plugs into the surface-element receptacle for a secure power connection
• Common fix for a burner that won't heat or heats slowly/unevenly
• Replace if the coil is blistered, warped, or the terminals are burnt/pitted

• Disconnect power at the breaker or unplug the range; allow the element to cool completely
• Lift the old element slightly and pull straight from the receptacle; remove from the support
• Inspect the receptacle; replace the block if terminals are burnt or loose
• Align the new element in the drip pan/support and push terminals fully into the receptacle until seated

The 8" Burner Bowl is an OEM replacement part for GE ranges and cooktops. It is responsible for safely collecting and containing grease and cooking liquids below the burner.

Causes can include damage or deformation from repeated high heat exposure over time.

Symptoms of a bad drip pan include:

• Grease or liquids leaking outside of the drip pan area
• Warping or bending that prevents proper placement below the burner
• Inability to fully trap and contain grease and cooking residue
• Accelerated buildup or residue that impacts burner performance

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

This cooktop box houses and protects the cooktop's wiring connections, restoring a safe, code-ready junction point for electrical supply lines. Use this part when the original box is damaged, corroded, or missing fasteners. What it does

• Provides a secure enclosure for cooktop electrical connections and strain relief
• Prevents exposed wiring and reduces risk of shorts or arcing at the connection point
• Restores proper mounting for incoming supply conduit or cable
• Helps correct symptoms like intermittent power, visible damage to the wiring box, or a loose/unstable connection area

• One cooktop junction wiring box

• Disconnect power at the breaker before inspecting or replacing the box
• Replacement typically requires removing the cooktop and transferring wiring into the new box; keep wire routing and grounding intact
• Use only approved screws/fasteners and maintain proper strain relief and grounding per local code

This knob thermostat assembly replaces a worn or broken oven/range temperature control knob and its thermostat interface, restoring user control over temperature settings and knob operation. What it does:

• Provides the user-facing control for selecting oven/range temperature and heat settings
• Re-establishes reliable knob rotation and detent feedback when original knob is loose or stripped
• Can resolve symptoms such as a loose or missing knob, knob that won't turn, or inability to select temperature settings
• Works as the keyed assembly that interfaces between the control shaft and the control mechanism

• Disconnect power to the appliance before beginning any repair; for gas models also shut off gas supply
• Remove the old knob assembly by pulling the knob and unscrewing or unfastening any retaining hardware per your model's service instructions
• Handle internal components carefully to avoid bending or damaging the control shaft or terminals

This small retainer secures the surface element receptacle in a range or cooktop so the element plugs in straight and stays seated. Replacing a bent or missing clip helps restore a stable, reliable connection.

• Holds the surface element receptacle firmly to the cooktop or bracket
• Keeps the element plug aligned and fully seated
• Helps prevent arcing, heat damage, and intermittent burner performance from a loose receptacle
• Useful when the element feels wobbly or the receptacle shifts during use

• Disconnect power before servicing
• Lift the cooktop or access panel to reach the receptacle area
• Support the receptacle, release the old clip, and snap the new clip into place
• Ensure the receptacle is secure and aligned before reinstalling the element

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.
