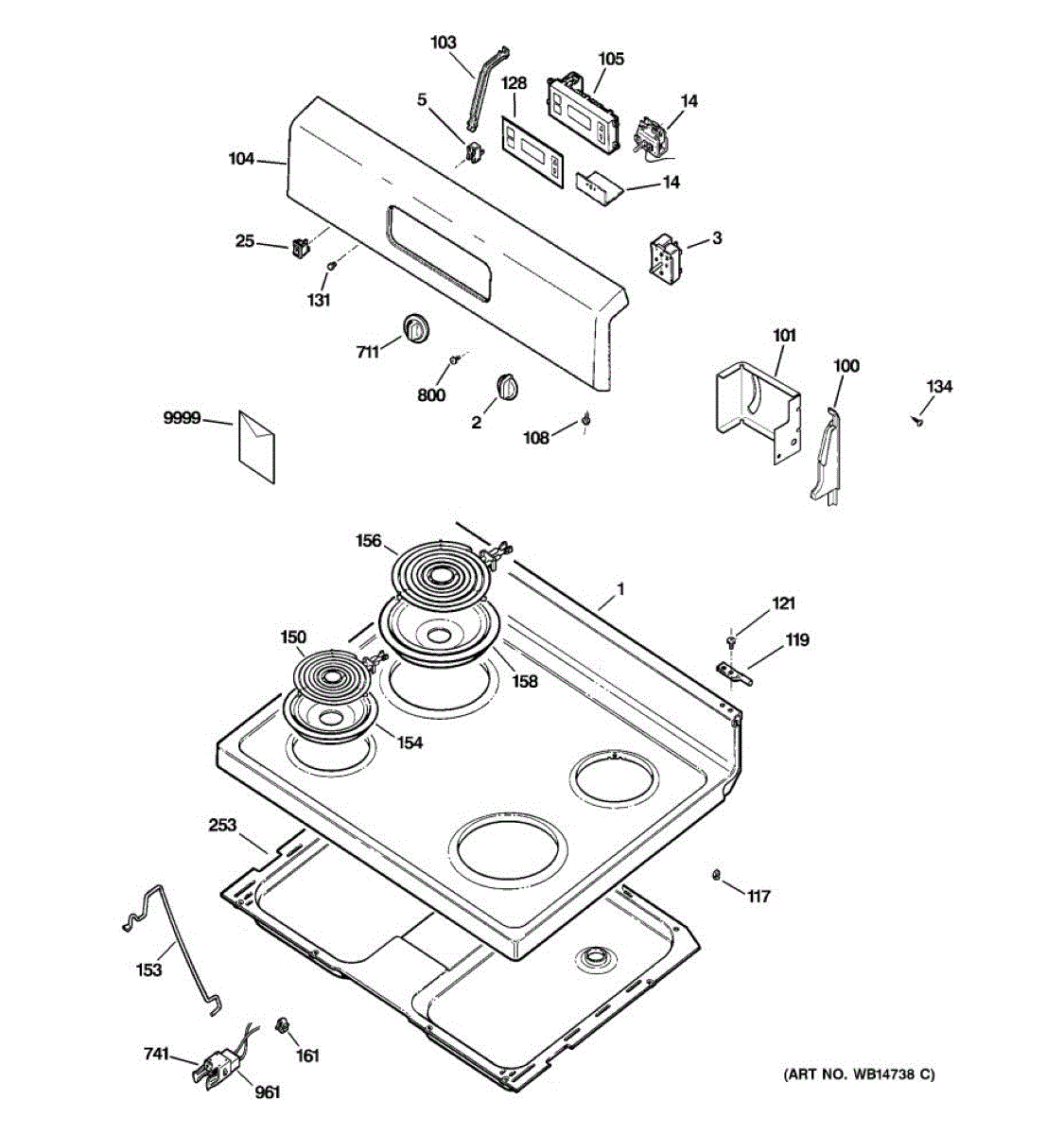

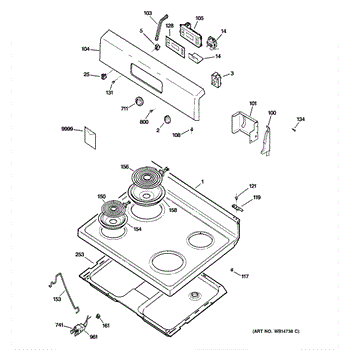

Parts for Hot Point RB540SP1SA: 01 - Control Panel & Cooktop Parts

Replace cracked, chipped, or deeply scratched cooktop glass on your electric range. Restores the smooth, flat surface for burners and cookware.

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

Burner stuck on high or won't heat? This 8-inch infinite switch controls heat output on electric ranges. Simple 20-30 minute DIY replacement.

Indicator light that illuminates when burners or oven are active. Replace if it stays on constantly or fails to light. Verify fit with your model number.

Protective cover that houses the temperature-sensing thermostat on your electric range. Replace if cracked, broken, or missing to protect internal components.

Oven won't shut off or temperature swings wildly? This control thermostat regulates heating elements to maintain set temperature. Easy DIY repair.

Color: Black

Black left-hand endcap for electric and gas ranges. Replaces cracked, broken, or missing endcaps on the side of your range for a complete finished look.

Black plastic endcap for the right side of your range control panel. Replace this cosmetic trim piece if it's cracked, broken, or missing.

Right hand side

Left hand side

This control bracket secures the appliance control assembly to the front panel so knobs and electronics stay properly aligned and stable. It replaces damaged or bent mounting brackets to restore a tight, rattle-free control area. What it does:

• Mounts and stabilizes the control console or electronic control module
• Keeps knobs, switches, and display aligned for reliable operation
• Prevents vibration-related noise and movement of the control panel
• Helps maintain proper spacing to avoid contact with internal components

• Disconnect power (unplug or shut off breaker) before starting any work
• Remove the control panel or trim to access the bracket; keep screws and fasteners for reuse unless replacements are supplied
• Handle sharp metal edges carefully and wear gloves and eye protection

Range clock or timer not working? This control board restores display and cooking time functions. DIY-friendly with video guide. Fits electric and gas ranges.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

This pin locator secures a hinge or shaft pin in place to keep linked appliance components aligned and operating smoothly. It's a small replacement part that restores proper positioning where a locating clip or retainer is used. What it does

• Holds a hinge, shaft, or pivot pin in place to prevent lateral movement
• Restores proper alignment of doors, panels, or linked components
• Helps stop rattling, misalignment, or binding caused by a worn or missing locator
• Works as a direct replacement for the same OEM-labeled locating clip/retainer

• One pin locator

• High-level replacement; basic hand tools usually required
• Disconnect power (and water, if applicable) before servicing appliances with electrical components
• Keep track of small parts and orientation for correct reassembly

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Covers the control panel lamp opening to diffuse light and protect from debris. Replace if broken, cracked, or missing to restore clear indicator visibility.

Small burner not heating? This 6-inch surface element coil plugs into your range burner receptacle to restore heat. Easy DIY plug-in repair.

Support rod that props up the lift-up top on your range. Holds the top panel securely in the raised position for cleaning or servicing. Replace if bent or missing.

Replacement 6-inch burner bowl for electric ranges and cooktops. Houses the burner element. Replace if cracked, chipped, rusted, or discolored beyond cleaning.

If your 8-inch burner won't heat or heats unevenly, this surface coil element is the fix. Direct plug-in replacement takes about 15 minutes to install.

Porcelain drip bowl that sits beneath the 8-inch heating element to catch spills and drips. Replace if cracked, rusted, or discolored for easier cleanup.

Secures wiring harness to prevent rubbing and loose connections. Replace if worn or broken to restore proper wire routing. Confirm fit with your model.

Houses and protects cooktop wiring connections. Replace when the original box is damaged, corroded, or missing fasteners for safe electrical connections.

Burner won't seat properly or wobbles? This receptacle clip secures the surface element connection for stable, reliable heat. Simple DIY fix.

Mounting screw hardware for ranges and cooktops. Replace missing, stripped, or corroded screws used to secure panels, brackets, or components.

Burner not heating or terminal block burned? This electric range terminal block kit restores power to surface elements. Easy 10-15 minute DIY repair.

Silicon controlled rectifier for cooktop power control. Includes 8-32 mounting screw. Replace if damaged, corroded, or missing to restore proper installation.
