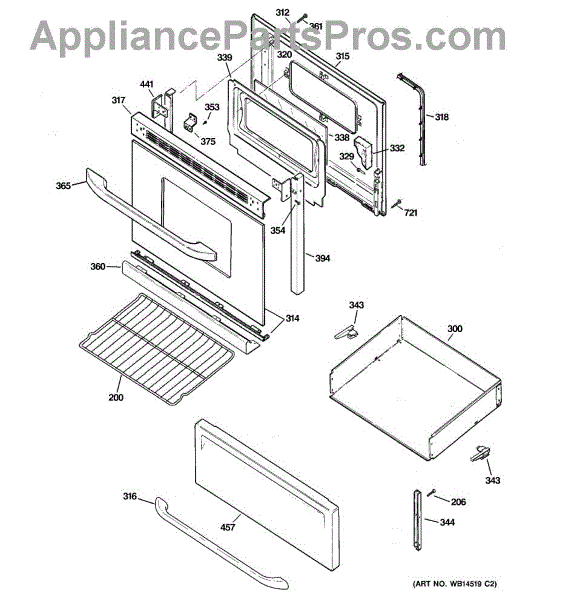

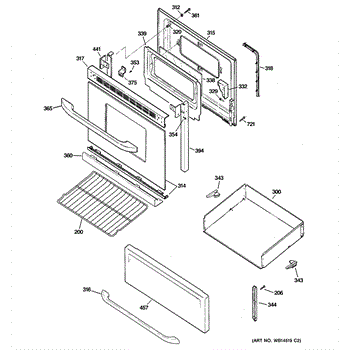

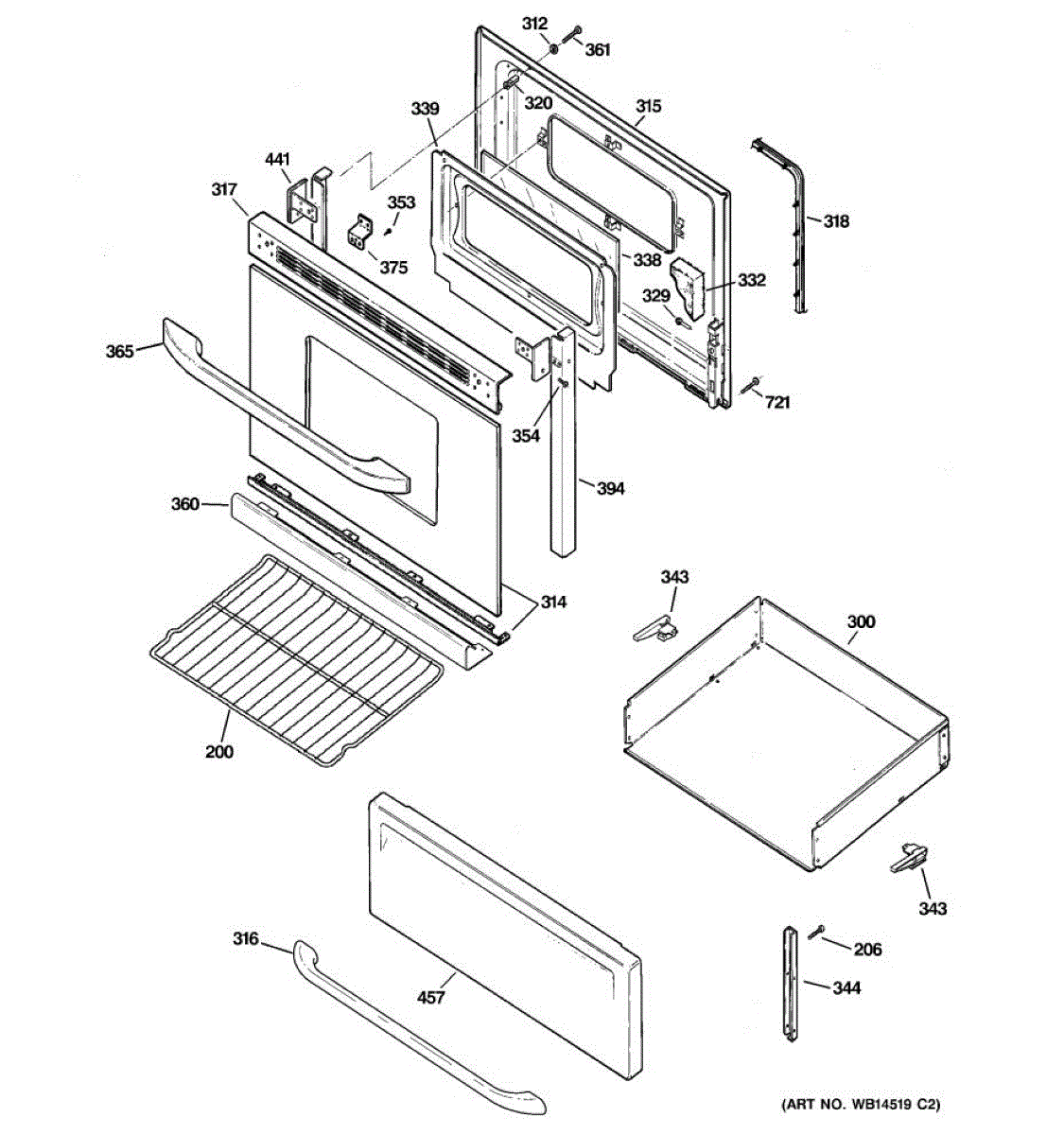

Parts for Hot Point RB540SP1SA: 03 - Door & Drawer Parts

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Includes 12 washers.

Replace your range's oven door glass assembly if the glass is cracked, shattered, or broken. This assembly installs in the outer door frame.

Replace your cracked or broken range drawer handle. This black handle installs on the warming or storage drawer, restoring proper grip and appearance.

Black vent trim assembly for ranges. Replaces cracked, broken, or missing trim around the vent area. Cosmetic part that restores appearance.

Seals your oven door to retain heat and maintain proper cooking temperature. Replace if torn, brittle, or heat escapes. Clips into place in minutes.

Range spacer component installs between parts to maintain proper clearance and alignment. Replace if cracked, broken, or missing to restore fit.

Includes 12 screws.

Insulation guard protects wiring and components from heat damage in your range. Replace if cracked, deteriorated, or missing to maintain safe operation.

Right-side drawer glide supports and guides your range's lower drawer for smooth operation. Replace if broken, cracked, or worn to restore alignment.

Plastic support guide that mounts to the rear of your range storage drawer. Replace if cracked, broken, or missing to keep drawer aligned and gliding smoothly.

Handle mounting

Replacement mounting screw for range panels, brackets, and trim. Restores secure fit when original fastener is missing, stripped, or damaged.

Replacement mounting screw for range panels, brackets, and trim. Restores secure fit when original fastener is missing, stripped, or damaged.

This barrier door is the inner door shield that protects the oven/microwave cavity and helps ensure the door latches and seals correctly for safe operation. It replaces a damaged or warped barrier that can affect door closure and performance. What it does:

• Shields the control area and cabinet from heat, steam, and food debris inside the cavity
• Helps the door latch engage and maintain a proper seal for normal operation
• Restores correct door alignment when a bent or cracked barrier prevents full closure
• Can reduce unusual noises or rubbing caused by a damaged inner door panel

• One replacement barrier door

• Disconnect power before starting; appliances can store lethal voltage even when unplugged
• Handle panels carefully to avoid sharp edges and damaging the finish
• Verify correct orientation and engage all door clips or screws securely during reassembly

Replace your cracked, broken, or missing range oven door handle. Mounts externally on the oven door for safe opening and closing during cooking cycles.

Secures the door panel to your range. Replace if the bracket is bent, cracked, or broken, causing the door to sag or misalign during use.

Left front trim post for electric and gas ranges. Replaces cracked, broken, or missing trim posts on the cooktop surface. Restores appearance.

Endcap for range storage drawer. Installs at drawer end to provide finished edge and structural support. Replace if cracked, broken, or missing.

This drum end cap supports the dryer drum and helps keep it aligned for smooth rotation. Replacing a worn or damaged end cap restores drum positioning to reduce rubbing, noise and uneven wear. What it does:

• Supports and locates the drum at the cabinet end to maintain proper alignment
• Helps the drum rotate smoothly and reduces rubbing or scraping sounds
• Prevents excess wear on the drum edge and adjacent supports
• Common symptom: noisy or wobbling drum that may rub against the cabinet

• One drum end cap

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the dryer front or cabinet panels; keep track of fasteners
• Inspect adjacent parts (glides, rollers, bearings or seals) and replace if worn
• Test the dryer on a short cycle after reassembly to ensure smooth drum rotation

White drawer front panel assembly for electric ranges. Replaces cracked, discolored, or damaged drawer panels. Installs on the front of the storage drawer.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
