Parts for Whirlpool RB170PXL2: 02 - Control Panel And Fan Assembly Parts

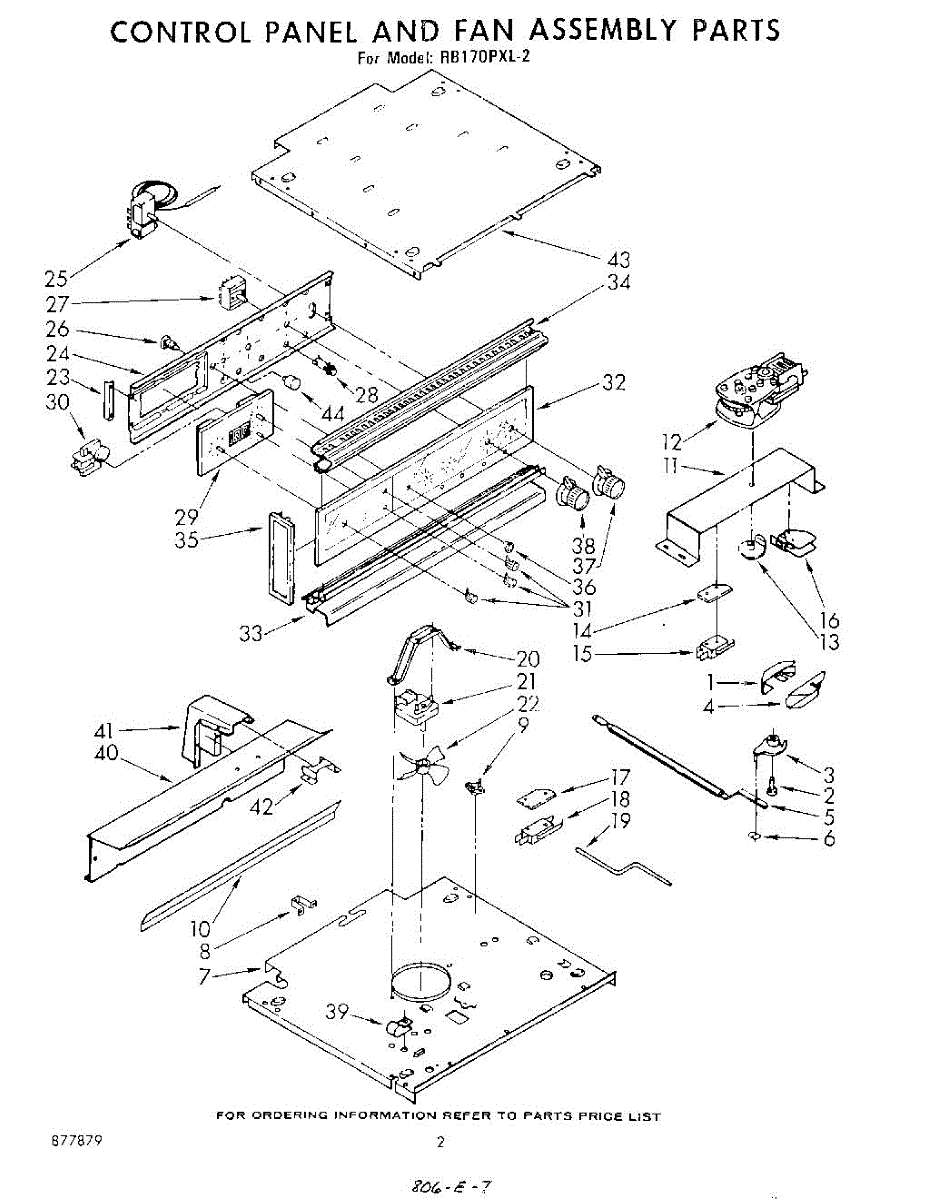

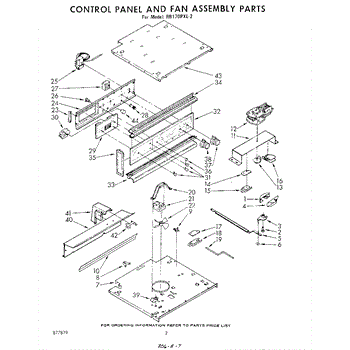

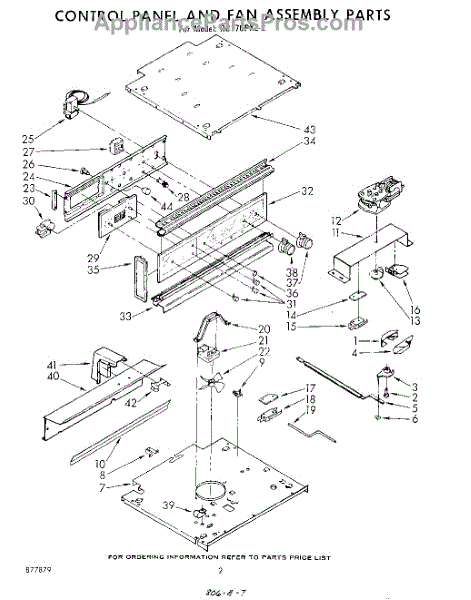

02 - Control Panel And Fan Assembly
Electric Range

Parts for Whirlpool RB170PXL2: 02 - Control Panel And Fan Assembly Parts

Location on Diagram
Part Description
Price & Availability
1

Housing

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1

Washer

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1

Screw

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Axle, Latch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3

Cam Latch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Cover, Latch Housing

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Nut

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5

Not Available

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6

Nut

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7

Screw, 10 - 24 X 3/8

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7

Casing

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8

Washer

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8

Spacer

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8

Screw, 10 - 24 X 3/8

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9

Thermal Protector

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9
Product photo

Washer Mounting Screw

By: Whirlpool

Mounting screw for washers. Secures internal components and panels. Replace if stripped, missing, or damaged during repairs or maintenance.

More
$5.95
Compare At:
$7.08
You Save:
$1.13

IN STOCK
Ships Today Guaranteed
Add to Cart
10

Shield, Control Panel

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10

Screw, 10 - 24 X 3/8

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11

Screw, 10 - 24 X 3/8

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11

Support

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12

Motor, Latch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12

Screw, 8 - 32 X 5/16

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13

Pin-Spring

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13
Product photo

Cam Latch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14

Insulator, Limit Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15

Limit Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

(Switch Limit Upper) (Alternate)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Screw, 4 - 40 X 1 - 1/4

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17

Insulator, Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18

Switch, Door

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18

Screw, 6 - 20 X 1 - 1/8

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19

Rod, Oven Light Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20

Screw, 10 - 24 X 3/8

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20

Bracket, Fan Motor

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21

Motor/Fan

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21

Nut

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Nut

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Screw, 10 - 24 X 3/8

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Fan Blade

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23

Support, Control Bracket

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23

Screw, 10 - 24 X 3/8

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24

Screw, 10 - 24 X 3/8

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24

Control Panel

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25

Screw, 8 - 32 X 5/16

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25
Product photo

Thermostat

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25
Product photo

Thermostat Oven

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25

Screw

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

26

Nut

By: Whirlpool

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

26
Product photo

Switch, Disp.Lite

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27

Switch - Oven

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27

Screw, 8 - 32 X 5/16

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27

Switch, Oven Selector

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

28

Waveguide Trans E/M

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

28

Indicator, Light (Oven)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

28

Light

By: Whirlpool

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29
Product photo

Timer

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29

Lock Nut

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

30
Product photo

Timer Motor

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

31

Knob, Timer

By: Whirlpool

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

32

Panel, Glass (Control)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

32

Tape, Foamed (16``)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

33

Base, Control Panel

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

34

Top, Control Panel

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

34

Screw, 6 X 1``

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

35

End Cap

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

35

End Cap

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

35

Screw

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

36

Bezel

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

37

Knob, Thermostat

By: Whirlpool

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

38

Knob, Thermostat

By: Whirlpool

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

39

Clamp

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

39

Screw, 8 - 32 X 5/16

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

40

Housing, Control

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

41

Duct, Oven Vent

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

41

Screw, 10 - 24 X 3/8

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

42

Screw, 10 - 24 X 3/8

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

42

Extension, Vent

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

43

Screw, 10 - 24 X 3/8

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

43

Casing

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

44

Bumper

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

  • boxes images Over 2.1 Million Parts In Stock
  • time delivery images 2 Day Quick Delivery!
  • box-refresh images 365 Day Return Policy!
  • headphone imagesFree Tech Support!
  • google images Google Trusted Store
​
