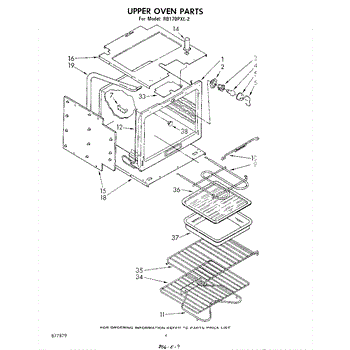

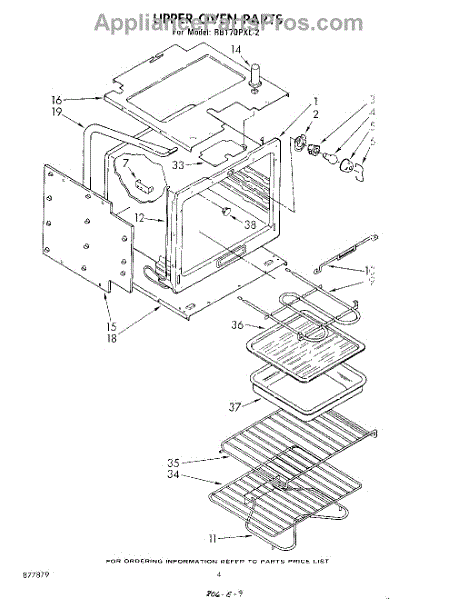

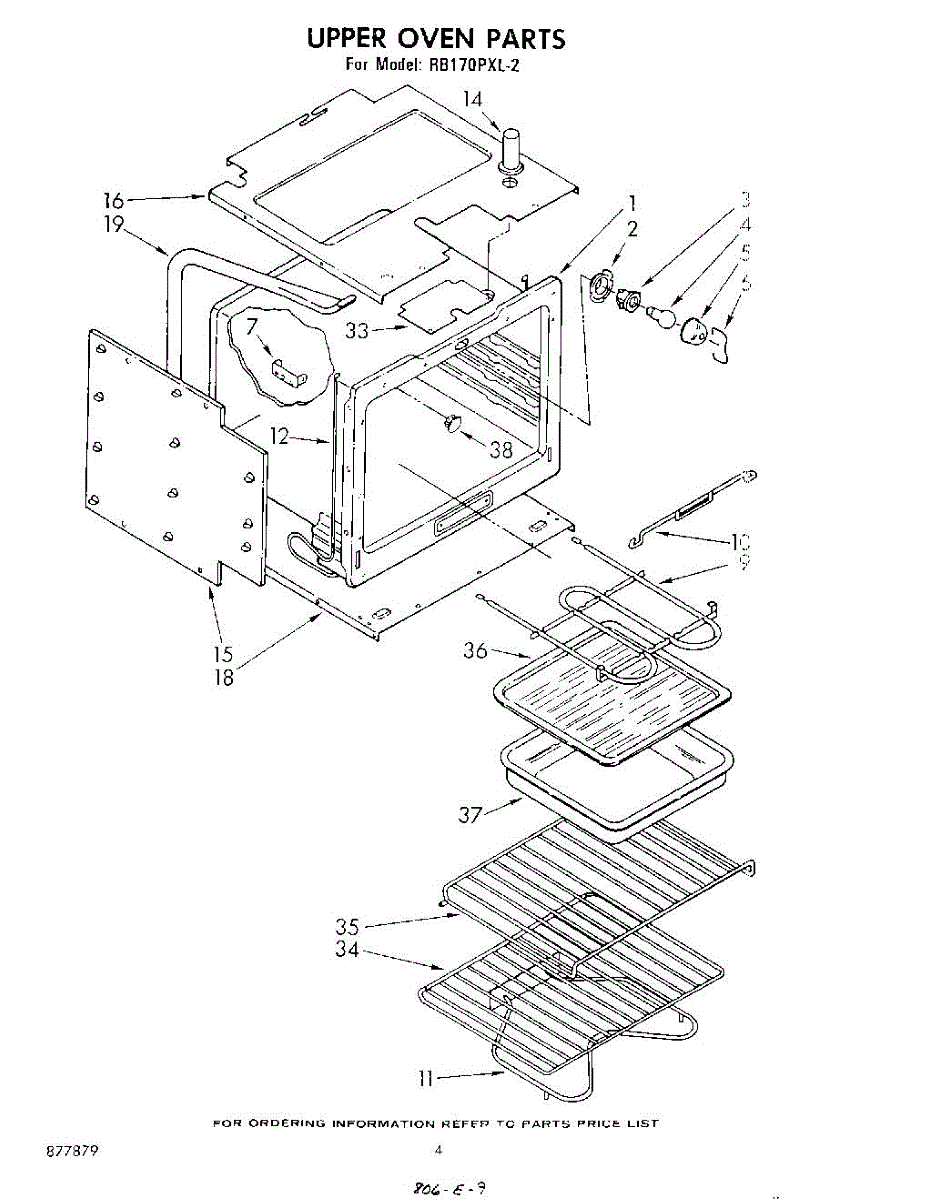

Parts for Whirlpool RB170PXL2: 03 - Upper Oven Parts

Size: 10-32 x 1/2 inch.

This light socket holds the bulb and supplies power for reliable appliance lighting. Replace a cracked, heat-damaged, or loose socket to restore safe, consistent illumination inside the appliance.

• Secures the lamp and connects it to the appliance wiring
• Restores proper electrical contact to the bulb
• Replaces sockets showing arcing, discoloration, melting, or a loose fit
• Common symptoms: light won't turn on, flickers, works intermittently, or bulbs fail prematurely

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely before accessing the socket
• Use the bulb type and wattage specified for your model
• Transfer existing mounting screws/brackets and wiring connectors as needed; ensure tight, clean connections

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Size: 10-32 x 1/2 inch.

Size: 10-32 x 1/2 inch.

Size: 10-32 x 1/2 inch.

Size: 10-32 x 1/2 inch.

Restore reliable baking performance with this replacement bake element. It generates heat from the bottom of the oven to reach and maintain set temperatures, so your oven preheats properly and bakes food evenly when the original element fails. What it does:

• Supplies heat to the lower oven during Bake cycles
• Enables proper preheat and stable temperature hold
• Common failure symptoms: no heat in Bake, very slow preheat, uneven baking, element not glowing, or visible blistering/breaks

• 1 bake element

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Remove oven racks; take out the element's mounting screws and gently pull the element forward to access wires
• Move wires one at a time to the new element; ensure snug, fully seated terminal connections
• Secure the element with the mounting screws, restore power, and run a brief preheat to verify operation

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
