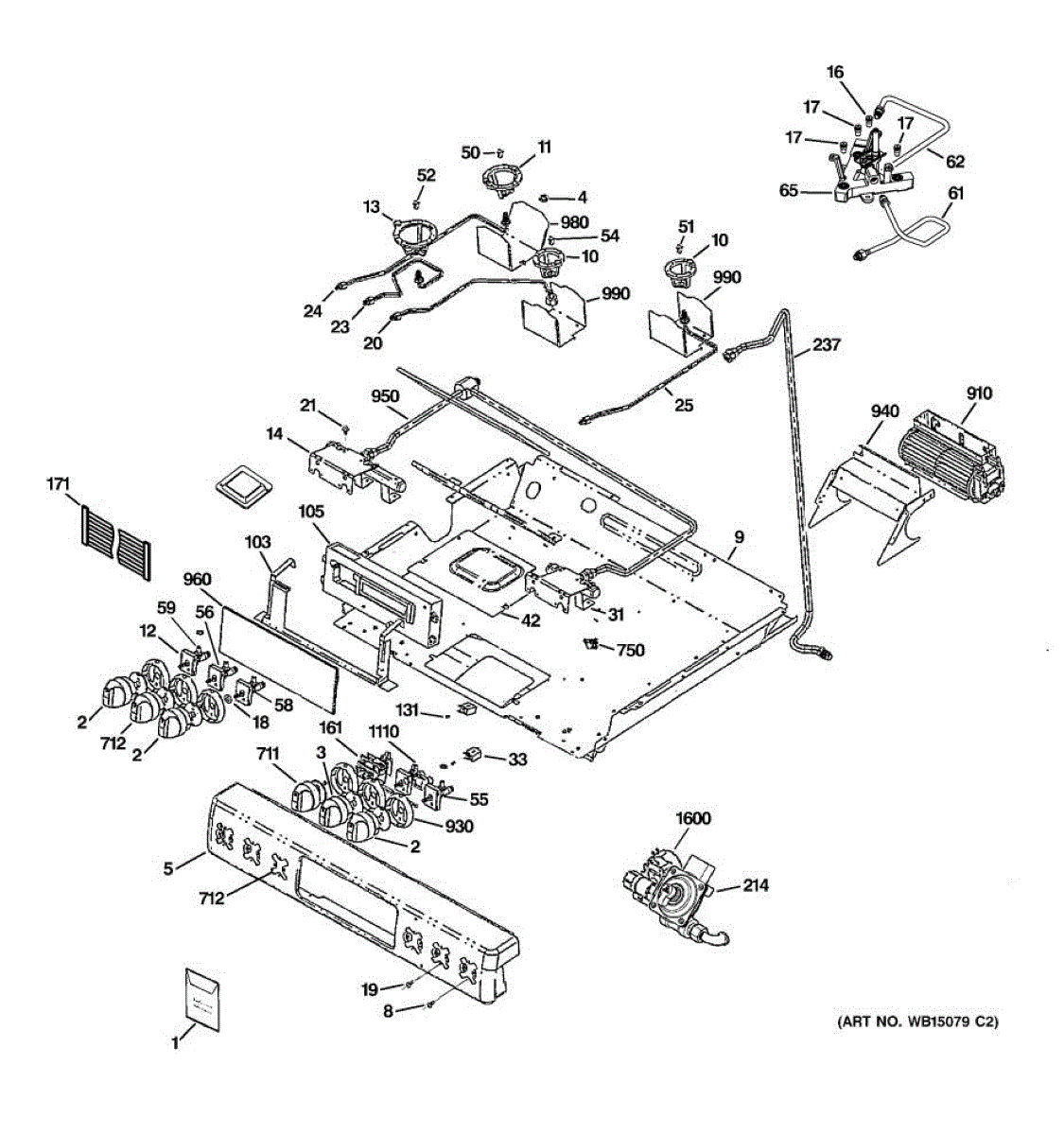

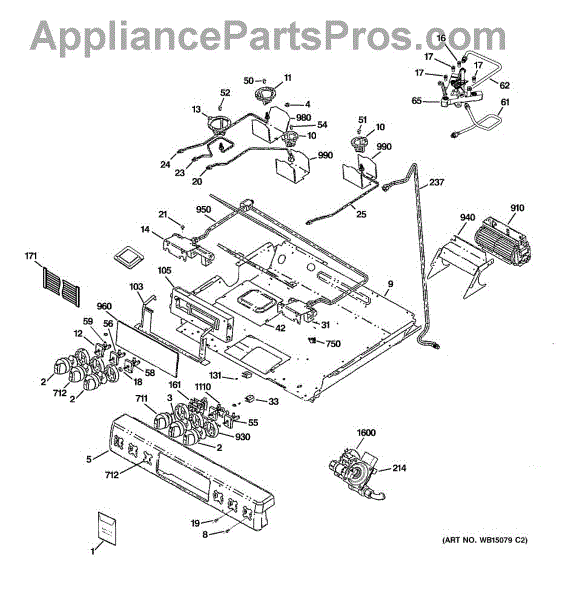

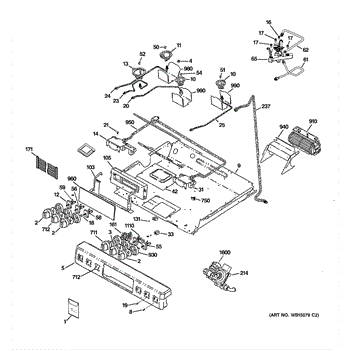

Parts for Ge C2S985SET1SS: 01 - Control Panel, Gas & Burner Parts

This LP conversion kit converts a compatible gas range or oven from natural gas to liquid propane so burners and the oven operate safely on LP fuel. It supplies the metering parts needed to change a range to the correct smaller orifice sizes for propane. What it does

• Replaces factory natural-gas orifices with LP-sized orifices so burners and oven jets meter propane correctly
• Helps restore proper combustion to reduce smoking, poor flame or low heat when using LP
• Includes conversion label to identify the appliance fuel type after conversion
• Intended for use only on compatible models; do not attempt conversion without instructions

• LP orifice(s), conversion label and conversion instructions/parts as shown on the product listing

• Conversion must follow the appliance manufacturer's instructions exactly; improper conversion can cause unsafe operation
• Turn off gas and electrical power to the appliance before starting work
• After conversion, test for leaks and verify proper burner and oven performance per OEM guidance

The Knob Assembly is an OEM part for GE gas ranges. The knob regulates cooktop burner temperatures. Color: metallic. It measures about 2 inches in diameter.

Causes relate to unavoidable heat stress and abrasion from everyday cooking tasks gradually wearing down plastic and metal interface points over 10+ years. Regular cleaning chemicals may also degrade markings prematurely.

Symptoms of a bad knob assembly include:

• Loose, wobbly or detached knob disconnecting from valve stem
• Knob difficult to rotate between settings or accidentally changing positions
• Faded or damaged markings inhibiting visual confirmation of settings
• Non-responsive rotation failing to adequately valve gas flow

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement knob assembly restores user control of a range or stove control. It provides a durable, easy-to-use interface for setting burner or oven settings so you can operate your appliance safely and accurately. What it does:

• Replaces a cracked, faded, loose, or missing control knob to restore normal control feel
• Engages the control shaft so temperature or power settings can be selected precisely
• Helps eliminate slipping or sticking that prevents proper burner or oven adjustment
• Matches original fit and user interface for straightforward operation

• Disconnect power to the appliance before attempting any service
• Push onto the control shaft until fully seated; some models may use a retaining clip or require gentle alignment

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

Size: 8 - 32 inch.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This Range Cooktop Bracket secures the main top to the appliance frame for a tight, stable fit. Replacing a bent or missing bracket can correct a loose, misaligned, or rattling cooktop and help it sit flush.

• Secures the main cooktop to the chassis to prevent lifting or shifting during use
• Helps maintain proper alignment and a flush fit with surrounding trim
• Common symptoms include a loose or uneven cooktop, rattling, or visible gaps
• Useful when the original hold-down bracket is bent, missing, or damaged

• Disconnect power; for gas ranges, shut off the gas supply before servicing.
• Support the cooktop while replacing the bracket; beware of sharp edges.
• Reuse manufacturer-specified fasteners where applicable and tighten securely without overtightening.

LP orifice spud that meters propane to a single burner for correct flame size and efficient combustion after converting a cooktop or oven to LP. Restores proper burner performance and safer operation. What it does:

• Meters propane flow to one burner to establish the correct flame for LP fuel.
• Used when converting a range or oven from natural gas to propane (LP).
• Helps correct flames that are too large, yellow, uneven, or won't stay lit.
• Replaces a worn, damaged, or incorrect LP orifice spud for improved burner control.

• Shut off the gas supply at the appliance and service valve before servicing.
• Follow OEM conversion instructions.
• After installation, check all gas connections for leaks with an approved method; do not operate the appliance if you detect a gas leak.
• Use only the exact orifice specified for LP conversion—do not substitute unverified parts.

This LP orifice spud meters propane to a burner on compatible gas ranges/cooktops. Replacing a clogged, damaged, or incorrect spud helps restore proper flame size and consistent burner performance after conversion or service. What it does:

• Threads into the gas system to control LP gas flow to the burner
• Corrects flame characteristics after LP conversion when the proper size is used
• Common symptoms of a wrong/failed spud: yellow-tipped flames, flames too high/low, uneven heating, poor simmering
• Helps maintain stable blue flames for efficient combustion on LP

• 1 LP orifice spud

• For LP (propane) use only; do not use with natural gas
• Turn off gas supply and power before servicing; allow the appliance to cool
• Match each burner position to the specified orifice per your model's conversion chart; tighten snugly without overtightening
• After installation, leak-check with a soap solution and verify flame characteristics per the manual

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This is a replacement mounting screw for the refrigerator/freezer thermostat assembly. It secures the thermostat to the cabinet so temperature sensing and control remain stable and reliable. What it does:

• Secures the thermostat housing or bracket to the appliance cabinet
• Keeps the thermostat properly positioned for accurate temperature sensing
• Common fix when a loose, missing, or stripped thermostat fastener causes rattling or poor contact
• Small hardware part used during thermostat replacement or reassembly

• One thermostat mounting screw

• Turn off power to the appliance before starting any repair
• Use appropriate screwdriver and do not overtighten to avoid stripping the housing or threads
• If original hole or threads are damaged, inspect bracket or cabinet and replace as needed

This 1/4-20 screw secures panels, brackets, and other assemblies in your appliance. It restores a tight, reliable hold when an original fastener is missing, stripped, or corroded.

• Fastens components that require a 1/4-20 threaded screw
• Helps keep panels and assemblies aligned and rattle-free
• Direct replacement for worn, rusted, or lost hardware
• Common symptoms: loose or vibrating parts, misaligned brackets, missing fastener

• Disconnect power; turn off gas supply before servicing
• Allow the appliance to cool; wear gloves and eye protection
• Start threads by hand to avoid cross-threading; use the correct driver/tool
• Tighten snugly—do not overtighten to prevent stripping or damage

This orifice holder secures the gas orifice at a cooktop burner and positions the orifice for correct gas flow and ignition. It restores stable burner operation and helps ensure an even, controllable flame at the front-left burner. What it does:

• Holds the burner orifice in place and aligns it with the burner tube
• Helps maintain proper gas flow to the front-left cooktop burner
• Used when the orifice holder is cracked, warped, or no longer seats the orifice correctly

• One orifice holder for the front-left cooktop burner

• Turn off the gas supply and unplug the appliance before servicing
• Remove burner grates and burner cap to access the orifice area; use basic hand tools
• Inspect the orifice and burner tube for debris or damage while replacing the holder

This orifice holder secures the burner orifice for the right-rear gas burner so the burner ignites and maintains a steady flame. It fits into the burner head assembly to position the fuel orifice precisely. What it does:

• Holds the burner orifice in the right-rear burner assembly for correct gas flow
• Helps ensure a consistent, even flame at the right-rear cooking location
• Commonly replaced when the burner won't light or the flame is weak/irregular
• Works with the burner head and orifice to keep the fuel jet aligned

• One orifice holder

• Shut off the gas supply and unplug the appliance before starting work
• Remove burner cap/head as needed to access the orifice holder
• Handle gas fittings gently; do not force or cross-thread parts
• After installation, follow manufacturer guidance for leak testing and safe startup

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This orifice spud meters gas to a burner in your range or cooktop. Replacing a clogged or damaged spud helps restore correct flame size and reliable ignition for consistent cooking performance.

• Regulates gas flow from the valve to the burner head for proper combustion
• Helps restore consistent flame height and even heating on the burner
• Sized for the burner rating and fuel type specified by your model; always match the correct part

• Disconnect power and shut off gas supply; allow the appliance to cool completely before servicing.
• Access the burner orifice and replace with the correct, model-specified spud using an appropriate wrench; do not overtighten.
• Restore gas and check all connections for leaks with a soap-and-water solution.
• Use only the spud specified for your fuel type (NG or LP); do not attempt conversion without the approved kit and instructions.

Medium LP orifice

This surface burner valve regulates gas flow to a high-output burner, restoring smooth flame control and dependable lighting. Replacing a worn valve helps ensure safe operation and precise adjustment across the full flame range.

• Controls and shuts off gas to a surface burner for safe, reliable operation
• 270° Hi-Cap configuration specified for high-output burner positions
• Restores smooth knob action and consistent flame adjustment
• A failing valve may cause no flame or weak flame, poor flame control, a hard-to-turn/spinning knob, or gas leakage at the valve

• Disconnect power and shut off the gas supply before servicing
• Note and match all manifold/tubing connections during removal and installation
• Use an approved gas-rated thread sealant where specified and tighten fittings to manufacturer guidelines
• After installation, leak-test all connections with a soap solution; verify ignition and full flame adjustment before use

A replacement burner valve that controls gas flow to a single cooktop burner, restoring reliable ignition and stable flame performance. Fits compatible GE gas ranges and cooktops where the original burner valve has failed. What it does:

• Regulates gas supply to a single burner so the flame ignites and holds steady
• Helps correct symptoms like a burner that won't light, has a weak flame, or won't respond to control knob changes
• Works as the direct replacement for the OEM burner valve assembly used on affected gas burners

• One valve burner 270 assembly (single valve)

• Turn off gas supply and electrical power before starting any service
• Check all fittings for leaks after installation and follow local codes for gas appliance service
• Do not modify the part; use only with compatible appliance models

This burner valve 270 is the gas control valve used on compatible ranges and ovens to restore regulated gas flow to a single burner assembly, helping the burner light and maintain a steady flame for reliable cooking. What it does:

• Regulates gas flow to the burner so the burner can ignite and hold a steady flame.
• Replaces the worn or leaking valve assembly that controls gas delivery to the burner.
• Interfaces with the range's ignition and gas supply lines; correct orientation and sealing are required.

• Always shut off both the appliance power and the gas supply before beginning service.
• Use proper fittings and replace any damaged tubing, gaskets, or seals; test all connections for leaks with an approved leak-detection method after installation.

This top burner injector assembly delivers gas from the manifold to a range's top burner for controlled ignition and stable flame. It restores proper fuel flow so burners light reliably and maintain even heat for cooking. What it does:

• Directs gas to the top burner so the burner can ignite and produce a steady flame
• Helps correct low or uneven flame at a single top burner
• Replaces a clogged, damaged, or worn injector that can prevent ignition or proper burner performance
• Works as the burner-side metering piece in the gas delivery path

• One top burner injector assembly

• Turn off the gas supply and power to the appliance before servicing
• Only install the exact replacement part for your model; tighten fittings per manufacturer guidance
• Check all seals and connections for leaks after installation; use soapy water or a gas leak detector

This replacement indicator light lens covers the lamp opening on the control panel, protecting the opening while keeping the ON indicator easy to see. Replacing a cracked or missing lens restores visibility and a finished look.

• Covers and protects the indicator lamp opening in the panel
• Diffuses light so the appliance's ON status is easy to see
• Helps keep dust, grease, and moisture out of the control area
• Common signs to replace: lens cracked, missing, cloudy/discolored, or won't stay seated

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Access the panel area; release the old lens tabs or retainer from the back side and remove
• Align and press the new lens fully into the opening until it sits flush
• Restore power and verify the indicator illuminates correctly

This oven thermostat monitors and regulates oven temperature so your range maintains consistent baking and roasting results. It replaces a failed or inaccurate thermostat to restore proper oven temperature control. What it does:

• Senses oven temperature and signals the heating element or burner to cycle on and off
• Helps correct ovens that run too hot, too cold, or have inconsistent temperatures
• Restores temperature regulation for better baking and cooking performance
• Works with oven control systems that use a mechanical/electromechanical thermostat

• 1 oven thermostat

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Access may require removing the oven control panel or inner back panel; follow your model's service manual
• Replace with the exact part number shown on your appliance or parts list to ensure fit and function

This pressure regulator controls and stabilizes the incoming gas supply to your range/oven's manifold, delivering steady burner flames and consistent oven heat. Replace a failed regulator to correct weak flames, surging, or erratic heating performance.

• Regulates incoming gas line pressure to the appliance manifold for proper operation
• Helps address symptoms such as low heat, yellow/orange flames, surging/lifting flames, or burners that won't stay lit
• Supports consistent oven temperatures by maintaining stable fuel pressure
• Typically located where the gas supply enters the rear of the range

• Shut off gas supply and disconnect electrical power before servicing
• Orient the regulator's flow arrow toward the appliance/manifold
• Use a gas-rated thread sealant on tapered pipe threads; do not overtighten
• After installation, leak-test all connections with an approved solution—never with an open flame

Color: stainless steel. It measures about 2 inches in diameter.

This knob assembly replaces a damaged or missing control knob so you can reliably turn the appliance's control shaft and select settings. A new knob restores proper fit, smooth operation, and a clean, like-new appearance.

• Attaches to the control shaft to adjust temperature, burner, or other settings
• Restores a secure fit and consistent feel while turning the control
• Replaces cracked, stripped, or missing knobs to bring back precise control
• Common symptoms: knob broken, wobbly, spins without turning the shaft, or falls off

• Disconnect power; for gas appliances, also shut off the gas supply
• Pull the old knob straight off the shaft—do not pry against the panel
• Align the new knob with the shaft and press straight on until fully seated
• Test knob operation to ensure smooth turning and proper engagement

This bimetal limit thermostat is a safety temperature cutoff that stops heat when an oven or range overheats, helping protect the appliance and prevent further damage. It replaces a failed thermal cutoff that won't reset or maintain safe temperatures. What it does:

• Opens the circuit to the oven heating system when internal temperature exceeds safe limits
• Helps prevent overheating and reduces risk of heat-related component failure
• Common symptom: oven heats inconsistently or will not come up to temperature
• Common symptom: oven elements or burners remain off after an overheat event

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Access typically requires removing the oven back panel or control housing; follow OEM service instructions.
• Replace only with the exact part number; do not attempt to modify or bend the thermostat.

The Blower Motor is an OEM part for GE ranges. Within the oven cavity, it circulates air to help distribute heat evenly for thorough cooking.

Causes of a bad Blower Motor include wear from long term use, residue buildup on fan blades inhibiting air movement, or electrical issues such as loose wiring connections or a burned out motor coil.

Symptoms of a bad Blower Motor are:

• Inconsistent or improper baking and broiling
• Hot and cold spots inside the oven cavity
• Extended cooking times needed for foods

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Skirt is an OEM replacement part for GE cooktops and ranges. It is a trim piece designed to enhance the aesthetic appearance of the appliance and provide a secure fit around the cooktop or burner area. This part also helps protect internal components by covering gaps and exposed areas.

Causes of a damaged skirt can include accidental impact, heat-related wear, or improper cleaning methods. Over time, the material may warp, crack, or become discolored, detracting from the appliance’s appearance and functionality.

Symptoms of a bad skirt include:

• Visible cracks, chips, or warping
• Loose or detached trim around the cooktop
• Gaps exposing internal components
• Difficulty securing the skirt in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement glass and touch board assembly that restores the oven/range touch control surface and user interface. Replaces a cracked or unresponsive control glass and the integrated touch-sensing board to recover normal control operation. What it does:

• Replaces the front glass and integrated touch-control circuit for the range/oven control panel.
• Restores touch responsiveness when controls become unresponsive or intermittent.
• Replaces cracked, chipped, or scratched control glass that affects appearance or use.
• Can resolve control errors or display issues caused by damaged glass or touch circuitry.

• Disconnect power (unplug or turn off breaker) before starting any repair to avoid shock.
• Handle the glass carefully and wear gloves; glass can break and cut.
• Some models require removing the control panel or back cover to access and secure the assembly.

This dual water inlet valve controls water flow to the refrigerator's dispenser and ice maker, restoring normal water delivery when the original valve fails. Reliable replacement for disrupted water supply or intermittent dispensing. What it does:

• Directs water to the icemaker and dispenser via two separate inlet ports/solenoids
• Stops water flow when valves fail, causing no water or no ice production
• Can cause continuous water flow or leaks if a valve sticks
• Restores normal dispensing and ice-making when replaced

• Disconnect power and shut off the water supply before starting any repair
• Replace with matching orientation and secure mounting to avoid kinks in supply lines
• Verify connections and test for leaks after restoring power and water

This valve lockout mounting clip secures the appliance's gas valve actuator to help prevent unintended valve movement and ensure consistent operation. It replaces a worn or broken lockout clip to restore reliable valve positioning. What it does:

• Secures the gas valve actuator or linkage to keep the valve in its intended position
• Helps stop intermittent or loose valve movement that can cause inconsistent ignition or burner operation
• Restores proper mechanical alignment after the original clip has cracked, bent, or broken
• Small replacement part used where a damaged lockout clip prevents stable valve function

• One valve lockout mounting clip

• Disconnect power and shut off gas supply before servicing; follow all safety precautions
• Inspect adjacent fasteners and actuator for damage; replace any additional damaged parts as needed
• Basic hand tools typically required; handle small plastic clips carefully to avoid breakage
