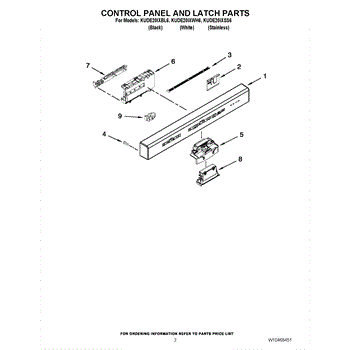

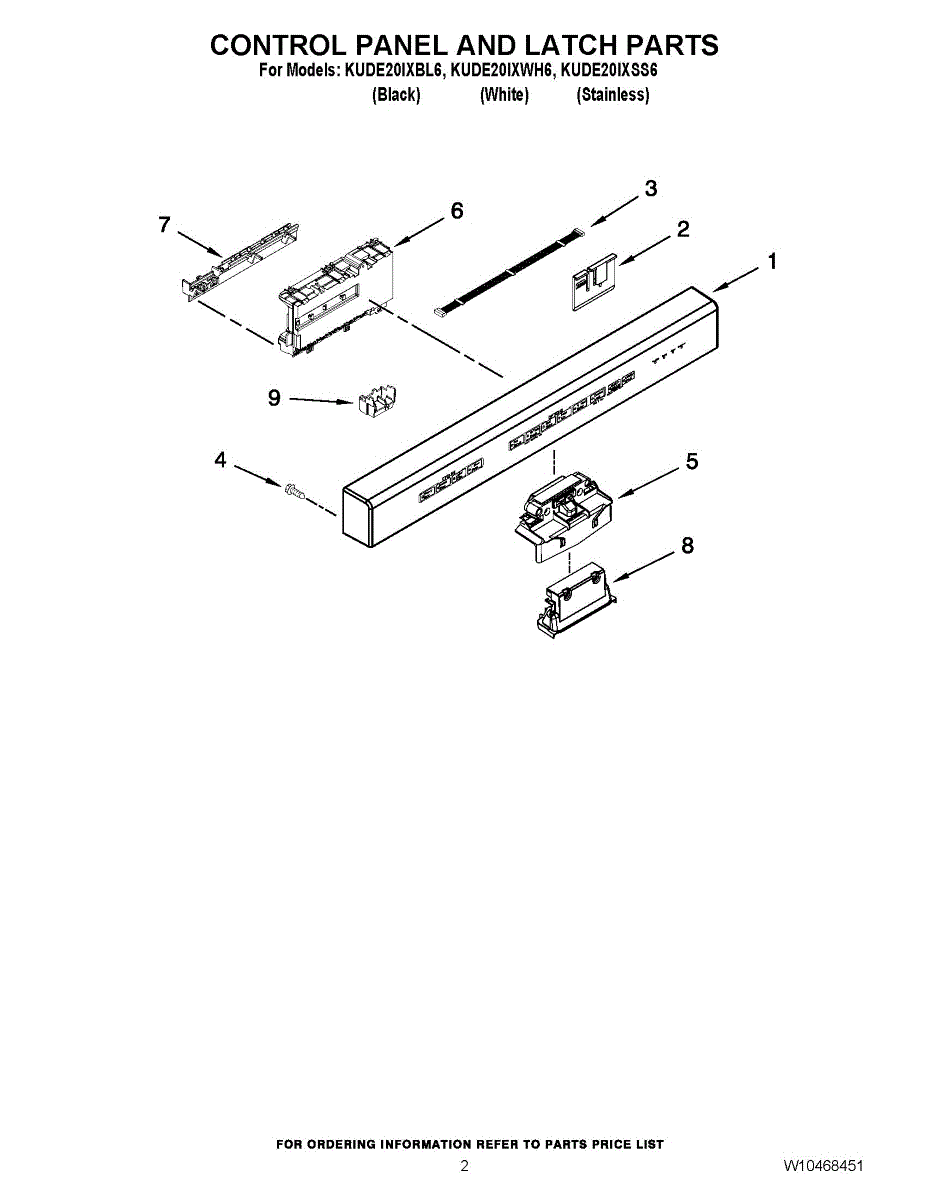

Parts for Kitchenaid KUDE20IXBL6: 02 - Control Panel And Latch Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Color: Black

Color: White

This part is a dishwasher control panel. The purpose of this part is to house the display and the selection buttons that control the dishwasher functions. The buttons on the control panel may not work if it has gone bad. If nothing is showing up on the display, this is another indicator that this part will need to be replaced. The user can attempt to reset the control panel using the manufacturer's instructions. If this does not work, it will need to be replaced. If unable to determine the issue, contact a professional. Unplug the dishwasher from the electrical outlet prior to attempting to replace this part. Wear work gloves to protect the hands.This part is compatible with dishwashers that are manufactured by the Whirlpool and KitchenAid brands. The control panel comes directly from the manufacturer and is a genuine OEM part. It is sold individually.

This small retaining clip secures trim and appliance components to keep panels and assemblies in place, helping prevent rattling and loose parts during use. It's a simple replacement that restores proper fit and alignment. What it does:

• Holds panels, trim, or small assemblies in place to maintain a secure fit
• Prevents rattling, vibration noise, and movement of loose parts
• Replaces broken, bent, or missing clips that allow gaps or misalignment
• Works where a small fastener is needed to secure plastic or metal components

• Disconnect power or unplug the appliance before servicing to avoid shock or injury
• Inspect the mounting area for damage; replace any broken mating tabs or screws for a secure fit
• Installation typically requires basic hand tools such as pliers or a screwdriver; apply steady pressure to snap clip into place

This jumper wire connects the control board to the user interface, restoring the electrical path the console needs to respond. It's a small replacement part that helps resolve intermittent or lost control-panel communication. What it does:

• Bridges signals between the control board and the front control/display assembly
• Restores electrical continuity when a broken or damaged jumper causes intermittent or no response
• Can stop symptoms such as an unresponsive control panel, blank display, or inconsistent button behavior
• Works as a direct wiring replacement—no repair to the control board required if the jumper is the only fault

• One jumper wire

• Always disconnect power to the appliance before starting any repair
• Handle connectors gently; avoid bending or stressing terminals during installation
• Route the wire away from sharp edges, heating elements, and moving parts
• After installing, verify proper operation of the control panel before reassembling panels

This replacement screw secures panels, brackets, and other components inside your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and keeps parts anchored as designed.

• Fastens metal or plastic panels, brackets, and internal components
• Replaces missing, damaged, or stripped screws
• Helps resolve vibration, rattling, or loose-fitting parts
• Maintains proper alignment and secure mounting points

• Disconnect power and shut off water/gas supplies before service
• Match the screw to its original location; your model's diagram to placement
• Start threads by hand and use the correct driver to avoid stripping
• Do not overtighten, especially into plastic or thin sheet metal

The Door Latch Assembly is an OEM part for Whirlpool dishwashers. It ensures a secure latch and seal for the dishwasher door during operation.

Causes of a bad dishwasher door latch assembly can include worn-out or broken latch components, damaged or malfunctioning door switches, or misalignment of the latch mechanism.

Symptoms of a bad Dishwasher Door Latch Assembly include:

• Difficulty in closing or latching the dishwasher door
• The dishwasher not starting or running when the door is closed
• Leaks or water spills around the door area
• Inconsistent or intermittent operation of the dishwasher

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This brace connector secures a support brace inside the appliance to help keep internal panels and assemblies aligned and stable. Replacing a worn or damaged connector restores proper support and reduces noise and movement. What it does:

• Fastens and stabilizes an internal support brace or frame
• Prevents panel or assembly movement that can cause vibration or rattling
• Helps maintain proper alignment of connected components
• Replaces broken or corroded connector hardware to restore secure mounting

• One brace connector

• Disconnect power (and gas, if applicable) before starting any repair
• Access may require removing outer or control panels; save existing fasteners for reuse
• Use basic hand tools; avoid overtightening to prevent cracking plastic or bending metal
• Inspect and replace as needed

Color: White

Color: Grey

Color: Black

This connector links mating components within the appliance to create a secure, reliable connection. Replacing a cracked or loose connector helps restore consistent operation and prevent intermittent issues caused by poor contact or separation. What it does:

• Creates a stable connection between mating parts or harnesses in the appliance
• Helps prevent looseness or separation that can disrupt performance
• Direct replacement for broken, brittle, or deformed connectors
• Can resolve intermittent operation traced to a poor connection at this junction

• 1 connector

• Disconnect power and, if applicable, shut off water before servicing
• Note orientation and positions before removal to ensure correct reassembly
• Seat the connector fully until any locking features engage; do not force
• Inspect mating parts for wear or damage and replace if necessary

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
