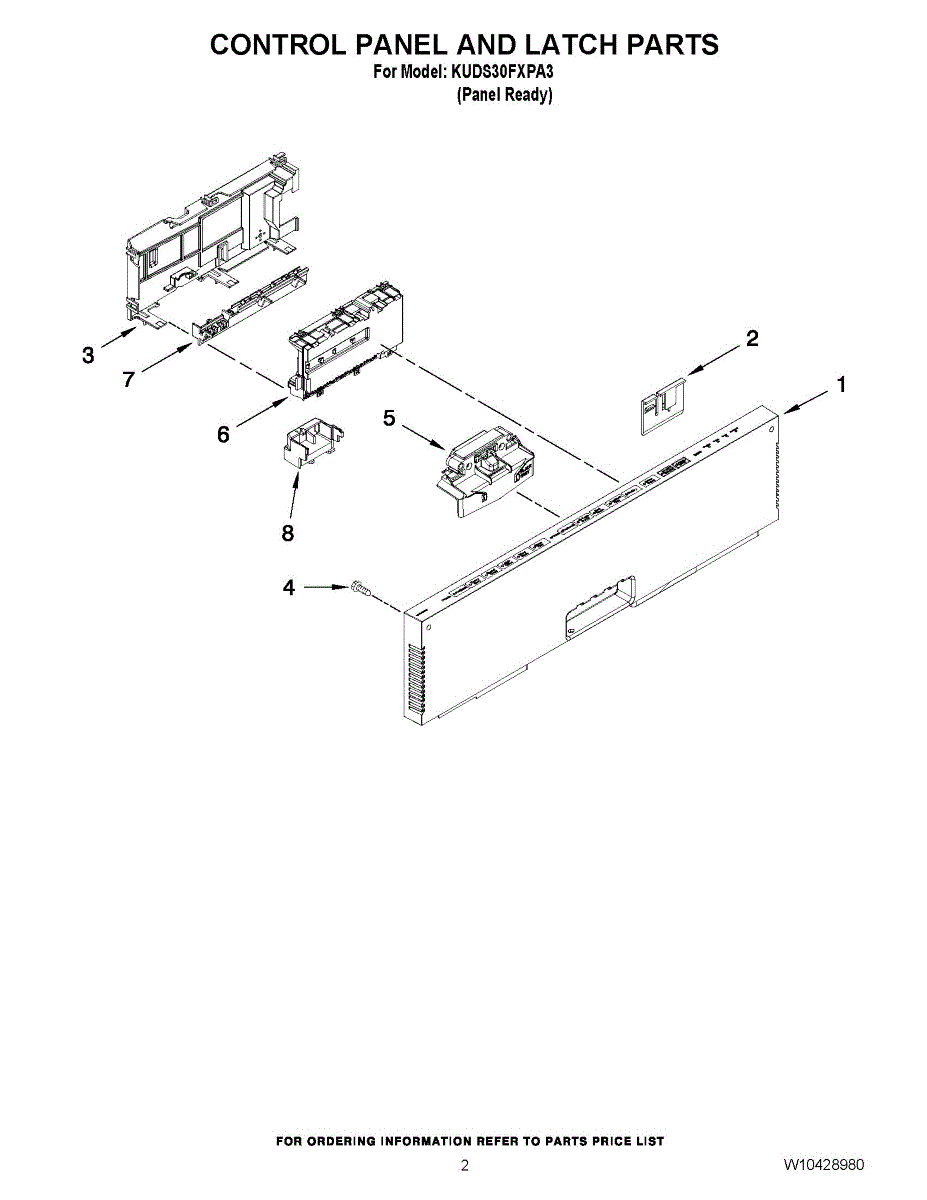

Parts for Kitchenaid KUDS30FXPA3: 02 - Control Panel And Latch Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Control panel assembly that houses the user controls and display, restoring control access and readable status information for your appliance. Replaces a failed or damaged front interface so you can select settings and monitor cycles. What it does:

• Provides the appliance's user interface (buttons or touch controls) and display so you can choose cycles and options.
• Shows time, cycle progress, and diagnostic/status messages on the integrated display.
• Fixes symptoms like unresponsive buttons or touchpad, blank or dim display, and controls that don't accept selections.
• Re-establishes proper electrical connection between the user interface and the main control when original panel is damaged.

• Disconnect power (unplug or shut off circuit breaker) before attempting any service.
• Installation typically requires removing exterior trim or screws and unplugging a multi-pin connector—handle connectors gently.
• Avoid touching display lens or keypad surface to prevent damage; reassemble panels carefully to maintain fit and seal.

This small retaining clip secures trim and appliance components to keep panels and assemblies in place, helping prevent rattling and loose parts during use. It's a simple replacement that restores proper fit and alignment. What it does:

• Holds panels, trim, or small assemblies in place to maintain a secure fit
• Prevents rattling, vibration noise, and movement of loose parts
• Replaces broken, bent, or missing clips that allow gaps or misalignment
• Works where a small fastener is needed to secure plastic or metal components

• Disconnect power or unplug the appliance before servicing to avoid shock or injury
• Inspect the mounting area for damage; replace any broken mating tabs or screws for a secure fit
• Installation typically requires basic hand tools such as pliers or a screwdriver; apply steady pressure to snap clip into place

This electronic control board is the appliance's central controller. It interprets user inputs and sensor signals to power components at the right time, restoring reliable operation when the original board fails.

• Interprets user settings and manages cycle timing and temperature control
• Switches relays/outputs to run motors, heaters, valves, fans, and lights
• Interfaces with sensors and safety switches to protect the appliance
• Symptoms can include no display or response, won't start, cycles that won't advance, or erratic operation
• Logs diagnostic error codes to aid troubleshooting

• Disconnect power before servicing; follow ESD precautions and handle the board by the edges
• Access the control area, then note/photograph wiring and move connectors one at a time to the new board
• Mount securely, ensure no wires are pinched, reassemble, and restore power
• Run a diagnostic or test cycle to confirm normal operation

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

The Door Latch Assembly is an OEM part for Whirlpool dishwashers. It ensures a secure latch and seal for the dishwasher door during operation.

Causes of a bad dishwasher door latch assembly can include worn-out or broken latch components, damaged or malfunctioning door switches, or misalignment of the latch mechanism.

Symptoms of a bad Dishwasher Door Latch Assembly include:

• Difficulty in closing or latching the dishwasher door
• The dishwasher not starting or running when the door is closed
• Leaks or water spills around the door area
• Inconsistent or intermittent operation of the dishwasher

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Control Board is an OEM replacement part for Whirlpool dishwashers. As the "brain" of the appliance, it monitors and directs all functions of the dishwasher through integrated electronic components and circuitry.

Causes of a bad control board can include damage from power surges, liquid spills inside the unit, or simply normal wear over many cycles of use. Electronic failures within the board's circuitry are also possible causes.

Symptoms of a bad control board include:

• The dishwasher fails to turn on or start cycles
• Lights, displays, or cycles activating unexpectedly
• Inability to scroll through menu options on the display
• Cycles not completing or repeating portion of cycles
• Error codes appearing frequently on the display

The board is also compatible with machines from brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

This brace connector secures a support brace inside the appliance to help keep internal panels and assemblies aligned and stable. Replacing a worn or damaged connector restores proper support and reduces noise and movement. What it does:

• Fastens and stabilizes an internal support brace or frame
• Prevents panel or assembly movement that can cause vibration or rattling
• Helps maintain proper alignment of connected components
• Replaces broken or corroded connector hardware to restore secure mounting

• One brace connector

• Disconnect power (and gas, if applicable) before starting any repair
• Access may require removing outer or control panels; save existing fasteners for reuse
• Use basic hand tools; avoid overtightening to prevent cracking plastic or bending metal
• Inspect and replace as needed

This connector links mating components within the appliance to create a secure, reliable connection. Replacing a cracked or loose connector helps restore consistent operation and prevent intermittent issues caused by poor contact or separation. What it does:

• Creates a stable connection between mating parts or harnesses in the appliance
• Helps prevent looseness or separation that can disrupt performance
• Direct replacement for broken, brittle, or deformed connectors
• Can resolve intermittent operation traced to a poor connection at this junction

• 1 connector

• Disconnect power and, if applicable, shut off water before servicing
• Note orientation and positions before removal to ensure correct reassembly
• Seat the connector fully until any locking features engage; do not force
• Inspect mating parts for wear or damage and replace if necessary

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
