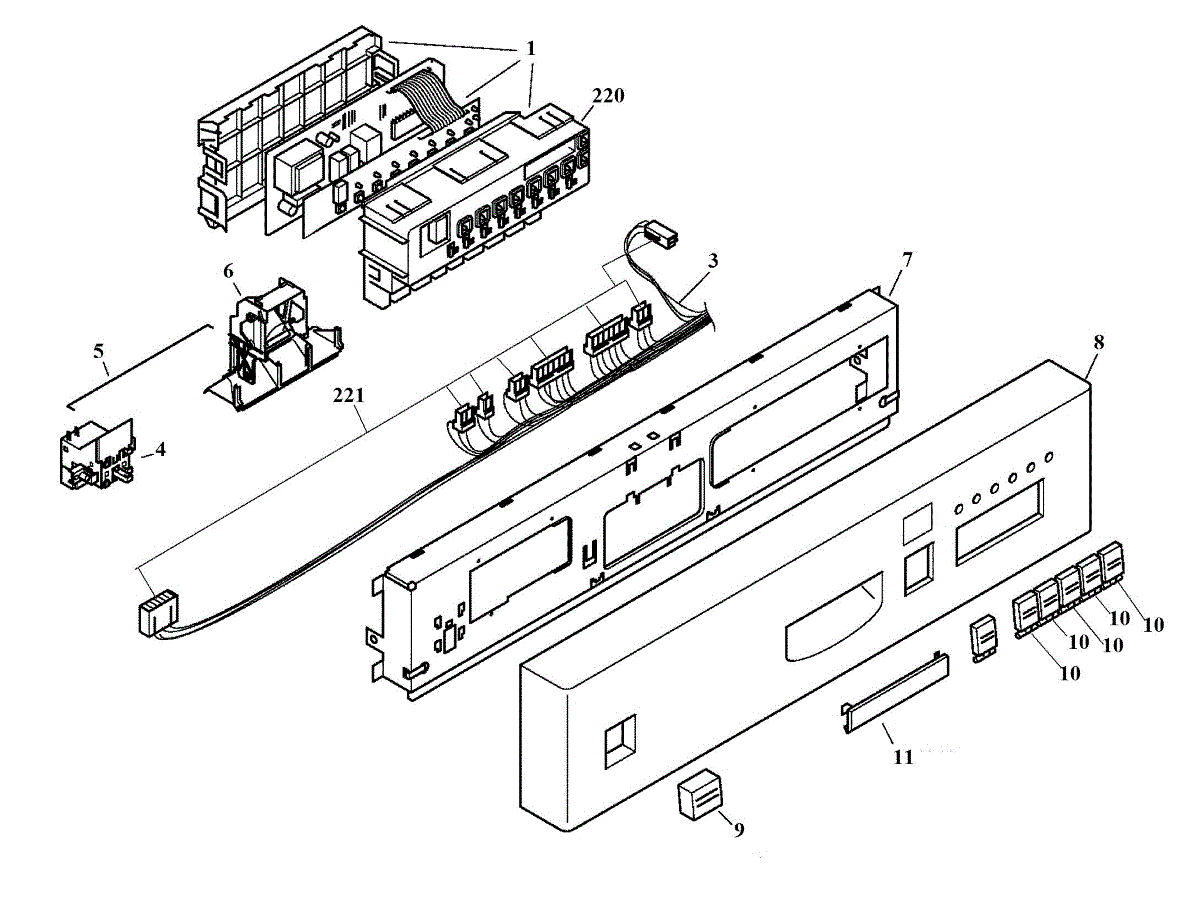

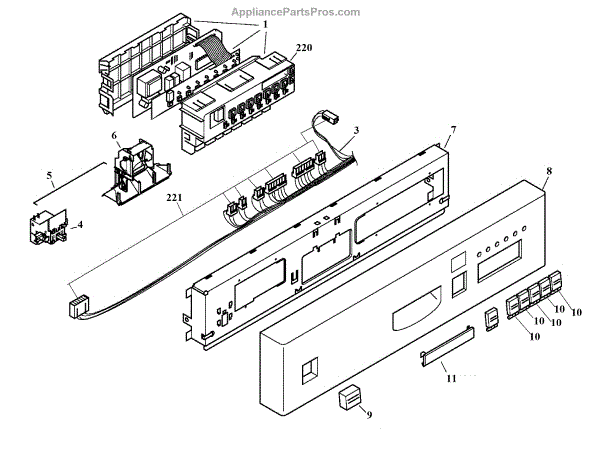

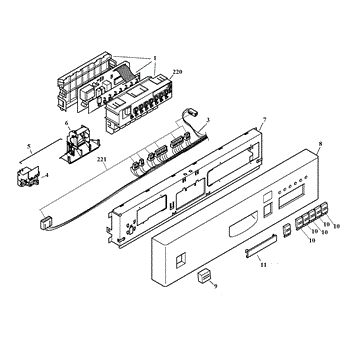

Parts for Bosch SHU5302UC/11: Control Panel Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Made by Bosch. Common program control module for Bosch dishwashers SHU53/68. NOTE The manufacturer has redesigned the cover and indicator lights. Lights may be covered by the plastic case. You may have to remove the square covers over the indicator lights if needed. The same case is used for 6 and 8 indicator light models. They also no longer use the red bulb indicator lights, small surface mounted lights are used instead. If you require the Jumper Wire that goes with certain models, the part number is 00167782.

Wire harness for dishwashers. Connects electrical components to control board. Replace if wires are frayed, damaged, burnt, or connections are loose.

Fix dishwasher cycles that won't complete or operate correctly. This connecting rod linkage restores mechanical movement between internal components.

This door latch is the replacement latch assembly that secures the dishwasher door and helps the appliance start and run safely. It restores a reliable door closure for normal operation and cycle starts. What it does:

• Secures the dishwasher door closed so the machine can begin and complete wash cycles
• Helps prevent leaks by keeping the door sealed during operation
• Commonly replaces a latch that's broken, worn, or not engaging
• Resolves symptoms such as the dishwasher not starting, stopping mid-cycle, or the door not staying closed

• One door latch assembly

• Disconnect power to the appliance before attempting service
• Handle the latch carefully to avoid damaging the door trim or wiring harness
• Verify alignment and engagement of the latch with the strike when reinstalling
• Test the door operation and run a short cycle to ensure proper function after installation

This is the front control panel frame that covers the dishwasher's electronic controls and display. It provides a finished appearance and protects the control board from moisture and debris. Replace this when the panel is cracked, discolored, or doesn't fit properly against the dishwasher door.

White on/off button for dishwasher control panel. Replace if button won't stay pressed in, has popped out, or is cracked, broken, or missing from panel.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This individual control button allows you to select specific wash programs and time settings on your dishwasher's control panel. It registers your selections and sends signals to the main control board. Replace it if the button doesn't click properly, feels stuck, or doesn't respond when pressed.

Color: White.

Replacement front cover for dishwasher control module. Needed when plastic is cracked, broken, or switch actuators are worn or missing. Protects control board.

Wire harness for dishwasher fascia panel. Connects control panel electronics to main system. Replace if wires are frayed, damaged, or connector broken.
