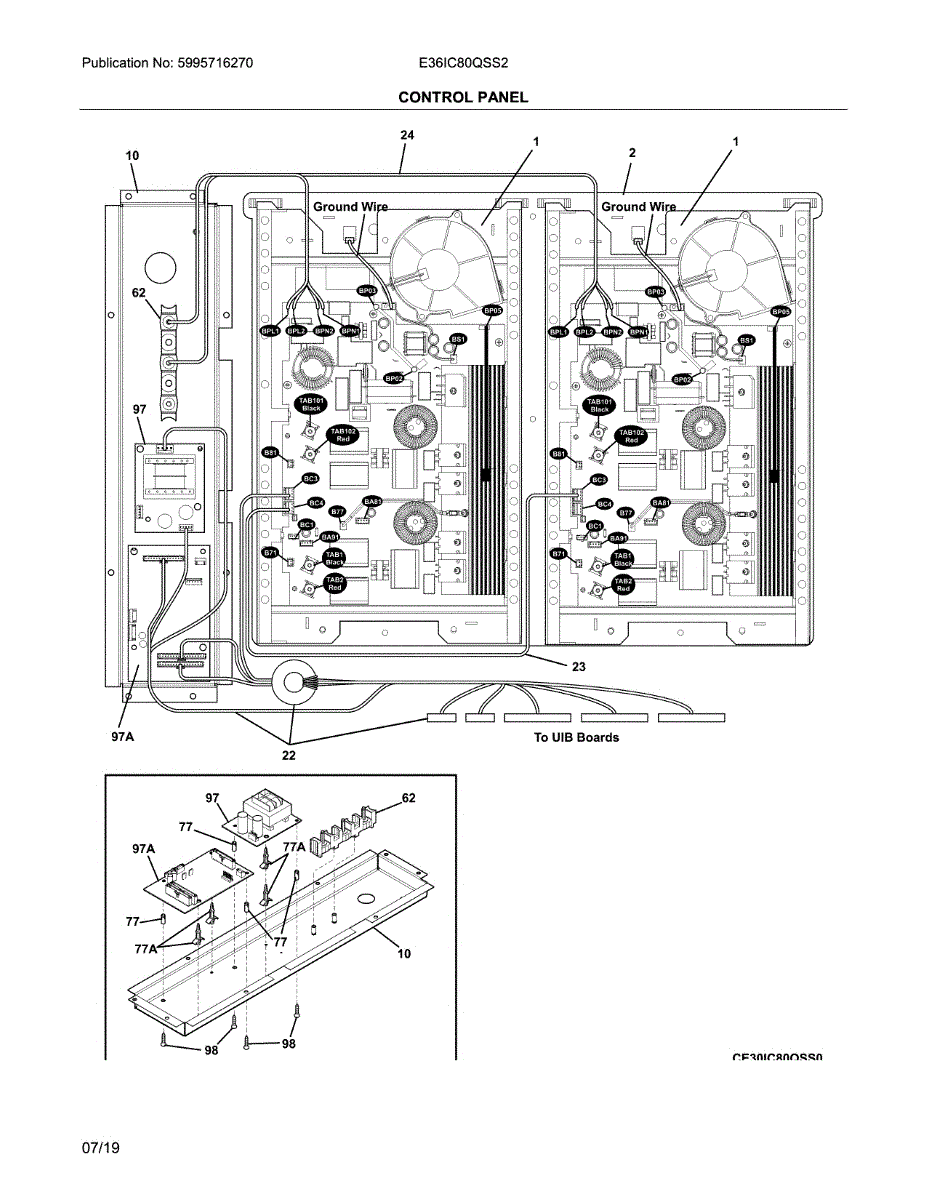

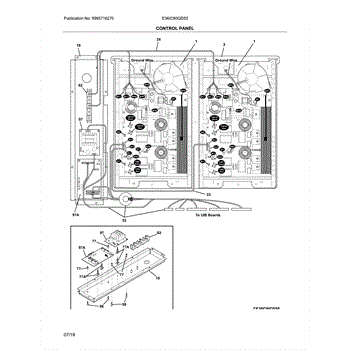

Parts for Electrolux E36IC80QSS2: Control Panel Parts

This ignition generator and wiring harness assembly routes power and provides the spark/ignition signal needed for gas appliance burners to light. It replaces a worn or damaged ignition assembly to restore reliable lighting. What it does:

• Sends ignition voltage to the burner igniters and electrodes so burners light reliably
• Routes and secures wiring between the control module and ignition components
• Common failure symptoms: burners won't light, continuous clicking, or intermittent ignition
• Works as the electrical interface between the control and the igniters for safe startup

• One generator and wiring harness assembly

• Disconnect electrical power and turn off the gas supply before starting work
• Follow the appliance OEM diagram for correct routing and connector locations
• Inspect connectors and electrodes for damage and replace if corroded or worn

This electrical wire harness routes power and signals between appliance controls and components, restoring reliable electrical connections. It replaces a worn or damaged harness to help fix intermittent power, non-responsive controls, or components that won't run. What it does:

• Connects control board, switches, sensors, and motors so electrical signals and power flow correctly
• Replaces frayed, burnt, or damaged wiring that can cause intermittent operation or component failure
• Helps resolve symptoms like no power to parts, flickering lights, or controls that don't respond
• Restores secure, insulated connections to prevent shorting and erratic behavior

• Disconnect power at the breaker or unplug the appliance before servicing
• Remove panels as needed to access the harness; follow OEM routing and connector orientation
• Reconnect all plugs fully and secure any retained clips or fasteners to prevent chafing

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is the electronic control board that governs the appliance's main functions and user interface, replacing a failed board to restore normal control and cycle operation. It fits the OEM form and connects to factory wiring. What it does:

• Manages timed cycles, user inputs, and electronic commands for the appliance
• Controls display and indicator responses so settings register correctly
• Helps resolve symptoms like unresponsive controls, incorrect cycle behavior, or blank/error displays
• Interfaces with sensors and relays to coordinate heating, motor, and valve operation

• Disconnect power to the appliance before attempting service to avoid shock
• Handle the board by its edges and avoid static discharge; use an anti-static strap if available
