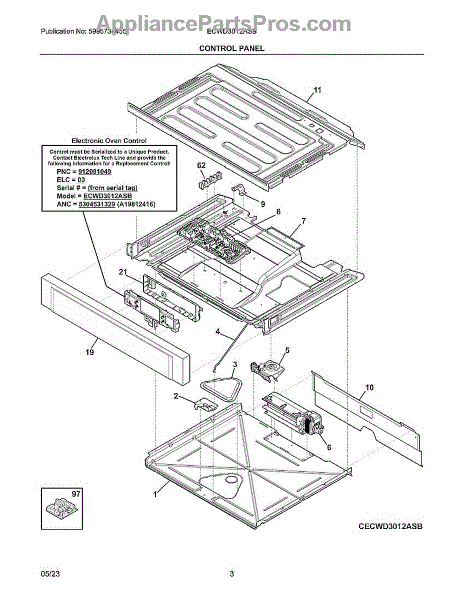

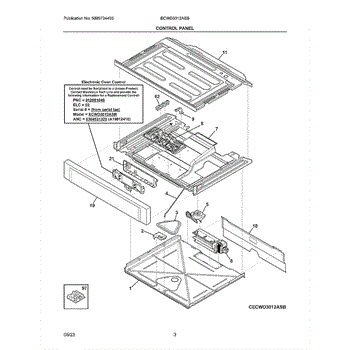

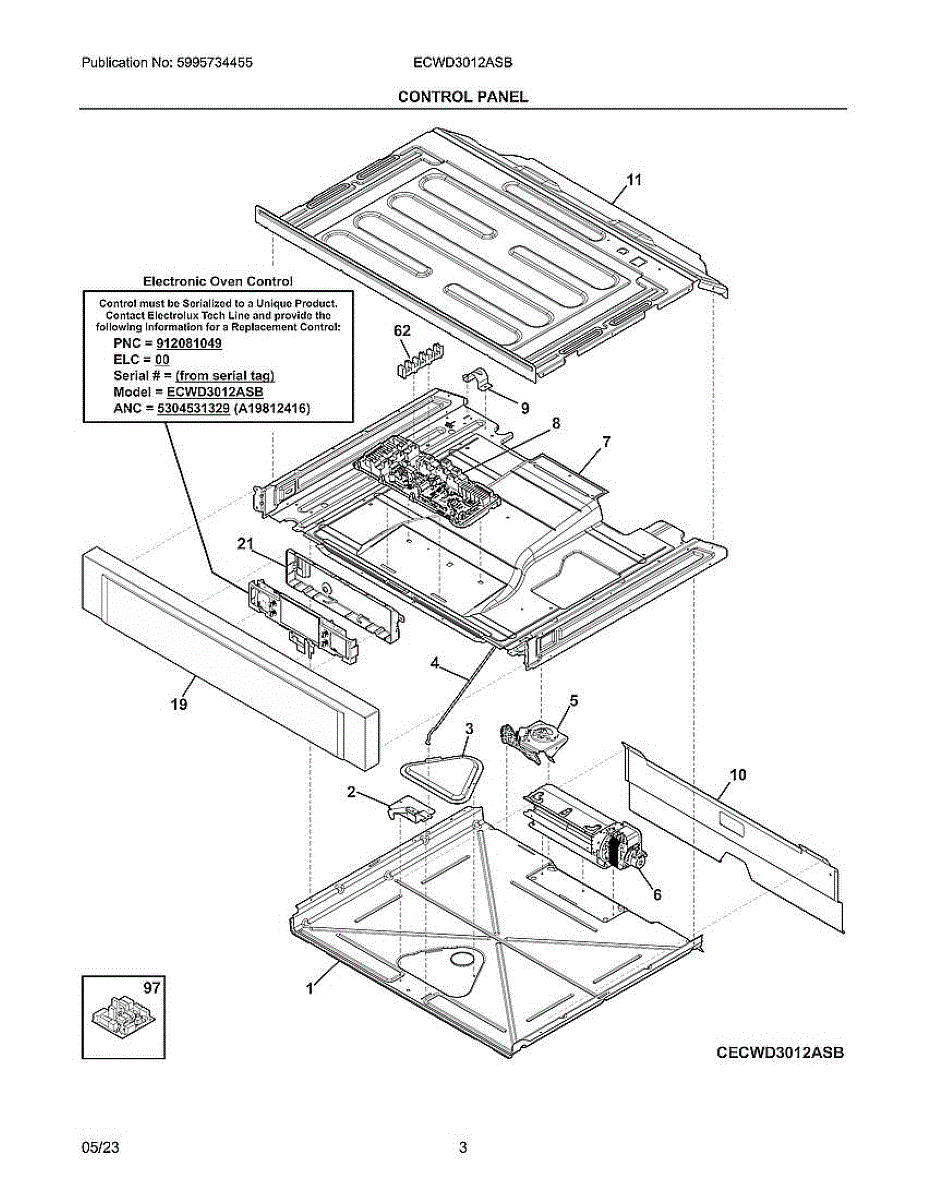

Parts for Electrolux ECWD3012ASB: Control Panel Parts

This terminal block provides the appliance's main wiring connection point, securely joining the incoming power leads to the unit's internal wiring for reliable electrical contact. It restores a solid, safe power feed when the original connector is damaged or worn. What it does

• Holds and secures incoming power conductors to the appliance wiring harness
• Provides firm electrical contact to prevent intermittent power or arcing
• Commonly replaced for loose, melted, or burned terminals or after a short or power-fault
• Helps restore normal power delivery when appliance will not power on due to a failed connection

• One terminal block assembly

• Always disconnect house power at the breaker or unplug the appliance before servicing
• Match wire positions to the appliance wiring diagram and tighten terminals firmly
• Inspect surrounding wiring and strain relief for heat or damage; replace any compromised components

This wiring harness supplies electrical connections between components, restoring power and signals for the affected circuit. It replaces a damaged or worn harness to help eliminate intermittent power or connection failures. What it does

• Carries power and signal between appliance components so controls and motors can operate
• Restores secure plug-and-socket connections when original wires or terminals are frayed or broken
• Helps address symptoms such as intermittent operation, blown fuses, or components not receiving power
• Matches OEM connector ends and wire routing to fit into the factory harness path

• Disconnect power (unplug appliance or shut off breaker) before beginning any repair
• Compare new harness to the old one to ensure connectors and wire lengths match before installation
• Route harness along the original path and secure with existing clips or ties to avoid heat and abrasion

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal
