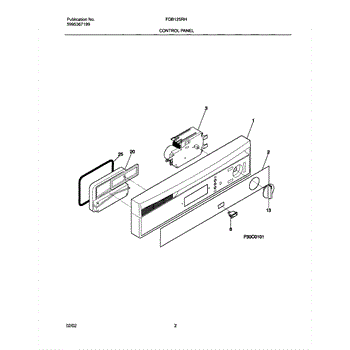

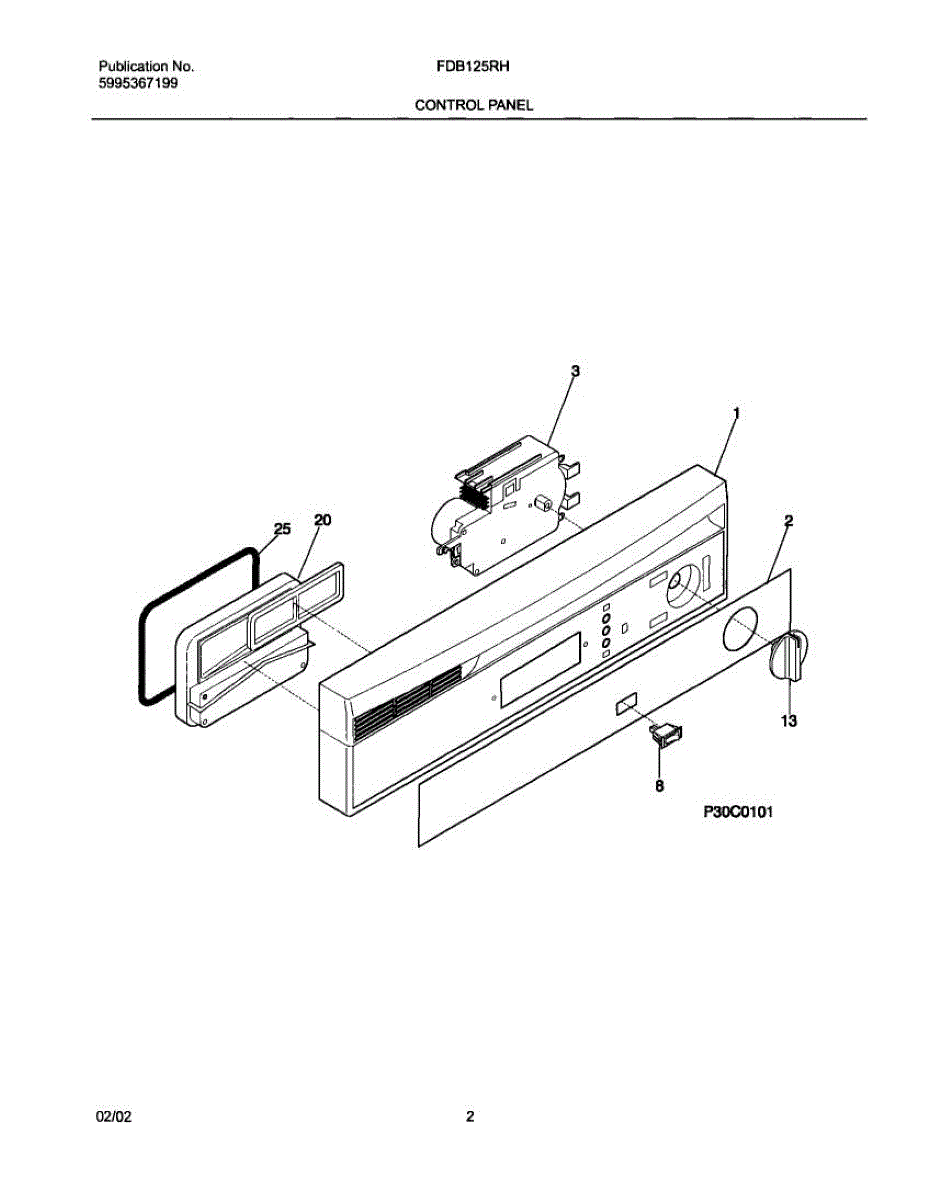

Parts for Frigidaire FDB125RHS3: 03 - Control Panel Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This is a dishwasher timer. The main purpose of a timer in a dishwasher is to ensure the unit cycles run for an appropriate amount of time. The timer regulates the amount of time that power is used on each component of the appliance. This part can be damaged or malfunction and cause the dishwasher to stop turning on, prevent completing cycles, or stopping operation in between cycles. If this occurs, the timer will need to be replaced.When replacing the dishwasher time, make sure to disconnect it from power. Remove the timer knob before accessing and taking off the door latch handle knob. Next, separate the inner door panel from the outer door panel so access is provided to the time. It can be removed, but make sure to note where the wires are connected. Attach the wires to the new timer and reassemble the dishwasher.The timer is made to be compatible with dishwashers by Tappan, Uni, and Frigidaire. This is an authentic OEM replacement part that is sold individually. It's directly sourced from the manufacturer.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This wiring harness connects key electrical components to restore reliable power and signal paths in compatible Frigidaire appliances. It replaces damaged or worn wiring to help eliminate intermittent operation and restore normal function. What it does:

• Provides factory-style connectorized wiring between control boards and components
• Replaces frayed, burned, or broken wires that can cause intermittent power or failures
• Restores secure plug-and-play connections to prevent arcing and poor contact
• Helps resolve symptoms like no power to a circuit, intermittent operation, or component failure

• One wiring harness with factory connectors

• Disconnect power (unplug or shut off breaker) before beginning any repair
• Match connectors and routing to the original harness; do not force connectors
• Inspect connectors and mounting points for damage; replace hardware if needed
• If wiring shows heat damage or melting, check associated components and replace affected parts per OEM guidance

This replacement energy guide label is the factory identification sticker that shows estimated energy use and rating info for the appliance. It restores missing or damaged labeling so the appliance displays required energy guidance. What it does

• Replaces a torn, faded, or missing energy guide so consumption info and rating details are readable.
• Restores factory labeling often found inside the appliance cavity or on the back panel.
• Helps when selling or servicing an appliance by making energy information visible.
• Safe symptom: label is peeling, unreadable, or absent.

• Clean and dry the mounting surface before applying; remove any old adhesive residue.
• Peel backing and press label firmly in place, aligning carefully—do not reposition repeatedly.
• Avoid installing on hot or wet surfaces and keep away from moving parts.

Phillips head mounting screw for dishwashers and ranges. Secures internal components and panels. Replace if stripped, rusted, or missing during repairs.

Replacement mounting screw for dishwasher panels and components. Secures loose panels, brackets, and trim. Needed when original fasteners are missing, stripped, or worn.

The Side Mount Kit is an OEM replacement part for Frigidaire dishwashers. It contains mounting brackets, screws, and other hardware required to securely install the dishwasher against cabinetry in a side-by-side configuration. Proper attachment is necessary for stability and safety during operation.

Symptoms of damaged or missing mounting hardware include:

• Excessive movement or rocking of the dishwasher body
• Potential detachment from cabinets
• Screws pulling loose from repeated vibrations
• Improper door alignment causing difficulty closing fully

Causes related to normal wear over extended use periods. Damage may occur if weight is applied during improper lifting or installation attempts.

Compatible models include Electrolux, Gibson, and select Kenmore units.
