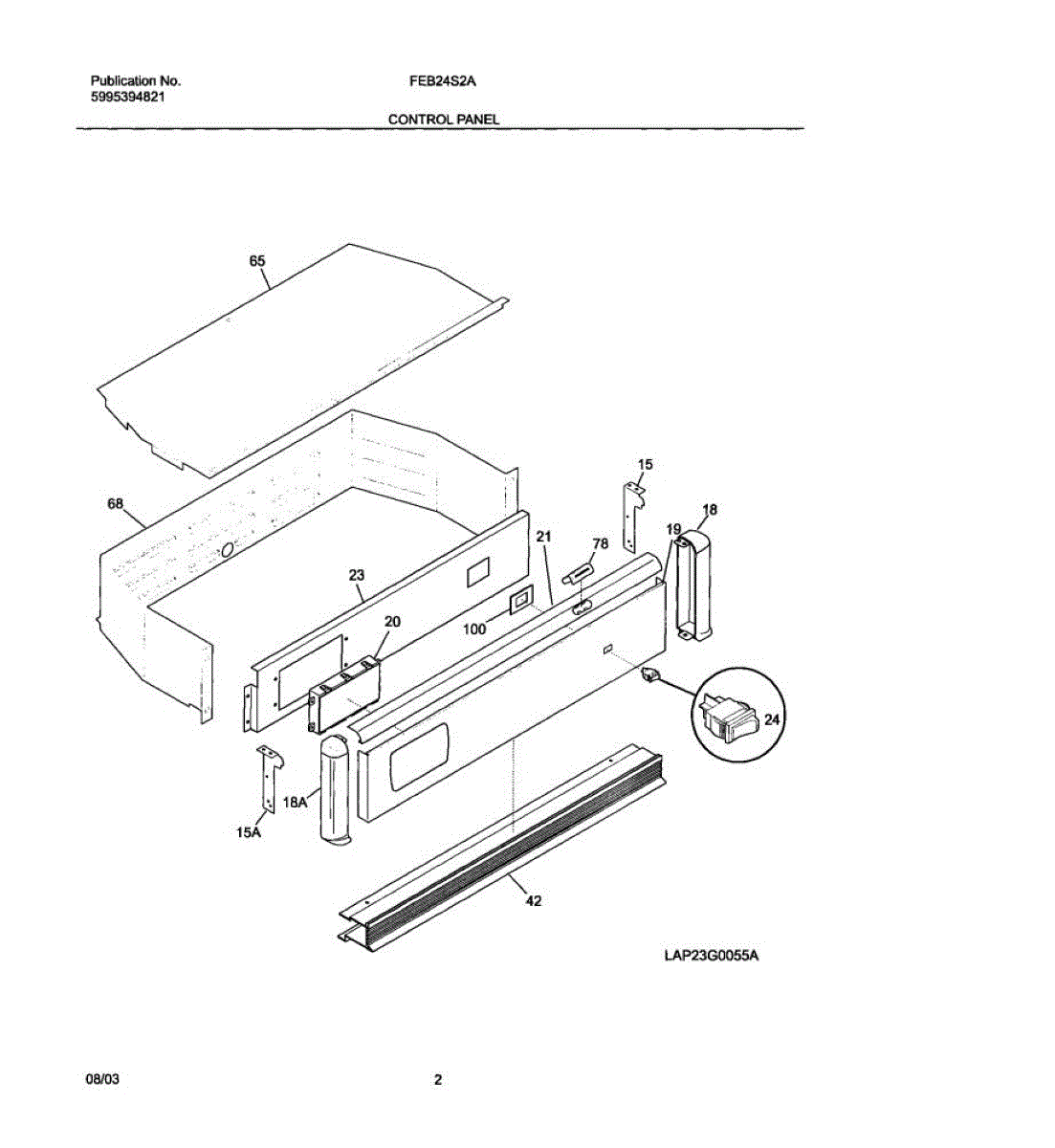

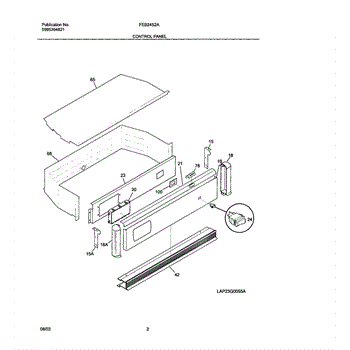

Parts for Frigidaire FEB24S2ASB: 03 - Control Panel Parts

This right backguard support secures the rear control/splash panel to the range, restoring a stable, flush fit and preventing rubbing or vibration. It's a direct replacement shaped for the right side of the backguard assembly. What it does:

• Holds the backguard/control panel steady at the rear of the range
• Prevents the backguard from sagging, vibrating, or rubbing against nearby components
• Restores proper alignment so controls and trim sit flush
• Helps eliminate rattling or movement when the cooktop is used

• One right backguard support bracket

• Disconnect electrical power (and gas, if applicable) before beginning work
• Remove backguard/control panel trim to access mounting points
• Use appropriate hand tools; avoid over-tightening fasteners to prevent damage
• Wear gloves and eye protection—metal edges may be sharp

This left-side backguard support bracket secures the oven/stove backguard to the range frame, restoring stability and correct alignment. It prevents the backguard from sagging or shifting and helps maintain a safe, finished fit at the rear of the appliance. What it does:

• Supports and anchors the left side of the rear backguard to the range cabinet
• Prevents the backguard from moving, rattling, or sagging during use
• Restores proper alignment so rear panels and controls fit securely
• Common symptom: loose or misaligned backguard or visible gap at the rear

• Disconnect power to the appliance before starting any repair
• Remove the backguard or access panel to reach mounting locations; keep hardware for reinstallation if reusable
• Align the bracket with existing mounting holes and secure using the original fasteners or OEM replacements
• Wear gloves to protect against sharp sheet-metal edges and verify secure fit before restoring power

Restore reliable timekeeping and timed-cycle control with this Clock/Timer Kit. It replaces a failed clock/timer so you can set the time, run countdowns, and receive alerts as designed by the manufacturer. What it does

• Displays and keeps the appliance's current time
• Controls kitchen timer/countdown functions and audible alerts
• Interfaces with the appliance to manage timed cycles (start/stop)
• Helps resolve issues like blank or dim display, timer not advancing, drifting time, or unresponsive keys/knob

• 1 clock/timer kit assembly

• Disconnect power at the breaker before servicing; verify no voltage is present
• Access the control area; note screw locations and panel orientation
• Label or photograph wire locations; transfer connections one at a time to the new unit
• Mount securely, reassemble, restore power, and set the clock before testing timer functions

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

The Overlay is an OEM part for Frigidaire ranges. This component is the interface layer that sits over the control panel, providing labels and markings for the various buttons and controls. It ensures that users can easily identify and operate the range settings.

You should replace the overlay if it becomes damaged or worn out. Causes of a bad overlay can include exposure to high temperatures, frequent cleaning, or general wear and tear, which can cause the labels to fade or peel off.

Symptoms of a bad overlay include:

• Fading or illegible labels
• Peeling or bubbling of the overlay surface
• Difficulty in reading and using the controls accurately
• Physical damage such as cracks or tears

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
