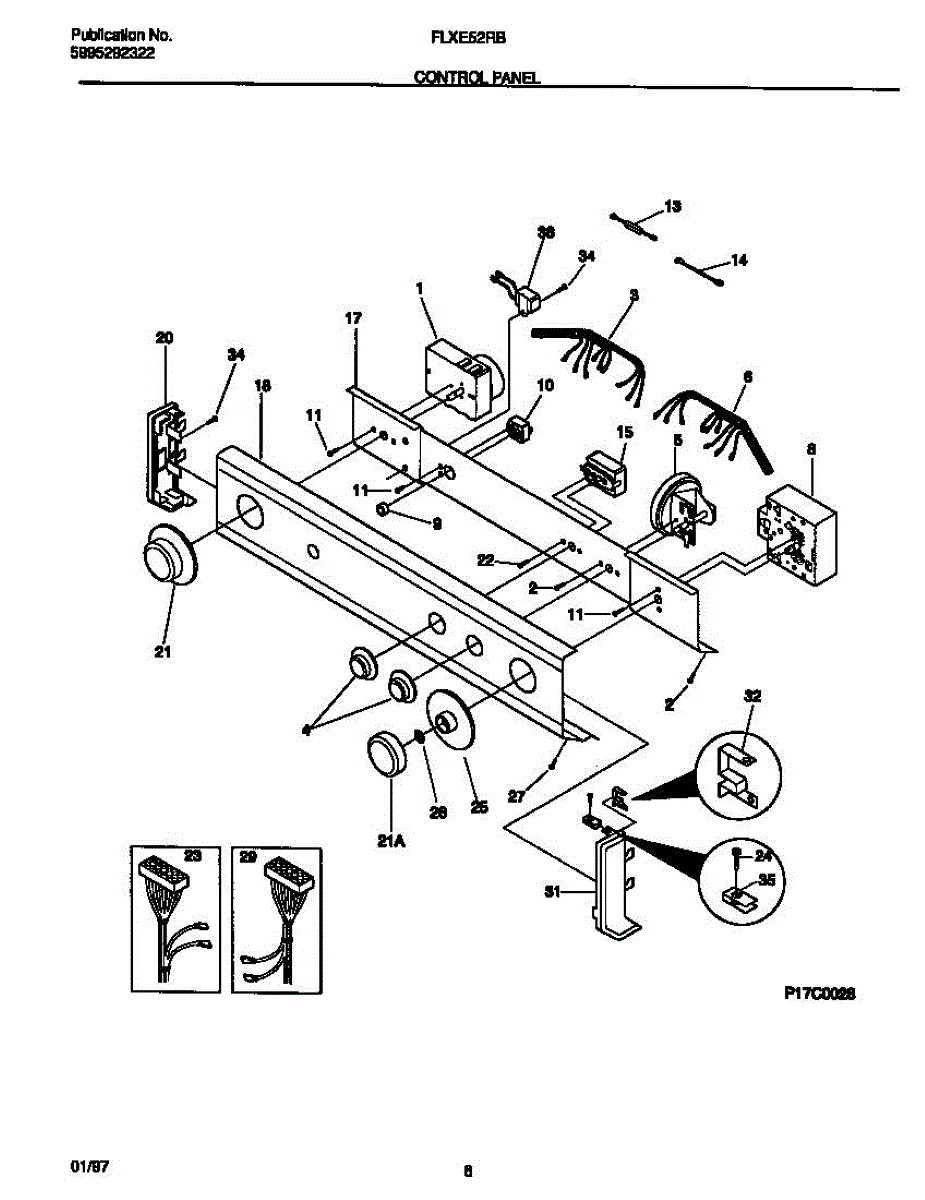

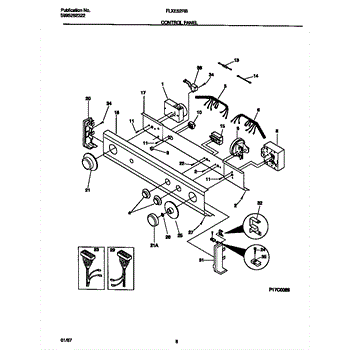

Parts for Frigidaire FLXE52RBT4: 04 - Control Panel Parts

If your dryer won't shut off or cycles won't advance, the timer may have failed. This control manages drying cycles and run time. DIY repair in 20 minutes.

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

Control wiring harness for washer dryer combo units. Connects control panel to internal components. Replace if wires are frayed, damaged, or connector clips are broken.

This genuine OEM part is a timer for washers. The timer is the part that allows the washer to start and stop after being in use for a amount of time. The settings of the timer are controlled by the user and will adjust automatically depending on the desired settings. If the washer is no longer stopping after the desired time has elapsed, the timer might need to be replaced. To replace the timer, start by making sure the washer is unplugged. After that, pull the washer away from the wall to access the back panel. Once accessed, remove the screws that attach to the back panel and locate the timer. Once located, remove the mounting screws that hold it in place. Proceed to pull the timer out of the washer, and replace it with the new part. This replacement part is sold individually and is compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse brand washers.

This push start switch is the user-operated momentary button that completes the start circuit so the appliance begins its cycle. It replaces a worn or unresponsive start button to restore reliable start control. What it does:

• Acts as a momentary contact to send the start signal to the control
• Commonly used when the appliance does not begin a cycle after pressing the start button
• Can fail from wear, corrosion, or broken actuator, causing no response or intermittent starts
• Works with the factory wiring and mounting for direct replacement

• One push start switch

• Always disconnect power to the appliance before performing service
• Handle terminals carefully; ensure secure, corrosion-free connections
• Test the switch for continuity with a meter after installation and before restoring full use

Secures panels, brackets, and trim on appliances. Replace when missing, stripped, or damaged to restore a tight, rattle-free fit and proper alignment.

The dryer timer power resistor regulates electrical current to the timer motor in mechanical timer systems. Replace when the timer fails to advance properly, gets stuck in cycles, or the dryer runs continuously without stopping.

Control knob for washer dryer combo timer dial. Replaces cracked, broken, or missing timer knobs on the control panel for proper cycle selection.

Color: white. Measures about 2 inches in diameter.

Mounting screw secures panels, trim, or brackets in dryers, washers, and ranges. Replace lost, stripped, or corroded screws to restore stability.

PPH ab st/z/ch `6 - 18x.60

Secures wiring harness to prevent chafing and maintain safe wire routing in washers, dryers, and laundry appliances. Replace if loose or broken. Check your model for compatibility.

The buzzer switch creates an audible signal when the drying cycle is complete, located on the dryer's control panel. Replace if the buzzer doesn't sound at cycle end, sounds continuously, or makes weak/distorted tones.

Harness cable tie secures and organizes wiring inside your appliance. Replace if damaged, cracked, or no longer holding wires firmly in place.

Snap-in bushing for washer assemblies. Replaces worn, cracked, or missing bushings that provide cushioning and support in internal components.

Harness cable tie secures and organizes wiring inside your appliance. Replace if damaged, cracked, or no longer holding wires firmly in place.

This component adjusts the tension of washer suspension springs in laundry center units and is located within the suspension system. Replace when experiencing excessive vibration, unbalanced loads, or unusual movement during spin cycles.

Secures the backsheet to the cabinet, preventing panel gaps and rattling. Replace if clip is broken or panels are loose. Confirm fit with your model number.
