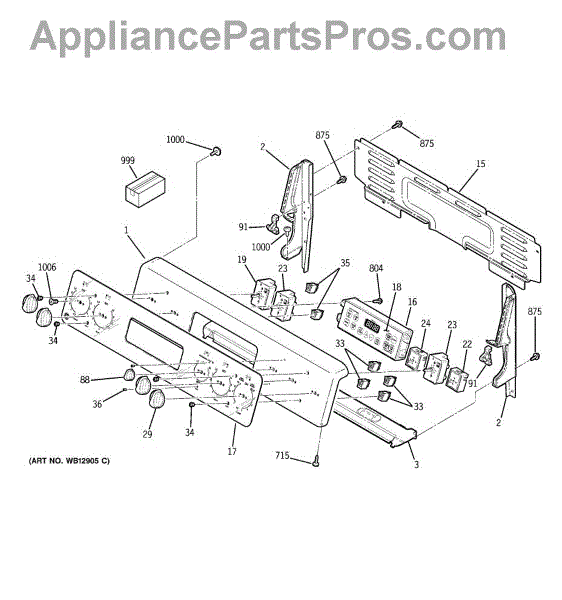

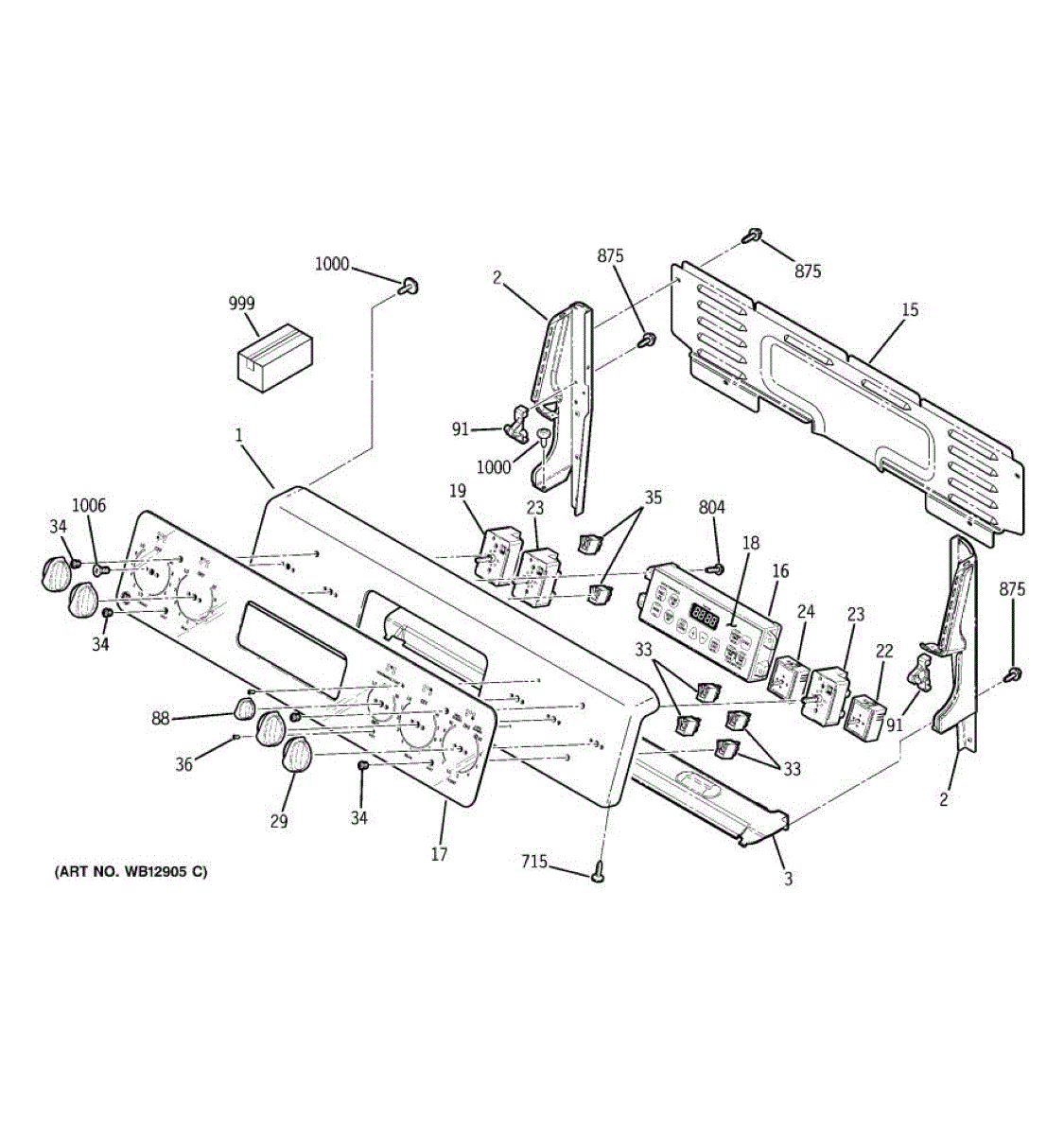

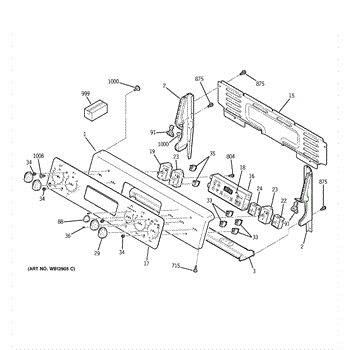

Parts for Ge JBP80SH1SS: 01 - Control Panel Parts

Color: Black. Right hand side. For left hand side use WB36T10255

Color: Black. Left hand side. For right hand use WB36T10254

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Stainless

Replacement faceplate graphics assembly restores clear, readable labels and markings on your appliance control panel so you can select settings and understand controls easily. Ideal when printed icons or text are faded, scratched, or peeling. What it does:

• Replaces worn or illegible control panel markings so button and dial functions are easier to read
• Restores the original look of the control console by replacing scratched or discolored graphics
• Keeps settings and cycle labels visible to reduce user error
• Helps maintain resale appearance by repairing cosmetic damage

• Disconnect power to the appliance before beginning any work
• Removal of the control console or front panel may be required; keep fasteners and small parts organized
• Handle the graphic surface carefully to avoid scratches or fingerprints during installation

The Infinite Control Switch is an OEM replacement part for GE electric ranges. It controls the heat output of the surface burners.

Causes of a faulty switch can include failures in the circuitry from extended and repetitive use over time. Exposure to liquid splatters or spills can also impact component wiring.

Symptoms of a bad infinite control switch include:

• Unresponsive or incorrectly functioning control buttons/dials
• Inability to turn on desired cooking elements
• Erratic temperature regulation and heating performance
• Repeated resetting or power intermittence issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Burner Switch is an OEM part for GE electric ranges. This switch controls the heat level of the surface burner, allowing for precise temperature adjustments during cooking.

Common causes of failure include electrical issues, wear from frequent use, or damage from overheating. A malfunctioning switch can prevent the burner from operating correctly, affecting your ability to cook efficiently.

Symptoms of a bad Surface Burner Switch include:

• Burner not heating or only heating intermittently
• Inability to adjust the burner’s temperature
• Burner staying on high heat regardless of setting
• Burner not turning on at all

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Control Switch is an OEM part for GE ranges. This part controls the temperature of the surface burners by regulating the power sent to the heating elements, allowing for precise heat adjustments during cooking.

Causes of a bad infinite control switch can include electrical issues such as short circuits, wear and tear from regular use, or internal mechanical failures.

Symptoms of a bad infinite control switch include:

• The burner not heating up or getting stuck on one temperature
• Inconsistent or erratic heating
• Difficulty in adjusting the burner temperature
• The burner not turning off or on properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

The Pilot Indicator Light is an OEM part for GE ranges. It indicates whether an element on the range is active and hot, providing a safety feature that alerts users to potentially dangerous heat levels.

Common causes of a bad pilot indicator light include electrical failures, wear and tear from frequent use, or physical damage to the light or its housing. A malfunctioning indicator light can lead to difficulty in determining whether the appliance is on, which could pose safety risks.

Symptoms of a bad pilot indicator light include:

• The light fails to illuminate when an element is turned on.
• The light remains on, indicating an element is hot when it is not.
• Flickering or erratic behavior of the indicator light.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

Black. 8-18 x 5/16 inch.

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Package of 12

Black. 8-18 AB HXW 3/8

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Size: 8 - 18 ab hxw 5/8 s

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
