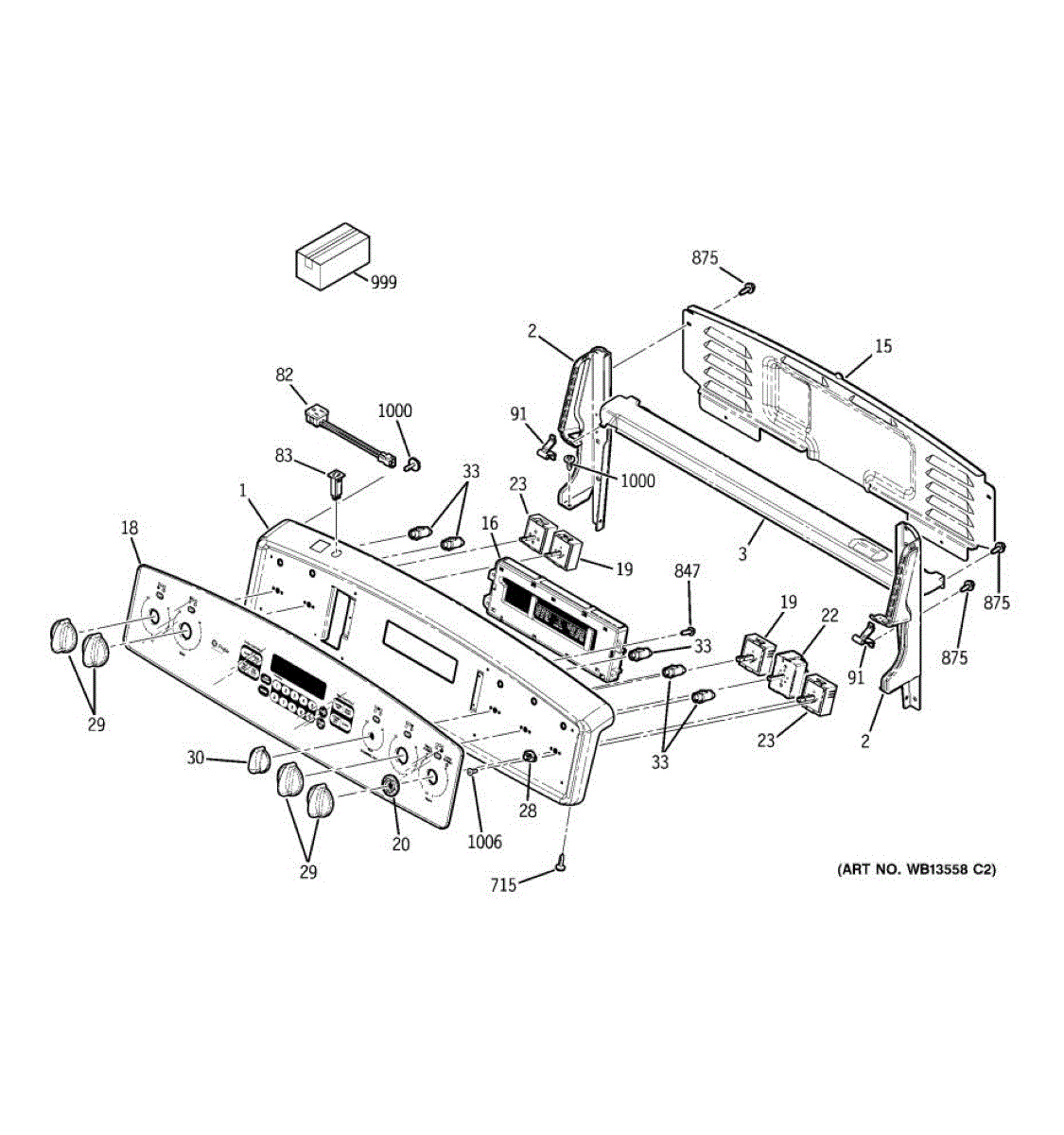

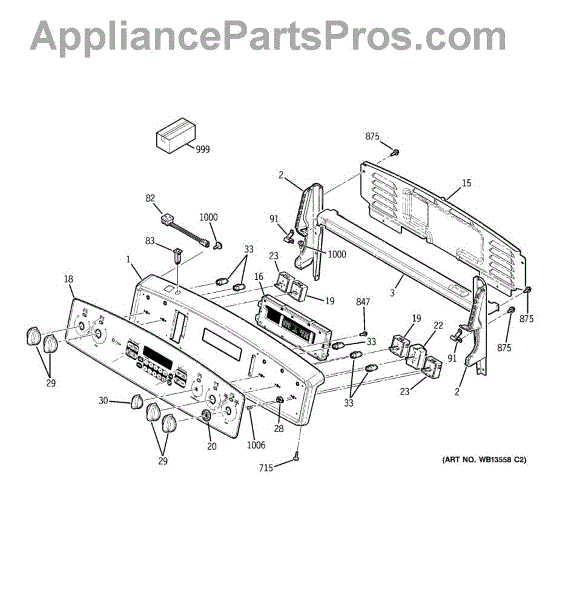

Parts for Ge JCB800WK2WW: 01 - Control Panel Parts

Color: White

White. Right hand side

White. Left hand side

This crystal retainer secures the clear lens on the appliance's control panel, keeping it properly seated and protected. Replacing a damaged or missing retainer restores a snug fit and helps prevent the lens from shifting or rattling.

• Holds the lens/crystal firmly in place to protect the window over the clock/timer or display
• Maintains proper alignment and a clean, finished appearance around the panel window
• Helps reduce vibration, rattling, or gaps around the lens area
• Failure may show as a loose or missing window, uneven fit, or buzzing from the panel

• Disconnect power at the breaker before servicing
• Access the retainer from behind the control panel; remove covers/screws as needed to reach the lens area
• Support the lens while removing/installing the retainer so it doesn't fall
• Wear gloves and eye protection; sheet-metal edges can be sharp

The Infinite Control Switch is an OEM part for GE ranges and cooktops. This switch regulates the heat levels of the burners, allowing users to adjust the cooking temperature to their desired setting. It ensures that each burner provides consistent and controllable heat for precise cooking.

Causes of a bad infinite control switch can include regular wear and tear, electrical surges, or damage from spills and splashes. Over time, these factors can lead to the switch malfunctioning, which may result in poor temperature control or complete failure of the burner.

Symptoms of a bad infinite control switch include:

• The burner not heating up or heating inconsistently
• The burner staying on high heat regardless of the setting
• Difficulty adjusting the burner temperature
• The switch feeling loose or unresponsive

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Control Switch is an OEM replacement part for GE electric stoves. This component acts as the main selector switch for a Dual Coil Element stove to function in different modes and settings.

Symptoms of a bad infinite control switch include:

• Difficulty selecting or functioning in certain cooking modes or programs
• Stove burners or ovens not igniting or heating as selected
• Controls flickering, blinking, or becoming unresponsive

Causes of a bad control switch can be normal wear from frequent use over time, loose connections from vibration, or potential spills that cause internal damage.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore electric stove models.

This crystal mount secures the small clear lens ("crystal") in the appliance's panel opening, keeping it properly seated and protecting internal components. Replace a damaged or missing mount to restore a snug, finished fit and reliable indicator visibility. What it does:

• Holds the lens firmly in place within the console or backsplash opening
• Helps shield internal controls from grease, spills, and heat around the opening
• Restores proper appearance and panel feel when the original mount is cracked or warped
• Common symptoms: loose or missing lens, rattling panel, visible gap, or a lens that won't stay clipped

• 1 crystal mount

• Disconnect power and allow the appliance to cool before servicing
• Access the panel area; remove screws/clips to release the existing lens and mount
• Transfer the lens to the new mount, align tabs, and secure with existing fasteners
• Do not overtighten; verify the lens sits flush and operates as intended

The Knob is an OEM replacement part for GE ranges. It attaches to the switch stems to safely turn individual cooking zones on and off as needed. Color: white. It measures about 2 inches in diameter.

Causes of a faulty burner knob typically stem from material fatigue over extended use. Constant rotation can microscopically crack plastic where the knob attaches to the internal switch. Accumulated dirt and grime may also degrade smooth movement.

Symptoms include:

• Loose connection to the switch impeding full activation of coils
• Worn knobs could unexpectedly adjust settings or switch elements on/off.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

White

Left hand side.

Right hand side

White

White

Black. 8-18 x 5/16 inch.

Package of 12

Black. 8-18 AB HXW 3/8

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Size: 8 - 18 ab hxw 5/8 s

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
