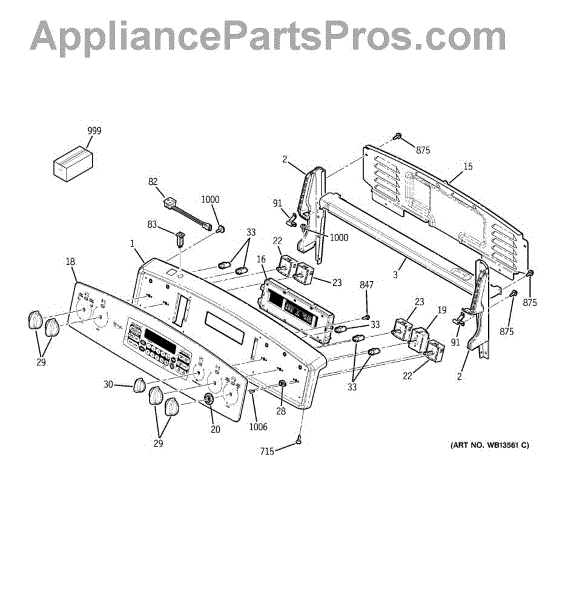

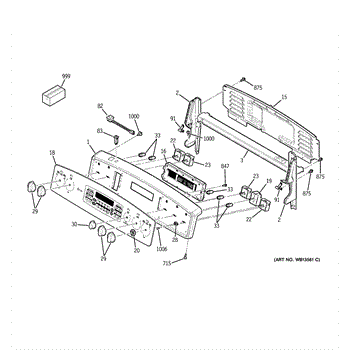

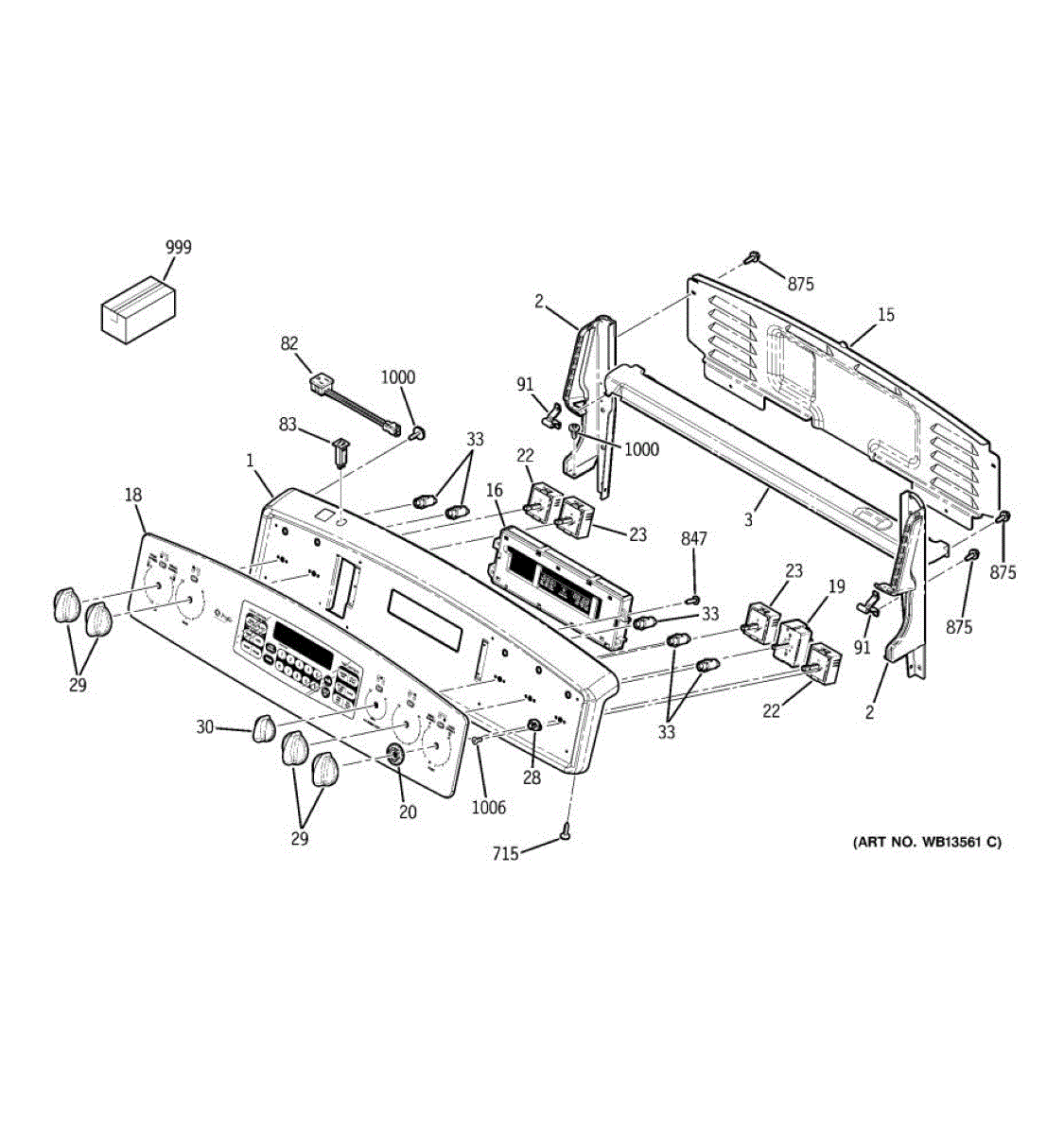

Parts for Ge JCB909SL1SS: 01 - Control Panel Parts

Black

Black right-hand side endcap for ranges. Replace this cosmetic trim piece if your existing endcap is cracked, broken, or missing to restore appearance.

Black. Left hand side

If your range display is blank, oven won't heat, or controls are unresponsive, the electronic control board may have failed. Moderate DIY repair.

Replace your range's touch pad overlay support assembly if it's cracked, broken, or missing. This structural component secures the control panel overlay.

Mounting bracket that secures the capacitor to your range frame. Replace if bent, broken, or missing to properly support and position the capacitor.

Secures the clear lens on your range's control panel. Replace if cracked, broken, or missing to keep the lens properly seated and prevent shifting or rattling.

Burner won't heat or stays on constantly? The infinite control switch regulates burner temperature. Simple DIY fix with basic tools in under 30 minutes.

Fix a burner stuck on high or not heating with this infinite control switch. Common cause when burners won't adjust temperature. DIY repair in 20 minutes.

Secures the small clear lens in your range's control panel opening. Replace if cracked, broken, or missing to restore a snug fit and proper appearance.

The Burner Knob is an OEM replacement part for GE ranges. It serves as the primary control for adjusting the heat output of individual burners.

Causes of a faulty burner knob can include wear over time, physical damage, or issues with the internal valve or wiring connections.

Symptoms of a need to replace the burner knob:

• Difficulty turning or adjusting the knob
• Knob becoming loose or detached
• Burner not responding to knob adjustments
• Inconsistent or erratic heat from the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges.

Left hand side.

Range indicator light assembly illuminates control panel settings. Replace when light fails, flickers, or dims. Confirm fit with your model number before ordering.

Black

Black

Replacement maintop hinge for your range. Secures and supports the cooktop maintop panel. Order a new hinge if yours is broken, cracked, or worn.

Black. 8-18 x 5/16 inch.

Mounting screw for securing range components and panels. Replace if stripped, rusted, missing, or broken to properly fasten parts during repairs.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

Specially formulated cleaner for ceramic glass and smooth cooktops. Removes cooked-on food, grease, and spills without scratching. Verify fit by model.

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.
