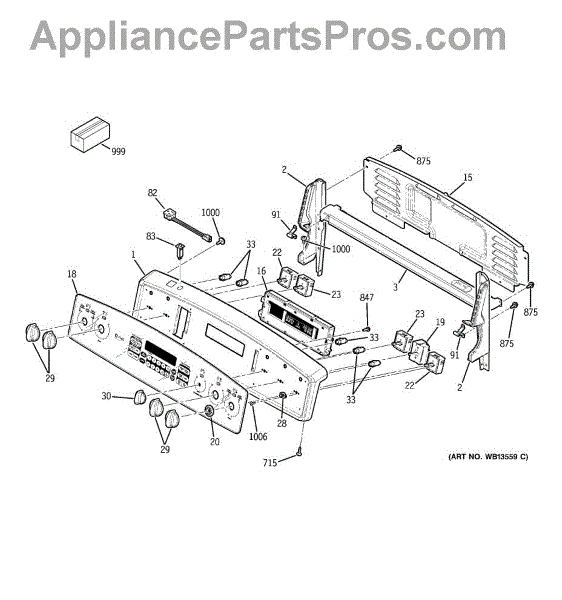

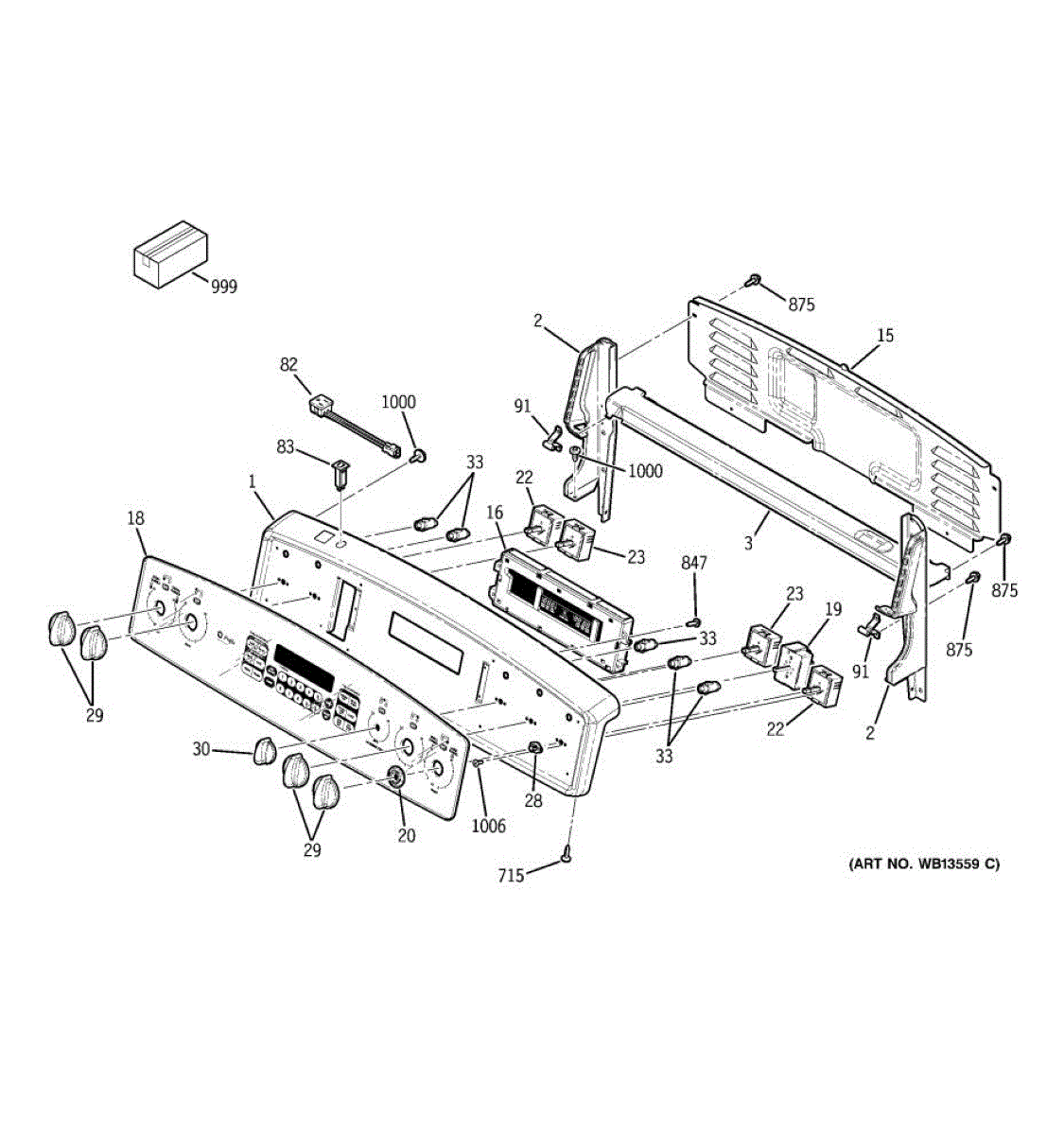

Parts for Ge JCB909WK3WW: 01 - Control Panel Parts

White

White. Right hand side

White. Left hand side

If your range display is blank, oven won't heat, or controls are unresponsive, the electronic control board may have failed. Moderate DIY repair.

Mounting bracket that secures the capacitor to your range frame. Replace if bent, broken, or missing to properly support and position the capacitor.

Secures the clear lens on your range's control panel. Replace if cracked, broken, or missing to keep the lens properly seated and prevent shifting or rattling.

Fix a burner stuck on high or not heating with this infinite control switch. Common cause when burners won't adjust temperature. DIY repair in 20 minutes.

Burner won't heat or stays on constantly? The infinite control switch regulates burner temperature. Simple DIY fix with basic tools in under 30 minutes.

Secures the small clear lens in your range's control panel opening. Replace if cracked, broken, or missing to restore a snug fit and proper appearance.

The Knob is an OEM replacement part for GE ranges. It attaches to the switch stems to safely turn individual cooking zones on and off as needed. Color: white. It measures about 2 inches in diameter.

Causes of a faulty burner knob typically stem from material fatigue over extended use. Constant rotation can microscopically crack plastic where the knob attaches to the internal switch. Accumulated dirt and grime may also degrade smooth movement.

Symptoms include:

• Loose connection to the switch impeding full activation of coils
• Worn knobs could unexpectedly adjust settings or switch elements on/off.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

White control knob for range surface burners. Replaces cracked, broken, or missing knobs that prevent proper temperature adjustment and control.

Left hand side.

Range indicator light assembly illuminates control panel settings. Replace when light fails, flickers, or dims. Confirm fit with your model number before ordering.

Fix a range that won't power on or has intermittent electrical issues with this terminal block receptacle. Connects power cord to range circuitry.

White

Replacement maintop hinge for your range. Secures and supports the cooktop maintop panel. Order a new hinge if yours is broken, cracked, or worn.

Black. 8-18 x 5/16 inch.

Mounting screw for securing range components and panels. Replace if stripped, rusted, missing, or broken to properly fasten parts during repairs.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

Specially formulated cleaner for ceramic glass and smooth cooktops. Removes cooked-on food, grease, and spills without scratching. Verify fit by model.

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.
