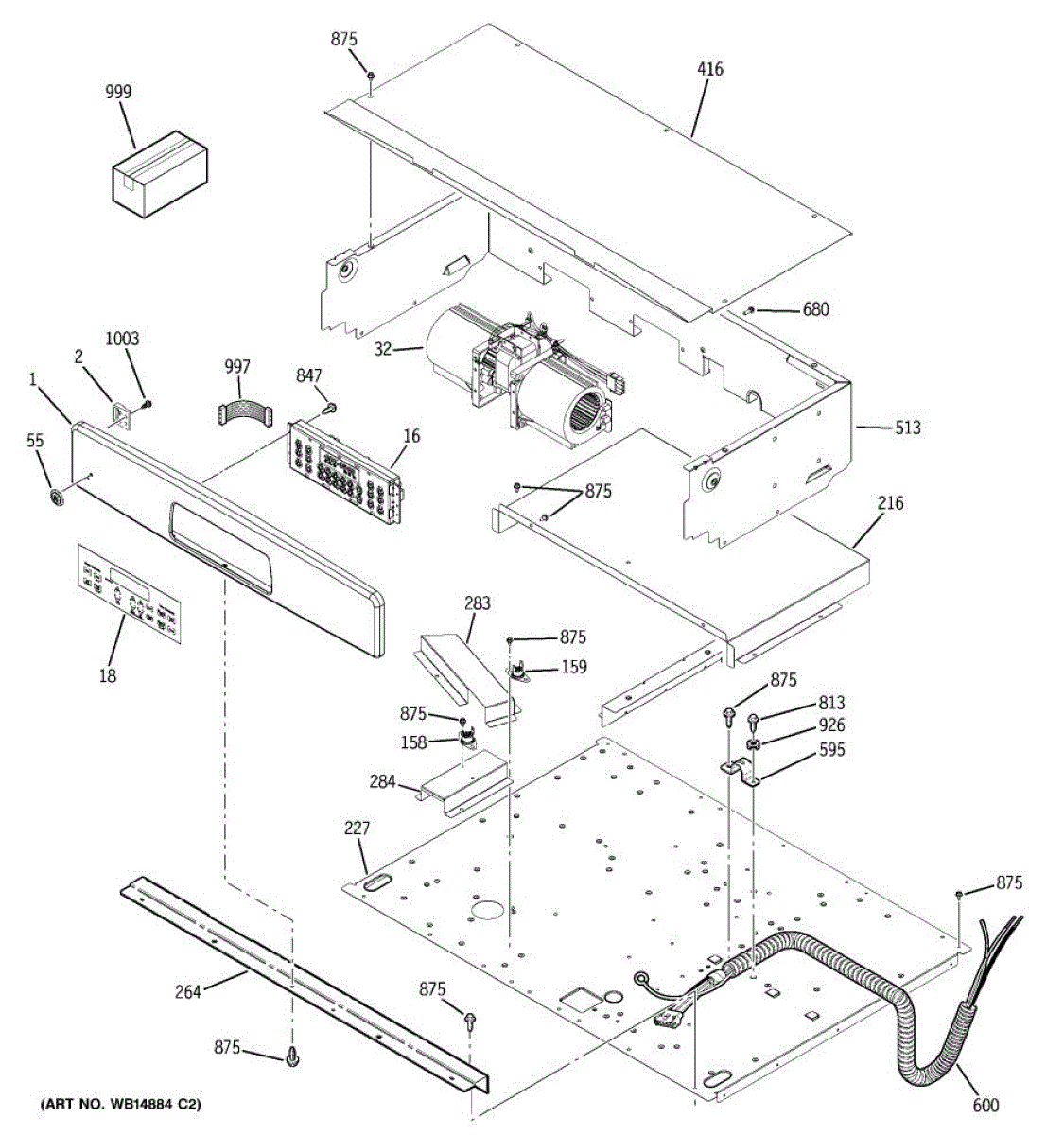

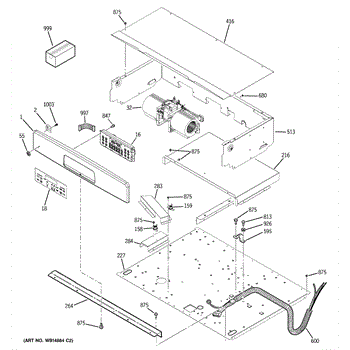

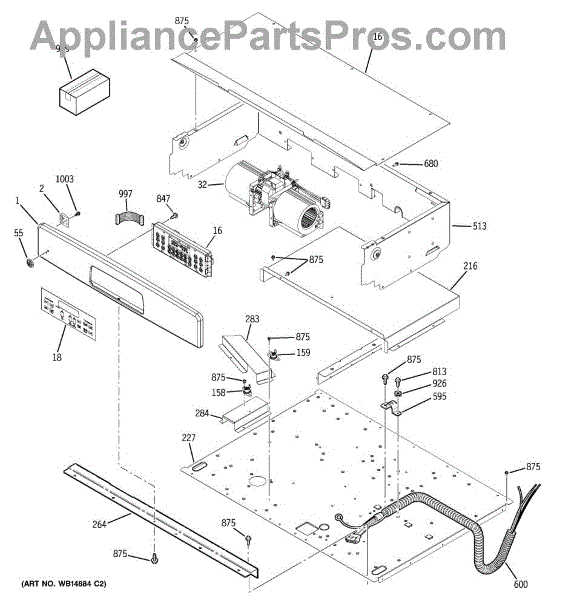

Parts for Ge JCTP70DP3WW: 01 - Control Panel Parts

Mounting bracket that secures the control console and circuit board to the oven frame. Replace if cracked, broken, or causing misalignment issues.

The Fan Kit is an OEM part for GE ovens and ranges. This part regulates the internal temperatures and preventing overheating.

Causes of a bad Fan Kit can stem from motor failure due to wear and tear, obstructions or debris blocking proper airflow, or damage to the fan blades or housing.

Symptoms of a bad Fan Kit include:

• Excessive heat buildup inside the oven cavity
• Failure of the oven to maintain consistent temperatures
• Strange noises or lack of airflow from the fan

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Decorative nameplate badge for oven and range front panels. Replaces missing, worn, or damaged emblems to restore factory appearance. Includes adhesive.

Oven overheating or won't heat properly? This thermal limit switch monitors temperature and cuts power to prevent damage. Resets automatically when cooled.

Oven won't heat or shuts off during baking? A faulty thermal fuse cuts power when detecting excessive heat. This safety device protects your range.

Secures oven insulation behind the cooktop or control panel. Replace this retainer clip if broken, missing, or no longer holding insulation in place.

Inner vent trim piece for wall ovens. Installs around the interior ventilation area to provide a finished look. Replace if cracked, discolored, or missing.

This oven exhaust duct channels hot air and cooking fumes out of the oven cavity to the range venting system, helping maintain proper oven temperature and reduce smoke or odors. Replace a damaged or corroded duct to restore correct venting. What it does:

• Directs hot air and combustion/steam fumes from the oven cavity into the vent ductwork
• Helps maintain consistent oven temperature by providing a clear exhaust path
• Can reduce smoke, burning smells, or poor broil performance when functioning properly
• Prevents loose metal or debris from obstructing the vent path

• One oven exhaust duct

• Disconnect power to the range (and gas supply if applicable) before beginning work
• Access typically requires removing the oven back panel or range back; keep fasteners for reinstallation
• Watch for sharp sheet-metal edges and wear gloves and eye protection
• Reinstall panels and secure all fasteners; test oven operation and venting after replacement

Replacement mounting screw for refrigerators. Secures brackets, panels, handles, and covers. Replace lost, stripped, or damaged screws to restore stability.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

White mounting screw for ovens and ranges. Secures interior panels, racks, and trim pieces. Replace if screw is stripped, missing, or broken.

Black. 8-18 AB HXW 3/8
