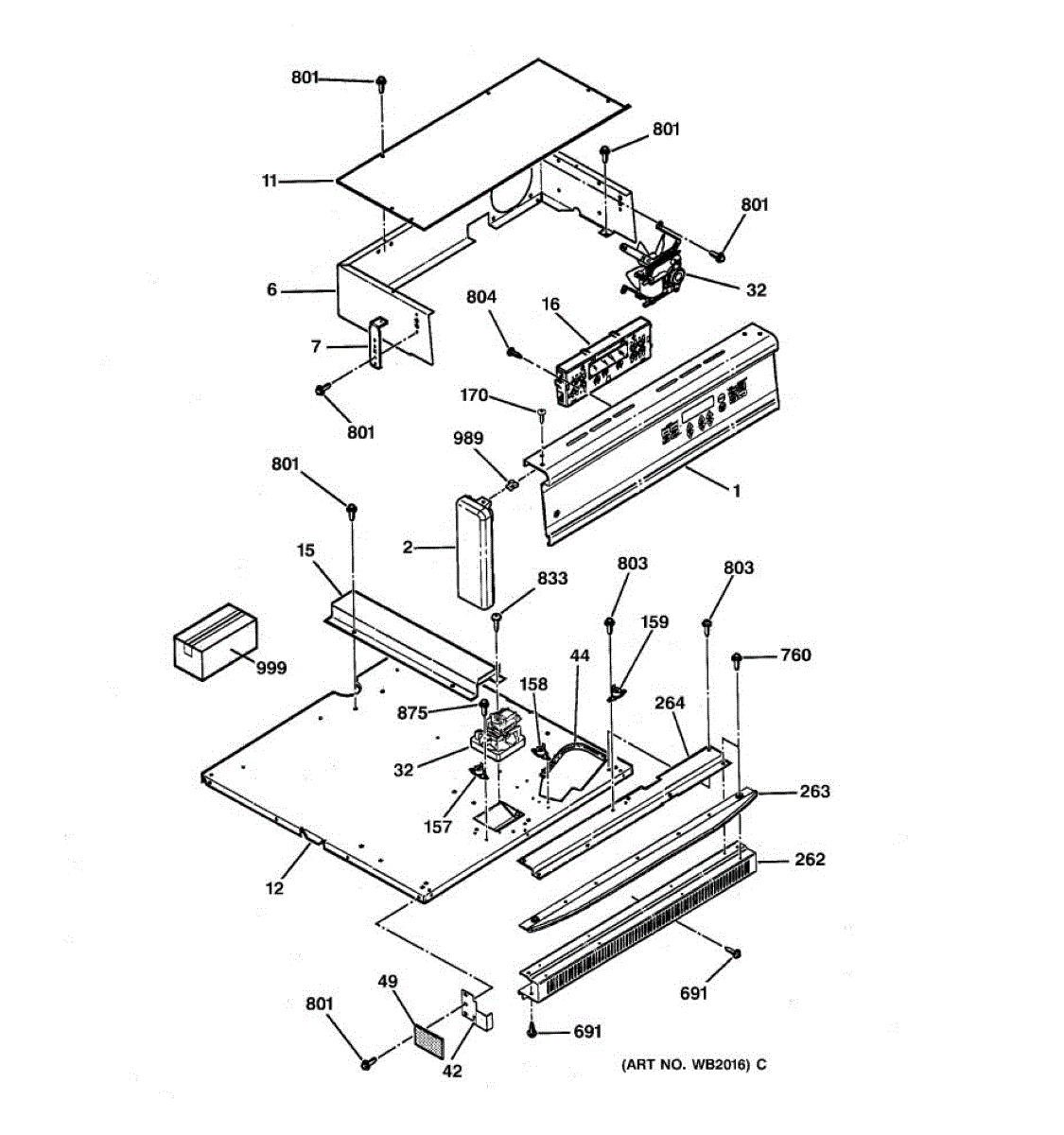

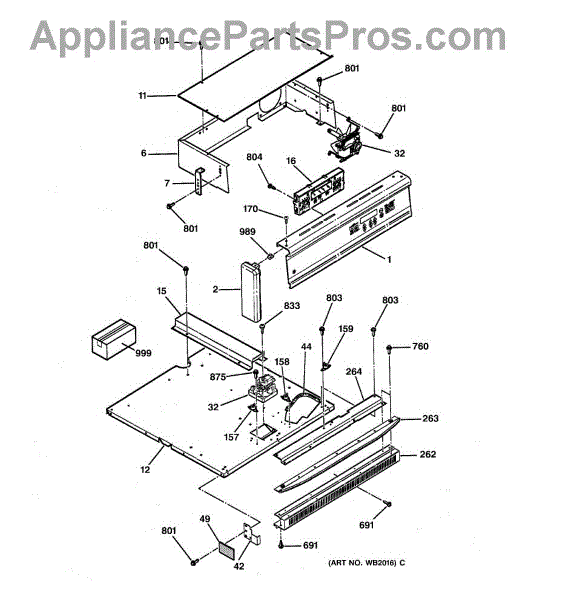

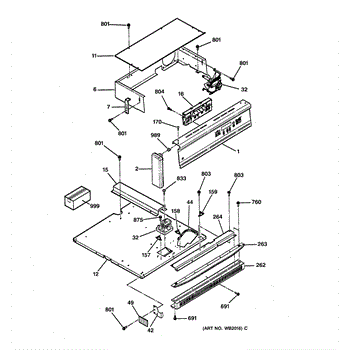

Parts for Ge JGRP17BEW1BB: 01 - Control Panel Parts

A replacement control panel bracket that secures the oven/range control console to the chassis, restoring a stable, aligned control panel for safe operation and clean appearance. Fits the OEM mounting location and restores proper panel support. What it does

• Provides a secure mounting point to hold the control/console assembly in place.
• Prevents a loose, wobbly, or sagging control panel that can cause buttons or touchpads to misalign.
• Stops rattling or vibration noise from the control area during use.
• Helps maintain correct spacing so knobs, buttons and electronic controls operate reliably.

• Disconnect power to the appliance before starting any work to avoid electrical shock.
• Basic hand tools (screwdriver, nut driver) are typically required; follow the OEM service instructions for disassembly/reassembly.
• Handle surrounding trim, glass, and control surfaces carefully to avoid damage.
• If electronic components were removed, connections before restoring power and test functions after installation.

Fix excessive fan noise or overheating with this cooling fan assembly. Common fix for loud bearings or warped blades. Takes about 5-10 minutes to replace.

Fix a noisy or non-working convection fan with this motor assembly. Restores even heating and airflow in your oven. Takes about 30 minutes to install.

This flexible rubber grommet cushions and protects wiring and components where they pass through panels or openings. It helps prevent chafing, reduces vibration contact, and keeps wiring routed cleanly for reliable appliance operation. What it does:

• Cushions wiring or hoses at panel and chassis openings to prevent abrasion
• Minimizes vibration transfer and rattling where parts pass through openings
• Helps seal small gaps against dust and moisture intrusion in local areas
• Keeps wiring and harnesses routed and centered through openings

• Disconnect power to the appliance before starting any work
• Remove the trim or panel necessary to access the grommet opening; use proper tools to avoid damage
• Inspect surrounding wiring and replace any damaged insulation before reinstalling the grommet
• Press the grommet into the panel opening so it seats fully; use a small amount of appliance-safe lubricant if needed

If your oven won't heat but the igniter glows, the thermal limit switch may have tripped. This safety cutoff prevents overheating. DIY-friendly repair.

Fixes F1 or F2 error codes and prevents overheating in ovens. This safety switch monitors temperature limits to protect components. Direct fit part.

Black I-brow trim piece that covers the door opening and control area on your oven. Replace if cracked, faded, or missing to restore a clean look.

Replace your cracked or missing range vent trim extension. This cosmetic trim piece covers the vent extension area for a finished appearance.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Replacement trim screw for securing exterior trim pieces and panels on ovens and ranges. Restores proper fit when original screw is missing or stripped.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

ST10-16 X 7/16"

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Mounting screw for range or cooktop installation. Secures components during assembly. Replace if lost, stripped, or corroded. Essential hardware piece.

Mounting screw for ranges and ovens. Secures internal components and panels. Replace if screw is stripped, missing, or no longer holds parts firmly in place.

Black. 8-18 AB HXW 3/8

Nickel

Secures and routes electrical cables inside your oven. Replace if damaged, cracked, or missing to prevent wire wear and maintain safe operation. Verify fit with your model number before ordering.

Range burner clip secures burner components in place. Replace if bent, broken, or burners wobble. Verify fit with your model number before ordering.

Wire harness that connects the control valve to the oven's electrical system. Replace if wires are frayed, connectors are damaged, or harness is broken.
