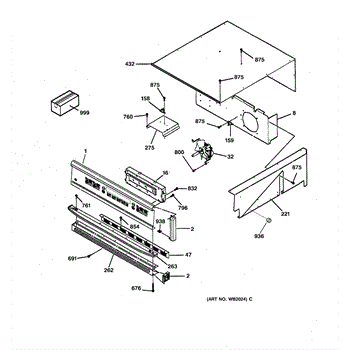

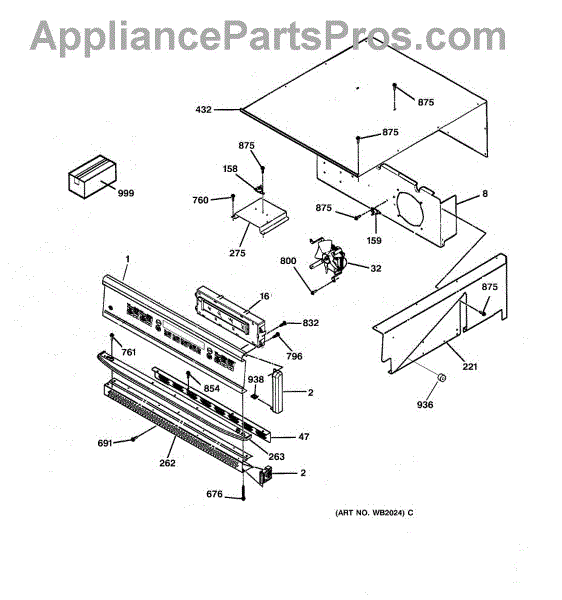

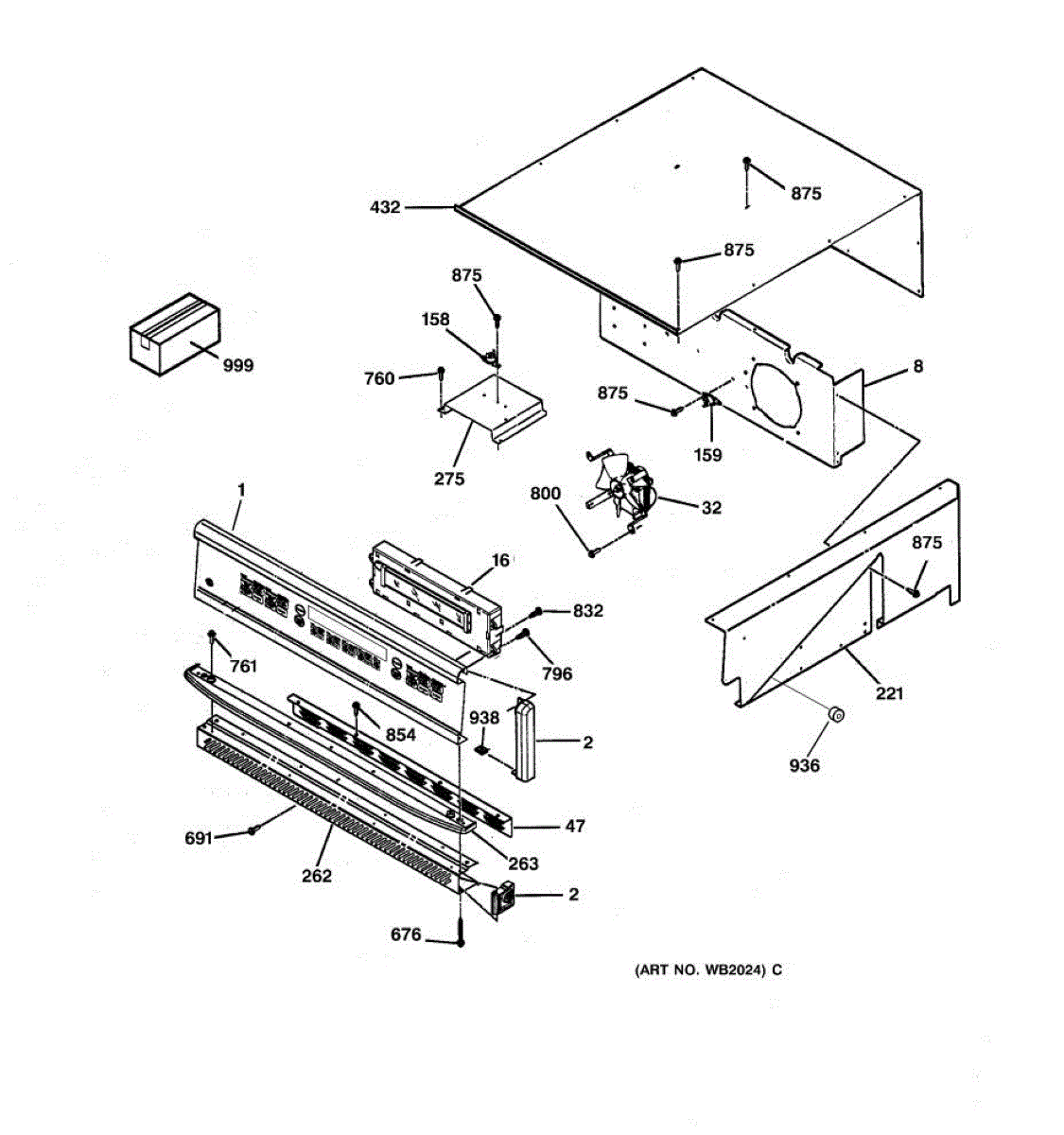

Parts for Ge JKP56AW1AA: 01 - Control Panel Parts

This lower cooling fan assembly circulates air to cool internal components and help maintain proper airflow in the appliance. Replacing a worn fan restores quieter operation and helps prevent overheating of electrical parts. What it does:

• Moves air through the appliance cabinet to aid component cooling and temperature regulation.
• Reduces hot spots around controls, electronics, and motors that can cause premature failure.
• Commonly used when you hear unusual noise from the lower area or detect reduced airflow.
• Supports overall appliance performance and reliability by maintaining designed ventilation.

• One lower cooling fan assembly as shown

• Disconnect power before attempting any service to avoid electric shock.
• Inspect surrounding mounts and ducts for damage; replace any broken clips or supports.
• Use basic hand tools; confirm correct orientation and secure mounting before restoring power.

This limit switch is a snap-action safety/position switch used in many cooking appliances. It opens or closes an electrical circuit when a mechanism reaches its limit, enabling safe operation and helping protect components when conditions aren't met.

• Provides snap-action switching to confirm a mechanical limit or interlock within the appliance
• Changes state to allow or interrupt power when the limit is reached
• Common failure symptoms: self-clean won't start or complete, oven won't heat/start, or door lock-related error codes
• May fail a continuity test or lose its distinct "click" when actuated

• Disconnect power before service; allow appliance to cool completely
• Access and mounting vary by model—take photos and transfer wires one at a time
• Mount in the same orientation; ensure the actuator/lever aligns with the mechanism and is not bent
• After installation, verify switch operation with a continuity test while actuating the mechanism

This limit switch is a safety control for compatible cooking appliances. It opens or closes an electrical circuit when a preset limit is reached—commonly temperature or travel—helping protect components and ensure proper operation of heating and latch systems.

• Monitors a specific limit at its mounting point (temperature or mechanism travel, depending on model)
• Opens/closes the circuit to interrupt or allow power to related components
• A failed switch can prevent heating, stop self-clean from starting, or keep the door from locking/unlocking
• Helps protect wiring and controls from damage during abnormal conditions

• Disconnect power to the appliance and allow all components to cool before servicing
• Access location varies by model; take photos and label wires before removal
• Transfer wires one at a time to the new switch; secure with existing hardware
• If the old switch tripped due to overheating or binding, inspect fans, vents, and latch/linkages to correct the root cause

The Oven Sensor Assembly is an OEM part for GE ovens. This part monitors the oven's internal temperature, ensuring it matches the set temperature on the oven's controls. By accurately measuring the heat inside the oven, the sensor assembly communicates with the oven's control system to adjust the temperature accordingly.

Over time, the oven sensor can become faulty due to wear or damage, leading to inaccurate temperature readings. This can manifest as unevenly cooked food, longer cooking times, or an oven that fails to reach the desired temperature setting.

Symptoms of a bad Oven Sensor Assembly include:

• The oven temperature is inconsistent with the setting
• Food is not cooking evenly or as expected
• The oven fails to heat to the set temperature
• Error codes appearing on the oven display related to temperature regulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a replacement mounting screw used to secure panels and components in compatible GE appliances. It provides a straightforward fastener solution when a factory screw is missing or damaged. What it does:

• Secures interior or exterior panels, brackets, and trim pieces
• Restores proper alignment and prevents rattling or movement
• Replaces stripped or lost screws to maintain safe appliance operation
• Works as the OEM-specified fastener when matched to the correct location

• One replacement mounting screw as shown

• Use the correct screwdriver bit and apply moderate torque to avoid stripping the head
• If thread engagement feels incorrect, stop and verify screw size before forcing
• Disconnect power or fuel sources and follow appliance safety procedures before servicing
• If multiple screw types are missing, compare heads and threads to originals to ensure a correct match

This is a small replacement screw used to secure appliance panels and components, restoring proper fit and preventing loose parts. It's a direct-fit fastener commonly used in various GE appliance assemblies. What it does

• Secures trim, panels, brackets or control components to prevent movement and rattling.
• Replaces missing, stripped, or corroded screws that can allow gaps or vibration.
• Helps restore proper alignment of parts that can cause noise or loose-feeling doors/panels.

• Use the matching screw hole and thread; do not force or cross-thread the screw.
• Hand-start the screw, then tighten with the correct screwdriver to a snug fit—avoid over-tightening.
• Disconnect power before working near electrical components; follow appliance safety procedures.

ST10-16 X 7/16"

Nickel

Black. 8-18 AB HXW 3/8

Nickel
