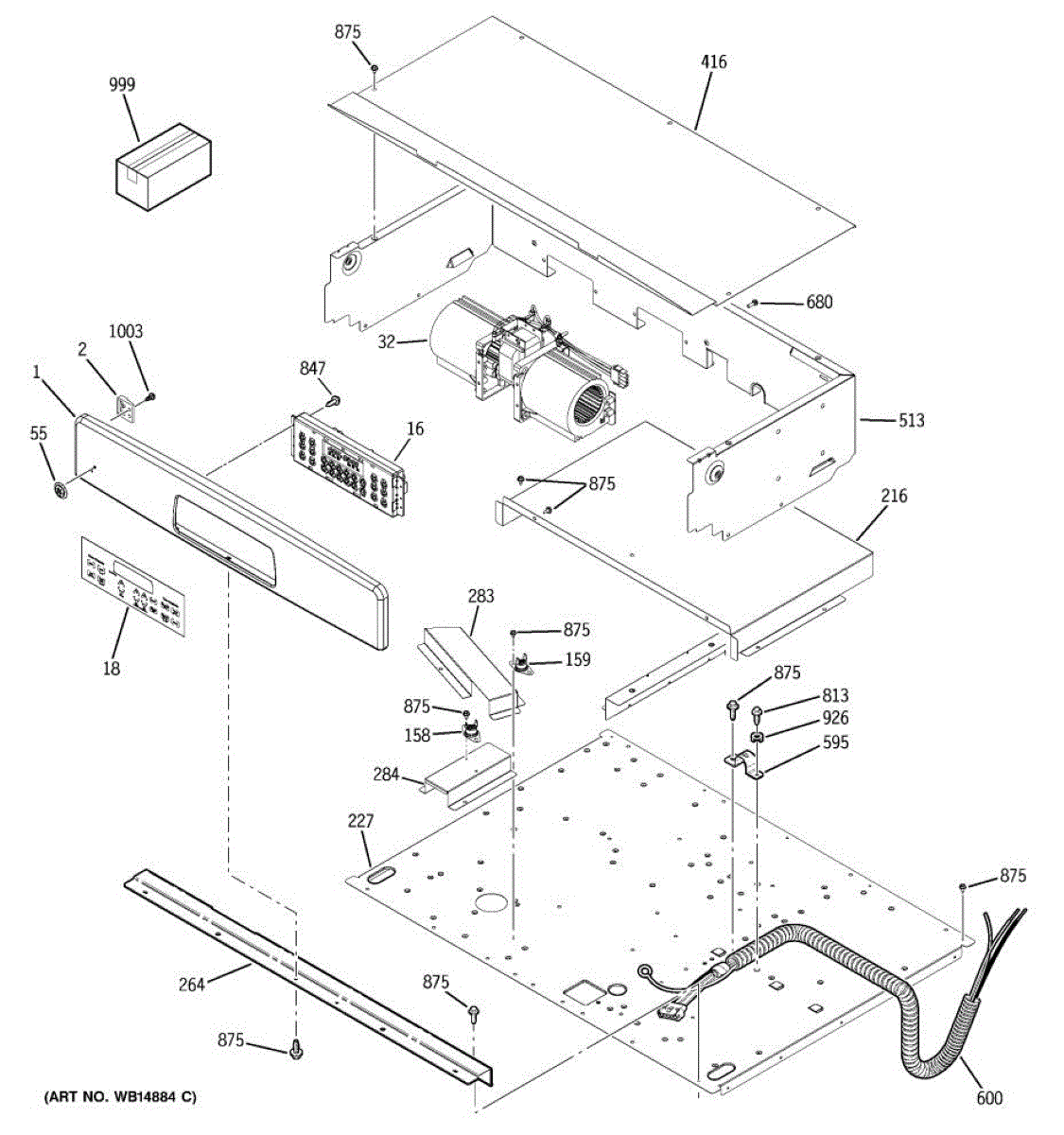

Parts for Ge JTP70DP2WW: 01 - Control Panel Parts

Control support trim provides a stable mounting point for the oven or range control console and circuit board, restoring proper alignment and helping prevent the control module from shifting or rattling during use. What it does:

• Secures the control console and associated circuit board to the appliance frame to maintain correct alignment.
• Reduces or eliminates loose, rattling, or misaligned control panels that can affect button/knob operation.
• Helps protect the control module from movement-related stress during normal use or door operation.
• Used when the original support is cracked, bent or missing and when replacing a damaged console assembly.

• Always disconnect power to the appliance before beginning any service.
• Access typically requires removing the control/console assembly; retain original screws and mounting hardware if reusable.
• Handle the control board and ribbon cables carefully to avoid damage; avoid touching electronic contacts.
• Test console alignment and operation before fully reassembling trim and tightening fasteners.

This replacement part is a control board that has been manufactured by General Electric and is compatible with ranges. The control board needs to be in good working order for the range to monitor and control the heat and temperature settings. This part can deteriorate over time, which may prevent the appliance from heating up properly, if at all. Unplug the range from power to prevent serious injuries associated with electrocution or burns. It's recommended that work gloves are worn for safety purposes. The range should be allowed to cool down before the control board is replaced. This is a genuine OEM part that has been sourced directly from the manufacturer. It is compatible with ranges manufactured by General Electric, Hotpoint, RCA, and other brands. This part is only sold individually.

The Fan Kit is an OEM part for GE ovens and ranges. This part regulates the internal temperatures and preventing overheating.

Causes of a bad Fan Kit can stem from motor failure due to wear and tear, obstructions or debris blocking proper airflow, or damage to the fan blades or housing.

Symptoms of a bad Fan Kit include:

• Excessive heat buildup inside the oven cavity
• Failure of the oven to maintain consistent temperatures
• Strange noises or lack of airflow from the fan

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This logo badge is the decorative nameplate used on select cooking appliances. Replacing a missing or worn emblem restores the finished factory look and keeps the front of your appliance looking complete and consistent with the original design.

• Cosmetic component that displays the appliance logo and completes the front panel or door
• Replaces a badge that is missing, cracked, peeling, or discolored
• Helps refresh the appliance's appearance without affecting operation
• Common signs: badge fell off, won't adhere, looks faded or damaged

• Disconnect power before working near control panels or doors
• Note the badge's original location and orientation before removal
• Use a non-marring tool to gently lift the old emblem if present; avoid scratching finishes
• Clean and dry the surface thoroughly before pressing the new badge into place

This bimetal limit switch monitors a radiant surface element's temperature and opens the circuit if it overheats, helping your cooktop maintain safe, consistent heating while protecting wiring and controls from damage. What it does:

• Senses surface element temperature via a bimetal sensor
• Opens/closes the circuit to limit element temperature and prevent overheating
• Helps the burner cycle properly for more consistent heat
• Common symptoms: no heat, low heat/cycles off too soon, overheating, or erratic cycling

• One bimetal limit switch

• Disconnect power at the breaker before servicing
• Access the element, note wire positions, and transfer leads to the new switch one at a time
• Mount firmly to the element/bracket so the sensor has correct contact
• Do not bend or adjust the sensor; replace if damaged

The Thermal Fuse is an OEM part for GE ranges. This component is a safety device to protect the range from overheating. It is located in the electrical circuit and acts as a fail-safe to cut off the power supply to the range if it detects excessive heat.

Causes of a faulty thermal fuse can include power surges, overheating due to prolonged use, or other electrical issues. When the fuse blows, it interrupts the electrical flow, preventing potential damage to the range's sensitive components and ensuring user safety.

Symptoms of a bad fuse may include:

• The range not turning on or functioning at all.
• The oven not heating up or not reaching the desired temperature.
• The range displaying error codes related to temperature issues.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This top insulation retainer secures oven/range insulation in place behind the cooktop or control panel so insulation stays put and helps maintain safe, even operation. It's a small but important fastener for proper internal fit. What it does:

• Holds top insulation or thermal blanket securely to the appliance chassis
• Prevents insulation from shifting, sagging, or contacting hot components
• Helps reduce heat transfer and maintains proper airflow around elements
• Commonly replaced when clips are broken, missing, or insulation is loose

• Basic hand tools may be required; inspect surrounding insulation and panels for damage before reassembly
• Replace only with the correct retainer to ensure proper fit and securement
• Disconnect power or gas and allow appliance to cool before accessing internal components

This vent tube assembly routes exhaust air and helps direct airflow away from the appliance to maintain proper ventilation and operation. It replaces a damaged, cracked, or disconnected tube to restore correct air discharge. What it does:

• Channels exhaust airflow from the appliance to the external vent path
• Prevents air leaks that can reduce venting efficiency or cause mild odors
• Replaces tubes that are cracked, split, corroded, or otherwise damaged
• Helps maintain consistent airflow for proper appliance performance

• One vent tube assembly as shown

• Disconnect power (and gas if applicable) and unplug the appliance before beginning work
• Use appropriate tools and fasteners; do not overtighten clamps to avoid crushing the tube

This replacement screw is used in refrigerators to fasten specific components. Replace a lost or damaged fastener to restore a secure, factory hold so brackets, panels, or covers stay properly mounted and rattle-free.

• Secures the designated component per your model's parts diagram
• Replaces missing, stripped, or corroded hardware
• Helps eliminate looseness, vibration, or rattling from unsecured parts
• Supports proper alignment and fit after service

• Disconnect power to the refrigerator before servicing
• Match this screw to the original location using your model's parts diagram
• Hand-start threads to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver for the screw head style

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

Black. 8-18 AB HXW 3/8
