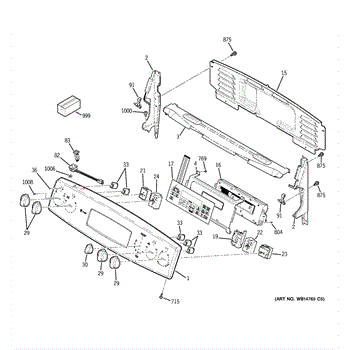

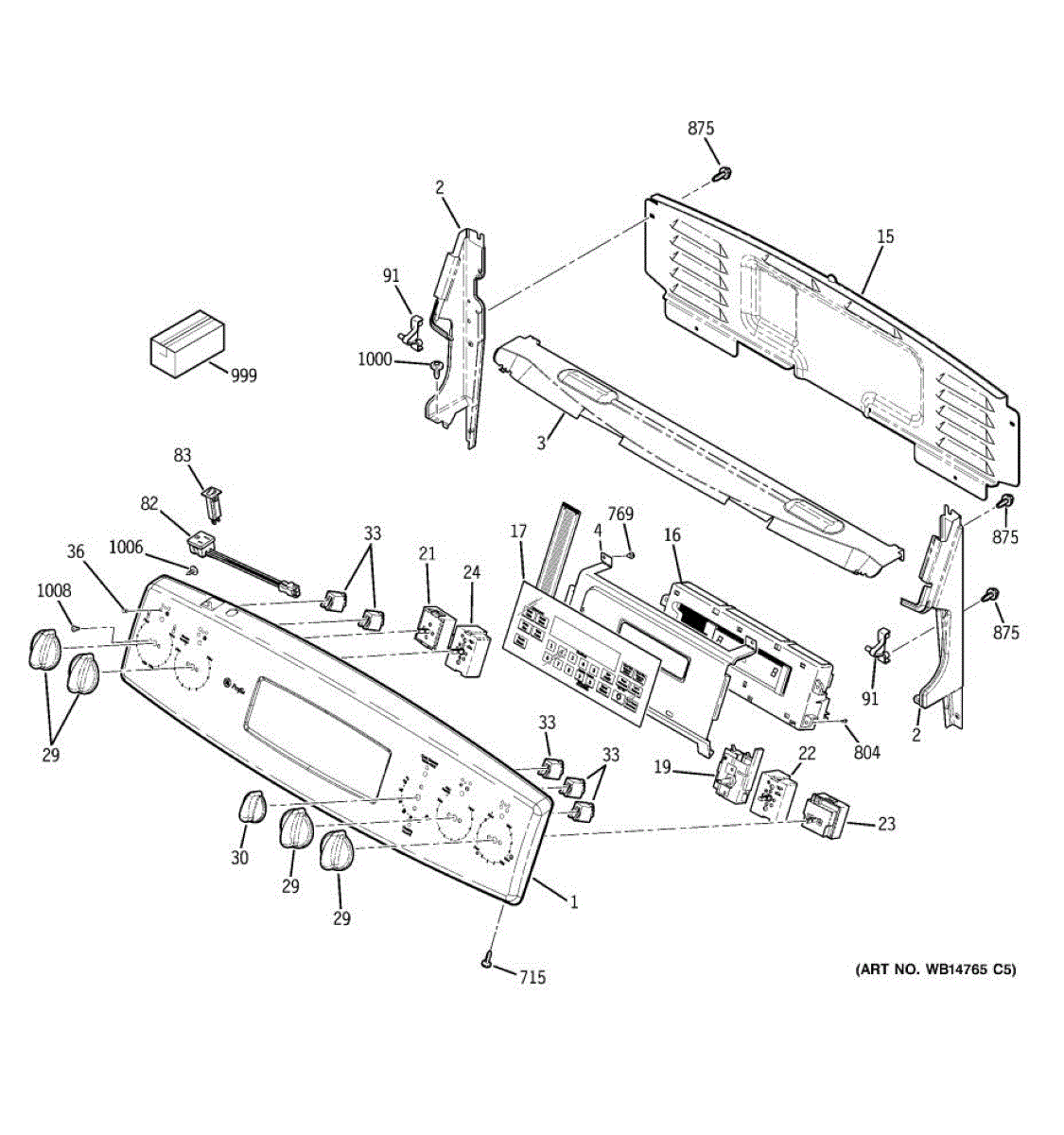

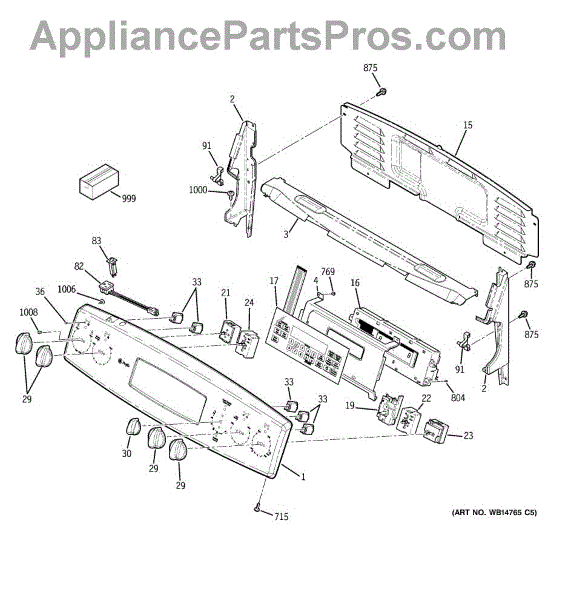

Parts for Ge PCB909SP1SS: 01 - Control Panel Parts

Black endcap for electric range. Covers and finishes the edge of the cooktop surface. Replace if cracked, broken, discolored, or missing for a clean look.

Endcap for electric ranges. Covers and protects the end of the control panel or handle assembly. Replace if cracked, broken, or missing for a finished look.

Replace your range's touch pad control panel if the membrane is cracked, worn, or unresponsive. This keypad assembly installs on the control area.

Burner stays on high or won't turn off completely? This infinite control switch regulates surface burner heat. Simple 10-minute DIY fix with video guide.

Fixes burner stuck on, no low heat, or burner not heating. Controls temperature levels on electric range surface burners. Moderate DIY repair.

Burner won't turn off or stays on when set to off? This surface burner infinite switch controls heat levels. Takes 10-15 minutes to replace.

Fixes burner stuck on high, won't heat, or uneven heating. This infinite switch regulates surface element power for precise temperature control.

Burner won't turn off or stays on high? This range surface element switch controls heat output. Easy DIY repair—most install in 5-10 minutes.

Control knob for range burners. Mounts on the control panel to adjust heat settings. Replace if cracked, melted, broken, or missing original knob.

Replace your range indicator light assembly when it fails to illuminate or stays dim. Ensures clear visibility of control settings. Verify fit with your model.

Indicator light lens covers and diffuses the panel light on your range or oven. Replace when cracked, discolored, or missing to restore visibility.

Black

Black

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

Black mounting screw for dishwashers and ranges. Replaces lost, stripped, or damaged screws during appliance repair or panel reinstallation. 8-18 x 5/16 inch.

Hex head screws for securing panels and components in ranges and ovens. Replace missing, stripped, or corroded fasteners during repairs or reassembly.

6-20 x 3/8 inch nickel screw secures trim panels, brackets, and small components in dishwashers and ovens. Replace missing or stripped screws.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Specially formulated cleaner for ceramic glass and smooth cooktops. Removes cooked-on food, grease, and spills without scratching. Verify fit by model.

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.

Silicon controlled rectifier for cooktop power control. Includes 8-32 mounting screw. Replace if damaged, corroded, or missing to restore proper installation.

Replacement mounting screw for electric ranges and wall ovens. Secures components and panels. Order a new screw if yours is stripped, missing, or damaged.
