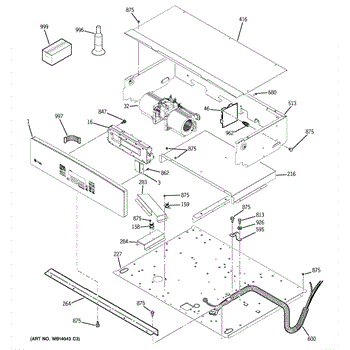

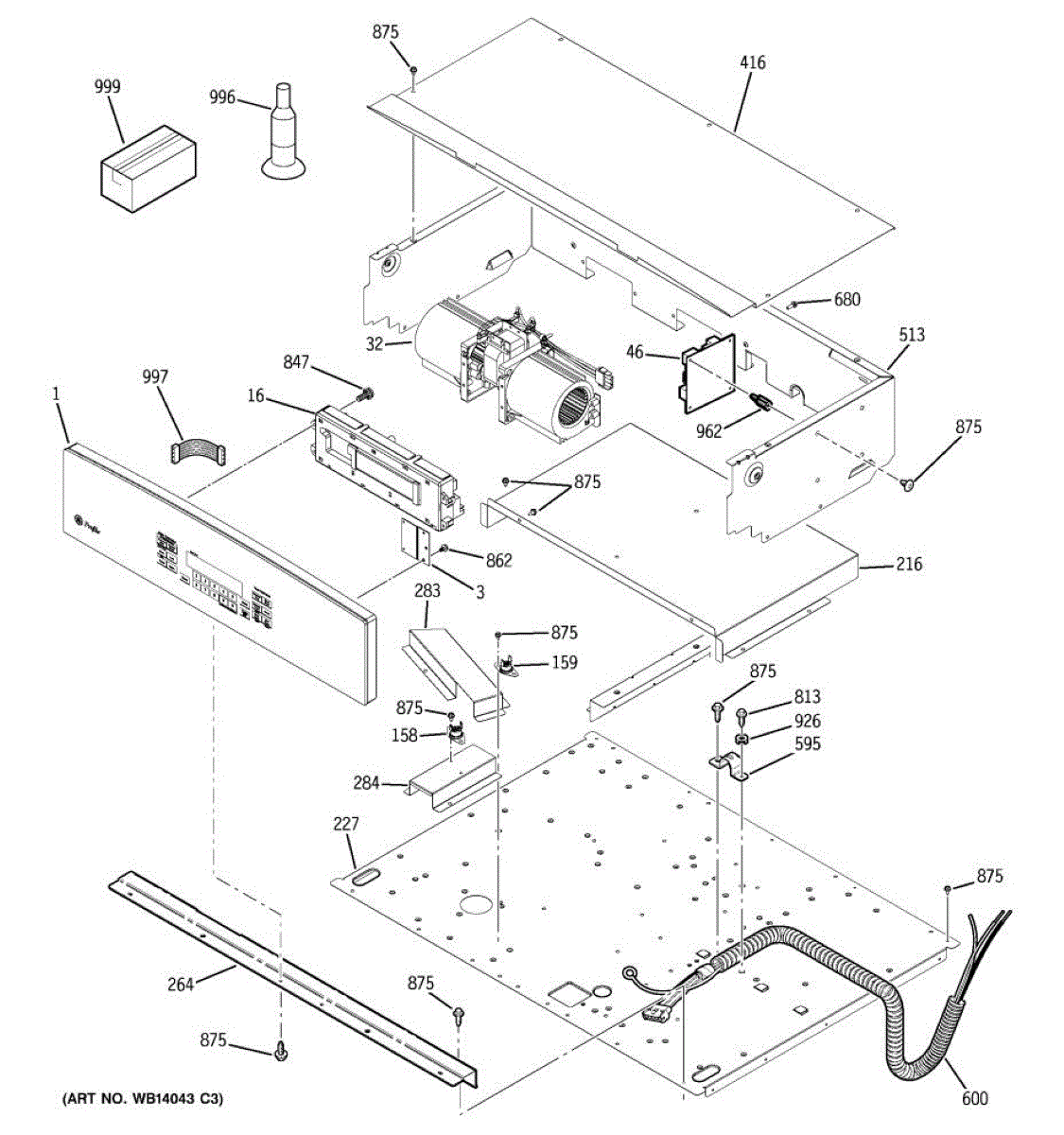

Parts for Ge PT956DR2CC: 01 - Control Panel Parts

 The Control Board is an OEM part for GE ranges. As the central control unit, the range control board is responsible for monitoring and regulating all electrical functions of the oven such as the bake and broil elements, temperature sensors, timers and displays.

Causes of a bad control board can include corrosion, loose or damaged connections, or failure of electronic components over time due to heat exposure and regular use.

Symptoms of a bad control board include:

• Intermittent or unreliable oven functions
• Display or control panel not working properly
• Oven unable to reach or maintain set temperatures
• Failure to turn on bake or broil elements

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fix oven shutting off at high temps or frozen control panel. This cooling fan motor prevents overheating electronics. DIY repair takes 15-30 minutes.

Fix a blank display, unresponsive buttons, or oven not heating with this electronic control board. Controls bake/broil cycles and timing functions.

Oven won't heat or shuts off during baking? A faulty thermal fuse cuts power when detecting excessive heat. This safety device protects your range.

Oven won't heat or shuts off during baking? This thermal cutoff switch prevents overheating. Common fix for temperature-related failures in wall ovens.

Secures oven insulation behind the cooktop or control panel. Replace this retainer clip if broken, missing, or no longer holding insulation in place.

Inner vent trim piece for wall ovens. Installs around the interior ventilation area to provide a finished look. Replace if cracked, discolored, or missing.

This oven exhaust duct channels hot air and cooking fumes out of the oven cavity to the range venting system, helping maintain proper oven temperature and reduce smoke or odors. Replace a damaged or corroded duct to restore correct venting. What it does:

• Directs hot air and combustion/steam fumes from the oven cavity into the vent ductwork
• Helps maintain consistent oven temperature by providing a clear exhaust path
• Can reduce smoke, burning smells, or poor broil performance when functioning properly
• Prevents loose metal or debris from obstructing the vent path

• One oven exhaust duct

• Disconnect power to the range (and gas supply if applicable) before beginning work
• Access typically requires removing the oven back panel or range back; keep fasteners for reinstallation
• Watch for sharp sheet-metal edges and wear gloves and eye protection
• Reinstall panels and secure all fasteners; test oven operation and venting after replacement

Wire harness assembly for wall ovens. Connects electrical components inside the oven cavity. Replace if wires are frayed, damaged, or connections are loose.

Replacement mounting screw for refrigerators. Secures brackets, panels, handles, and covers. Replace lost, stripped, or damaged screws to restore stability.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

6-20 x 3/8 inch nickel screw secures trim panels, brackets, and small components in dishwashers and ovens. Replace missing or stripped screws.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Range ground washer ensures proper electrical grounding. Prevents shock hazards and ensures safe operation. Quick 5-minute repair for most models.

Circuit board standoff for ovens. Mounts between the control board and housing to provide proper spacing. Replace if broken, cracked, or missing.

Lubricant cleaner for range and oven control shafts, burner valves, and rack paddles. Dissolves residue and restores smooth operation when parts feel stiff.

Wire harness connecting the logic board to the display panel in wall ovens. Replace if wires are frayed, connectors are damaged, or harness is broken.

Flat multi-conductor ribbon connector links control assemblies to the main wiring harness. Replace when connector is broken, corroded, or missing.
