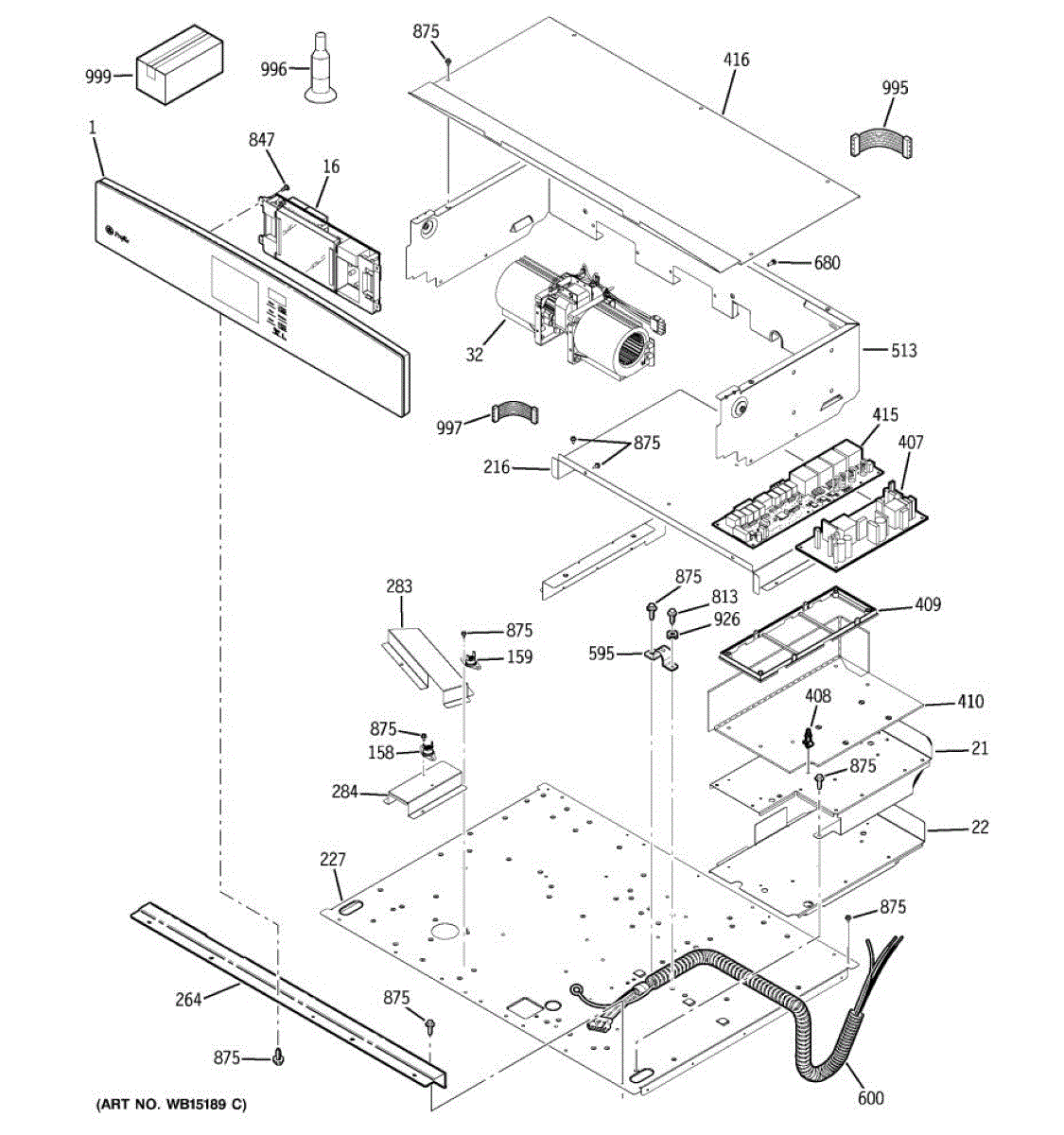

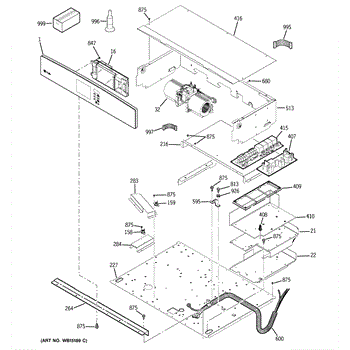

Parts for Ge PT960DR2BB: 01 - Control Panel Parts

This board support bracket secures and positions the appliance control/PC board to prevent movement and protect electrical connections for reliable operation. It keeps the control board stable to reduce vibration-related faults and wear. What it does:

• Physically mounts and stabilizes the control/PC board inside the appliance
• Prevents board movement that can cause loose connectors, intermittent operation, or noise
• Helps protect wiring and components from vibration or impact
• Keeps the control board correctly aligned for reliable connector engagement

• Disconnect power before accessing electrical components to avoid shock or damage.
• Handle the control board and connectors carefully; use ESD precautions if available.
• Secure bracket with the original screws or OEM replacements; do not overtighten.

Fix oven shutting off at high temps or frozen control panel. This cooling fan motor prevents overheating electronics. DIY repair takes 15-30 minutes.

If your oven shows an F9 error code or shuts off at high temperatures, this thermal limit switch may have failed. Simple 15-minute DIY repair.

Oven won't heat or shuts off during baking? A faulty thermal fuse cuts power when detecting excessive heat. This safety device protects your range.

Secures oven insulation behind the cooktop or control panel. Replace this retainer clip if broken, missing, or no longer holding insulation in place.

Inner vent trim piece for wall ovens. Installs around the interior ventilation area to provide a finished look. Replace if cracked, discolored, or missing.

This oven exhaust duct channels hot air and cooking fumes out of the oven cavity to the range venting system, helping maintain proper oven temperature and reduce smoke or odors. Replace a damaged or corroded duct to restore correct venting. What it does:

• Directs hot air and combustion/steam fumes from the oven cavity into the vent ductwork
• Helps maintain consistent oven temperature by providing a clear exhaust path
• Can reduce smoke, burning smells, or poor broil performance when functioning properly
• Prevents loose metal or debris from obstructing the vent path

• One oven exhaust duct

• Disconnect power to the range (and gas supply if applicable) before beginning work
• Access typically requires removing the oven back panel or range back; keep fasteners for reinstallation
• Watch for sharp sheet-metal edges and wear gloves and eye protection
• Reinstall panels and secure all fasteners; test oven operation and venting after replacement

Standoff bumper for ranges, ovens, and cooktops. Installs to provide spacing and support between components. Replace if cracked, broken, or missing.

If your oven won't heat or elements fail to energize, this relay board switches power to heating circuits. Restores proper heating operation.

Wire harness assembly for wall ovens. Connects electrical components inside the oven cavity. Replace if wires are frayed, damaged, or connections are loose.

Replacement mounting screw for refrigerators. Secures brackets, panels, handles, and covers. Replace lost, stripped, or damaged screws to restore stability.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Range ground washer ensures proper electrical grounding. Prevents shock hazards and ensures safe operation. Quick 5-minute repair for most models.

Lubricant cleaner for range and oven control shafts, burner valves, and rack paddles. Dissolves residue and restores smooth operation when parts feel stiff.
