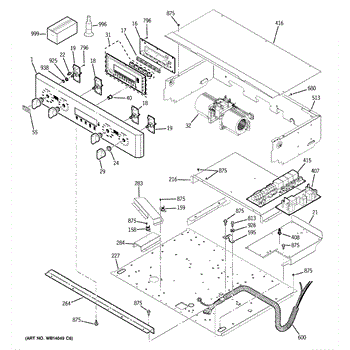

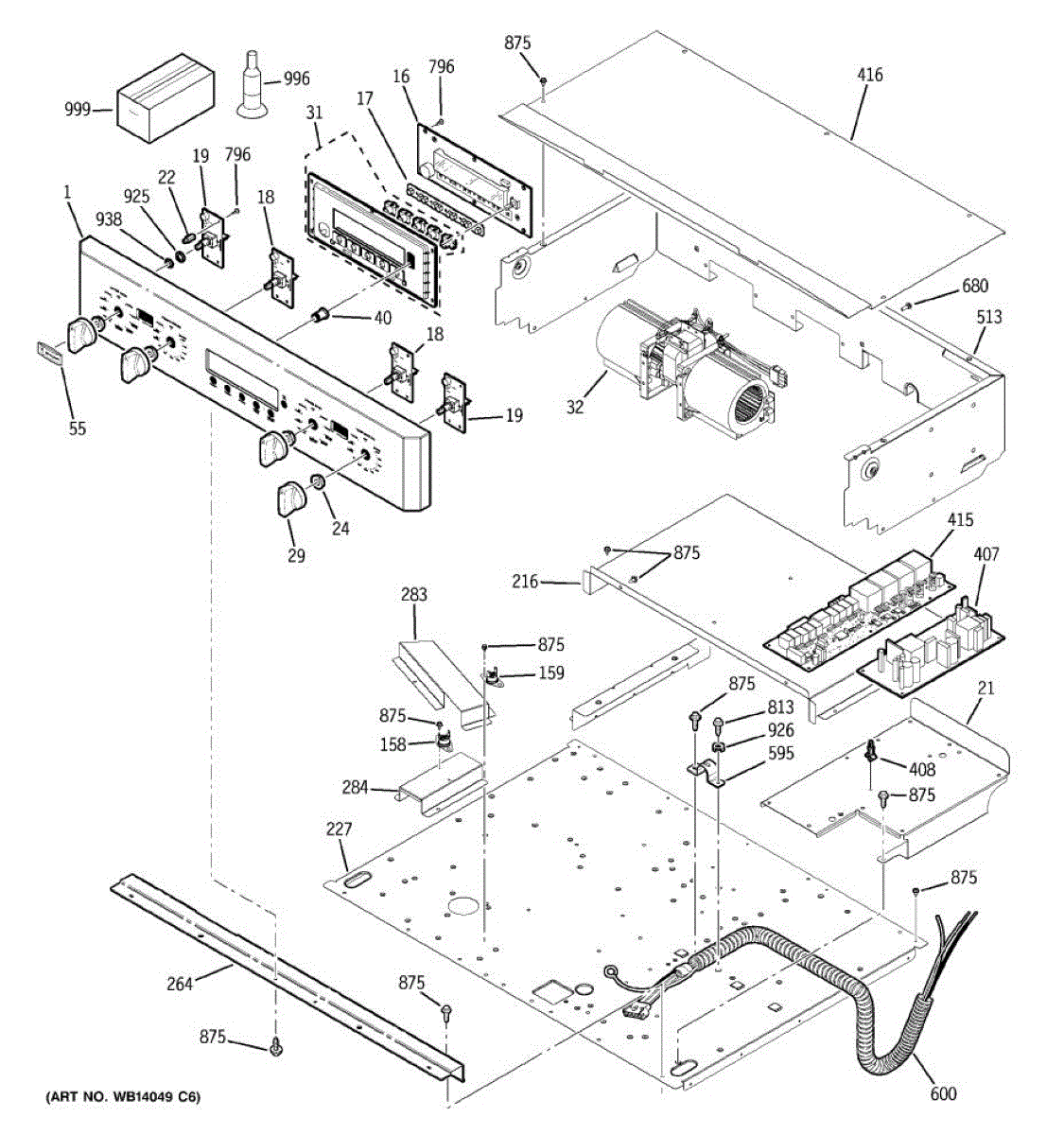

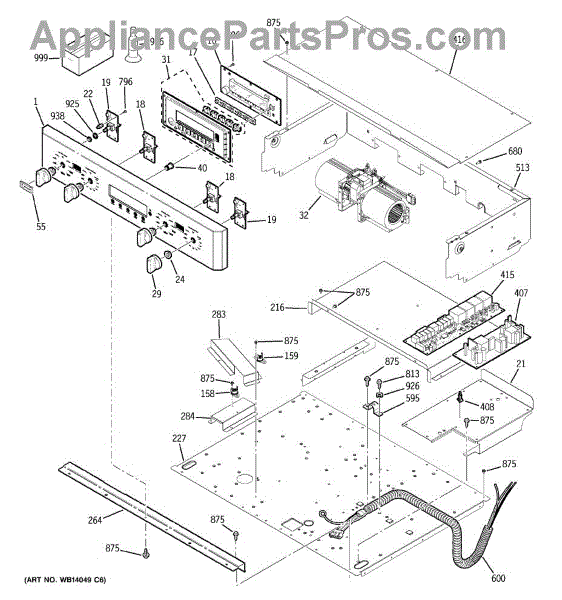

Parts for Ge ZET2SM4SS: 01 - Control Panel Parts

This control panel assembly restores the front console and user controls on a 30" range so you can select oven and cooktop settings easily and reliably. It replaces a damaged or non-responsive control panel to return normal operation. What it does:

• Houses the oven and cooktop control buttons/knobs and display for user input
• Routes signals from user controls to the range's control electronics
• Commonly used when buttons, touch controls, or the display are cracked, worn, or unresponsive
• Helps stop intermittent control failures caused by damaged front-panel components

• One control panel assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Some models require removing trim or bezels; retain screws and hardware for reassembly
• Handle the assembly carefully to avoid damaging the display or ribbon connectors

The Display Control Board is an OEM component specifically designed for GE electric ovens. This control board oversees the oven's electronic display interface and touch controls.

Causes of a bad control board can include moisture damage, excessive heat exposure over time, or physical impacts that affect the board's electronic pathways and components.

Symptoms of a bad control board include:

• Touch pad or buttons that do not respond properly
• Error codes or diagnostics that will not clear
• Display screen issues such as flickering, lines, or blank sections
• Inability to accurately sense temperature or time functions

This replacement is also compatible with Hotpoint, RCA, and select Kenmore electric oven models.

This control panel bushing cushions and supports the appliance control panel, helping prevent wear where the panel contacts the cabinet. It restores proper panel fit and can reduce rubbing, vibration noise, and edge damage. What it does:

• Acts as a spacer/cushion between the control panel and cabinet to prevent metal-on-metal contact
• Helps maintain correct panel alignment and fit
• Reduces squeaks, rattles, and vibration-related noise from the control area
• Protects panel edges and mounting points from wear and abrasion

• One control panel bushing as shown

• Disconnect power to the appliance before beginning any work
• Generally accessed by removing the control panel or its trim; retain all mounting hardware
• Inspect surrounding mounting holes and clips; replace if damaged

This replacement fan blower drives the microwave's venting and cooling airflow. The motorized blower moves air through the unit to protect internal components and exhaust steam and odors—restoring proper airflow and reducing noise when the original fails.

• Provides forced airflow to cool the magnetron/electronics and vent cooking vapors
• Symptoms of a failing blower: weak or no airflow at the vent, loud rattling/squealing, or excessive vibration
• Inadequate airflow can cause the unit to overheat and shut off until cooled
• Also commonly referred to as the blower motor/assembly

• Disconnect power before service; microwaves can retain dangerous high voltage even when unplugged
• Access often requires removing the microwave from its installation
• Set the blower orientation to match your venting configuration (recirculating/top/rear) per your service manual
• Transfer any mounting hardware or seals from the original part if needed

A small adhesive MG logo emblem that restores the original appearance of your appliance. This peel-and-stick badge replaces a worn, faded or missing logo to keep the exterior looking factory-fresh. What it does:

• Cosmetic replacement for a missing, scratched or faded MG emblem
• Adheres to control panels, doors or trim where the original badge was located
• Restores brand identification and a finished appearance to the appliance
• Simple adhesive design avoids the need for fasteners or tools

• Clean and dry the mounting surface before applying to ensure good adhesion
• Peel backing and press firmly in place, aligning carefully before contact
• Avoid repositioning once attached; removal may damage the emblem or finish
• For safety, disconnect power before working near electrical controls or panels

This limit switch interrupts power to a heating circuit when an over-temperature or unsafe condition is detected, helping prevent damage and unsafe operation. It's a direct-replacement safety control for affected appliances. What it does:

• Opens the circuit to stop heating when a temperature limit or fault condition is reached.
• Prevents overheating that can cause component damage or unsafe operation.
• Can cause no-heat, intermittent heating, or cycling behavior when failed.
• Works as a safety shutoff in heating systems and related control circuits.

• Disconnect power (unplug or shut off breaker) before accessing or replacing the switch.
• Access usually requires removing a panel or control housing; keep track of fasteners and wire locations.
• Handle terminals carefully and reconnect exactly as found; confirm secure wire connections.

This bimetal limit switch monitors a radiant surface element's temperature and opens the circuit if it overheats, helping your cooktop maintain safe, consistent heating while protecting wiring and controls from damage. What it does:

• Senses surface element temperature via a bimetal sensor
• Opens/closes the circuit to limit element temperature and prevent overheating
• Helps the burner cycle properly for more consistent heat
• Common symptoms: no heat, low heat/cycles off too soon, overheating, or erratic cycling

• One bimetal limit switch

• Disconnect power at the breaker before servicing
• Access the element, note wire positions, and transfer leads to the new switch one at a time
• Mount firmly to the element/bracket so the sensor has correct contact
• Do not bend or adjust the sensor; replace if damaged

This oven exhaust duct channels hot air and cooking fumes out of the oven cavity to the range venting system, helping maintain proper oven temperature and reduce smoke or odors. Replace a damaged or corroded duct to restore correct venting. What it does:

• Directs hot air and combustion/steam fumes from the oven cavity into the vent ductwork
• Helps maintain consistent oven temperature by providing a clear exhaust path
• Can reduce smoke, burning smells, or poor broil performance when functioning properly
• Prevents loose metal or debris from obstructing the vent path

• One oven exhaust duct

• Disconnect power to the range (and gas supply if applicable) before beginning work
• Access typically requires removing the oven back panel or range back; keep fasteners for reinstallation
• Watch for sharp sheet-metal edges and wear gloves and eye protection
• Reinstall panels and secure all fasteners; test oven operation and venting after replacement

This relay board assembly switches line power to the range/oven's heating circuits under the direction of the electronic control, helping restore reliable bake/broil operation when relays or board components fail. What it does

• Controls power to the bake and broil elements via onboard relays
• Executes low-voltage commands from the control to switch high voltage to the heating circuits
• Failure symptoms can include no heat in bake or broil, one element not working, or intermittent heating
• Burn marks or a stuck/clicking relay on the board may be visible indicators of failure

• 1 relay board assembly

• Disconnect power at the breaker before servicing; this board carries live voltage
• Access location varies by model; photograph and label all wires for correct reassembly
• Handle the board by its edges and observe ESD precautions
• Ensure all connectors are fully seated and the board is securely mounted before restoring power

This replacement screw is used in refrigerators to fasten specific components. Replace a lost or damaged fastener to restore a secure, factory hold so brackets, panels, or covers stay properly mounted and rattle-free.

• Secures the designated component per your model's parts diagram
• Replaces missing, stripped, or corroded hardware
• Helps eliminate looseness, vibration, or rattling from unsecured parts
• Supports proper alignment and fit after service

• Disconnect power to the refrigerator before servicing
• Match this screw to the original location using your model's parts diagram
• Hand-start threads to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver for the screw head style

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

Black. 8-18 AB HXW 3/8

This encoder is the motor speed sensor used on many front-load and top-load washing machines to monitor drum/motor rotation and help control cycle speed and direction. Replacing a faulty encoder restores accurate speed feedback for reliable operation. What it does

• Detects motor/drum rotation and sends speed signals to the washer control board
• Helps the control board regulate spin and agitation speeds
• Commonly associated with symptoms like no spin, no agitation, erratic cycle behavior, or drive-related error codes
• Works as part of the drive/motor control system; proper alignment and secure connection are required for correct readings

• Disconnect power before accessing the washer motor or control wiring to avoid shock or injury
• Handle the encoder and wiring harness carefully; avoid pulling on wires or bending terminals
• Verify connector seating and secure mounting to ensure accurate sensor readings
• After installation, run a diagnostic or test cycle to confirm normal spin/agitation operation

This nut secures the control panel encoder shaft so the selector knob stays firmly in place and maintains reliable signal contact. A small but essential fastener for stable user control and consistent cycle selection. What it does:

• Secures the encoder/shaft to the control panel assembly to prevent wobble or loosening
• Helps keep the encoder's electrical contact aligned for accurate signal input
• Can resolve symptoms like a loose or spinning selector knob or intermittent control responses
• Designed for direct replacement of the original mounting nut for the encoder

• One nut encoder (quantity: 1)

• High-level task: remove control panel or console to access the encoder shaft; reassemble panels after replacement
• Use proper tools to avoid stripping the nut or damaging the encoder shaft
• Power off and unplug the appliance before beginning any work to avoid shock or damage

This lubricant/cleaner is used during service of cooking appliances to dissolve residue and provide light lubrication on small moving parts. It helps restore smoother operation of control shafts and valves when burner knobs feel stiff or sticky. What it does:

• Cleans deposits and old grease from control shafts and valve components
• Provides light lubrication to reduce friction and sticking
• Helps address symptoms such as hard-to-turn burner knobs or rough valve rotation
• Supports preventative maintenance during range/cooktop service

• Lubricant/cleaner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Work in a well-ventilated area and keep away from open flames or ignition sources
• Apply sparingly per service instructions; avoid contact with igniters, electrical components, and flame ports
• Replace any worn or leaking valve—do not rely on lubricant/cleaner to correct a leak
