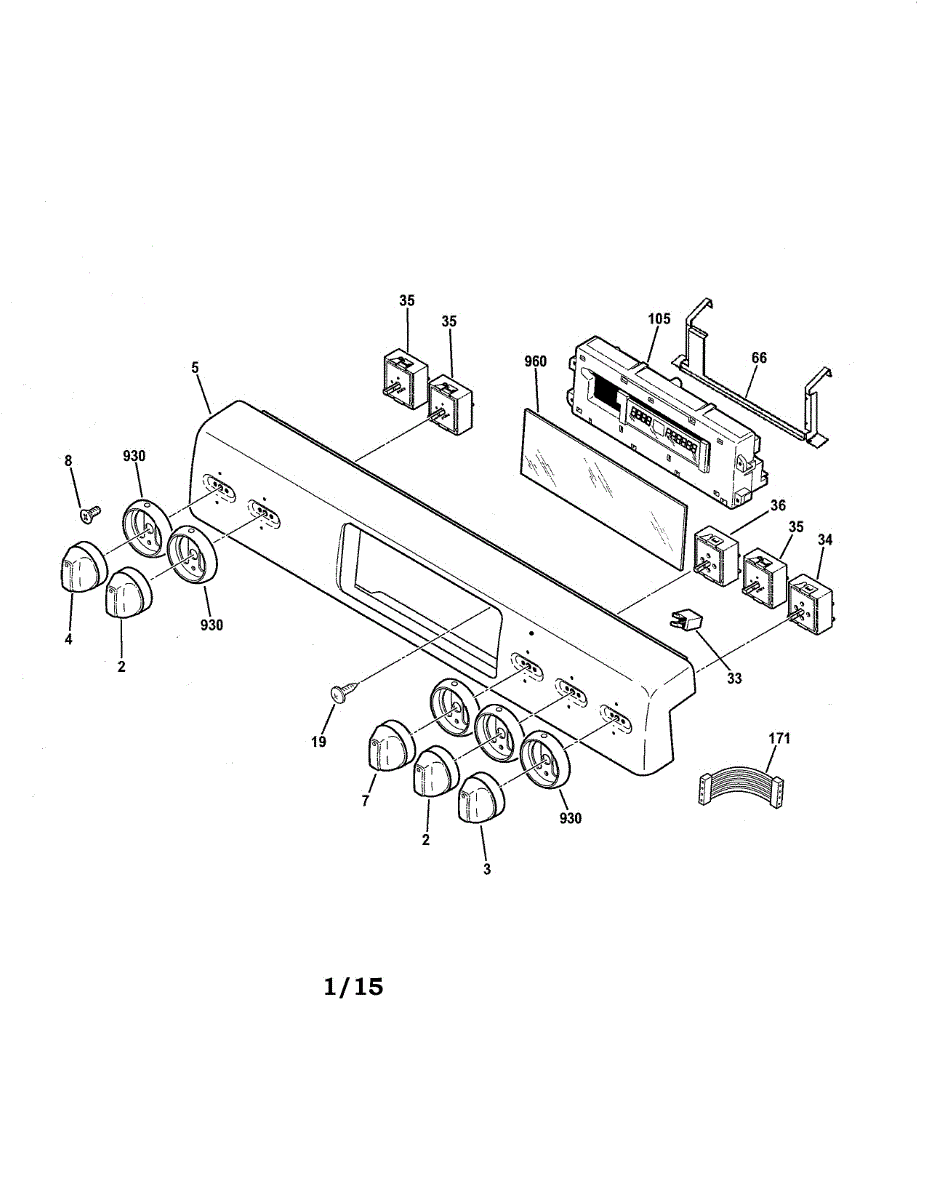

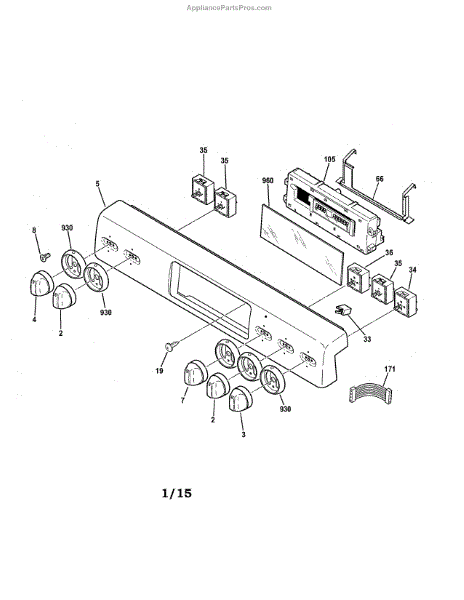

Parts for Ge CS975SD2SS: Control Panel Parts

Replacement burner control knob for your range. Restores control of stovetop burners when original knob is cracked, broken, loose, or missing.

Control knob for range burner selection. Installs on control panel to replace cracked, loose, or missing knobs. Push-on design restores secure turning.

This knob assembly is the control knob used to select settings on a range or cooktop. It restores user control and replaces damaged, loose, or missing knobs so burners and oven functions can be adjusted safely and accurately. What it does:

• Replaces a cracked, stripped, or missing control knob to restore manual control
• Allows selection of heat levels and oven/burner functions with a secure fit
• Resolves symptoms like a knob that won't turn, slips on the shaft, or won't stay set
• Fits standard control shafts commonly used on GE ranges and cooktops

• One knob assembly

• Disconnect power to the appliance before removing or installing the knob
• Most installations are simple: pull the old knob straight off the control shaft and push the new knob onto the splined shaft until it seats
• If the knob is tight or stuck, use a gentle rocking motion; avoid excessive force to prevent shaft damage

This SCR (silicon controlled rectifier) is a replacement electronic control component used to regulate power to heating elements and motors in compatible appliances. It restores proper switching to help the appliance run reliably. What it does:

• Controls and switches electrical current in oven/range control circuits and other appliance modules
• Helps the appliance reach and maintain proper heat or motor operation by enabling precise power delivery
• Commonly replaces a failed or intermittent rectifier that causes inconsistent heating, no heat, or erratic motor behavior
• Matches the OEM function and form for straightforward replacement when the original SCR is damaged

• One SCR 8-18 1/4 replacement rectifier

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the part carefully; avoid touching terminals and use proper ESD precautions when required
• Verify wiring and terminal orientation match the original part before final installation

Replacement mounting screw that secures the thermostat assembly to your range cabinet. Replace if stripped, missing, or damaged during repair work.

Pilot indicator light mounts in the control panel and illuminates when a surface element or heating circuit is powered. Replace if burned out or stuck on.

Burner won't heat or stays on constantly? The infinite control switch regulates burner temperature. Simple DIY fix with basic tools in under 30 minutes.

This control switch activates the surface-burner spark ignition when you turn the knob to Lite. Replacing a worn switch restores consistent lighting and can stop unwanted, continuous clicking caused by a stuck switch. What it does:

• Closes the ignition circuit to the spark module to light a surface burner when the knob is turned
• Typical symptoms: no spark from a specific knob, intermittent ignition, or continuous clicking with knobs in the Off position
• Heat, spills, and moisture intrusion can damage the switch over time

• 1 control switch

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Remove the knob and front/top panel as needed to access the switch on the burner valve
• Transfer wires one at a time to the new switch; mount in the same orientation and secure
• Restore power and gas; test for proper spark at each burner before reassembly

Burner won't change heat settings or stays on one temperature? This infinite switch restores adjustable control to your range's surface elements.

This electronic oven control replaces the range's main user interface and control module to restore bake, broil, timing, and display functions. It provides the board and display assembly that directs oven heating cycles and user commands. What it does:

• Manages oven bake/broil cycles, timers and clock display
• Processes touchpad/selector inputs so oven responds to user settings
• Controls relay outputs that signal heating elements and safety circuits
• Commonly used when the display is blank, touchpad is unresponsive, or oven will not start heating

What's included:

• One electronic oven control assembly (ERC3HP) as shown

Install notes:

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle the control and display carefully to avoid static or physical damage
• Reconnect all wiring harnesses and secure mounting screws per factory orientation

Decorative trim skirt that fits around range control knobs on the front panel. Replace if cracked, disintegrating, melted, or missing for a clean look.
