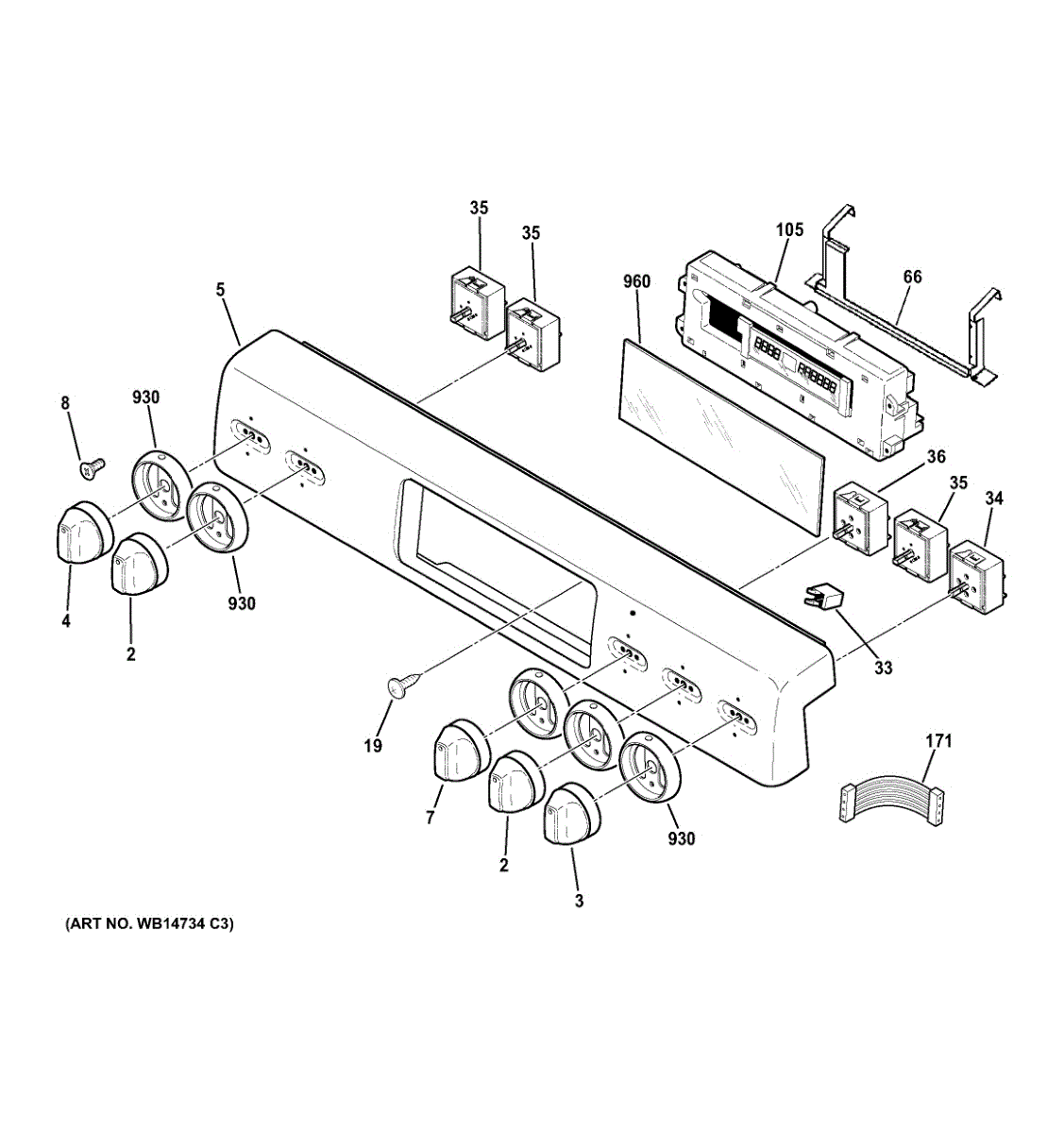

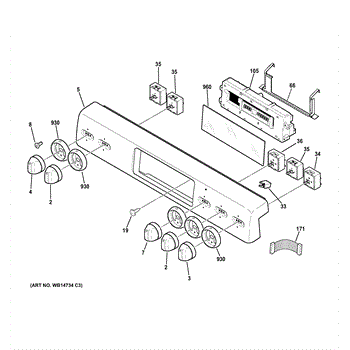

Parts for Ge CS975SD3SS: Control Panel Parts

This replacement knob assembly restores control of a range/stovetop burner by providing a secure, splined interface with the control shaft. It replaces a cracked, loose, or missing front burner control knob so you can adjust heat safely and accurately. What it does:

• Replaces a damaged or missing left-front or right-front control knob so the burner can be selected and adjusted
• Provides a secure fit on the control shaft to prevent slipping or accidental changes
• Helps eliminate cracking, chipping, or worn spline issues that make the knob hard to turn
• Restores tactile control for precise temperature selection

• One knob assembly for a left-front or right-front control

• Disconnect power to the appliance before starting; if the appliance uses gas, turn off the gas supply
• Pull the old knob straight off the control shaft; align splines and push the new knob firmly onto the shaft
• Test knob operation after installation; do not force if misaligned—re-seat and try again
• If control or switch is damaged, replace that component rather than forcing a knob onto a damaged shaft

Right-rear control knob for a range or cooktop — replaces a cracked, loose, or missing knob to restore reliable burner selection and improve user control. Simple push-on replacement returns secure turning and accurate zone selection. What it does:

• Replaces the damaged or missing right-rear range/cooktop control knob
• Provides a secure grip for turning the control shaft to select burner/heat settings
• Helps stop slipping, wobbling, or stripped-knob symptoms that prevent proper selection
• Matches the original knob shape to restore correct alignment and operation

• Always turn controls off and disconnect power (or shut off gas) before servicing
• Pull the old knob straight off the control shaft; align and push the replacement fully onto the shaft until secure
• Do not force the knob onto a damaged shaft; if the shaft or switch is worn, it may need repair or replacement

This knob assembly is the control knob used to select settings on a range or cooktop. It restores user control and replaces damaged, loose, or missing knobs so burners and oven functions can be adjusted safely and accurately. What it does:

• Replaces a cracked, stripped, or missing control knob to restore manual control
• Allows selection of heat levels and oven/burner functions with a secure fit
• Resolves symptoms like a knob that won't turn, slips on the shaft, or won't stay set
• Fits standard control shafts commonly used on GE ranges and cooktops

• One knob assembly

• Disconnect power to the appliance before removing or installing the knob
• Most installations are simple: pull the old knob straight off the control shaft and push the new knob onto the splined shaft until it seats
• If the knob is tight or stuck, use a gentle rocking motion; avoid excessive force to prevent shaft damage

This SCR (silicon controlled rectifier) is a replacement electronic control component used to regulate power to heating elements and motors in compatible appliances. It restores proper switching to help the appliance run reliably. What it does:

• Controls and switches electrical current in oven/range control circuits and other appliance modules
• Helps the appliance reach and maintain proper heat or motor operation by enabling precise power delivery
• Commonly replaces a failed or intermittent rectifier that causes inconsistent heating, no heat, or erratic motor behavior
• Matches the OEM function and form for straightforward replacement when the original SCR is damaged

• One SCR 8-18 1/4 replacement rectifier

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the part carefully; avoid touching terminals and use proper ESD precautions when required
• Verify wiring and terminal orientation match the original part before final installation

This is a replacement mounting screw for the refrigerator/freezer thermostat assembly. It secures the thermostat to the cabinet so temperature sensing and control remain stable and reliable. What it does:

• Secures the thermostat housing or bracket to the appliance cabinet
• Keeps the thermostat properly positioned for accurate temperature sensing
• Common fix when a loose, missing, or stripped thermostat fastener causes rattling or poor contact
• Small hardware part used during thermostat replacement or reassembly

• One thermostat mounting screw

• Turn off power to the appliance before starting any repair
• Use appropriate screwdriver and do not overtighten to avoid stripping the housing or threads
• If original hole or threads are damaged, inspect bracket or cabinet and replace as needed

The Infinite Control Switch is an OEM part for GE ranges and cooktops. This switch regulates the heat levels of the burners, allowing users to adjust the cooking temperature to their desired setting. It ensures that each burner provides consistent and controllable heat for precise cooking.

Causes of a bad infinite control switch can include regular wear and tear, electrical surges, or damage from spills and splashes. Over time, these factors can lead to the switch malfunctioning, which may result in poor temperature control or complete failure of the burner.

Symptoms of a bad infinite control switch include:

• The burner not heating up or heating inconsistently
• The burner staying on high heat regardless of the setting
• Difficulty adjusting the burner temperature
• The switch feeling loose or unresponsive

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control switch activates the surface-burner spark ignition when you turn the knob to Lite. Replacing a worn switch restores consistent lighting and can stop unwanted, continuous clicking caused by a stuck switch. What it does:

• Closes the ignition circuit to the spark module to light a surface burner when the knob is turned
• Typical symptoms: no spark from a specific knob, intermittent ignition, or continuous clicking with knobs in the Off position
• Heat, spills, and moisture intrusion can damage the switch over time

• 1 control switch

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Remove the knob and front/top panel as needed to access the switch on the burner valve
• Transfer wires one at a time to the new switch; mount in the same orientation and secure
• Restore power and gas; test for proper spark at each burner before reassembly

This electronic oven control replaces the range's main user interface and control module to restore bake, broil, timing, and display functions. It provides the board and display assembly that directs oven heating cycles and user commands. What it does:

• Manages oven bake/broil cycles, timers and clock display
• Processes touchpad/selector inputs so oven responds to user settings
• Controls relay outputs that signal heating elements and safety circuits
• Commonly used when the display is blank, touchpad is unresponsive, or oven will not start heating

• One electronic oven control assembly (ERC3HP) as shown

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle the control and display carefully to avoid static or physical damage
• Reconnect all wiring harnesses and secure mounting screws per factory orientation

The Skirt is an OEM replacement part for GE cooktops and ranges. It is a trim piece designed to enhance the aesthetic appearance of the appliance and provide a secure fit around the cooktop or burner area. This part also helps protect internal components by covering gaps and exposed areas.

Causes of a damaged skirt can include accidental impact, heat-related wear, or improper cleaning methods. Over time, the material may warp, crack, or become discolored, detracting from the appliance’s appearance and functionality.

Symptoms of a bad skirt include:

• Visible cracks, chips, or warping
• Loose or detached trim around the cooktop
• Gaps exposing internal components
• Difficulty securing the skirt in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
