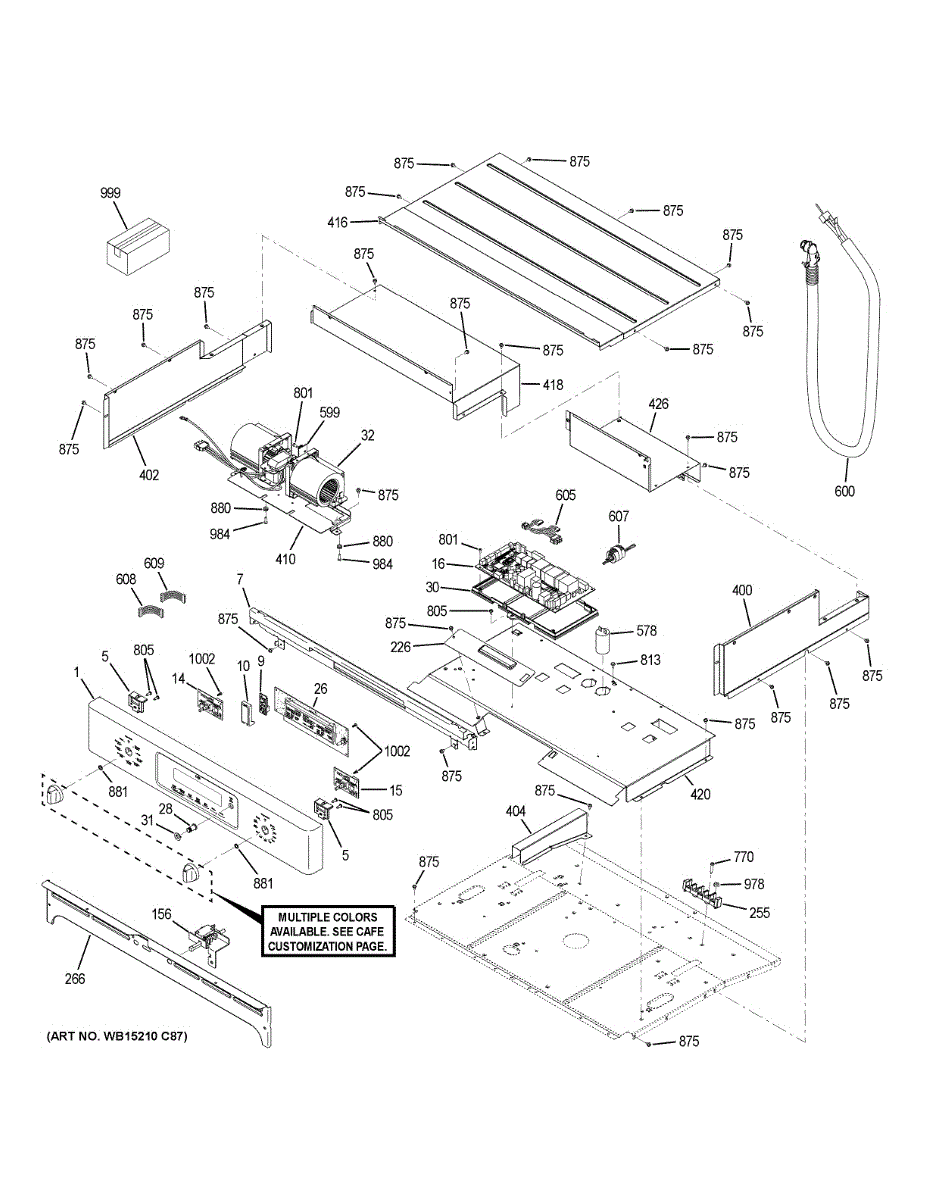

Parts for Ge CTS90FP4M1W2: Control Panel Parts

This control panel support bracket secures the console/upper control assembly to the oven/range frame, keeping the control panel stable and aligned for reliable operation and user access. What it does:

• Supports and stabilizes the front control/console to prevent sagging or wobble
• Keeps control switches, buttons and display aligned for correct operation
• Reduces vibration and rattling noise from a loose console
• Helps maintain proper spacing so knobs and trim install correctly

• One control panel support bracket

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove backguard/console trim to access bracket; retain all fasteners for reassembly
• Use common hand tools (screwdrivers, nut drivers); avoid forcing plastic tabs
• Handle electronic components with care and avoid static discharge

This user interface board mounts behind the selector knob and translates your input to the appliance's control system. Replacing a faulty board restores responsive knob operation so you can scroll and select settings reliably. What it does:

• Interprets knob rotation/press inputs and communicates them to the main control
• Enables scrolling through and selecting settings and menu options
• Typical failure symptoms: knob unresponsive, skips selections, scrolls erratically, or won't change settings
• Causes intermittent or no response from the knob area of the UI

• Disconnect power at the breaker before servicing
• Use ESD precautions; handle the circuit board by the edges
• Note/photograph connector locations; seat ribbon and plug connectors fully
• Transfer any reusable brackets or clips from the original board

This user interface selector knob replaces a worn, cracked, or missing control knob on the appliance control panel to restore reliable setting selection and tactile feedback. It's a direct-fit exterior control for the range/oven control panel. What it does:

• Rotates to select heat, timer, or function settings from the appliance control board.
• Restores a secure grip and clear position feedback when original knob is loose, stripped, or broken.
• Prevents accidental setting changes by providing a firm detent and stable interface.
• Matches original fit and operation for smooth, repeatable control input.

• One control panel user interface selector knob (single knob)

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Usually installs by pulling off the old knob and pushing the replacement onto the control shaft; use a gentle, straight pull/push.
• If knob does not seat or turns freely, inspect the control shaft for damage—do not force the knob.

This machine control board is the appliance's main electronic control that manages cycles, timers and user inputs so the unit runs the selected functions reliably. It replaces a failed control to restore normal operation. What it does:

• Receives signals from buttons, dials and sensors and directs power to the motor, valves and heaters
• Controls cycle timing, start/stop commands and program sequencing
• Commonly used when the appliance won't start, displays error codes, or cycles incorrectly
• Helps resolve intermittent operation or unresponsive controls when board failure is confirmed

• One machine control board

• Disconnect power before accessing or replacing the control to avoid shock
• Handle the board by its edges and avoid touching components or connector pins
• Verify connector locations and orientation before detaching wiring; photograph connections if needed

This UI display board is the appliance's front control interface that shows settings and lets you change options. Replacing a faulty board restores visible status and responsive controls for normal operation. What it does:

• Provides the front-panel display and accepts user input from touchpad/buttons
• Sends control signals to the main control to change modes and temperatures
• Commonly replaced when the display is blank, unresponsive, or shows incorrect/garbled information
• Resolves intermittent control failures or inability to change settings

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the board carefully; avoid touching circuit traces and use anti-static precautions if available
• Reconnect power and test functions before reassembling panels

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This switch plate assembly replaces a cracked or worn control-panel trim on electric ranges and cooktops to restore a clean, secure mounting surface for control switches and knobs. It helps keep controls aligned and protects underlying wiring. What it does:

• Replaces damaged or cracked control-panel trim that can expose switches or wiring
• Provides a stable mounting surface for selector switches and knobs, preventing looseness
• Restores proper fit and appearance to the control area to improve user safety and function
• Reduces the risk of debris or grease entering the switch openings

• Disconnect power to the appliance before starting any repair to avoid shock hazard.
• Remove necessary trim, knobs, or backguard screws to access and replace the plate; keep hardware for reassembly.
• Handle edges and painted surfaces carefully to avoid scratches; align openings for switches and fasteners before tightening.
• If switches or wiring appear damaged, inspect and replace those parts separately—only the plate is included.

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay and fan motor speed based on heating demands during the bake and broil functions.

Causes of a failed Cooling Fan Sensor Board can include moisture damage from spills or steam, faulty soldering connections, or manufacturing defects over time. Electronic components are also susceptible to normal wear from frequent heating cycles.

Symptoms of a bad board fan sensor include:

• Inconsistent or improper temperature control not maintaining set oven temperatures
• Issues with selected convection bake or broil modes not activating properly
• Abnormal fan speeds that do not correlate with heating element operation

It is also compatible with Hotpoint, RCA, and KitchenAid wall ovens and range models using the same electronic control system.

This flexible 6-foot conduit routes and protects power wiring for compatible appliances, providing a neat, durable path for electrical leads and helping prevent kinks or abrasion during installation and service. What it does:

• Shields and organizes the appliance power cord or wiring harness to reduce wear and chafing
• Provides a protected, flexible pathway when extra cable length is needed
• Helps maintain a clean installation and prevents sharp bends near terminals
• Commonly used as an optional accessory when relocating or extending factory wiring

• One 6 ft flexible conduit

• Suitable for use where manufacturer allows optional conduits; follow appliance wiring and grounding instructions
• Disconnect power before installing or routing wiring to avoid shock or damage
• Use appropriate connectors/clamps at both ends to secure conduit and prevent strain on wires

This complete wire harness routes power and signals between an appliance's control board and components, restoring reliable electrical connections for normal operation. Replace a damaged harness to stop intermittent power, control errors, or non-responsive functions. What it does:

• Provides the factory wiring bundle that links the control board to motors, switches, sensors, and lights
• Restores lost or intermittent electrical connections that cause flickering lights or intermittent operation
• Helps resolve control-panel errors and functions that won't respond
• Replaces cracked, frayed, or damaged wires and connectors that can cause shorts or open circuits

• Disconnect power (unplug or turn off house circuit breaker) before beginning any repair
• Inspect connectors and mating terminals for damage; replace if terminals are corroded or excessively worn

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

This silicon controlled rectifier (SCR) switches and regulates power to heating or motor circuits, helping the appliance control temperature and run cycles reliably. It's a direct-fit electronic switching component used in a variety of control systems. What it does:

• Acts as an electronic switch to regulate AC power to heating elements or motors
• Helps control temperature output and maintain consistent cycle performance
• Can prevent unwanted continuous current flow when functioning properly
• Commonly replaced when ovens, ranges, or dryers fail to heat or cycle correctly

• One silicon controlled rectifier (SCR) as shown

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the SCR by its body; avoid touching terminals and static-sensitive areas
• Verify proper orientation and secure mounting; follow OEM wiring and torque practices

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

Black. 8-18 AB HXW 3/8

This nut secures the control panel encoder shaft so the selector knob stays firmly in place and maintains reliable signal contact. A small but essential fastener for stable user control and consistent cycle selection. What it does:

• Secures the encoder/shaft to the control panel assembly to prevent wobble or loosening
• Helps keep the encoder's electrical contact aligned for accurate signal input
• Can resolve symptoms like a loose or spinning selector knob or intermittent control responses
• Designed for direct replacement of the original mounting nut for the encoder

• One nut encoder (quantity: 1)

• High-level task: remove control panel or console to access the encoder shaft; reassemble panels after replacement
• Use proper tools to avoid stripping the nut or damaging the encoder shaft
• Power off and unplug the appliance before beginning any work to avoid shock or damage

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified
